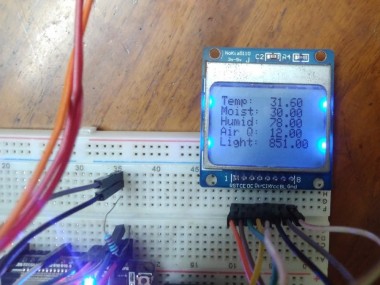

Iot Plant Monitoring With Live Dashboard And Display Lcd

About the project

It is a system made using ESP32 for monitoring the various factors required for plants to grow. It provides a live IOT dashboard that can be

Project info

Difficulty: Moderate

Platforms: ArduinoSparkFunEspressif

Estimated time: 2 days

License: MIT license (MIT)

Items used in this project

Hardware components

MQ-137 Gas NH3 Sensor Module MQ-137 Gas NH3 Sensor Module x 1
Nokia 5110 LCD Display Module 84 x 48 Nokia 5110 LCD Display Module 84 x 48 x 1
LDR, 5 Mohm LDR, 5 Mohm x 1
DHT11 Temperature & Humidity Sensor (4 pins) DHT11 Temperature & Humidity Sensor (4 pins) x 1
SparkFun Soil Moisture Sensor (with Screw Terminals) SparkFun Soil Moisture Sensor (with Screw Terminals) x 1
Espressif Generic ESP32 IC Espressif Generic ESP32 IC x 1

Software apps and online services

Breadboard, 170 Pin Breadboard, 170 Pin
myDevices Cayenne myDevices Cayenne
Arduino IDE Arduino IDE

Hand tools and fabrication machines

Jumper Wires Jumper Wires x 1
Breadboard Breadboard x 1

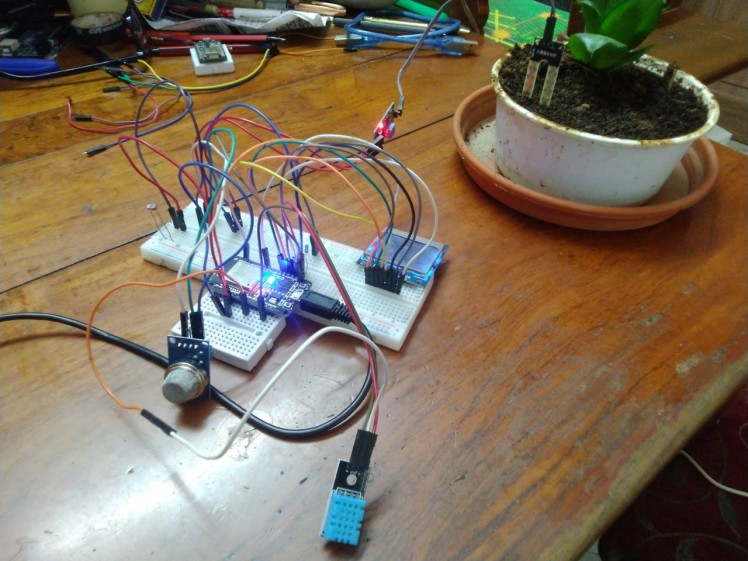

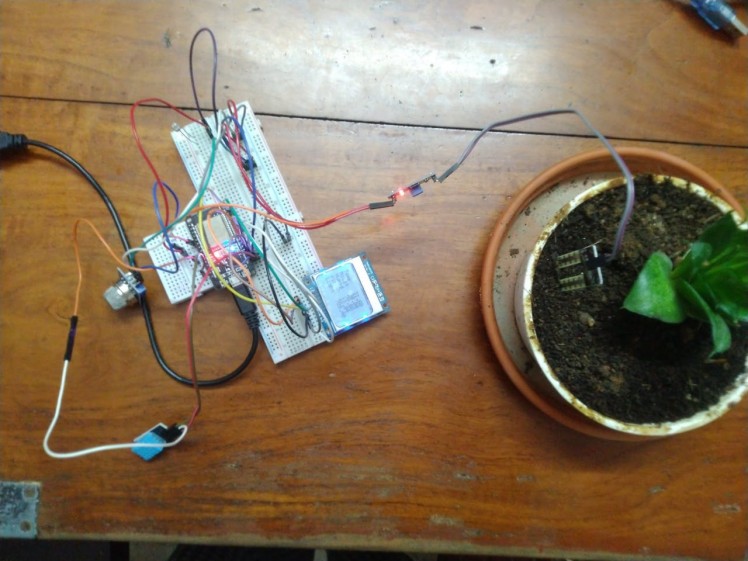

IOT Plant Monitoring with Live Dashboard and Display LCD

Most plant monitoring systems are only able to be monitored in local area networks as accessing the system from outside the local network becomes costly or difficult. I decided to make such a plant monitoring system but with the added ability to access the various values FROM ANYWHERE IN THE WORLD.

What it does

It can monitor my garden statistics in a very detailed graphical format from anywhere in the world. As I am the dashboard ADMIN, I can even make some changes in the dashboard and make some analysis. Even others can monitor the garden sensor values with just a simple link.

Setup Cayenne Dashboard for ESP32

If you do not have an account on Cayenne, create an account from the following link:

In this project we are using ESP32 so select “Bring Your Own Thing” but if you are using Arduino or Raspberry Pi you may select the same as shown in the screenshot.

By clicking on "Bring Your own thing" we will get the MQTT username and password. Then name the device as ESP32, as shown in the screenshot.

Now open Arduino IDE and install the Cayenne MQTT library or download the library from Github by clicking on the following link:

Also, install ESP32 board package and select your ESP32 board from the Tools menu.

Circuit Connections

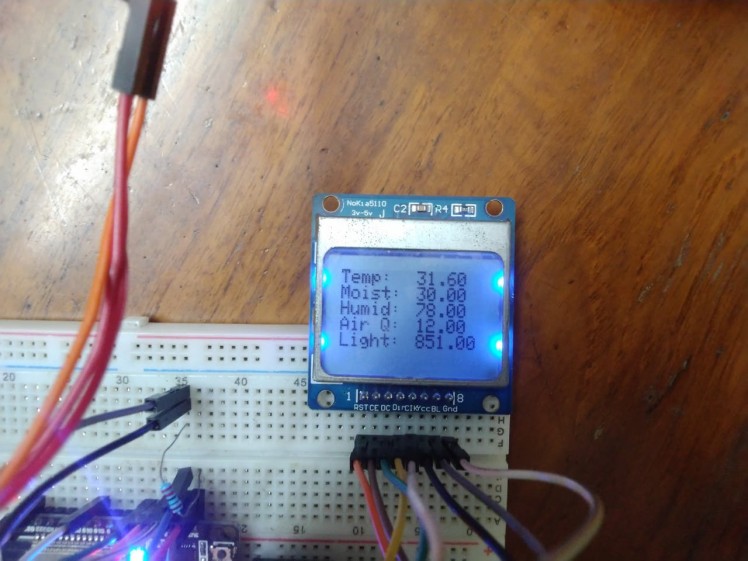

Connections for Nokia 5110 LCD with ESP32

RST <---> GPIO 2 (D2)

CE <---> GPIO 15 (D15)

DC <---> GPIO 4 (D4)

DIN <---> GPIO 23 (D23)

CLK <---> GPIO 18 (D18)

VCC <---> 3.3V

BL <---> 3.3V (through 220Ω Resistor)

GND <---> GND

ESP32 and LDR

Connect one leg of LDR with Pin D33

Connect second (free) leg with +3.3V of ESP32

ESP32 and MQ135 gas sensor

VCC <---> 3.3V

GND <---> GND

A0 <---> D32

ESP32 and DHT11 sensor

VCC <---> 3.3V

GND <---> GND

Signal <---> D27

ESP32 and Soil Moisture Sensor

VCC <---> D25

GND <---> GND

Signal <---> D35

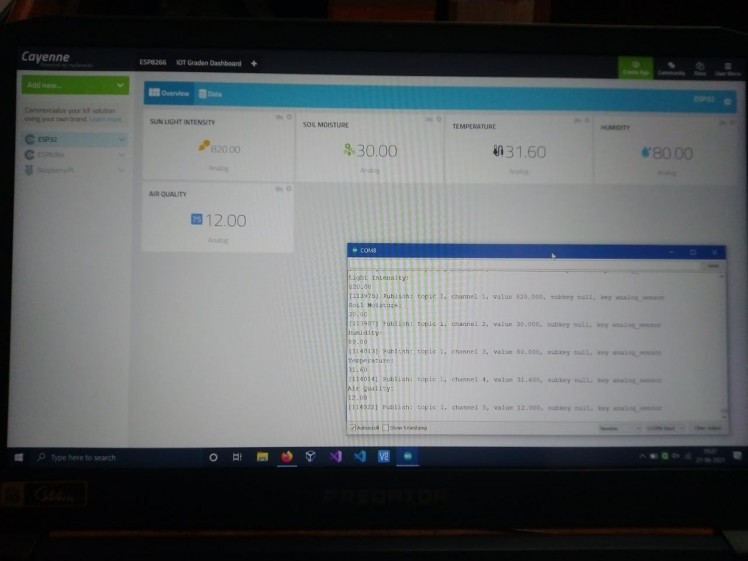

Dashboard View

Dashboard View

Dashboard View

Here's the link for my IOT Garden Dashboard -

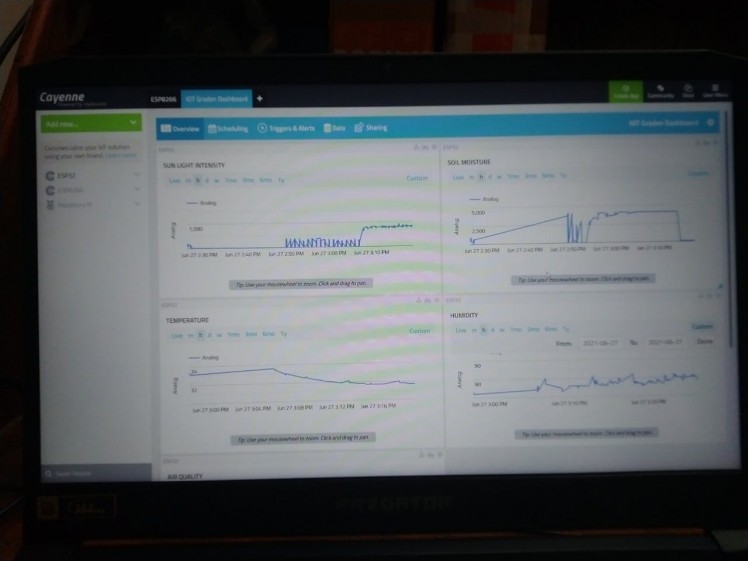

- IT'S LIVE You can see 5 graphs each for sun light intensity, soil moisture, humidity, temperature and air quality. Anyone can access the link from anywhere.


Schematics, diagrams and documents

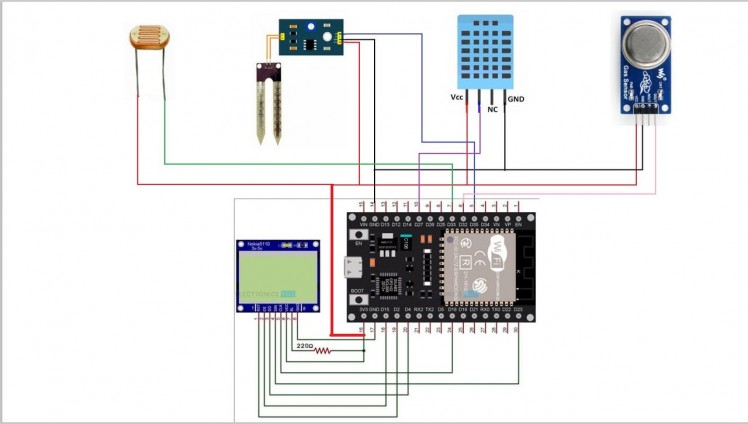

Circuit Diagram


Github Repository
