MEMENTO: Build a Pocket-Sized Python Camera with the ESP32-S3
Ready to put your creativity in the frame? With the Adafruit MEMENTO board, you don’t just take photos—you make them.
MEMENTO is a pocket-sized, ESP32-S3-powered camera board that lets makers snap 5-megapixel photos, preview them on a vibrant TFT, and hack every pixel with beginner-friendly MicroPython and share them online.
Stick around and you’ll discover its core specs, three project ideas to spark your imagination, and the quickest places to grab a board today. Let’s dive in!

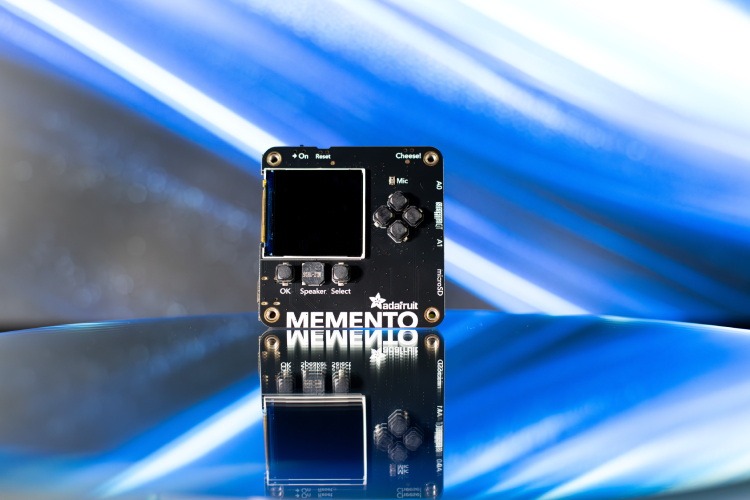

What Is the MEMENTO?
Think of MEMENTO as a high-tech club sandwich: two compact PCBs pressed together—camera, display, and sensors up top; power and brains beneath—giving you a fully portable, hack-ready camera that slips into a shirt pocket yet packs more I/O than some maker benches.
Spec-at-a-Glance
- Camera Sensor: 5 MP OV5640 with on-chip JPEG encoder, 72° FOV, auto-focus
- Preview Screen: 1.54″ 240 × 240 px IPS TFT
- Main MCU: Espressif ESP32-S3 — dual-core 240 MHz, 8 MB flash, 2 MB PSRAM, Wi-Fi + BLE
- Power: USB-C plus onboard Li-Po charger (battery not included)
Why This Board Rocks
- ESP32-S3 Muscle — dual-core 240 MHz, baked-in Wi-Fi & BLE, plus 2 MB PSRAM for buttery-smooth image buffers.
- Auto-Focus 5 MP OV5640 sensor with on-die JPEG encoder—no bit-twiddling required.
- 1.54″ 240 × 240 IPS TFT for live previews and slick UIs.
- Expansion Trifecta —STEMMA QT (I²C), dual A/D STEMMA ports, and UART breakout pads ready for sensors, LEDs, or debug cables.
- Maker Comforts —six clicky buttons, piezo buzzer, MEMS mic, LIS3DH accelerometer, USB-C connector, and on-board Li-Po charger for true portability.
- Open-Source Firmware —official CircuitPython libraries and Arduino examples get you snapping in minutes.
Why it matters: whether you’re teaching image processing, prototyping an IoT doorbell, or just hacking a retro point-&-shoot for fun, MEMENTO’s all-in-one design slashes boilerplate and lets you focus on the creative bits—perfect for classrooms, weekend builds, and rapid R&D.
Projects & Use-Cases
The best thing about MEMENTO? It’s a blank canvas waiting for your next weekend brain-wave. Below are four bite-sized builds that squeeze every pixel, packet, and button out of the board—perfect inspiration for classrooms, hackerspaces, or a rainy Sunday at the workbench.
Portable Retro-Style Camera
Load a lightweight snapshot script, pop in a FAT-formatted microSD, and start snapping 5 MP stills. Use the gallery demo to play an on-board slideshow—instant gratification! Want to blind your friends like it’s 1999? Clip a STEMMA ring-LED to the QT port for a DIY flash and full-face illumination.
IoT Bird-Watcher / Doorbell Cam
Pair MEMENTO with your Wi-Fi and stream JPEGs to an Adafruit IO dashboard. A PIR sensor can trigger shutters and optional MQTT push-alerts so you never miss a feathery visitor—or the postie. The Ruiz Brothers’ IoT Bird Feeder guide walks you through the full build.
FPV RC Vehicle
Mount the board on a micro-car, power it from the Li-Po header, and stream 320 × 240 video over UDP to a smartphone. Drop resolution and FPS to 15 fps for sub-200 ms latency, and keep the Wi-Fi antenna clear of metal chassis parts for the best range on outdoor tracks.
Wrapping Up
Whether you’re chasing bird-feeders in the garden or pixel-perfect sprites in a living-room game, MEMENTO lets you capture the moment—and hack it—on your own terms. Its ESP32-S3 heart, autofocus 5-megapixel eye and maker-friendly I/O mean you spend less time soldering and more time shooting, streaming, and shipping code. From first JPEG to full IoT build, the board grows with your skills, making it a rare gadget that teaches as much as it entertains. If you’ve ever wanted to see electronics, imaging, and Python play together in a pocket-sized chassis, this is your cue. So pick up a unit, point it at something awesome, and let your code turn snapshots into stories that only you could script—right now and everywhere.
👍 Like this article? Drop a comment, smash that subscribe button, and enter our giveaway for a chance to win your own MEMENTO!
Frequently Asked Questions
Does MEMENTO record video with sound?
Still images only; the onboard microphone is provided for basic sound-level sensing—not audio recording.
What’s the maximum microSD card size?
The board has been tested reliably with FAT-formatted cards up to 32 GB.
Can I program the board in Arduino?
Yes—there’s full support via ESP32-S3 cores—but compile times are longer. For rapid iteration, CircuitPython is recommended.
