About the project

Fully RGB controlled Lightsaber!

Project info

Difficulty: Moderate

Platforms: AdafruitArduino

Estimated time: 4 hours

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

Hinged Acrylic Door Panel Cover Hinged Acrylic Door Panel Cover x 1
Hardware 9V Battery Clip Hardware 9V Battery Clip x 1
Tiny Breadboard Tiny Breadboard x 1
ROLL OF COPPER TAPE ROLL OF COPPER TAPE x 1
Jumper Wire Kit - 140pcs Jumper Wire Kit - 140pcs x 1
Pimoroni Micro Dot pHAT w/Red LEDs Pimoroni Micro Dot pHAT w/Red LEDs x 1
Micro SD Card Extender Micro SD Card Extender x 1
Push-button Power Switch Breakout Push-button Power Switch Breakout x 1
Resistor Network - 10K Ohm (6-pin bussed) Resistor Network - 10K Ohm (6-pin bussed) x 1
Pixy 2 CMUcam5 Smart Vision Sensor Pixy 2 CMUcam5 Smart Vision Sensor x 1
ProtoBoard Pro- Double Sided ProtoBoard Pro- Double Sided x 1
DFRobot DFRobot x 1
Arduino MKRFOX 1200 Arduino MKRFOX 1200 x 1

View all

Hand tools and fabrication machines

Hot glue gun (generic) Hot glue gun (generic) x 1
Soldering iron (generic) Soldering iron (generic) x 1

Story

I find your lack of faith disturbing.

A couple of years ago I made an Arduino Lightsaber that could have custom colours applied to it with a colour sensor, it was a messy build and the colours weren’t so great and since then I’ve been thinking of ways I could improve; with the release of Episode IX just recently I thought it was the perfect time to make another one!

Parts.

There’s always a bigger fish.

This time I opted for a solid plastic rod instead of the cylinder I used in the original – from the same company though: SimplyPlastics

This should help in propagating the light and make for a better blade, similar to what I used in my ASMD Shock Rifle project.

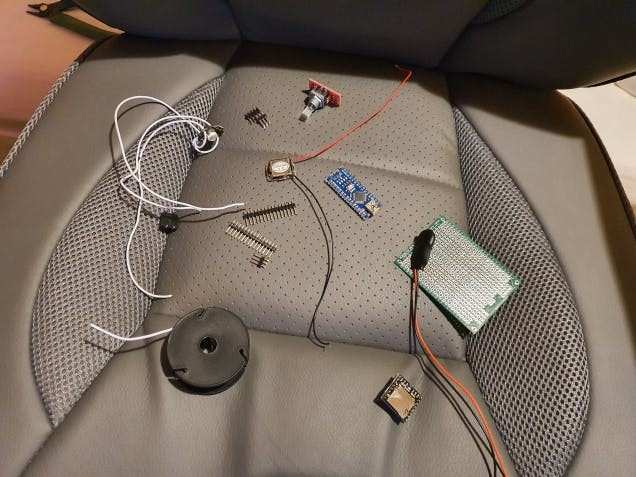

There’s most of the components – including the bone conductor; here’s a quick explanation of what a bone conductor is. I will be using this to attach to the blade, so that the blade itself will emit the sound – something else I didn’t get quiet right last time was the lack of a buzzing sound while the saber was on, so this time it will have that for extra effect.

This is where the DFRobot MP3 player comes in; this will have the sounds of a lightsaber on it which will be played when the saber turns on, while it’s on and when it turns off.

The RGB rotary encoder will be used to cycle through colour selections, clicking it to cycle though and turning it to adjust the colour levels, allowing total customisation.

Lastly the push button will activate/deactive the saber.

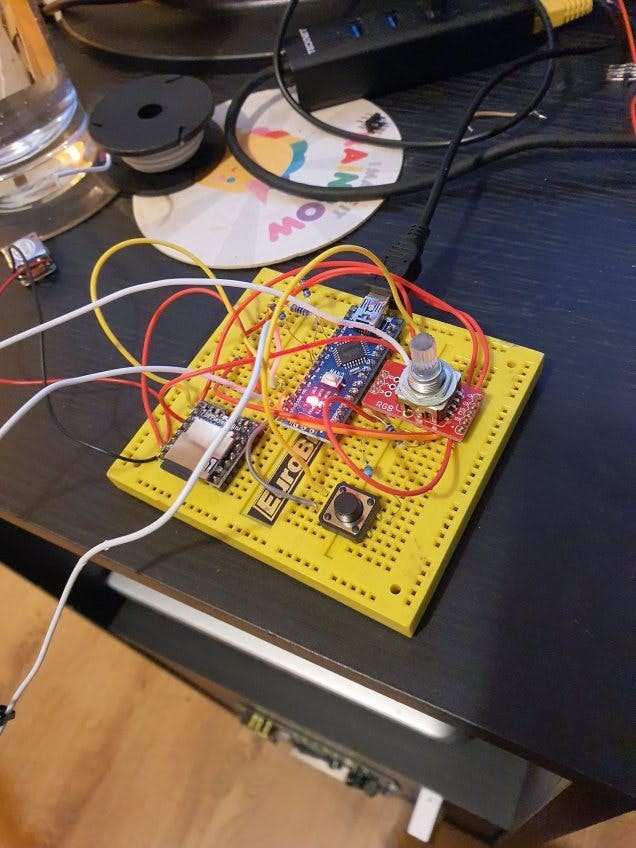

First things up I setup the gear as a prototype using breadboard:

For the button I used this setup, the MP3 player is setup as per these instructions, the Pixie instructions are here,

Getting the SD Card setup is as simple as formatting to FAT and then chucking the MP3’s on with a certain folder structure – as you can see on my GitHub which will be linked down below.

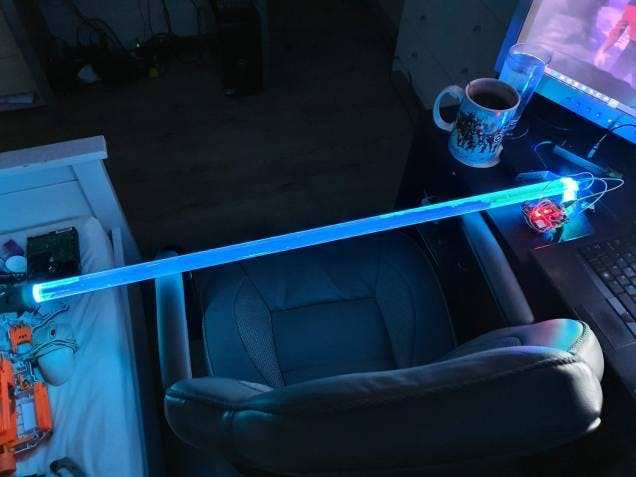

A quick test of the Pixie:

Looking good!

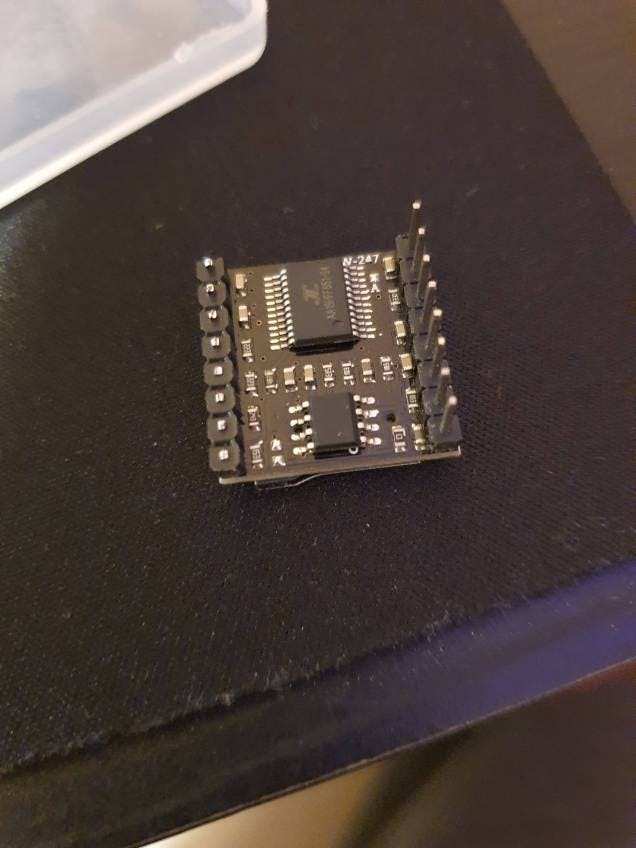

A close up of the DFRobot MP3 player, I’ve snipped off the un-needed pins so it will fit better on the protoboard.

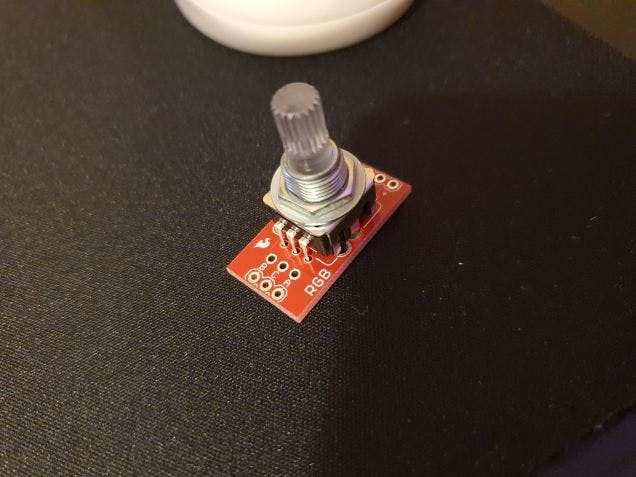

And the rotary encoder – which is on a breakout to make things easier. I wired this in with 3 220ohm resistors leading from GND on the Nano to the RGB pins, then I setup the button pin the same way as the push button from above.

The BCA pins I directly connected to pins 4, 5 and 6 on the Nano.

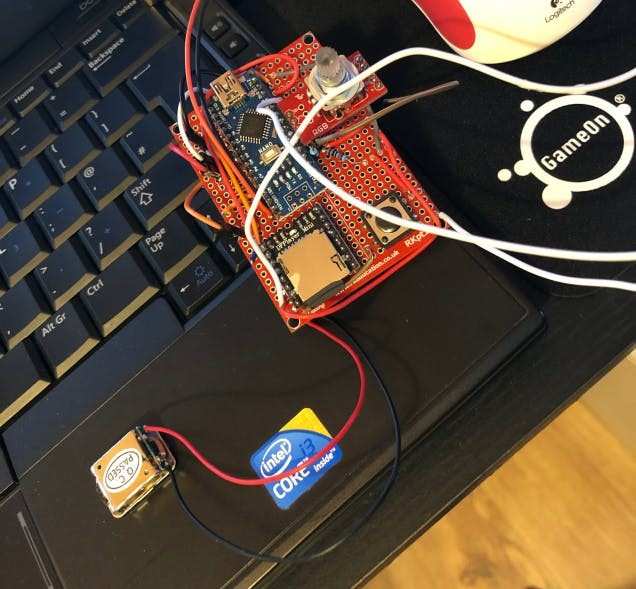

After testing the sounds, the RGB adjustment and the blade on/off modes I soldered the whole board up – including now the 9v battery connector, black wire to GND and red wire to VIN:

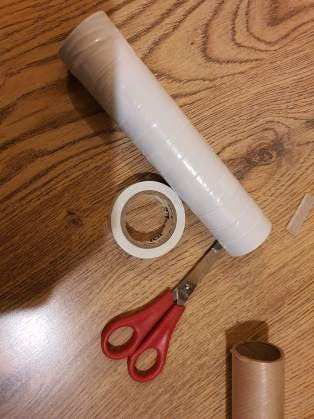

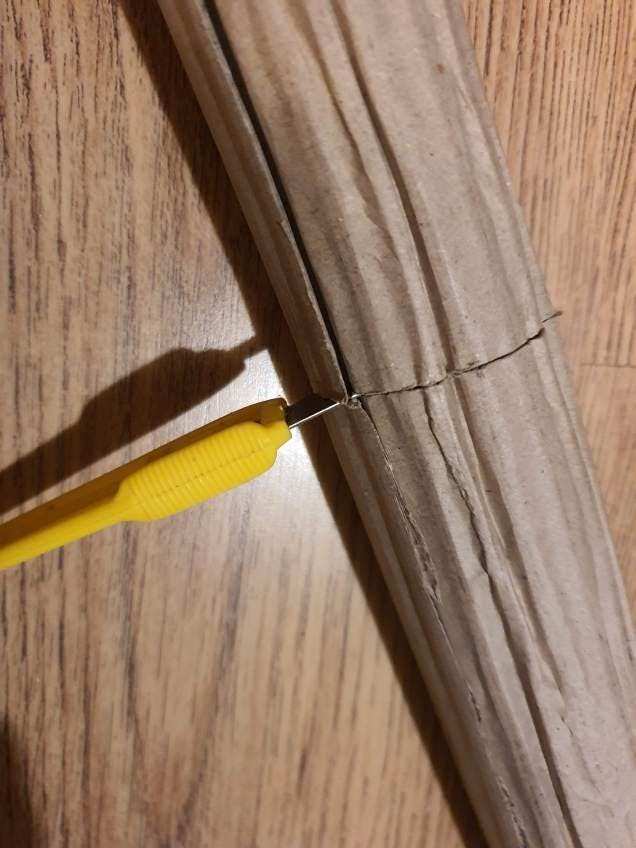

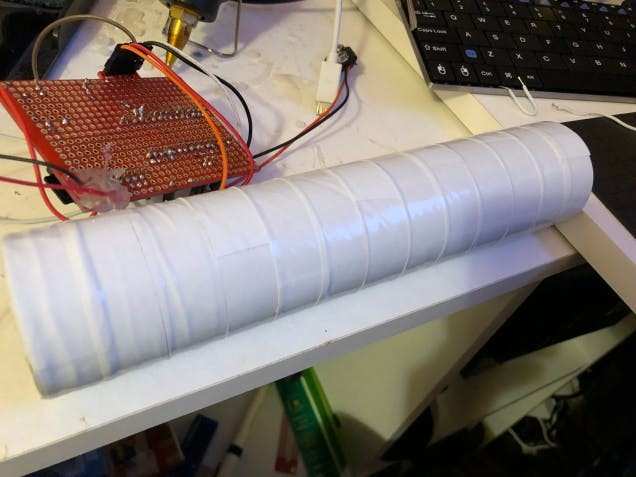

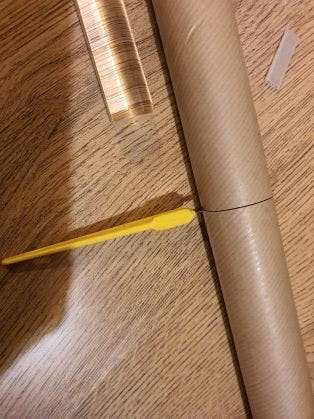

Then to make the handle I got the cardboard tube the plastic rod came in and cut it to size and wrapped around with electrical tape, because up-cycling:

20191226_193147

20191226_193147

20191226_193147

20191226_193839

20191226_193839

20191226_193839

Then to help hold the rod in place I used the inner cardboard that also came with the delivery:

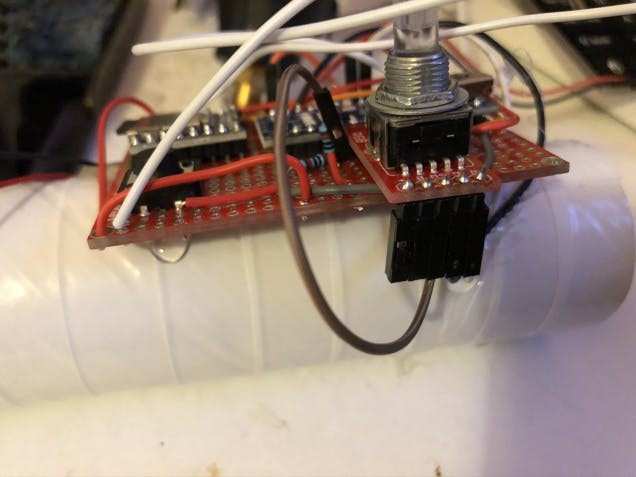

With that ready it was time to glue the main board on:

1 / 2

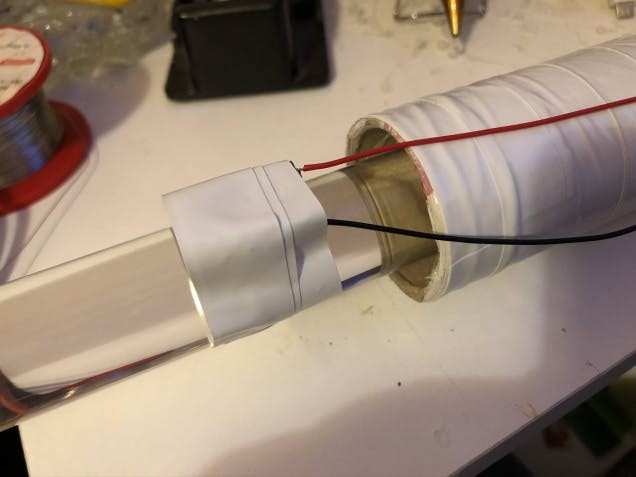

Next up is strapping the bone conductor to the plastic rod itself to get the sound to go through it:

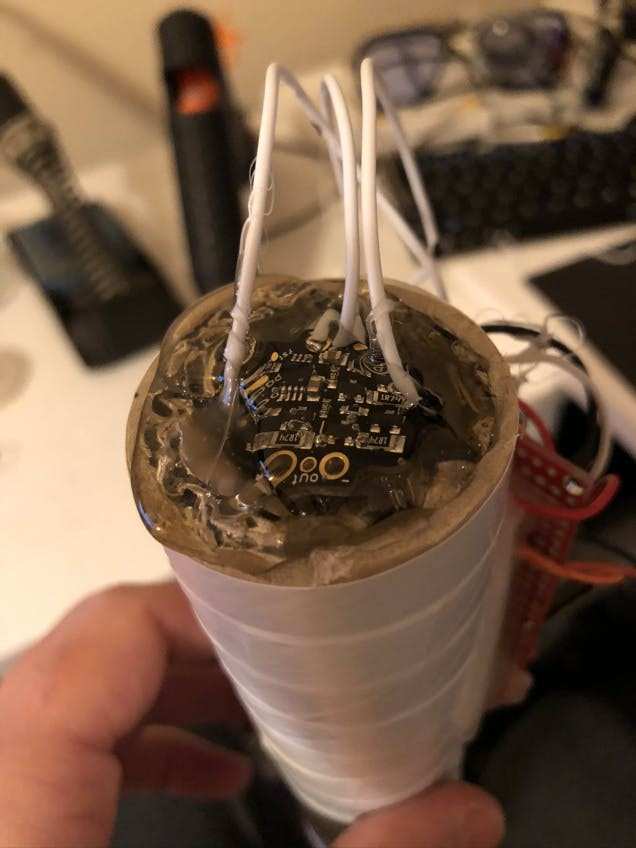

Then the Pixie in through the bottom with about 10 tons of hot glue to hold it onto the bottom of the rod:

Then loads more tape on to hold the blade to the handle:

IMG_6393

IMG_6393

IMG_6393

IMG_6394

IMG_6394

IMG_6394

IMG_6395

IMG_6395

IMG_6395

IMG_6396

IMG_6396

IMG_6396

Also you can see I’ve got the battery connector taped on, the battery is a bit loose at the moment but I can’t permanently attach it for obvious reasons; I may find a better way to do this in future.

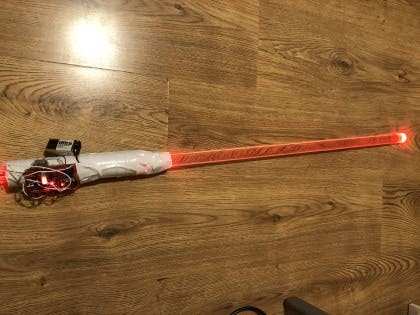

And the main hardware is done:

IMG_6397

IMG_6397

IMG_6397

1 / 2IMG_6398

IMG_6398

IMG_6398

IMG_6402

IMG_6402

You can’t stop the change, any more than you can stop the suns from setting.

You can grab the code from My GitHub.

A lot of the code was taken from my RGB Potion project, which also used a rotary encoder to change RGB values on an LED.

IMG_6399

IMG_6399

IMG_6399

IMG_6400

IMG_6400

IMG_6400

IMG_6401

IMG_6401

IMG_6401

In order to get the timings working correctly on the buzz sound and not have the program stop every time it plays (which would interfere with the rotary controls and the on/off button) I used the instructions from here. This basically sets up a timer so that when a certain number of milliseconds have elapsed the program does something, but without pausing the code with clunky delays.

I have it setup to match the length of the buzz MP3 which is around 3000 milliseconds.

The rest of the code is setting up the required pin input outputs, the controls for the Pixie and for the DFPlayer. You can find instructions here and here.

I’m just a simple man trying to make my way in the universe.

The saber works so well and is way too much fun. I had more fun with it than I did watching Episode IX.

As you can see in the video the blade light does cut out every 3 seconds, when the MP3 player kicks in, I’m fairly certain this is due to the fact they both use softwareserial to work so they interfere with each other – I’ve tried with the buzzing sound off and the blade was consistent.

Until I find a workaround the blade noise is worth the flickering of the blade – the sound just adds to the fun factor so much.

Here are some more pictures of the blade and me having a great time pretending I’m a Jedi/Sith.

IMG_6404

IMG_6404

IMG_6404

IMG_6405

IMG_6405

IMG_6405

IMG_6403

IMG_6403

IMG_6403

20200111_210405

20200111_210405

20200111_210405

1 / 220200111_210435

20200111_210435

20200111_210435

20200111_210516

20200111_210516

20200111_210547

20200111_210547

20200111_210547

20200111_210612

20200111_210612

20200111_210612

20200111_210639

20200111_210639

20200111_210639

20200111_210709

20200111_210709

20200111_210709

And it looks even better in the dark – totally lights up the room:

20200111_210755

20200111_210755

20200111_210755

1 / 220200111_210831

20200111_210831

20200111_210831

20200111_210849

20200111_210849

20200111_210909

20200111_210909

20200111_210909

20200111_210947

20200111_210947

20200111_210947

20200111_211028

20200111_211028

20200111_211028

20200111_211107

20200111_211107

20200111_211107

20200111_211154

20200111_211154

20200111_211154

20200111_211212

20200111_211212

20200111_211212

20200111_211237

20200111_211237

20200111_211237

Power! Unlimited power!

So I had a lot of fun with this – I think it’s a big improvement over the prior model in terms of aesthetics and electronics design, it could still be tidier especially with the battery not really being held on.

The buzzing sound really enhances the experience, next time I think I will put an amp in to make it louder and/or get a bigger bone conductor. Also if anyone knows how to fix the cut out of the blade when the MP3 plays let me know.

Feel free to let me know what you think and if you want to make this yourself please do and try to improve!

Thanks for reading and I’ll see you next time.

What a nerd.

What a nerd.

What a nerd.

Code

RGB Lightsaber code

Code for the RGB Lightsaber
