Project Ivy

Made by stee4vendetta / 3D Printing / Art / Lights / Plants

About the project

This is project: Ivy. A wall ornament I designed, 3d-printed, programmed and made the custom circuitry for. Based on nano leaf tech. Very happy with the result.

Project info

Difficulty: Moderate

Platforms: Arduino, Autodesk

Estimated time: 2 weeks

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

	Arduino Uno - R3 you will only need the chip from the device	x 1
	rgb led light strip ws2812b	x 1
	insulated wire	x 1
	heat shrink	x 1
	A 5v 1.5A wall plug	x 1

Software apps and online services

ultimaker cura slicing software

Hand tools and fabrication machines

	soldering iron	x 1
	3d printer	x 1

Story

This project is my answer to the nanoleaf wall ornaments/lights you see from time to time.
I'm very happy with the outcome, the light gives life to a room and makes and excellent talking point with guests, it's also very relaxing to watch.

I liked the nano leaf hardware, but I thought it would be a good challenge to make a version of my own. So I designed and 3d printed the shape I wanted to make the "leaves", then programmed leds to light it from the inside.

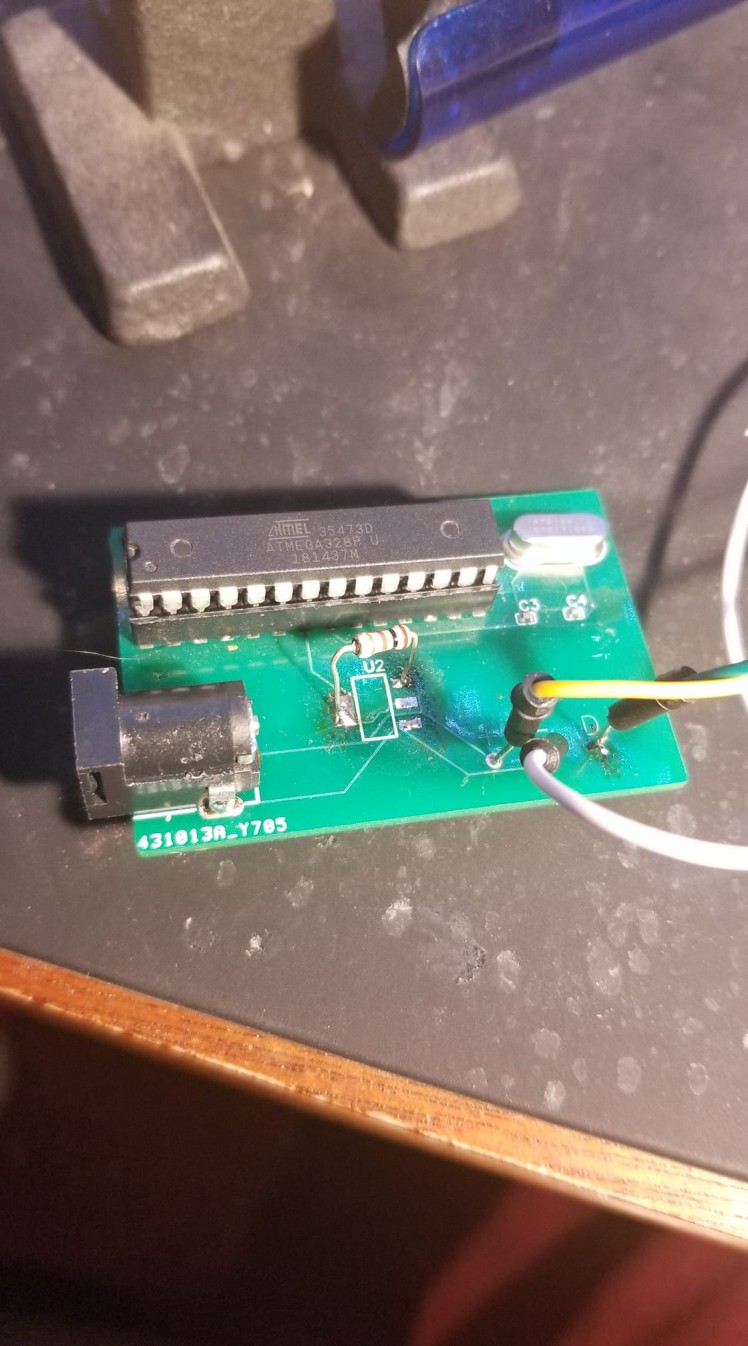

below I have included an image of the circuitry that runs everything with a standalone atmega328p.

https://www.reddit.com/r/arduino/comments/o414ah/this_is_project_ivy_a_wall_ornament_i_designed/

Schematics, diagrams and documents
