How To Make Powerfull Laser Engraver

About the project

Hey guy's Whats up, In this blog, I am making an Awesome mini laser engraver from old DVD writers.

Project info

Difficulty: Moderate

Platforms: AdafruitArduino

Estimated time: 1 hour

License: MIT license (MIT)

Items used in this project

Hardware components

Laser Diode, 655 nm Laser Diode, 655 nm x 1
Driver DRV8825 for Stepper Motors for Theremino System Driver DRV8825 for Stepper Motors for Theremino System x 1
Arduino UNO Arduino UNO x 1

Software apps and online services

Arduino IDE Arduino IDE

Hand tools and fabrication machines

benbox benbox x 1


Hello Guys What's up, In this blog, I am making an Awesome mini laser engraver from old DVD writers.

It's very interesting project for any electronics hobbyist & Engineers. You can use this laser engraver machine to make any kind of design, logo, art on the surface like WOOD, MDF, PLYWOOD, VNYL Paper.

Thank You NextPCB:This project is successfully completed because of the help and support from NextPCB. Guys if you have a PCB project, please visit their website and get exciting discounts and coupons.

Only 0$ for 5-10pcs PCB Prototypes:

Register and get $100 from NextPCB:

See more info about PCB Assembly Capabilities:

Here are mid-summer sales at NextPCB :

1. Up to 30% off for the PCB orders

2. Up to 20% off for the PCBA orders

Visit my website DiY Projects Lab for More CNC machine I wish you liked it, I got this Laser engraver's idea from Maggie Shah.

Here's the version of his laser engraver .

I remixed his project with my own touch.

Step 1: Here's the Full Video Tutorial Video


Step 2: Supplies

Parts and Materials Required

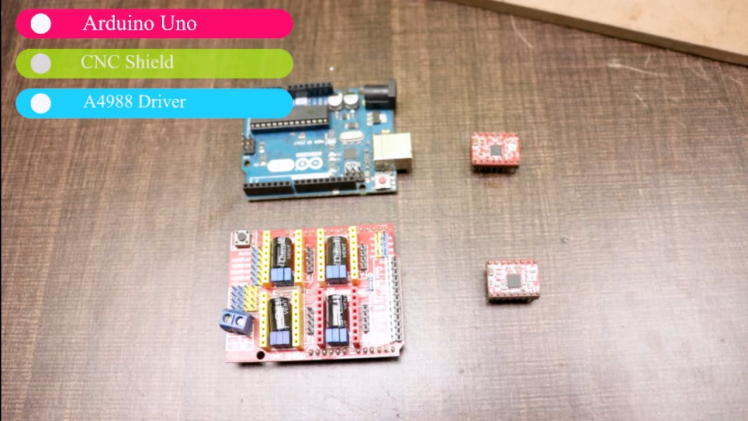

  • Arduino UNO (with USB cable)
  • 2x DVD drive stepper mechanism
  • 2x A4988 stepper motor driver modules (or CNC shield)
  • Laser with adjustable lens
  • 12v 2Amps power supply minimum
  • 1x IRFZ44N N-CHANNEL Mosfet, etc..

Tools List:

  • Soldering Iron
  • Drill Machine
  • Sand paper
  • Wire Cutter
  • Superglue
  • 3D printer

Step 3: DVD Drive Stepper Mechanism

1 / 5

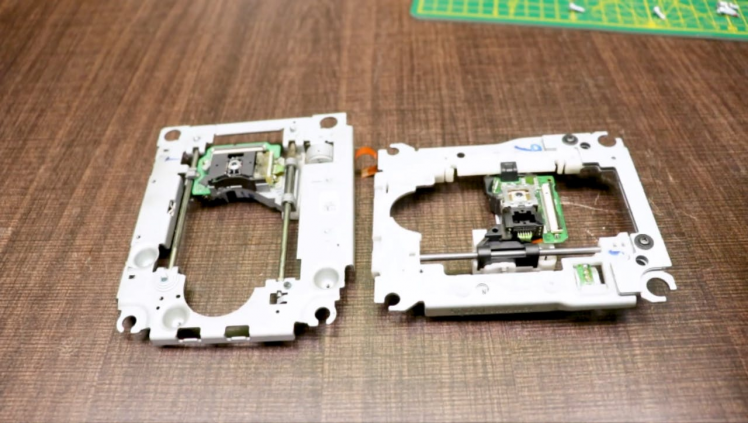

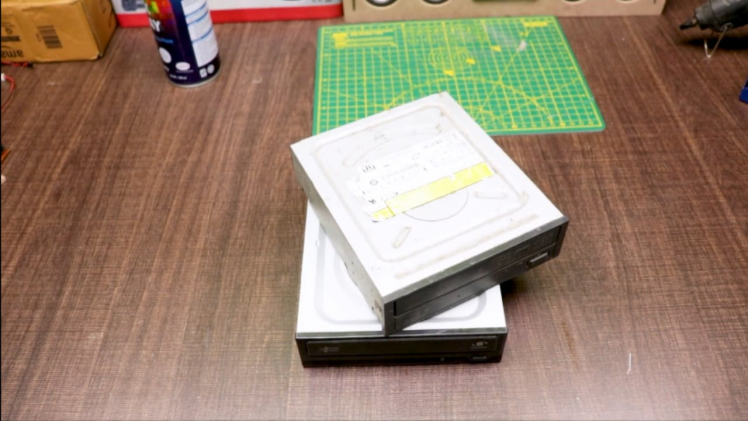

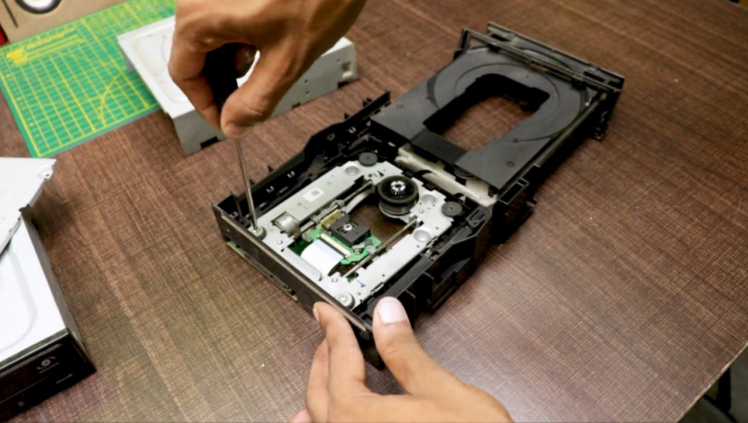

We need two DVD writers mechanism for this project. One for X-Axis and another one for Y-Axis.

You can find this DVD writer from broken CPU or local hardware shop. I also got from the local hardware shop at very cheap prices.

Now its time to disassemble the DVD writers.

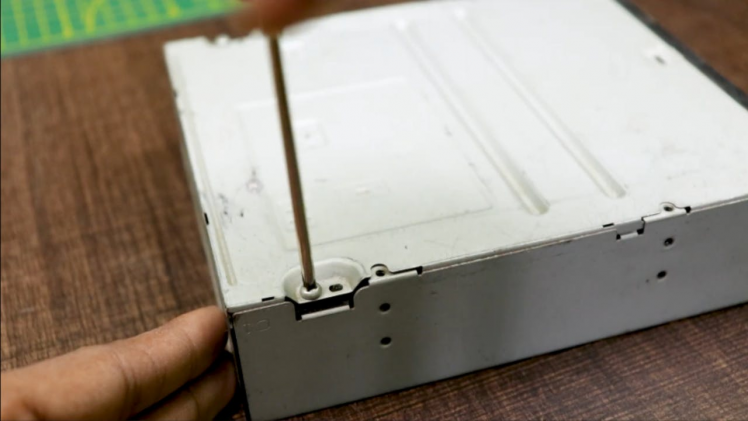

  • Use Philips head screwdriver to remove all screw.
  • Unplugged all the connectors and cables from dvd drive

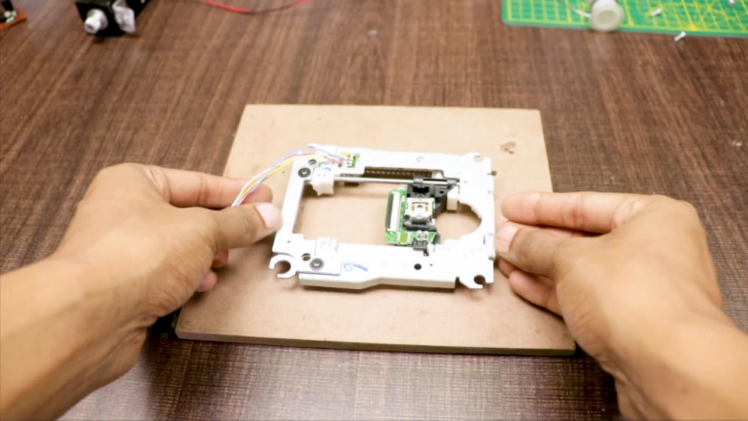

  • Open the disk holder and unscrew the sliding mechanis.

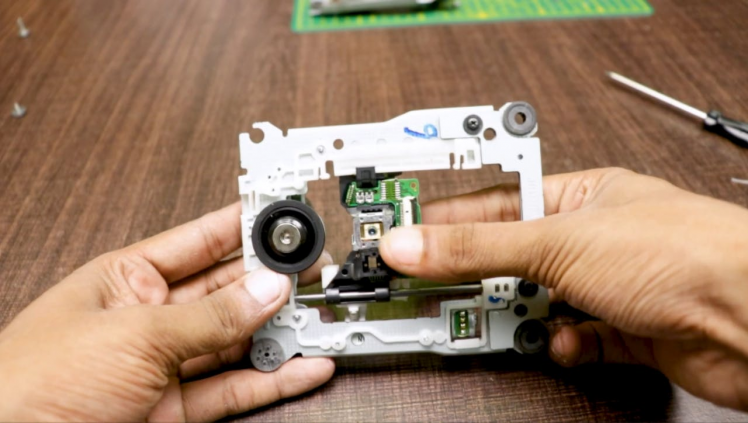

  • Detached the Sliding mechanism.

The stepper motors are 4-pin Bipolar Stepper Motor.

Step 4: Wiring of Stepper Motors

1 / 2

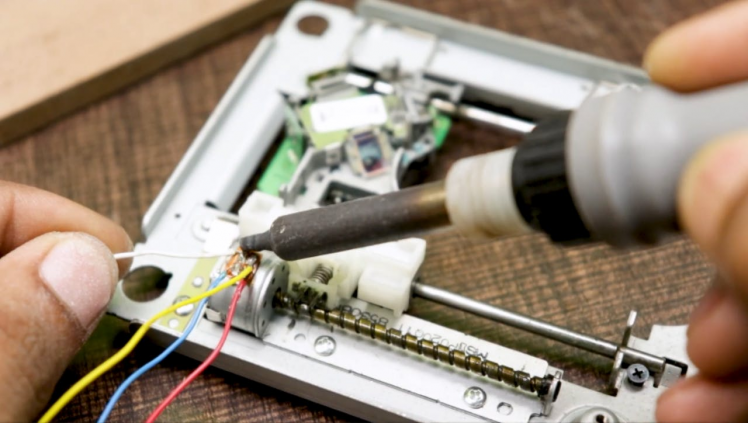

Using continuity mode with Multimeter determine

determine 2 Coil, Coil A and Coil B.

I made 2 pairs of wire by selecting colours, one pair for the Coil A and second for the Coil B.

Step 5: Set X-axis and Y-axis Co-ordinates Movement.

1 / 7

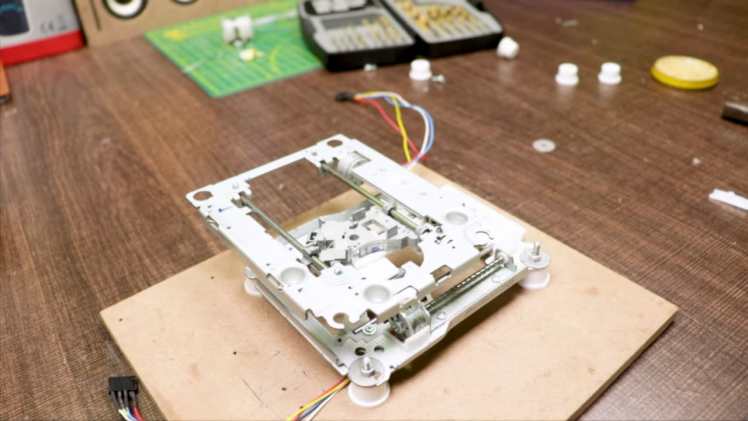

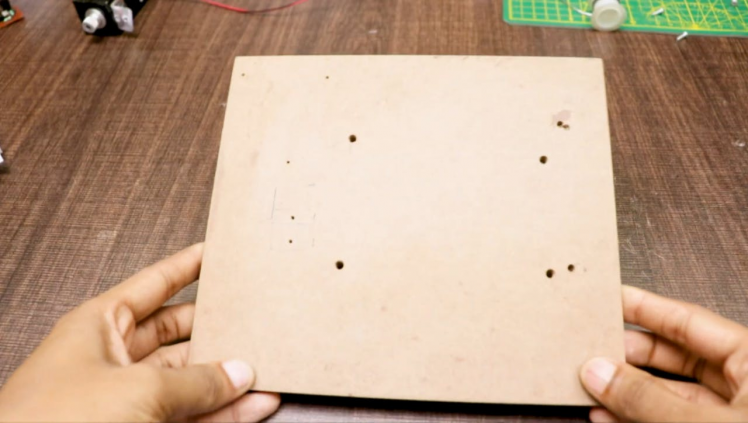

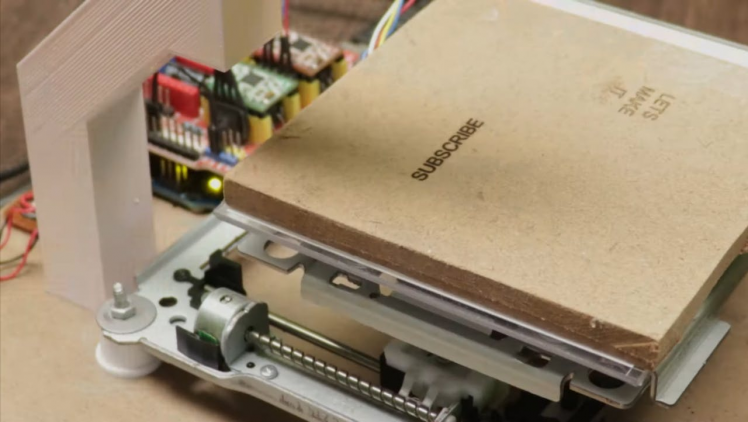

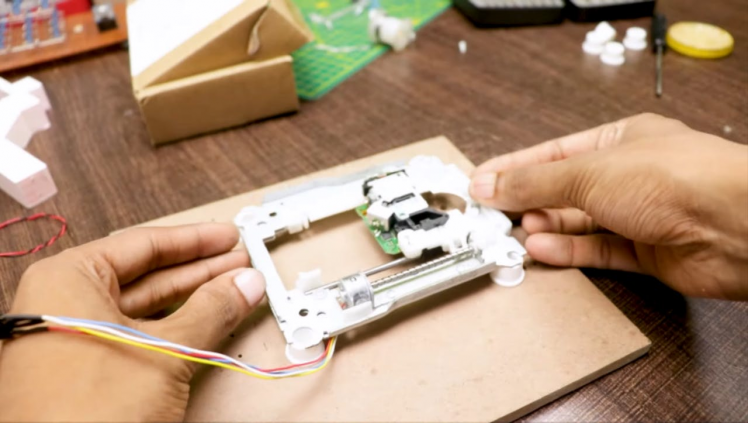

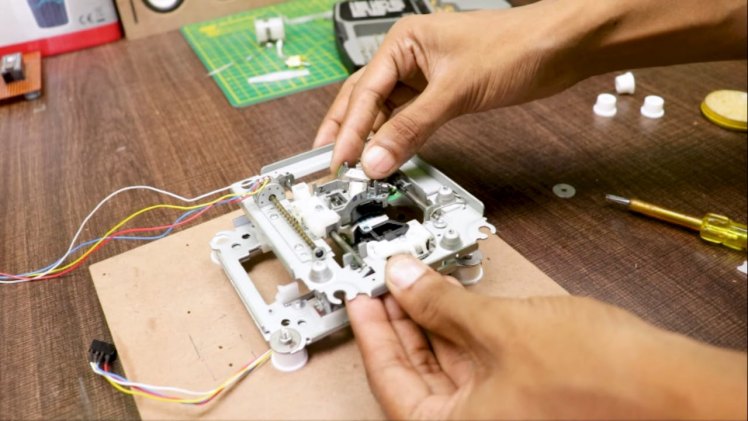

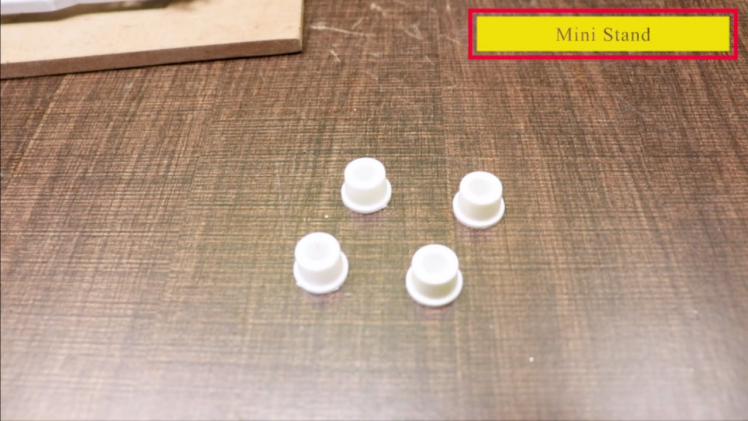

I’ve attached the slider of X and Y-axis together in perpendicular to each other, using glue between them. And also attached a 3D printed part piece above it as a working bed.

Step 6: Attach the Laser Holder

1 / 4

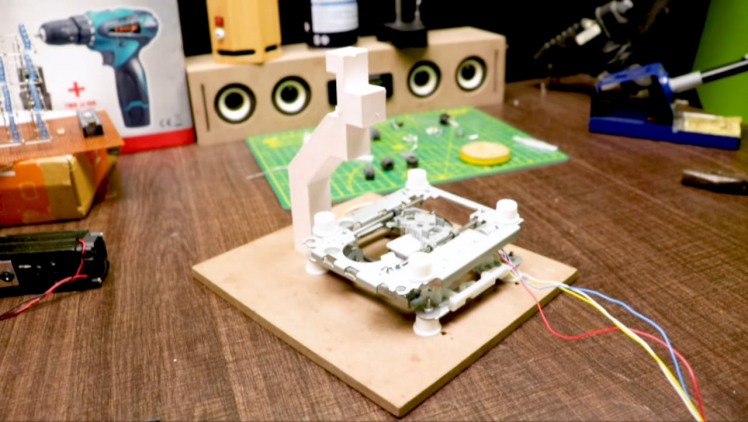

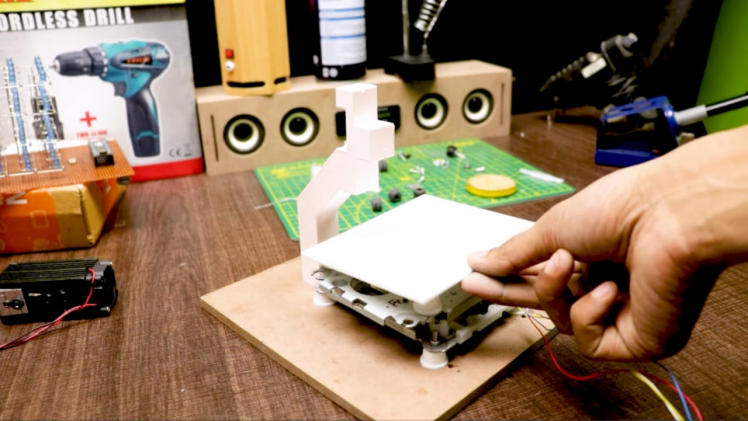

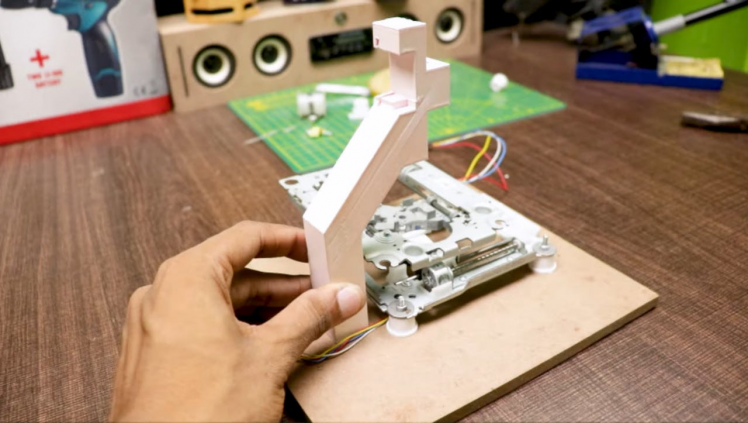

Attach the laser holder with bed

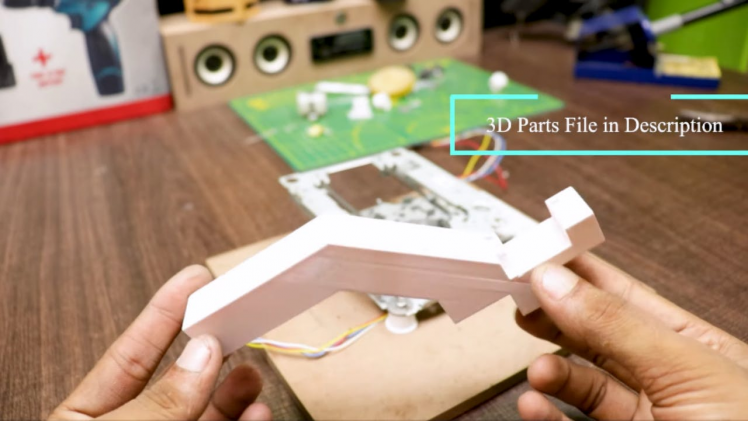

I have use 3d printed laser holder

you can also print this holder

Download STL File

quite easy and fun. In the laser holder

Attach the Laser

1 / 3

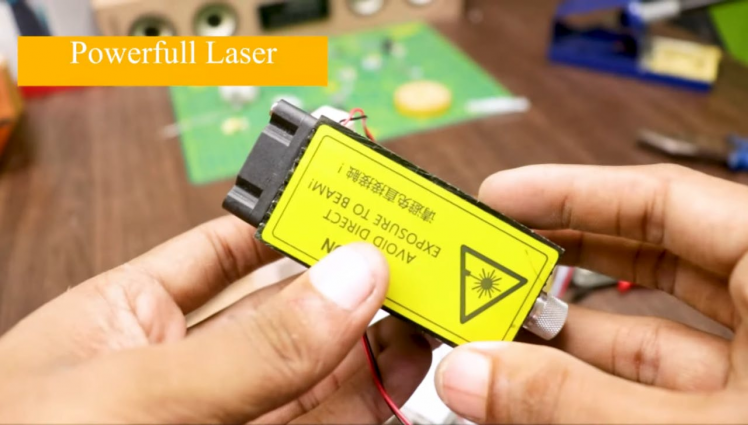

The laser I used is 1W 445NM Laser Module

Now it's time to attach the laser module.

Step 8: The Electronics

1 / 4

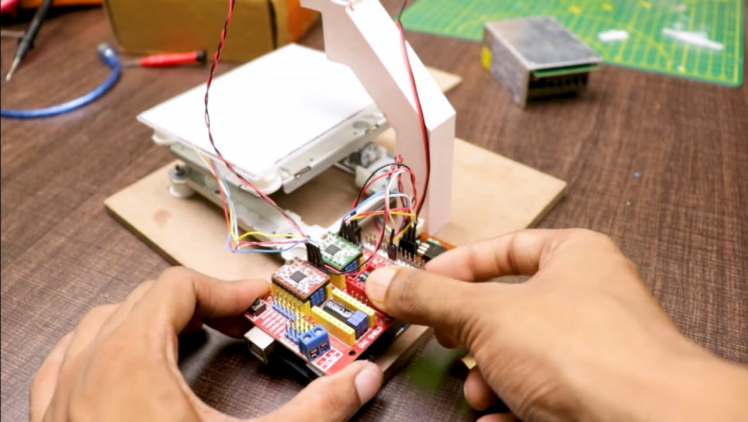

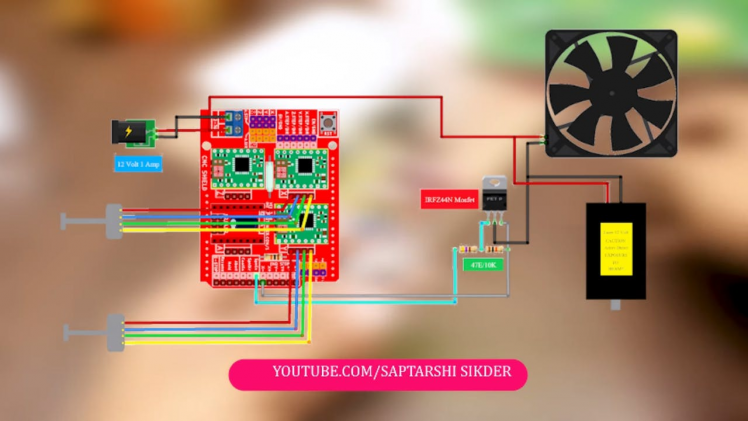

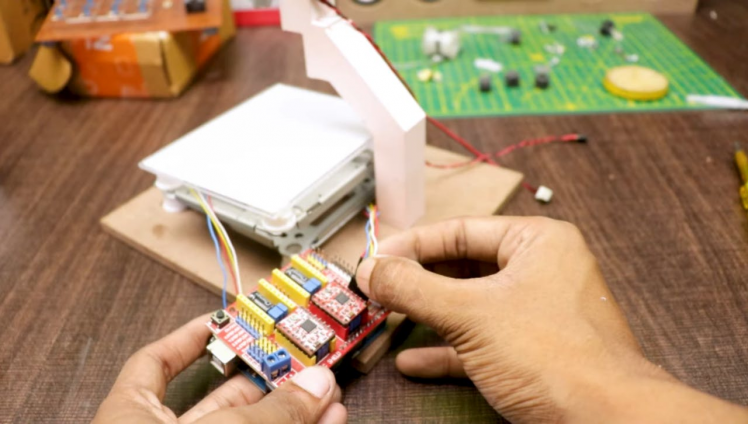

Luckily, the Arduino shield we're using already has all the inputs and outputs labelled, so it's very easy to wire everything up. I also made a schematic to help you in the process.

The shield also has a built-in micro stepping control - meaning that instead of using full steps or half steps like a large CNC would do, we can make the motors move by 1/16 or 1/32 of a step to make the laser move with the maximal precision possible. However, the motors will consume more electricity: they will get hot quicker.

To use the micro stepping modes, short some of the mode pins together. Different combinations give different resolutions. Take a look at the chart for the different configurations possible.

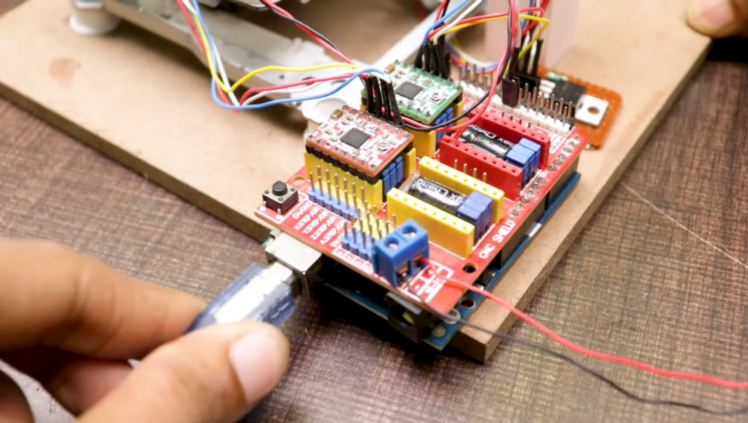

When the shield is programmed, add the A4988 drivers to it and wire up the rest of the electronics.

To find the coils of the stepper motors, use a multimeter. If there's resistance between the two wires, you have a coil. On the schematic, the coils are represented by two wires of the same color.


The A4988 is a complete micro stepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-step, half-step, quarter-step, eighth-step, and sixteenth-step modes, with an output drive capacity of up to 35V and ±2A.

We can control the stepper motor with just 2 pins from our controller, like Arduino: one for controlling the rotation direction and the other for controlling the steps.

Step 10: Benbox Softwer Configuration

1 / 3

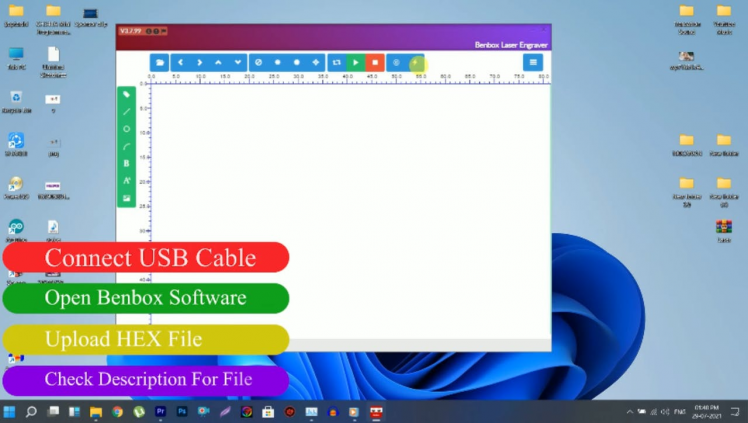

Download and Install Benbox

Install Benbox Laser Engraver 3.7.991. Download and unzip Benbox

2. Select Benbox and run the setup wizard

3. Download and install the Arduino IDE.

4. Click and install CH340 driver.

5. Restart computer

6. Connect the USB cable between computer and engraver.

visit DiyProjectsLab For more info

To install the firmware, click on the lightning symbol at the top of the menu (rightmost icon).

1. Select the appropriate com port.

2. Select nano(328p).

3. Select and install the Lx. Hex firmware.

4. Click install. When the firmware has installed successfully, you will see a green checkmark beside the update firmware title at the top.

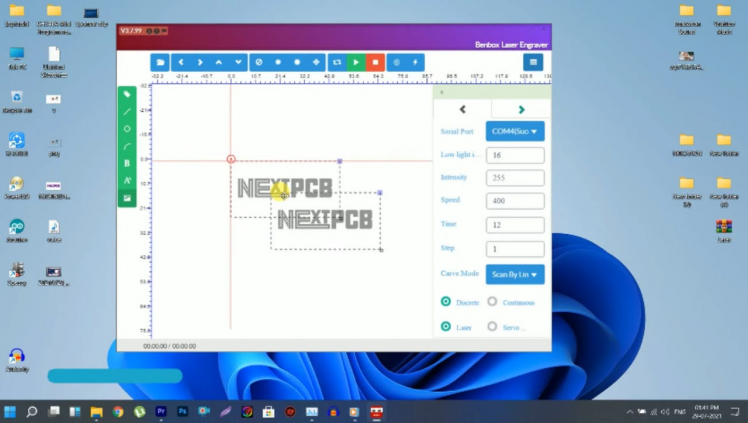

The last step is to set up the parameters for the engraver.

1. Click on the blue menu icon at the top right-hand corner of the software.

2. Click on the right arrow underneath the menu icon to access the parameter list.

3. Enter the parameters’ values as depicted in the photo.

This starting spot will correlate to the red arc at the (0, 0) position (refer to image).

Draw an simple image using the drawing tools on the left. Press the green start button to start the print. Click the circular laser button with adjust until the beam is sharp.

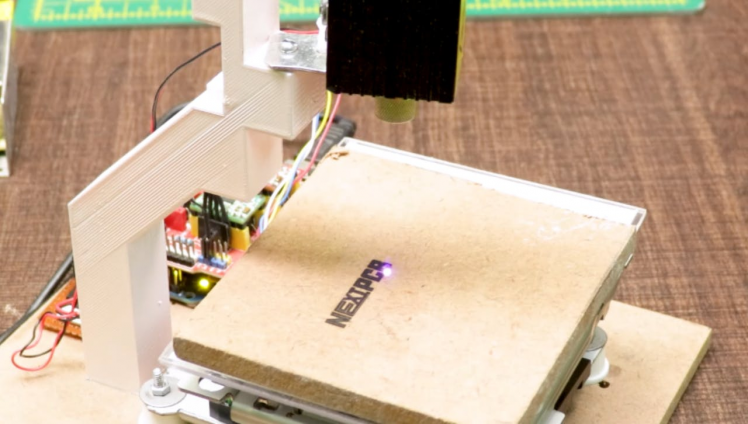

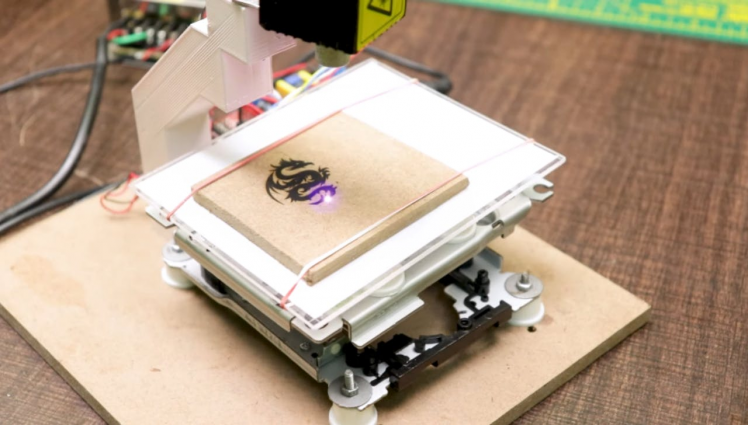

Step 11: Congratulation Successfully Making Your First Engraving Machine

1 / 3

Thanks for watching, I hope you liked it, if yes please subscribe to my youtube
