Banana Pi Bpi-w2 With Realtek Rtd1296 Chip Design

About the project

The Banana Pi BPI-W2 is a router based development board, which can run OpenWrt, linux ,android

Project info

Difficulty: Expert

Platforms: AndroidArduinoRaspberry PiBolt IoTLinux

Estimated time: 7 months+

License: GNU General Public License, version 3 or later (GPL3+)

Story

BPI-W2 integrate a Quad-core ARM Cortex-A53 MPcore operating up to 1.5GHz, The Router also includes a variety of peripherals, including HDMI RX/TX, Mini DP, PCIe2.0,PCIe1.1&SDIO,M.2 interface, USB 2.0 , USB3.0 Port,TYPE C, SATA port,2 Gbps Port Gigabit Ethernet port, also support 802.11ac/n WLAN connection thru PCI-e port BPI-W2 can run with Android6.0 smoothly, it also can run OpenWRT,Debian,linux,Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-W2 same asBPI-R2, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi3

Details

BPI-W2 integrate a Quad-core ARM Cortex-A53 MPcore operating up to 1.5GHz, The Router also includes a variety of peripherals, including HDMI RX/TX, Mini DP, PCIe2.0,PCIe1.1&SDIO,M.2 interface, USB 2.0 , USB3.0 Port,TYPE C, SATA port,2 Gbps Port Gigabit Ethernet port, also support 802.11ac/n WLAN connection thru PCI-e port

BPI-W2 can run with Android6.0 smoothly, it also can run OpenWRT,Debian,linux,Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-W2 same asBPI-R2, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi3

More specs follow below.

  • Realtek RTD1296, Quad-core ARM Cortex-A5
  • Mali T820 MP3 GPU
  • 2G DDR4 SDRAM
  • PCIE 2.0 interface.PCEe 1.1&SDIO
  • support 2 SATA interface
  • MicroSD slot supports up to 256GB expansion
  • 8G eMMC flash (option 16/32/64G)
  • Mini DP
  • 2 port 10/100/1000 Mb Ethernet port
  • (1) USB 3.0 and (1) USB 2.0,otg port
  • 1080P high-definition video playback
  • HDMI In/Out
  • TYPE C interface

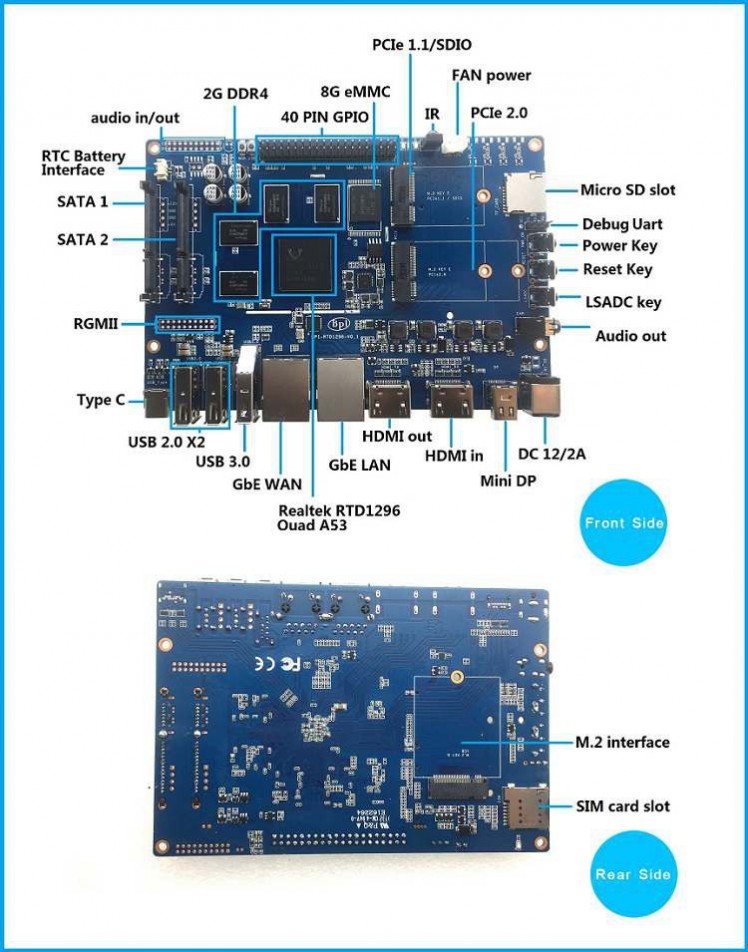

Banana Pi BPI-W2 Hardware interface:

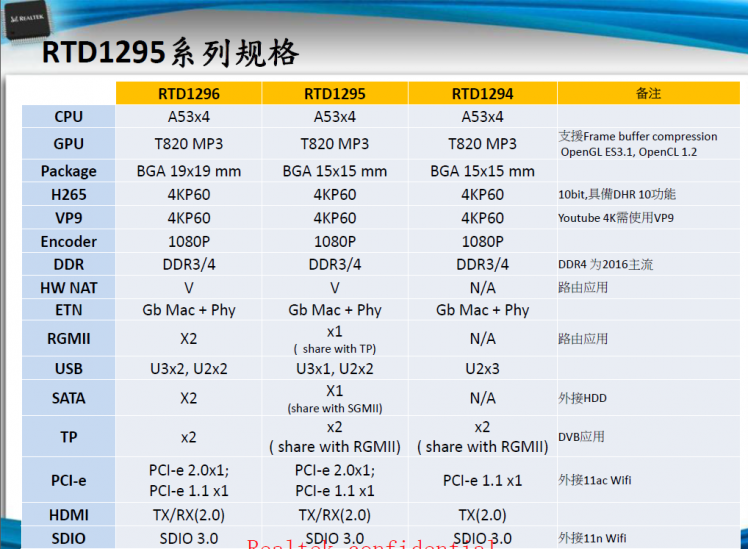

spec:

wiki page :

http://wiki.banana-pi.org/Banana_Pi_BPI-W2
