Nordic nRF7002 EK: Add WiFi 6 Capability in a Arduino Shield Form Factor

The nRF7002 EK is more than just a piece of hardware; it's a specialized evaluation kit meticulously crafted for the nRF7002 wireless companion IC. This kit is a game-changer in the realm of wireless technology, designed to seamlessly integrate the nRF7002 into a multitude of development environments. Unlike its sibling, the nRF7002 DK, the EK version focuses on providing a streamlined, addon experience, making it a unique and essential tool for developers looking to enhance their projects with advanced wireless capabilities.

Target Audience

Whether you're a hobbyist just starting out or a seasoned professional engineer, the nRF7002 EK has something to offer. Its intuitive design ensures ease of use for beginners, while its advanced features cater to the needs of experienced professionals. This versatility makes the nRF7002 EK an invaluable asset across a wide spectrum of applications, bridging the gap between amateur tinkering and professional engineering.

Why the nRF7002 EK Stands Out

At the heart of the nRF7002 EK's excellence is Nordic Semiconductor's legacy of quality and innovation. Known for their groundbreaking contributions to the tech industry, Nordic Semiconductor has earned a stellar reputation for creating products that are not only reliable but also at the forefront of technological advancement. Their products, celebrated for their performance and durability, are utilized in a myriad of sectors around the globe, setting industry standards in wireless technology.

Unique Features

The nRF7002 EK distinguishes itself with its Arduino form factor, a design choice that resonates with a vast audience, from hobbyists to professional developers. This familiar form factor eases integration into existing projects while opening doors to a world of possibilities. Coupled with its advanced Wi-Fi capabilities, the nRF7002 EK represents a significant leap forward for a wide array of projects, offering enhanced connectivity and performance that can transform the way we approach wireless technology.

Edge Impulse Compatibility

Adding to its impressive feature set, the nRF7002 EK is compatible with Edge Impulse, a leading development platform for machine learning on edge devices. This compatibility allows developers to easily integrate advanced machine learning models, enabling smarter and more responsive IoT applications. The synergy between the nRF7002 EK and Edge Impulse paves the way for innovative applications in areas such as predictive maintenance, anomaly detection, and real-time data analysis.


One of the most compelling aspects of the nRF7002 EK is its versatility. This evaluation kit is not just limited to typical IoT applications; it extends its utility to more complex domains like machine learning systems. Whether it's for smart home devices, industrial automation, or cutting-edge research, the nRF7002 EK adapts effortlessly, proving its worth as a multifaceted tool capable of meeting diverse technological needs and challenges.

In-Depth Look: Features and Specifications

The nRF7002 EK is centered around the nRF7002 Wi-Fi Companion IC, a pivotal component that significantly enhances wireless connectivity in a variety of projects. This IC is not just a mere addition; it's a transformative element that brings high-level Wi-Fi capabilities to your devices.

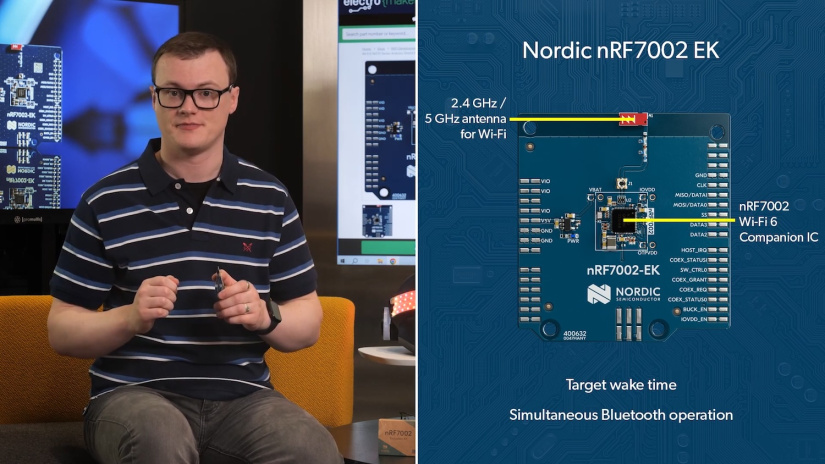

Nordic nRF7002 EK features and specs

When it comes to connectivity, the nRF7002 EK shines with its dual-band Wi-Fi capabilities, supporting both 2.4GHz and 5GHz frequencies. This feature ensures broad network compatibility and flexibility in various environments. The Target Wake Time (TWT) functionality stands out for its energy efficiency, optimizing power usage while maintaining high performance. Moreover, the ability to operate Bluetooth simultaneously with Wi-Fi opens up a myriad of possibilities for complex and integrated wireless solutions.

Communication is key in any tech project, and the nRF7002 EK excels with its SPI/QSPI interface, ensuring wide compatibility with numerous microcontrollers. This versatility is further enhanced by its seamless integration with other Nordic development boards through the nRF Connect SDK, making it a versatile and powerful tool in the Nordic ecosystem.

  • nRF7002 Wi-Fi Companion IC
  • Arduino-shield form factor
  • Antenna for 2.4 and 5 GHz
  • Board support and samples in nRF Connect SDK

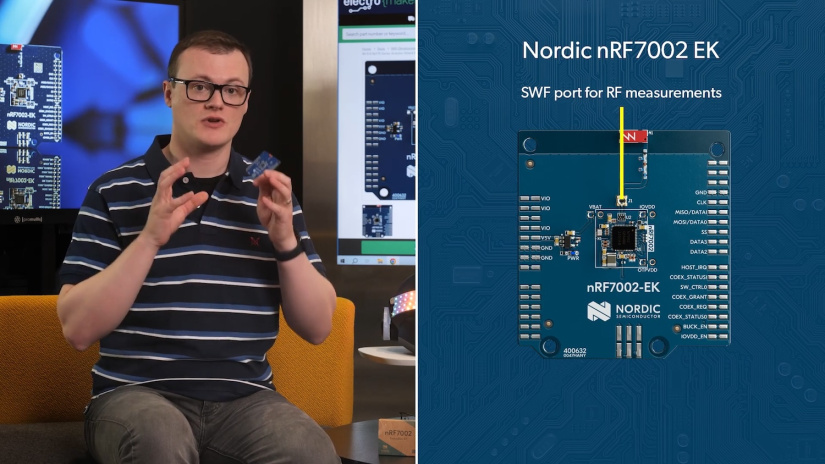

  • SWF port for RF measurement

nRF7002 Wi-Fi Companion IC Details

  • 2.4 GHz and 5 GHz dual-band
  • Low-power and secure Wi-Fi for the IoT
  • Ideal coexistence with Bluetooth LE
  • Supported in nRF Connect SDK
  • Target Wake Time (TWT)
  • SPI / QSPI
  • Wi-Fi 6 Station (STA)
  • Complies with 802.11a/b/g/n/ac/ax
  • 1 Spatial Stream (SS)
  • 20 MHz channel bandwidth
  • 64 QAM (MCS7), 86 Mbps PHY throughput
  • OFDMA (Downlink and Uplink)
  • BSS coloring
  • Co-existence interfaces

Nordic nRF7002 EK_features-and-specs

Practical Applications: Project Ideas

The most significant use of the nRF7002 EK is as a Wi-Fi Expansion module. It can breathe new life into projects that previously lacked connectivity, especially in the realm of Nordic's low-energy devices. By integrating the nRF7002 EK, these devices can now enjoy the benefits of wireless connectivity, opening up a whole new world of possibilities.

nRF7002 EK - Asset Tracking

When it comes to Real-World Examples, the nRF7002 EK shines in applications like asset tracking. Utilizing Bluetooth for local positioning and Wi-Fi for network reporting, it offers a comprehensive solution for tracking assets in various environments. Its potential is also immense in smart city projects, where reliability and the ability to support multiple connection technologies are crucial. In these urban landscapes, the nRF7002 EK can play a pivotal role in connecting a multitude of sensors and devices, contributing to smarter, more efficient city management.

Looking towards the future, the importance of Matter in IoT cannot be overstated. As this protocol gains traction, the nRF7002 EK emerges as a valuable tool for developers eager to delve into Matter development. With its advanced features and compatibility, the nRF7002 EK is well-positioned to help developers stay ahead in the rapidly evolving IoT landscape.

Potential Applications

  • Asset tracking
  • Battery operated Wi-Fi products
  • Machine Learning (ML)
  • Matter prototyping
  • Smart city & smart agriculture
  • Smart home
  • Industrial sensors
  • Wearables & medical

Conclusion: Is the nRF7002 EK the right board for you?

As we wrap up our exploration of the nRF7002 EK, it's clear that this evaluation kit is more than just a piece of hardware; it's a beacon of innovation in wireless technology. The key benefits of the nRF7002 EK, including its powerful wireless capabilities, versatility across a wide range of applications, and its seamless integration with Nordic's ecosystem, make it an indispensable tool for developers and hobbyists alike.

We strongly recommend pairing the nRF7002 EK with Nordic development kits to fully harness its potential. This combination not only ensures optimal performance but also unlocks a higher level of creativity and functionality in your projects. Whether you're a seasoned engineer or a budding maker, the nRF7002 EK, in tandem with Nordic's development kits, offers an unparalleled experience.

In conclusion, the nRF7002 EK stands as a testament to the endless possibilities in the realm of wireless technology. We encourage you to explore these possibilities and see for yourself how this evaluation kit can transform your projects. For those interested in taking their creations to the next level, head over to the Electromaker store to get your hands on the nRF7002 EK. Embrace the future of wireless connectivity and start building something amazing today!

Enhance Your Skills with Nordic Developer Academy


Interested in deepening your understanding and skills in wireless technology? The Nordic Developer Academy offers a comprehensive range of courses and resources to help you master the art of wireless development. From beginners to advanced users, the Academy provides valuable insights and hands-on experience to elevate your projects. Discover more at Nordic Developer Academy.
