Wifi Connection Status Monitor Atom Matrix Esp32 M5stack

About the project

In this tutorial I will show you how to make a wifi connection status monitor using the atom matrix esp32.

Project info

Difficulty: Easy

Platforms: ArduinoVisuinoM5Stack

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

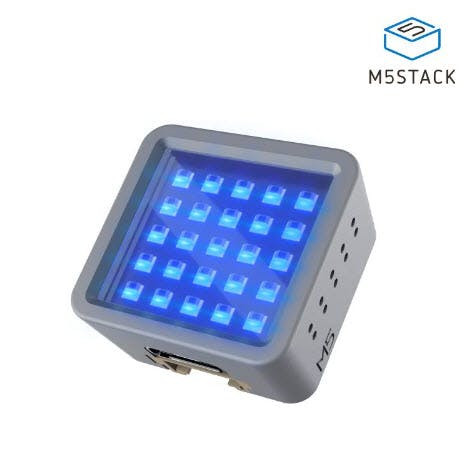

M5Stack ATOM Matrix ESP32 Development Kit M5Stack ATOM Matrix ESP32 Development Kit x 1

Software apps and online services

Visuino Visuino
Arduino IDE Arduino IDE

Story

If the connection to your wifi hotspot is active you will see a green light and as soon as the connection drops a red light will show.

This can be applied to any microcontroler board (ESP8266, ESP32, NodeMCU, etc) with the wifi. And the project can be very useful for environment where monitoring of the wifi connection is critical.

Step 1: What You Will Need

1 / 3

Step 2: Start Visuino, and Select the Atom Matrix Board Type

1 / 2

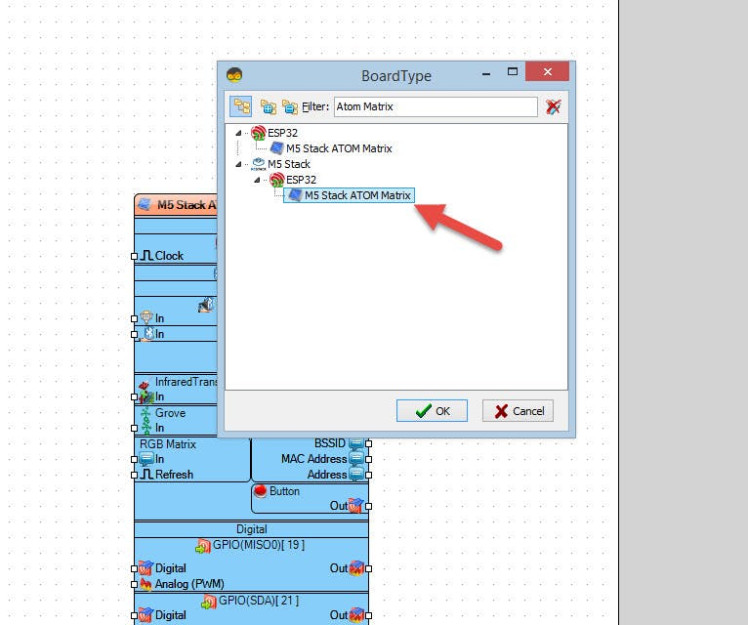

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Atom Matrix" as shown on Picture 2

Step 3: In Visuino Add Components

1 / 2

  • Add "Detect Edge" component
  • Add "Timer (Single Pulse/Clock to Digital)" component

Step 4: In Visuino Set Components

1 / 6

  • Select "Timer1" and in the properties window set "Interval (uS)" to 3000000
  • Select "DetectEdge1" and in the properties window set "Rising" to False

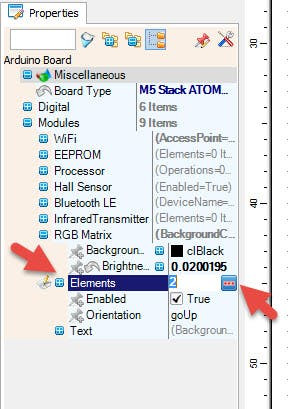

  • Select "M5 Stack ATOM Matrix" board in the properties window expand "Modules">"RGB Matrix">"Elements" and click on the 3 dots button

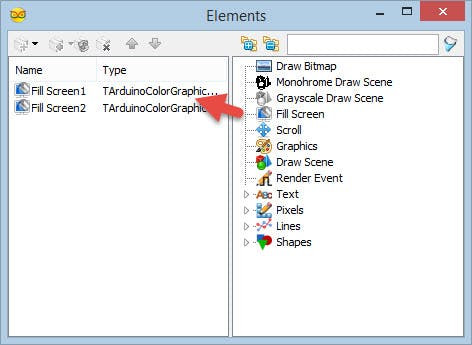

  • In the "Elements" window drag "Fill Screen" to the left side and in the Properties window set "Color" to aclGreen
  • In the "Elements" window drag another "Fill Screen" to the left side and in the Properties window set "Color" to aclRed
  • Close the "Elements" window

Step 5: In Visuino Set the WiFi

1 / 5

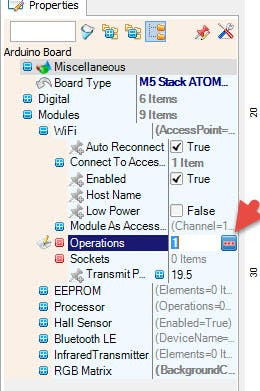

  • Select "M5 Stack ATOM Matrix" board in the properties window expand "Modules">"WiFi">"Operations" and click on the 3 dots button

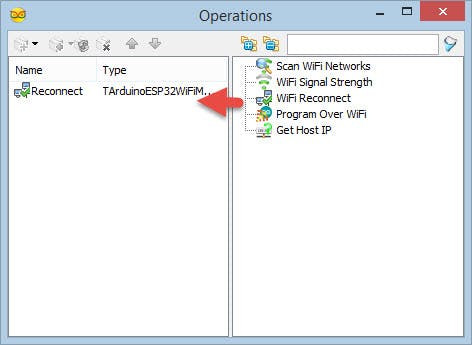

  • In the "Operations" window drag "WiFi Reconnect" to the left side and close the window
  • Close the window

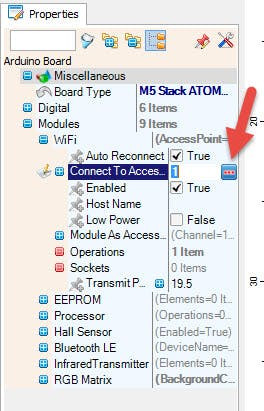

  • Select "M5 Stack ATOM Matrix" board in the properties window expand "Modules">"WiFi">Connect To Access Points and click on the 3 dots button
  • In the AccessPoints window drag "WiFi Access Point" to the left side
  • In the properties window set SSID (name of your WiFi hotspot or router)
  • In the properties window set Password (password of your WiFi hotspot or router)
  • Close the AccessPoints window

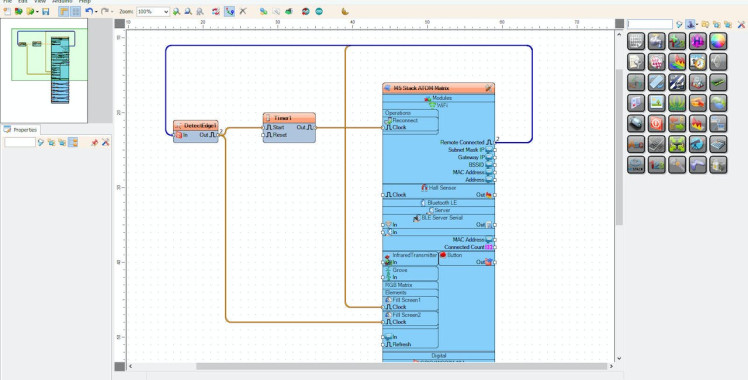

Step 6: In Visuino Connect Components

  • Connect "M5 Stack ATOM Matrix" > "WiFi" pin [Remote Connected] to "M5 Stack ATOM Matrix" > "Fill Screen1" pin [Clock]
  • Connect "M5 Stack ATOM Matrix" > "WiFi" pin [Remote Connected] to "DetectEdge1" pin [In]
  • Connect "DetectEdge1" pin[Out] to "M5 Stack ATOM Matrix" > "Fill Screen2" pin [Clock]
  • Connect "DetectEdge1" pin[Out] to "Timer1" pin [Start]
  • Connect "Timer1" pin[Out] to "M5 Stack ATOM Matrix" > "WiFi" pin [Reconnect]

Step 7: Generate, Compile, and Upload the Arduino Code

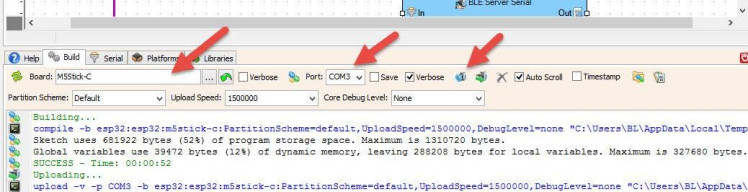

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Step 8: Play

If you power the ATOM Matrix module, The Display will show the Green color if the connection to the WiFi hotspot is Active or Red color if the connection dropped. As soon as the connection is established a Green light will show.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.eu

Schematics, diagrams and documents

Visuino File

Code

Visuino File
