Temperature Controlled Night Light With Puck.js

About the project

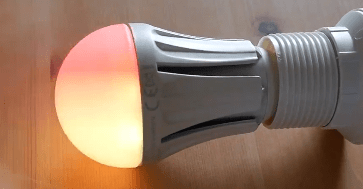

If you've got a baby you're supposed to keep room temperature between 16 and 20 degrees Celsius - but how do you know at night? Here, we'll make a night light that changes color depending on the temperature.

Project info

Difficulty: Easy

Platforms: Espruino

Estimated time: 3 hours

License: Apache License 2.0 (Apache-2.0)

Items used in this project

Hardware components

IR controlled RGB Light bulb IR controlled RGB Light bulb http://rover.ebay.com/rover/1/711-53200-19255-0/1?icep_id=114&ipn=icep&toolid=20004&campid=5337979701&mpre=http%3A%2F%2Fwww.ebay.com%2Fsch%2Fi.html%3F_nkw%3Drgb%2Bled%2Blight%2Bir%2Bremote%2Bcontrol%26_sacat%3D0 x 1
Infrared Receiver Infrared Receiver x 1
Espruino Puck.js V2 Espruino Puck.js V2 http://www.espruino.com/Puck.js x 1

Story


Software

First, you need to get the Infrared codes for your light bulb - you can just follow the instructions here for that.

Then, the code to use is simply:


  1. var light = {
  2. normal : [8.9,4.5,0.5,0.5,0.6,0.5,0.6,0.5,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,1.7,0.5,1.7,0.5,1.7,0.6,1.8,0.4,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,0.6,0.5,1.7,0.5,1.7,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,1.7,0.5,0.6,0.5,0.6,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,39.9,8.9,2.2,0.5],
  3. hot : [8.9,4.5,0.5,0.6,0.5,0.5,0.6,0.5,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,0.6,0.5,0.6,0.5,1.7,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,1.7,0.5,1.7,0.5,0.6,0.5,1.7,0.5,1.7,0.6,1.7,0.5,1.7,0.5,39.9,8.9,2.3,0.5],
  4. cold : [8.9,4.5,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.5,0.6,1.7,0.5,1.7,0.5,1.7,0.6,1.8,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,0.6,0.5,1.7,0.6,1.7,0.5,1.7,0.5,0.6,0.5,0.6,0.5,0.6,0.5,0.6,0.5,1.7,0.5,0.5,0.6,0.5,0.5,0.6,0.5,1.7,0.5,1.7,0.5,1.7,0.5,1.7,0.5,39.9,8.9,2.3,0.5]
  5. };
  6. var offset = 20.2 - 17.75;
  7.
  8. function tempTest() {
  9. var temp = E.getTemperature()+offset;
  10. print("Temperature:"+temp);
  11. if (temp < 16)
  12. Puck.IR(light.cold);
  13. else if (temp <= 20)
  14. Puck.IR(light.normal);
  15. else
  16. Puck.IR(light.hot);
  17. }
  18.
  19. setInterval(tempTest, 30*1000);

Once uploaded, it will run until the battery runs down or is removed. If you want to save everything so it runs even after a battery removal, simply type save() on the left-hand side.

Notes

  • Puck.light() can be used to get a rough idea of ambient light - to turn off the night light in the day time.
  • Since Puck.js has Bluetooth, you could use a Bluetooth LE light bulb as well. They're often harder to reverse-engineer though!
  • Puck.js has RGB lights on board so you could use those for the night light, but I didn't because:
    • The battery would run down pretty quickly (a day or two) with the LEDs on all night
    • The act of powering the LEDs will raise the die temperature of Puck.js, messing up the temperature reading. It's another reason to only measure the temperature every few seconds rather than all the time.
