Read Real-time Air Quality Sensor Data From Stm32

About the project

This project is about reading real-time temperature, humidity sensor data from STM32 Nucleo-144 using Bluetooth.

Project info

Difficulty: Moderate

Platforms: STM32 Nucleo

Estimated time: 2 hours

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

BleuIO BleuIO https://www.bleuio.com/ x 2
SHT85 sensor SHT85 sensor https://sensirion.com/products/catalog/SHT85/ x 1

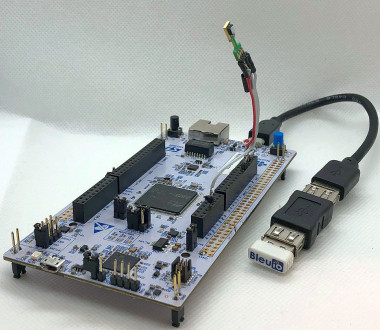

Stm32 Nucleo-144 Dev Board, Mcu, Smps, Supports Arduino, St Zio & Morpho Conn Stm32 Nucleo-144 Dev Board, Mcu, Smps, Supports Arduino, St Zio & Morpho Conn x 1

Software apps and online services

STM32CubeIDE STM32CubeIDE https://www.st.com/en/development-tools/stm32cubeide.html

Story

Setup the project

Part 1 : Download the project

Get project HERE

https://github.com/smart-sensor-devices-ab/stm32_bleuio_SHT85_example
Either clone the project, or download it as a zip file and unzip it, into your STM32CubeIDE workspace.

Part 2 : Importing as an Existing Project

From STM32CubeIDE choose File>Import…


Then choose General>Existing Projects into Workspace then click ‘Next >’


Make sure you’ve choosen your workspace in ‘Select root directory:’


You should see the project “stm32_bleuio_SHT85_example”, check it and click ‘Finish’.


If you download the project as a zip file you will need to rename the project folder from ‘stm32_bleuio_SHT85_example-master’ to ‘stm32_bleuio_SHT85_example’


Connect the SDA to PF0 on the Nucleo board and SCL to PF1.


Then setup I2C2 in the STM32Cube ioc file like this:


Running the example

In STMCubeIDE click the hammer icon to build the project.


  • Open up the ‘STMicroelectronics STLink Viritual COM Port’ with a serial terminal emulation program like TeraTerm, Putty or CoolTerm.


Baudrate: 115200


Data Bits: 8


Parity: None


Stop Bits: 1


Flow Control: None


  • In STMCubeIDE click the green play button to flash and run it on your board. The first time you click it the ‘Run Configuration’ window will appear. You can just leave it as is and click run.
  • Connect the BleuIO Dongle.

Access sensor data from a web browser

We wrote a simple script that connects to the BleuIO dongle and reads advertised data from STM32.

For this script to work, we need


Steps


Create a simple Html file called index.html which will serve as the frontend of the script. This Html file contains some buttons that help connect and read advertised data from the remote dongle, which is connected to stm32.

  1. <!DOCTYPE html>
  2. <html lang="en">
  3. <head>
  4. <!-- Required meta tags -->
  5. <meta charset="utf-8" />
  6. <meta name="viewport" content="width=device-width, initial-scale=1" />
  7. <!-- Bootstrap CSS -->
  8. <link
  9. href="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/css/bootstrap.min.css"
  10. rel="stylesheet"
  11. integrity="sha384-1BmE4kWBq78iYhFldvKuhfTAU6auU8tT94WrHftjDbrCEXSU1oBoqyl2QvZ6jIW3"
  12. crossorigin="anonymous"
  13. />
  14. <title>STM32 Read sensor value</title>
  15. </head>
  16. <body>
  17. <div class="container mt-5">
  18. <h1>Sensor data collection from stm32 using Bluetooth Low Energy</h1>
  19. <button id="connect" class="btn btn-primary">Connect</button>
  20. <button id="getdata" class="btn btn-success">Get device data</button>
  21. <div id="loader"></div>
  22. <br />
  23. <div id="response" class="fw-bold"></div>
  24. <script src="./index.js"></script>
  25. </div>
  26. </body>
  27. </html>

Create a js file called script.js and include it at the bottom of the Html file. This js file uses the BleuIO js library to write AT commands and communicate with the other dongle.


  1. import * as my_dongle from 'bleuio'
  2.
  3. //connect to BleuIO
  4. document.getElementById('connect').addEventListener('click', function(){
  5. my_dongle.at_connect()
  6. })
  7. //get sensor data
  8. document.getElementById('getdata').addEventListener('click', function(){
  9. document.getElementById('loader').innerHTML = 'Loading'
  10. //set the BleuIO dongle into dual role
  11. my_dongle.at_dual().then(()=>{
  12. // sensor id of the device that we are trying to get data from
  13. let sensorID='05084FA3'
  14.
  15. //look for advertised data of with the sensor id
  16. my_dongle.at_findscandata(sensorID,4).then(x=>{
  17.
  18. //split the advertised data from the respnse
  19. let advdata= x[x.length-1].split(" ").pop()
  20.
  21. //trim the advertised string to only get sensor response
  22. const result = advdata.split(sensorID).slice(1).join(sensorID)
  23.
  24. //get temperature and humidity value
  25. let temp = result.substring(0, 4);
  26. let hum = result.substring(4, 8);
  27.
  28. //convert from hex to decimal and device by 100
  29. temp = parseInt(temp, 16)/100
  30. hum = (parseInt(hum, 16)/100).toFixed(1)
  31.
  32. document.getElementById('loader').innerHTML = ''
  33. document.getElementById('response').innerHTML = `Sensor ID : 05084FA3 <br/>
  34. Temperature : ${temp} °C<br/>
  35. Humidity : ${hum} %rH<br/>`
  36. })
  37. })
  38. })


The script js file has two button actions; connect and read advertised data.


We also need to update the Sensor ID on line 13 of script js. The Sensor ID of this example project is 05084FA3, which we got from SHT85.


Therefore this script looks for advertised data that contains sensor ID 05084FA3. After getting advertised data , we split the temperature and humidity information and show it on our index.html page.


Now we need a web bundler. We can use parcel.js


Once parcel js installed, lets go to the root directory and type “parcel index.html”. This will start our development environment.


Lets open the script on a browser and select the right port where the dongle is connected.



The web script is available on web script folder of the GitHub repository.
