Power Arduino With A 1.5v Battery

Made by Ron / Environmental Sensing / Notifications / Robotics / Sensors / Vehicles

About the project

In this tutorial we will use a step UP (0,9-5V to 5V) Voltage Booster to Power Arduino UNO with a 1.5V Battery.

Project info

Difficulty: Easy

Platforms: Arduino, Visuino

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

	Battery, 1.5 V	x 1
	Battery Holder for the 1.5v Battery	x 1
	Step UP (0,9-5V v 5V) Booster	x 1
	Arduino UNO	x 1

Software apps and online services

	Visuino
	Arduino IDE

Story

In this tutorial we will use a step UP (0,9-5V to 5V) Voltage Booster to Power Arduino UNO with a 1.5V Battery.

Step 1: Check Out My Other Tutorials

Click here to Check Out My Other Tutorials

Step 2: What You Will Need

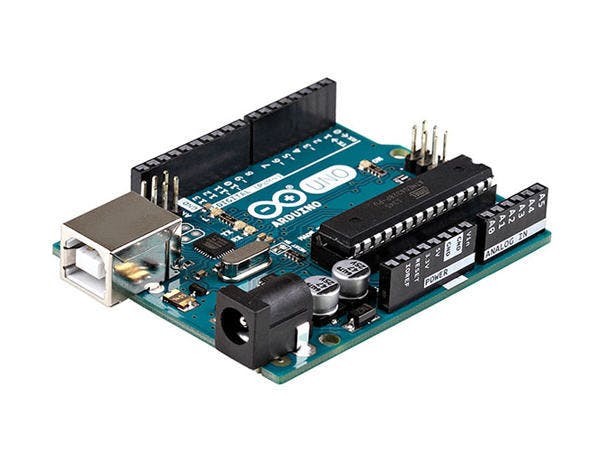

Arduino UNO (or any other Arduino)

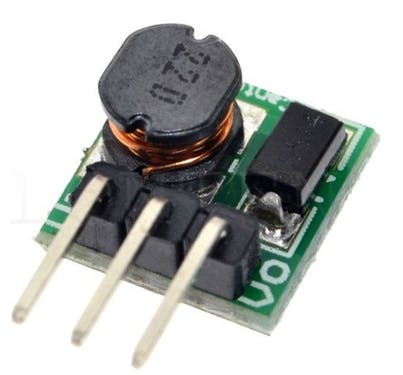

Step UP (0,9-5V v 5V) Booster
Battery Holder for the 1.5v Battery
1.5V Battery

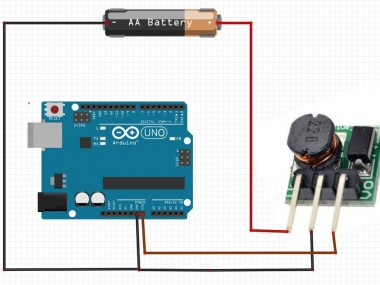

Step 3: The Circuit

1 / 3

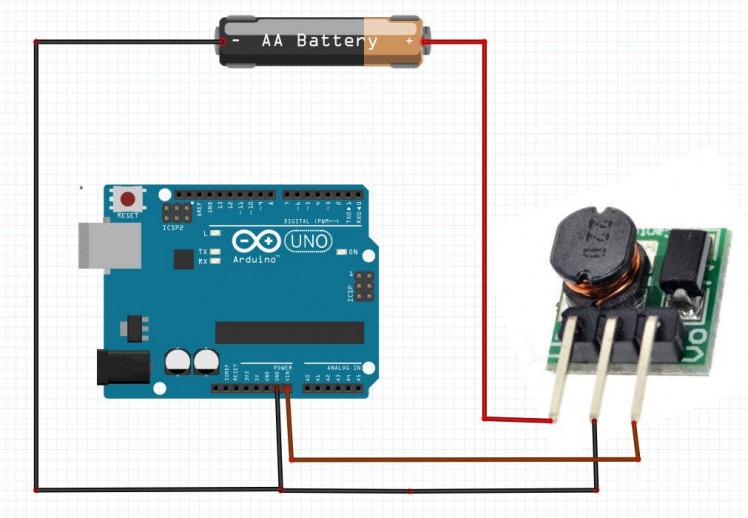

Connect Battery Holder Positive pin to Step Up Booster pin Vi

Connect Battery Holder Negative pin to Step Up Booster pin GND

Connect Battery Holder Negative pin to Arduino pin GND

Connect Step Up Booster pin VO to Arduino pin [VIN]

Note: Some modules have reverse pins so make sure that you connect V0

Step 4: VISUINO Special Edition

All you need to do is drag and drop components and Connect them together. Visuino will create the working code for you so you don’t have to waste time on creating the code. It will do all the hard work for you fast and easy! Visuino is perfect for all kind of projects, you can easily build complex projects in no time!

Download the Latest Powerful Visuino Software
