Retro Cd/spotify/alexa Player

About the project

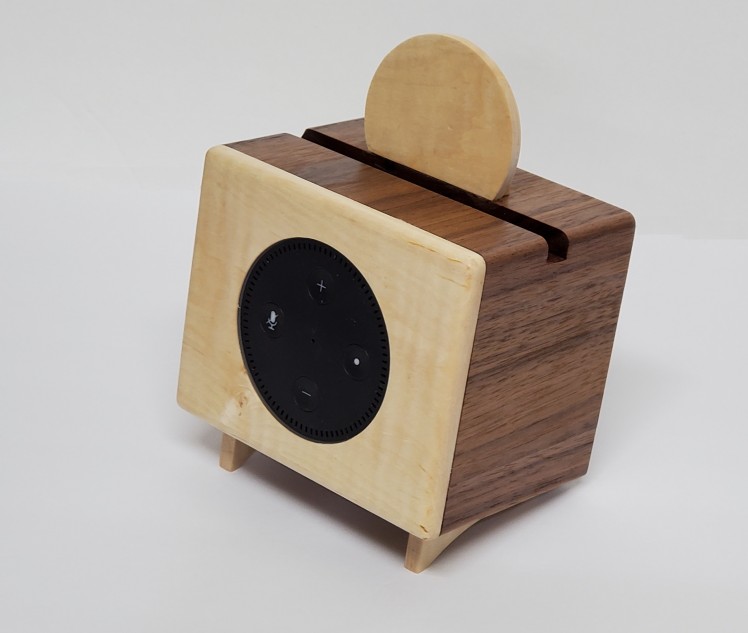

I took an ESP32 microcontroller and a RFID-RC522 reader, and wrote code to read a NFC tag that I place on the CD and make an API call to Spotify to play that album on the Echo Dot that I mounted into a Walnut and Birdseye Maple case that I built.

Project info

Difficulty: Moderate

Platforms: Amazon AlexaArduinoNodeMCUEspressif

Estimated time: 2 days

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

TinyPICO ESP32 development board TinyPICO ESP32 development board x 1
RFID-RC522 RFID-RC522 x 1
NFC Tags / Stickers NFC Tags / Stickers x 1
Amazon Echo Dot Amazon Echo Dot x 1

Software apps and online services

Spotify API Spotify API

Story

I wanted to find a clever way to use my old CDs that were just collecting dust because today I listen to all of my music via Spotify. I also had some NFC stickers laying around just waiting to be used for something. And like that, a new project was born. All that was missing was an understanding of the Spotify API which did not take long to learn. I wired a NFC reader (RDID-RC522) to an esp32 microcontroller and wrote some code to call the Spotify APIs to play music on an Echo Dot. The final piece was a cool case to wrap it all up. Check out my videos below for all the details.

Schematics, diagrams and documents

Circuit Diagram

Code

Source Code for the esp32 microcontroller
