Hsd - Roadster Mmxx

About the project

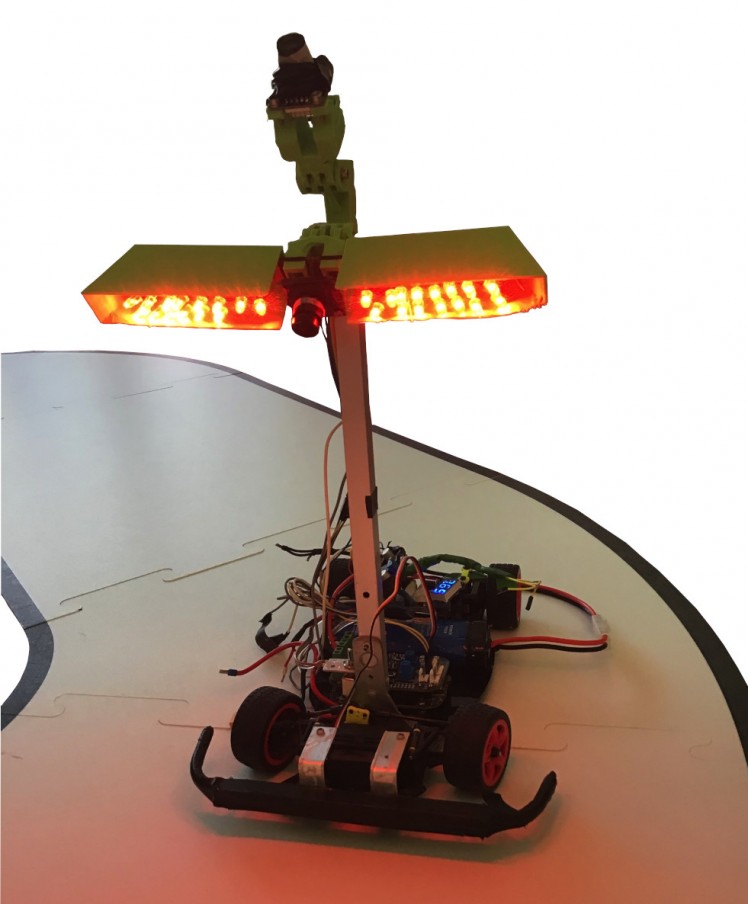

Setup of an autonomously driving vehicle on a predefined race track. The track can turn for a race. The vehicle recognizes the racetrack without any outside interference and sees it as quickly as possible. It is a challenge in the NXP CUP to race against other team contracts.

Project info

Difficulty: Expert

Platforms: MATLABNXPhttps://www.mouser.com/

Estimated time: 3 weeks

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

Linescan Imaging Sen Tsl1401 Daughterbrd Linescan Imaging Sen Tsl1401 Daughterbrd x 1
Parallax Feedback 360 Servo Parallax Feedback 360 Servo x 1
Dc Toy/hobby Motor 130 Size Dc Toy/hobby Motor 130 Size x 1
Freedom Expansion Kit, Fs4503 System Basis Chip With Kl25z Freedom Expansion Kit, Fs4503 System Basis Chip With Kl25z x 1
Robot Car Kit- Rc Smart Car Chassis Kit Robot Car Kit- Rc Smart Car Chassis Kit ROB0170 x 1
Ledil Linse Flare-B für Nichia N119/219, 4.5x44° Ledil Linse Flare-B für Nichia N119/219, 4.5x44° x 1
Cree XP-E2 SMD-LED, mit 10x10mm Platine, rot, 73,9lm Cree XP-E2 SMD-LED, mit 10x10mm Platine, rot, 73,9lm x 1
Wärmeleitendes Klebepad für 10x10mm Platine Wärmeleitendes Klebepad für 10x10mm Platine x 1
RCD-24-035WVREF RCD-24-035WVREF LED-Trafo, 2 - 35 V, 350 mA, Step-Down x 1

View all

Software apps and online services

MATLAB R2020b MATLAB R2020b
SIMULINK SIMULINK
NXP Companion NXP Companion With this App you can: + Create new models pre-configured for the NXP FRDM-KL25Z hardware. + Automatically configure an existing model for use with the NXP FRDM-KL25Z board. + Open a library of all the blocks created specifically for the NXP Cup Competition. + Open Examples for the NXP FRDM-KL25Z Support Package and NXP Cup Competition.
Simulink Coder Support Package for NXP FRDM-KL25Z Board Simulink Coder Support Package for NXP FRDM-KL25Z Board Simulink® Coder™ Support Package for NXP™ FRDM-KL25Z Board enables you to create and run Simulink® models on an NXP FRDM-KL25Z board. The support package includes a library of Simulink blocks for configuring and accessing NXP FRDM-KL25Z peripherals and communication interfaces. This support package is functional for R2014a and beyond.
SIMULINK CODER SIMULINK CODER
