Display Temperature & Humidity Using Atom Matrix Esp32

About the project

In this Tutorial we are going to display Temperature and Humidity from the DHT11 sensor using the ATOM Matrix ESP32.

Project info

Difficulty: Easy

Platforms: ArduinoDFRobotVisuinoM5Stack

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

Jumper wires (generic) Jumper wires (generic) x 1

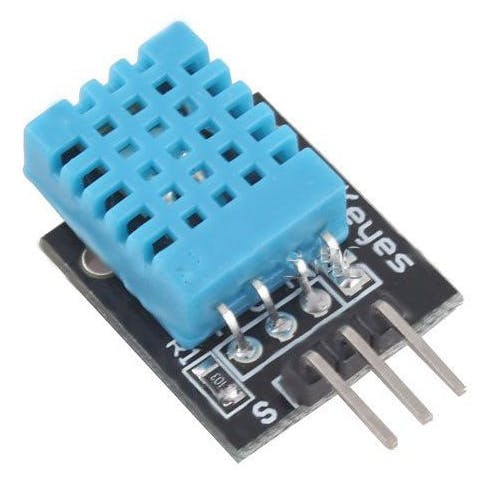

DFRobot Gravity: DHT11 Temperature Humidity Sensor For Arduino DFRobot Gravity: DHT11 Temperature Humidity Sensor For Arduino x 1

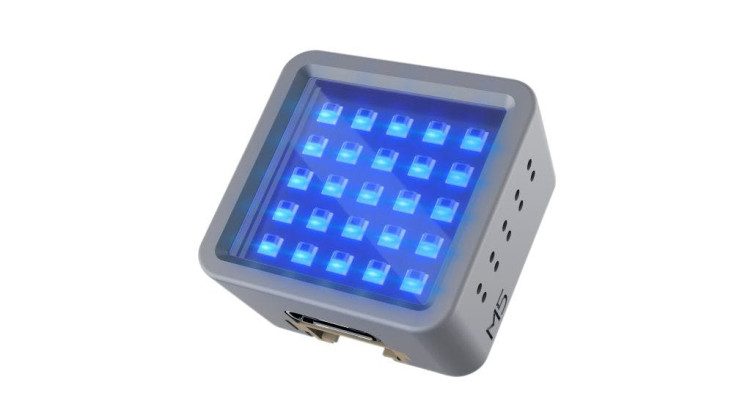

M5Stack ATOM Matrix ESP32 Development Kit M5Stack ATOM Matrix ESP32 Development Kit x 1

Software apps and online services

Visuino Visuino
Arduino IDE Arduino IDE

Story

Step 1: What You Will Need

1 / 3

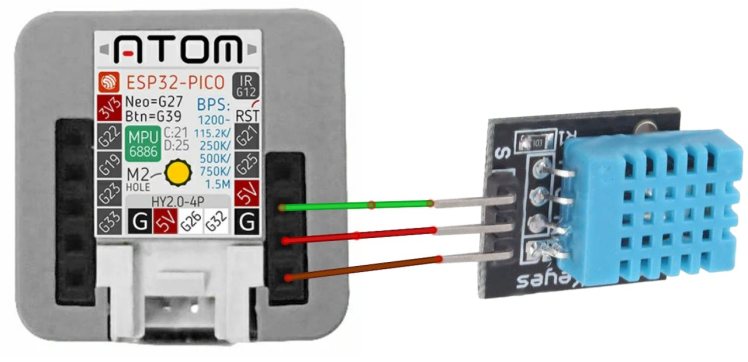

Step 2: The Circuit

  • Connect DHT11 sensor pin [VCC] to Atom Matrix pin [5V]
  • Connect DHT11 sensor pin [GND] to Atom Matrix pin [GND]
  • Connect DHT11 sensor pin [S] to Atom Matrix pin [G25]

Step 3: Start Visuino, and Select the Atom Matrix Board Type

1 / 2

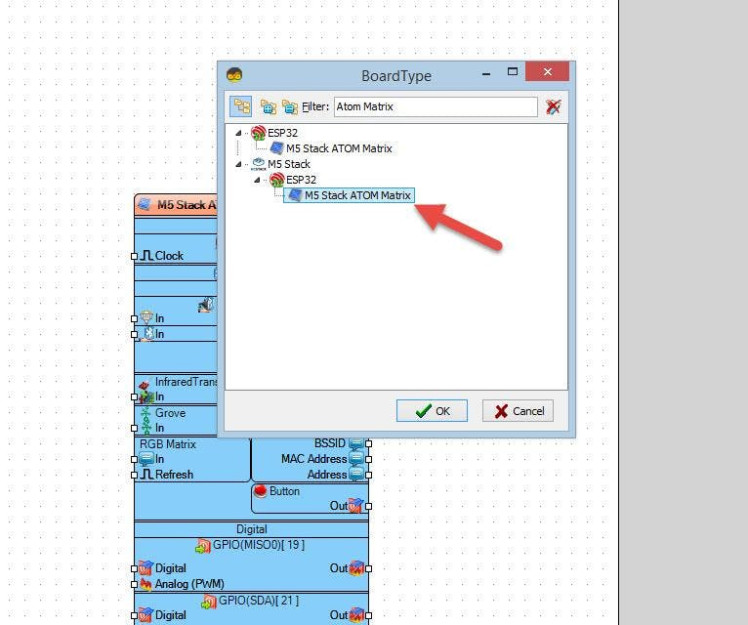

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Atom Matrix" as shown on Picture 2

Step 4: In Visuino Add Components

1 / 4

  • Add "DHT11" sensor component
  • Add 2X "Map Range Analog" component
  • Add 2X "Analog To Integer" component
  • Add 2X "Integer Multi Source" component

Step 5: In Visuino Set Components

1 / 8

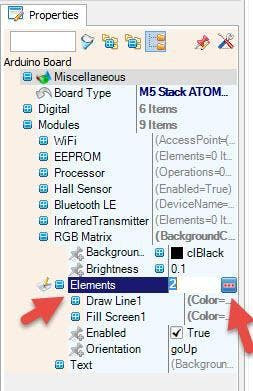

  • Select "M5 Stack ATOM Matrix" board and in the properties window expand "Modules">"RGB Matrix">"Elements" and click on the 3 dots button

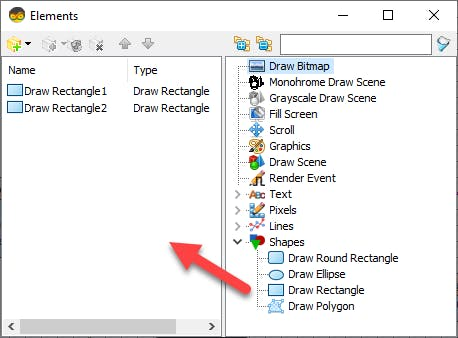

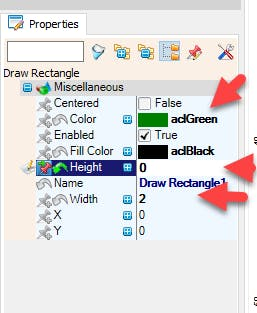

  • In the "Elements" window drag "Draw Rectangle" to the left side and in the properties window select "Height" and click on the Pin Icon and select "Cardinal SinkPin", set the "Color" to aclGreen, "Width" to 2, "Height" to 0

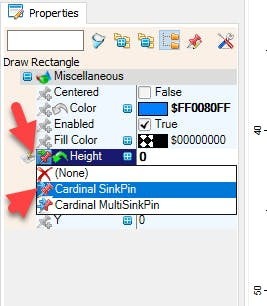

  • In the "Elements" window drag another "Draw Rectangle" to the left side and in the properties window select "Height" and click on the Pin Icon and select "Cardinal SinkPin", set the "Color" to $FF0080FF, "Width" to 2, "Height" to 0, "X" to 3
  • Close the "Elements" window

We Need to adjust the values from the DHT11 sensor to the Matrix Display, to do that:

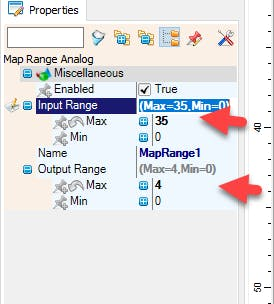

  • For the Temperature: Select "MapRange1" and in the properties window set "Input Range" > "Max" to 35 and "Output Range" > "Max" to 4
  • For the Humidity: Select "MapRange2" and in the properties window set "Input Range" > "Max" to 100 and "Output Range" > "Max" to 4

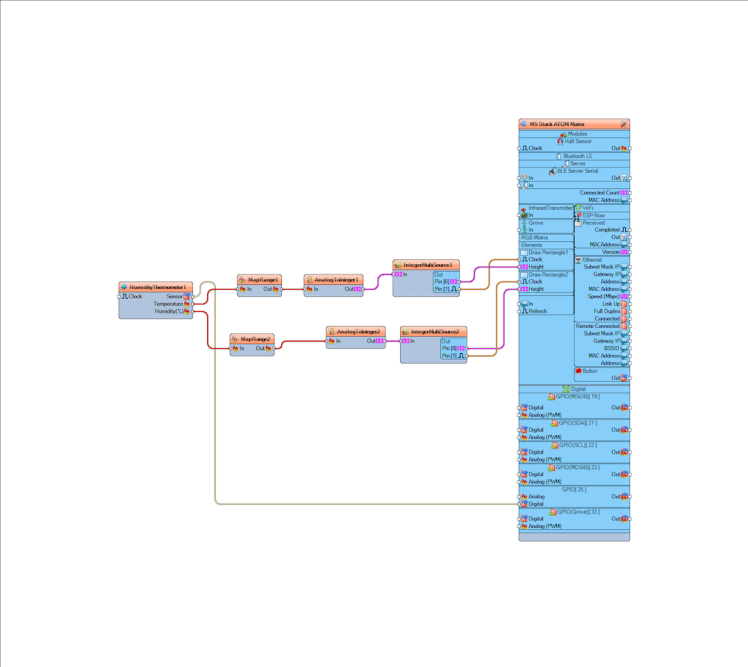

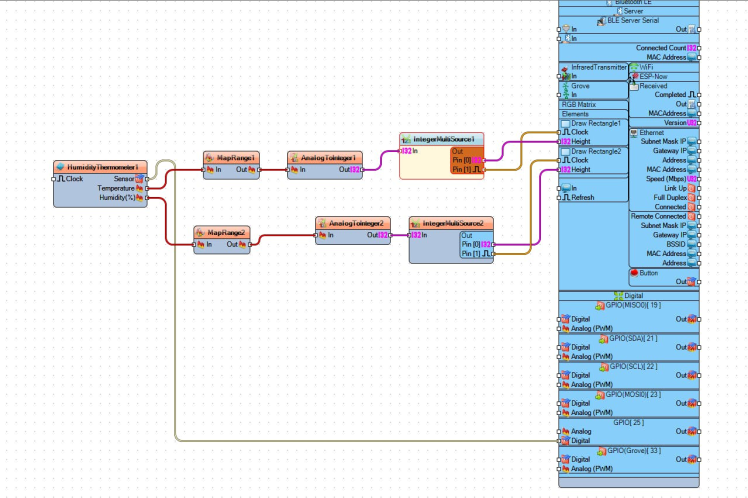

Step 6: In Visuino Connect Components

1 / 2

  • Connect "HumidityThermometer1" pin [Sensor] to "M5 Stack ATOM Matrix" pin [GPIO 25]
  • Connect "HumidityThermometer1" pin [Temperature] to "MapRange1" Pin [In]
  • Connect "HumidityThermometer1" pin [Humidity] to "MapRange2" Pin [In]
  • Connect "MapRange1" Pin [Out] to "AnalogToInteger1" pin [In]
  • Connect "MapRange2" Pin [Out] to "AnalogToInteger2" pin [In]
  • Connect "AnalogToInteger1" Pin [Out] to "IntegerMultiSource1" pin [In]
  • Connect "AnalogToInteger2" Pin [Out] to "IntegerMultiSource2" pin [In]
  • Connect "IntegerMultiSource1" Pin [0] to "M5 Stack ATOM Matrix" > "Draw Rectangle1" pin [Height]
  • Connect "IntegerMultiSource1" Pin [1] to "M5 Stack ATOM Matrix" > "Draw Rectangle1" pin [Clock]
  • Connect "IntegerMultiSource2" Pin [0] to "M5 Stack ATOM Matrix" > "Draw Rectangle2" pin [Height]
  • Connect "IntegerMultiSource2" Pin [1] to "M5 Stack ATOM Matrix" > "Draw Rectangle2" pin [Clock]

Step 7: Generate, Compile, and Upload the Arduino Code

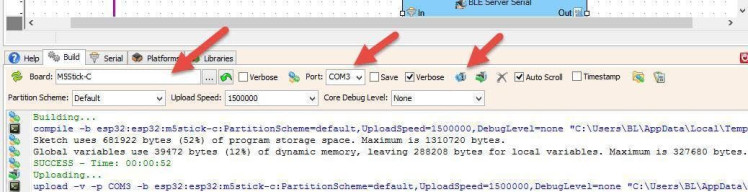

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Step 8: Play

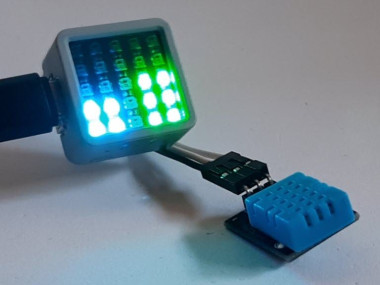

If you power the ATOM Matrix module The Display will start to show the Temperature as the Green color and Humidity as the Blue color. Values are proportional according to the ATOM Matrix Display size.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.eu

Schematics, diagrams and documents

Visuino File

Code

Visuino File
