The Banana Pi R64 is a router based development board, which can run on a variety of open source operating systems including OpenWrt,Linux. It has 4 Gigabit LAN ports, 1 Gigabit WAN, and AC wifi AP function. use 64 bit chip design

Project info

Difficulty: Difficult

Platforms: Amazon AlexaAndroidArm MbedRaspberry PiLinux

Estimated time: 7 months+

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

wiki page wiki page http://wiki.banana-pi.org/Banana_Pi_BPI-R64 x 1

Story

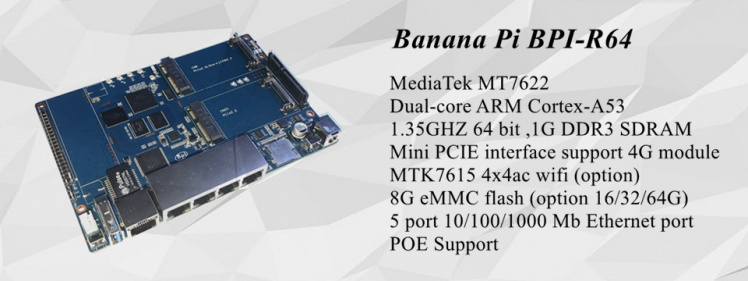

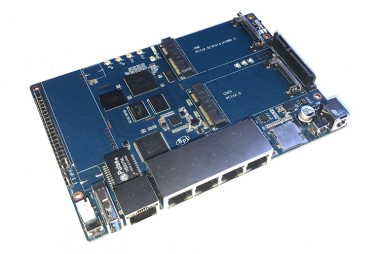

Banana Pi BPI-R64 open source router with MTK MT7622 64 bit chip design

The Banana Pi R64 is a router based development board, which can run on a variety of open source operating systems including OpenWrt,Linux. It has 4 Gigabit LAN ports, 1 Gigabit WAN, and AC wifi AP function.

==Key Features==

  • MediaTek MT7622,1.35GHZ 64 bit dual-core ARM Cortex-A53
  • 1G DDR3 SDRAM
  • Mini PCIE interface support 4G module
  • built-in 4x4n 802.11n/Bluetooth 5.0 system-on-chip
  • MTK7615 4x4ac wifi (option)
  • support 1 SATA interface
  • MicroSD slot supports up to 256GB expansion
  • 8G eMMC flash (option 16/32/64G)
  • 5 port 10/100/1000 Mb Ethernet port
  • (1) USB 3.0
  • Slow I/O:ADC, Audio Amplifier, GPIO, I2C, I2S, IR, PMIC I/F, PWM, RTC, SPI, UART
  • POE function support

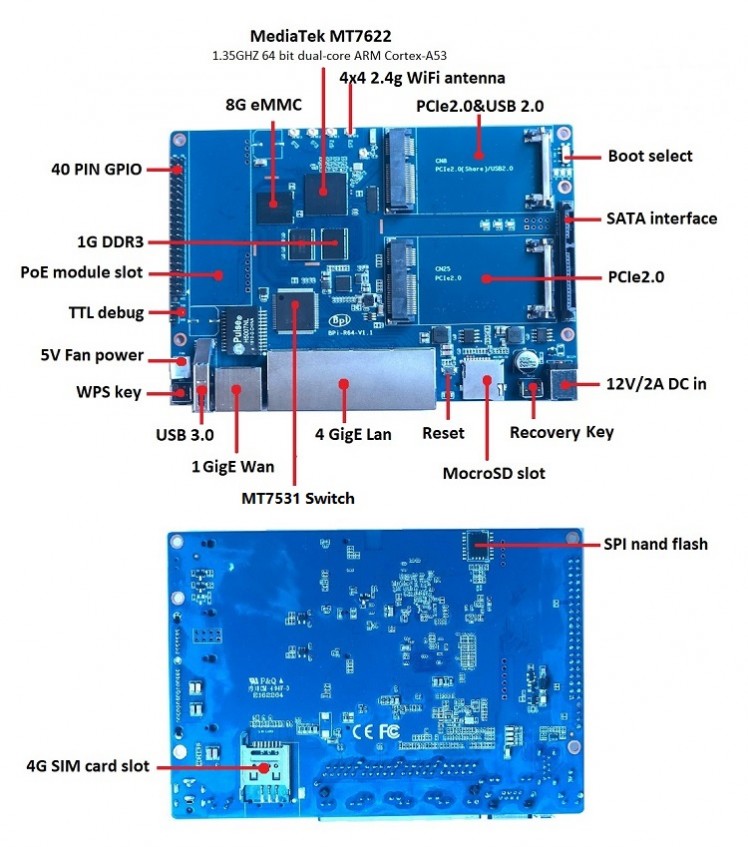

Hardware interface:

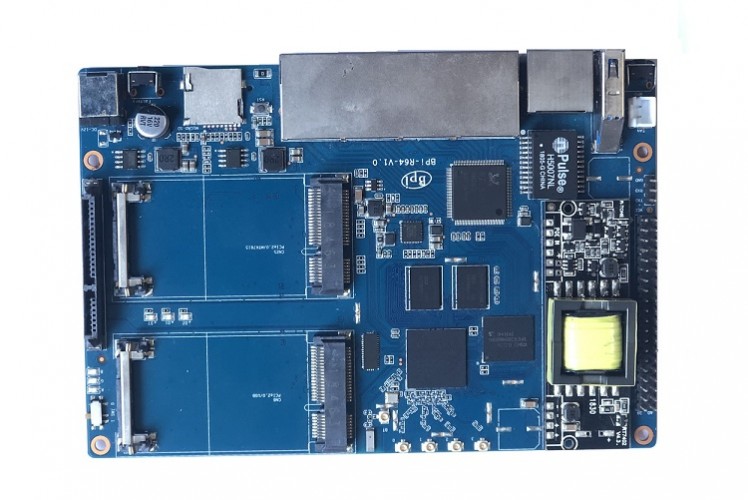

we design PoE function for BPI-R64 ,so easy to add PoE module to support PoE function,PoE modue can support 12V/3A to power BPI-R64

BPI-7402 PoE module wiki page:http://wiki.banana-pi.org/BPI-7402_IEEE_802.3at_PoE_module

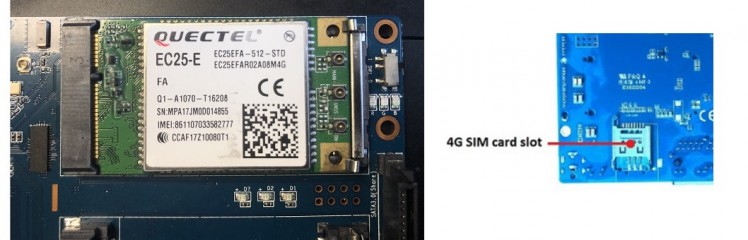

4G LTE module support

we will keep update at BPI-R64 wiki page:

http://wiki.banana-pi.org/Banana_Pi_BPI-R64

about MTK MT7622:

Highly integrated 4x4 802.11n and Bluetooth 5.0 platform with dedicated Network Accelerator

MediaTek MT7622 is the world’s first with 4x4n 802.11n/Bluetooth 5.0 system-on-chip designed and built for premium networking devices across several applications including routers/repeaters, home automation gateways, wireless audio, and wireless storage. The highly versatile chipset provides a single platform for popular 4X4 dual-band and tri-band routers/repeaters, providing maximum flexibility for manufacturers looking to build top-tier networking devices. The platform pairs high performance and extensively integrated functionality with a cost-effective approach.

The MT7622 contains MediaTek’s Adaptive Network technology that allows for easy setup, network self-healing, roaming, band steering, Smart quality of service, advanced security and more. For audio and voice control applications, essential audio interfaces such as I2S, TDM and S/PDIF are included. And for Home Automation Gateways there is a rich array of slow I/O in addition to the integrated Wi-Fi, Bluetooth and Zigbee co-existence.

Powered by a 64-bit dual-core ARM Cortex-A53 processor clocked at 1.35GHz, the MT7622 provides a host of advanced connectivity options like SGMII/RGMII, PCIe, and USB, and 4X4 802.11n FEM integration. Extending the platform with 802.11ac to meet additional markets is simply done via MT7615 SoC.

The MT7622 introduces several best-in-class features such as Bluetooth 5.0 and a dedicated Network Accelerator engine with the MediaTek Wi-Fi Warp Accelerator, storage accelerator (SATA 3.0/eSATA Gen2) and HNAT HQoS calculations are offloaded from the CPU, lowering overall power-use and freeing up resources to avoid any potential slow-downs.

The advantage of the MediaTek Wi-Fi Warp Accelerator is two-fold. Firstly it connects the Gigabit+ class 802.11ac networking through to the Gigabit switch/WAN connection via multi-Gigabit internal pathways, ensuring no bottleneck. Secondly, its specialized design not only offloads the CPU from many-user throughput and QoS calculations, it does so at lower power. The result is the MediaTek Wi-Fi Warp Accelerator maintains a sustained high-performance when even supporting multiple, simultaneous heavy users.

Integrated Bluetooth allows for a direct, local wireless connection via App for easy configuration of the router/Wi-Fi settings. The latest Bluetooth 5.0 quadruples range and doubles speed versus previous 4.x technologies, allowing new and innovative possibilities.
