Banana Pi Bpi-r2 Open Source Smart Router With Mtk

About the project

The Banana Pi R2 is a router based development board, which can run on a variety of open source operating systems including OpenWrt, Android

Project info

Difficulty: Easy

Platforms: AndroidArduinoArm MbedHome AssistantPINE64

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Story

Banana PI BPI-R2 is a highly integrated multimedia network router;it can be used for high wireless performance, home entertainment,home automation and so on. BPI-R2 integrate a Quad-code ARM Cortex-A7 MPcore operating up to 1.3GHz, The Router also includes a variety of peripherals, including HDMI TX, MIPI DSI, PCIe2.0, USB2.0 OTG, USB3.0 Port, SATA port,5 Gbps Port Gigabit Ethernet port,

802.11a/b/g/n wifi & BT4.1 onboard, also support 802.11ac/n WLAN connection thru mini PCI-e port BPI-R2 can run with Android5.1 smoothly, it also can runOpenWRT,Debian,linux,Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-R2 same as BPI-R1, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi 3

Details

Banana PI BPI-R2 is a highly integrated multimedia network router;it can be used for high wireless performance, home entertainment,home automation and so on.

BPI-R2 integrate a Quad-code ARM Cortex-A7 MPcore operating up to 1.3GHz, The Router also includes a variety of peripherals, including HDMI TX, MIPI DSI, PCIe2.0, USB2.0 OTG, USB3.0 Port, SATA port,5 Gbps Port Gigabit Ethernet port, 802.11a/b/g/n wifi & BT4.1 onboard, also support 802.11ac/n WLAN connection thru mini PCI-e port

BPI-R2 can run with Android5.1 smoothly, it also can run OpenWRT,Debian,linux,Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-R2 same as BPI-R1, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi 3

==Key Features==

* MediaTek MT7623N, Quad-core ARM Cortex-A7* Mali 450 MP4 GPU* 2G DDR3 SDRAM* Mini PCIE interface.* support 2 SATA interface* MicroSD slot supports up to 256GB expansion* 8G eMMC flash (option 16/32/64G)* MIPI display interface support* 5 port 10/100/1000 Mb Ethernet port* (2) USB 3.0 and (1) USB 2.0 otg port* 1080P high-definition video playback* HDMI port and multi-channel audio output* WIFI&Bluetooth 4.1 with 802.11B/G/N onboard

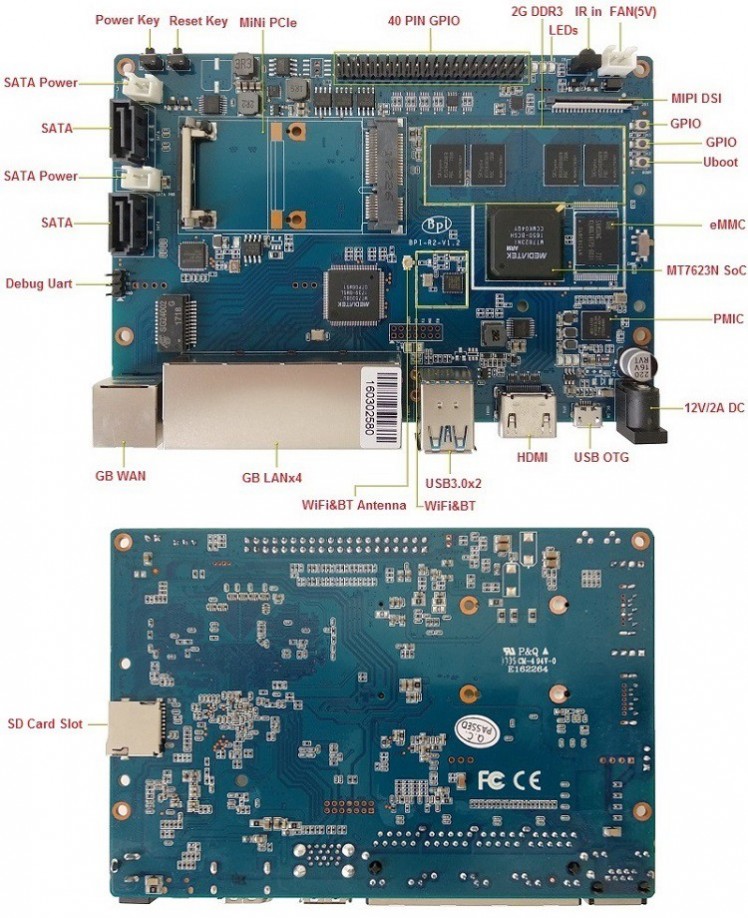

hardware interface:

hardware spec:

wiki page:

http://wiki.banana-pi.org/Banana_Pi_BPI-R2
