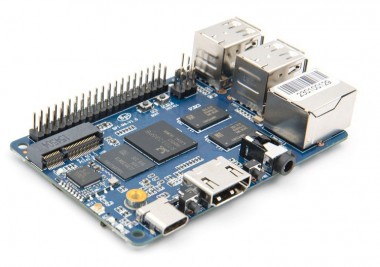

Banana Pi Bpi-m4 With Rtd1395 Quad-core Cpu,arm Co

About the project

Banana Pi BPI-M4 use Realtek RTD1395 chp design ,it is a 64-bit quad-core A53 single board computer. It features 1 GB of RAM and 8 GB eMMC

Project info

Story

Banana Pi open source single board computer BPI-M4

Details

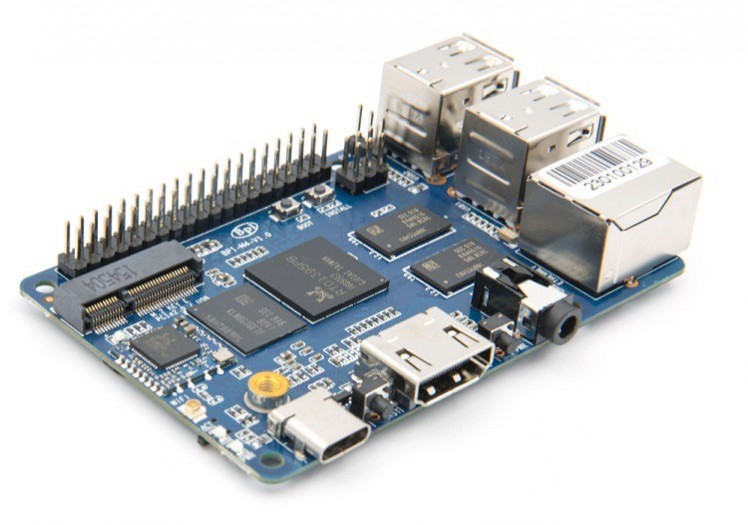

Banana Pi BPI-M4 with RTD1395 quad-core CPU,ARM cortex-A53 chip design

Banana Pi BPI-M4 use Realtek RTD1395 chp design ,it is a 64-bit quad-core A53 mini single board computer. It features 1 GB of RAM and 8 GB eMMC. It also has onboard WiFi for b/g/n/ac and BT 4.2. On the ports side, the BPI-M4 has 4 USB 2.0 ports, 1 USB TYPE C port, 1 HDMI port, 1 audio jack. support M.2 Key E PCIE 2.0 interface.

The RTD1395 is equipped with a high-performance quad-core CPU,ARM cortex-A53,with 512K L2 cache embedded. the RTD1395 also integrates and efficient ARM Mali-470 Graphic Processing Unit(GPU) to accelerate 2D and 3D graphics processing. For acceleration of this OSD and 2K user interface,the built-in Streaming Engine of the RTD1395 provides commonly used drawing functions.the CPU is dedicated to applications ,while most of the functions of the RTD1395 is dedicated to manipulating,decoding video streams in vaious formats.e.g. decoding 4K2K H.265,Full HD MPEG1/2/4/H.264/H.264 MVC,AVC/VC-1,VP8,VP9,AVS,AVS plus,HD JPEG,etc. Video DSP can also handle encoding of up to Full HD with H.264 format.Video decoding and encoding can run simultaneously.

hardware interface:

BPI-M4 same size as raspberry Pi 3B+ ,can use 3B+ case

Compatible with Raspberry pi PoE module

M.2 key E slot PCIE 2.0 and USB 2.0

Banana Pi BPI-M4 Android 8 1 1 demo ,power by raspberry Pi PoE module

online wiki documents, we will keep update.

http://wiki.banana-pi.org/Banana_Pi_BPI-M4
