Banana Pi Bpi-m2+ (bpi-m2 Plus) Open Source Sbc

About the project

Banana pi BPI-M2+ (BPI-M2 plus) quad core singel-board computer, with allwinner H3 chip design http://www.banana-pi.org

Project info

Items used in this project

Hardware components

KINETIS KE15Z 72MHZ CORTEX-M2 KINETIS KE15Z 72MHZ CORTEX-M2 https://bananapi.gitbooks.io/bpi-m2-/content/ x 1

Story

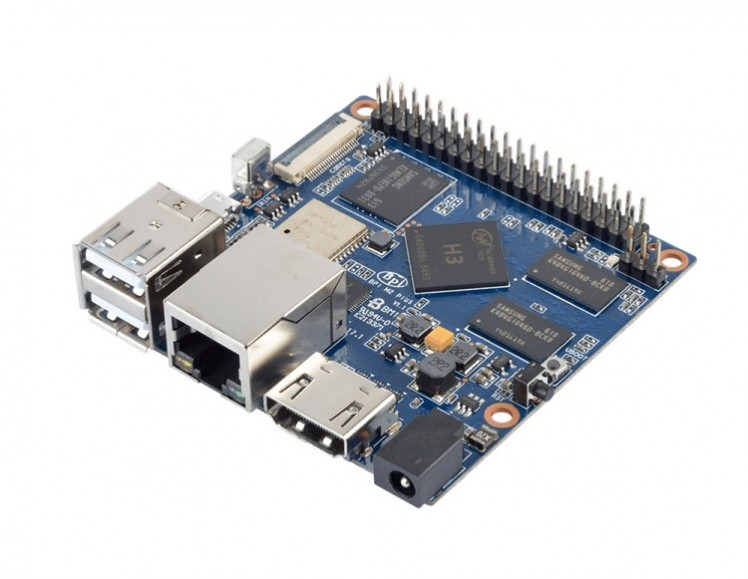

Banana PI BPI-M2+ is the open source hardware platform,Banana PI BPI-M2+ is an quad core version of Banana Pi,it support WIFI on board. use Alliwnner H3 chip on board. and mini size only 65mm*5mm Banana Pi BPI-M2+ series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image. Banana PI PBI-M2 hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash on board,and SDIO wifi module on board.+

Details

Banana PI BPI-M2+ is the open source hardware platform,Banana PI BPI-M2+ is an quad core version of Banana Pi,it support WIFI on board. use Alliwnner H3 chip on board. and mini size only 65mm*5mm

Banana Pi BPI-M2+ series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image. Banana PI PBI-M2 hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash on board,and SDIO wifi module on board.+

Banana PI BPI-M2+ with Gigabit ethernet port, It can run with Android 4.4 smoothly. it can easily run with the game it support 1080P high definition video output and 4K support, the GPIO compatible with Raspberry Pi B+ and can support raspbian ImageNote: Banana Pi BPI-M2+ not support sata port, so you need use USB for hardisk

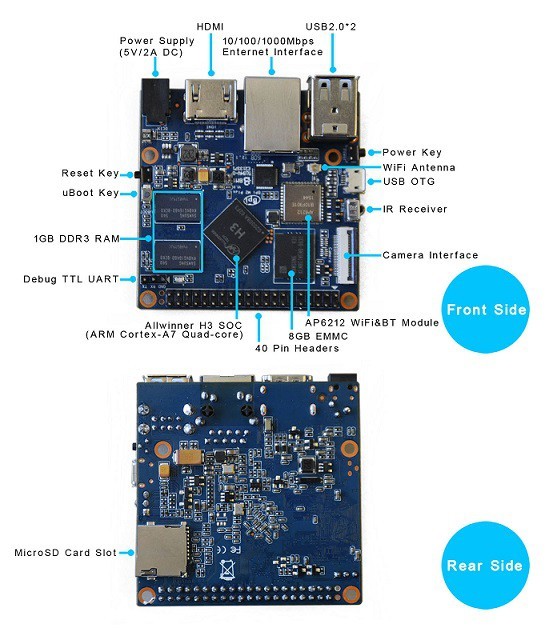

BPI-M2+ hardware interface:

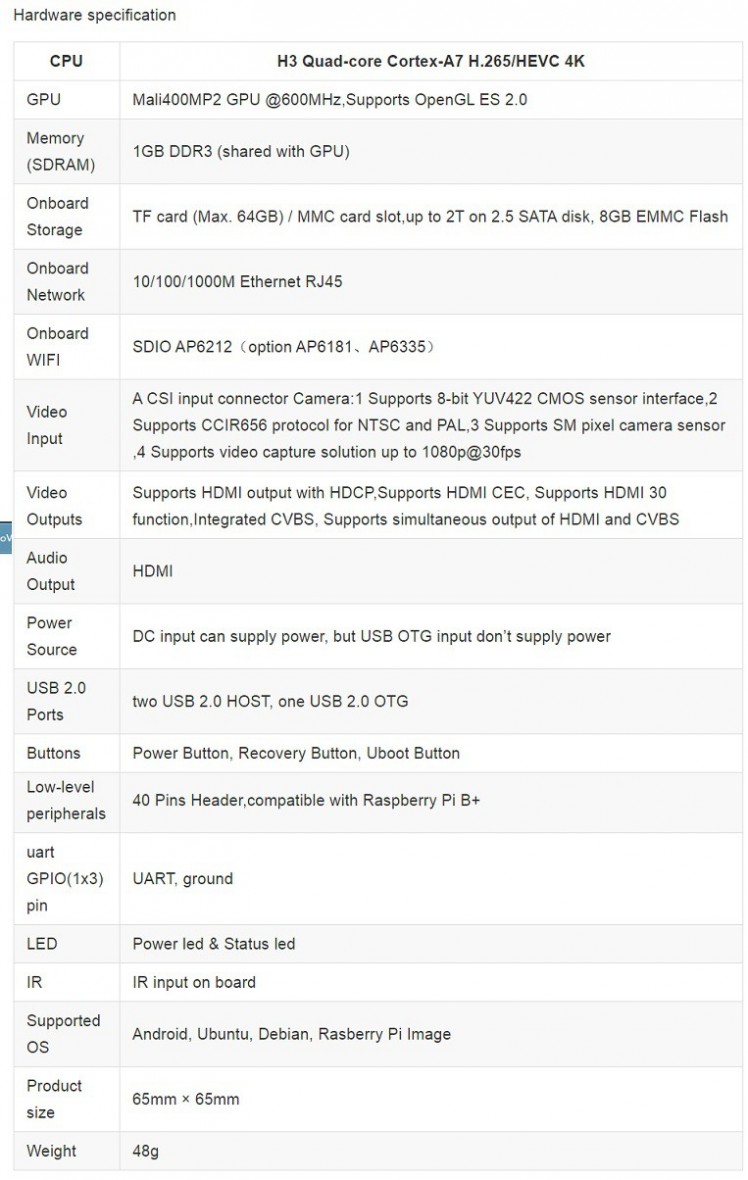

BPI-M2+ Hardware spec:

online document on gitbook:

https://bananapi.gitbooks.io/bpi-m2-/content/

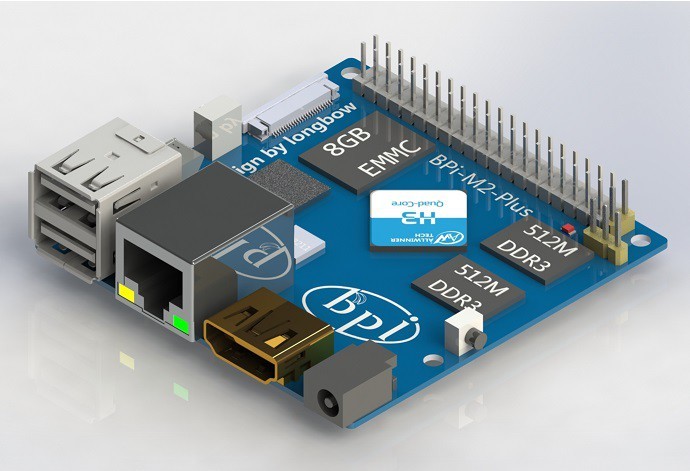

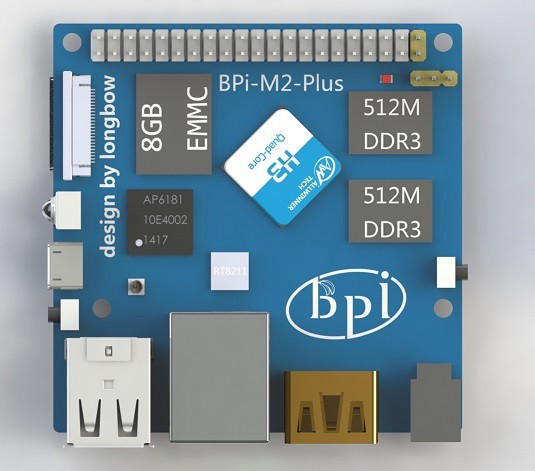

3D design:

gitbook online document:

https://www.gitbook.com/@bananapi/

Project Logs

banana pi image

image download:

https://bananapi.gitbooks.io/bpi-m2-/content/linuxforkernel34image.html

Credits

Photo of BananaPi

BananaPi

banana Pi open source project for single board computer,smart router ,arudino, IoT, and STEAM educationo.
