Banana Pi Bpi-m2 Berry Quad Core Single-board Computer

About the project

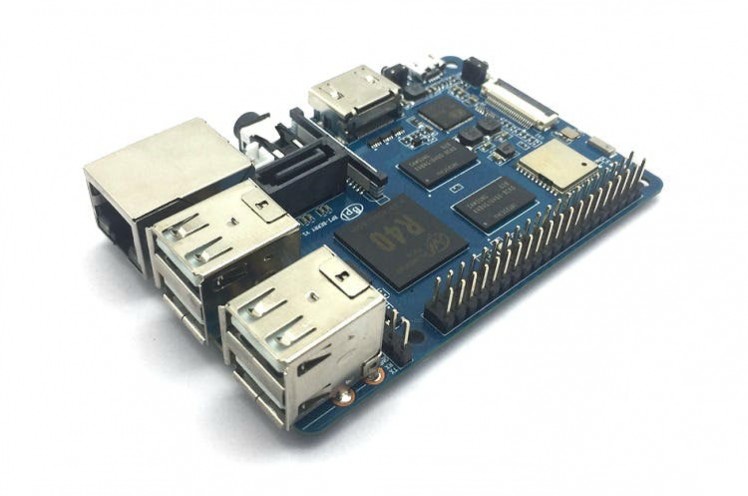

Banana Pi BPI-M2 Berry is a quad-core mini single board computer built with Allwinner V40 SoC. It features 1GB of RAM . It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 4 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and last but not least, a SATA port..

Project info

Difficulty: Difficult

Platforms: AndroidArm MbedRaspberry PiSmartThingsUbuntu

Estimated time: 7 months+

License: GNU General Public License, version 3 or later (GPL3+)

Story

Introduction

Banana Pi BPI-M2 Berry is the open source hardware platform, Banana PI BPI-M2 Berry is a quad-core cortex -A7 CPU. You should use the Allwinner R40 design, it supports WIFI+BT on board and SATA interface on board.

Banana Pi BPI-M2 Berry series runs on Android, Debian Linux, Ubuntu Linux, Raspbian system and other OS.

Banana Pi PBI-M2 Berry hardware: Quad Core ARM Cortex A7,ARMv7 CPU, 2GB DDR3 SDRAM, all sizes are the same as Raspberry Pi 3.

Note: Pi-M2 Berry does not provide onboard eMMC flash support.

The Tech

The Banana PI BPI-M2 Berry with Gigabit Ethernet port can run Android smoothly. The size of Banana Pi BPI-M2 Berry is same as Banana Pi BPI-M64, supports 1080P video, the 40 pin GPIO header is pin-compatible with Raspberry Pi.

The new BPI-M2 Berry is a tiny little computer with great big ambitions. The expandable single-board device runs either Linux or Android and features impressive specs that outshine comparable products by a substantial margin. Highlights include a quad-core ARMv7 processor, a Mali 400 MP2 GPU, and support for 1080P ultra high-definition video.

More specs follow below.

  • 1. Quad Core ARM Cortex A7 CPU
  • 2. Dual core Mali 400 MP2 GPU
  • 3. 1G DDR3 SDRAM
  • 4. Supports SATA interface
  • 5. MicroSD slot supports up to 256GB expansion
  • 6. Not 8G eMMC flash onboard
  • 7. CSI camera interface and DSI display interface support
  • 8. 10/100/1000 Mb Ethernet port
  • 9. (4) USB 2.0 hosts and (1) USB otg port
  • 10. 1080P high-definition video playback
  • 11. HDMI port and multi-channel audio output
  • 12. WIFI&Bluetooth 4.0 with 802.11BGN onboard
  • 13. 3.5mm Stereo Output mini-jack with microphone support
  • 14. Not support Built-in 3.7V Lithium Battery Charging Circuit
  • 15. Hardware security enables trust-zone security system, Digital Rights Management (DRM), information encryption/decryption, secure boot, secure JTAG and secure efuse.

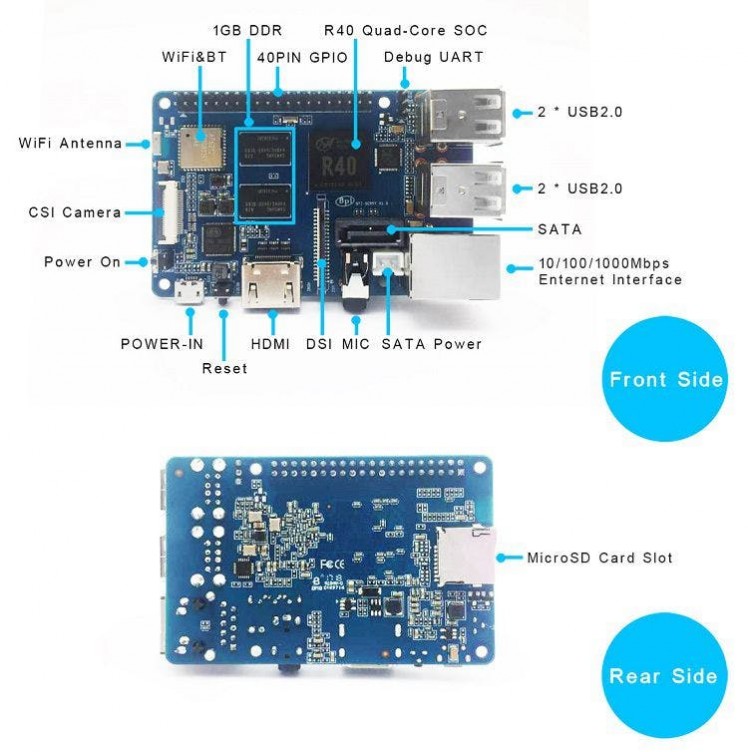

BPI-M2 Berry hardware interface:

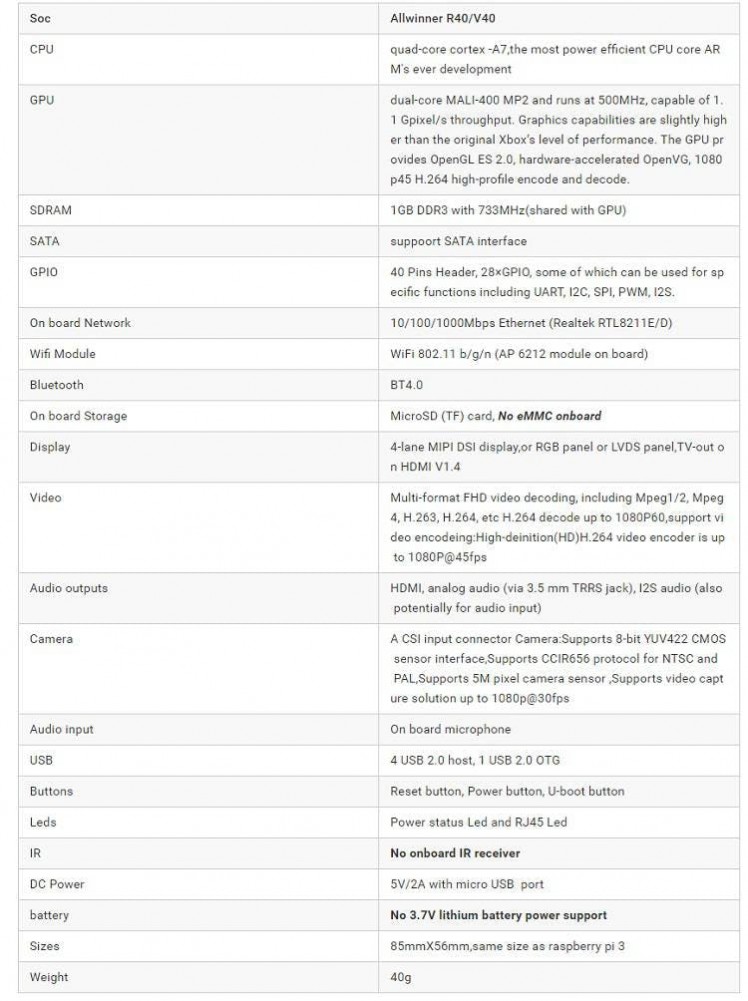

BPI-M2 Berry Hardware Spec:

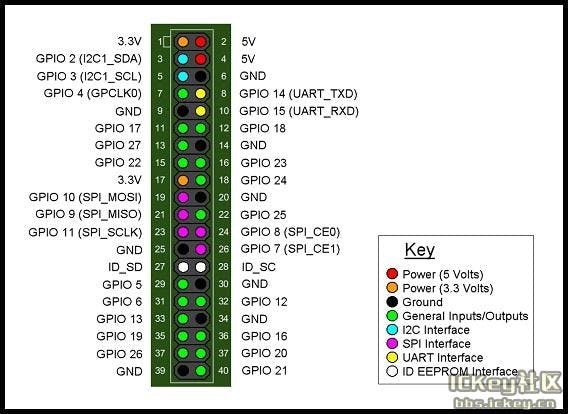

GPIO Define:

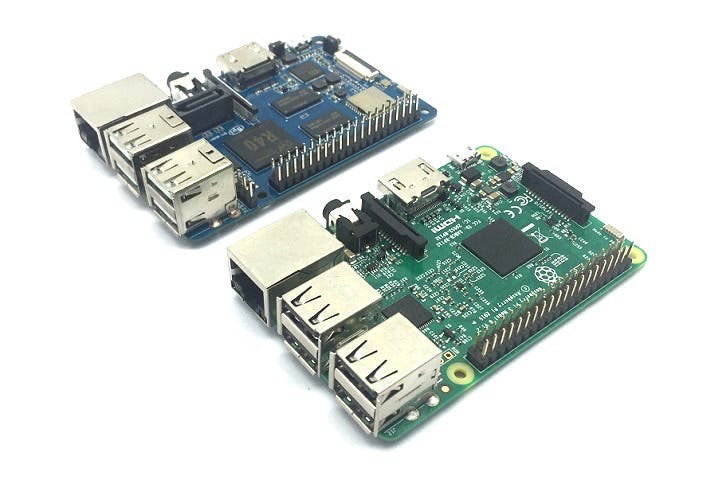

BPI-M2 Berry is the same size as Raspberry Pi 3, so you can use Raspberry Pi box.

More about this board, please see our wiki page:

http://wiki.banana-pi.org/Banana_Pi_BPI-M2_Berry
