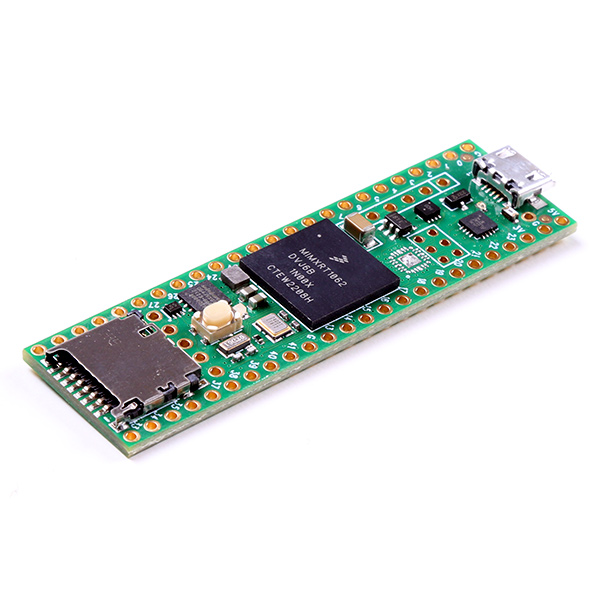

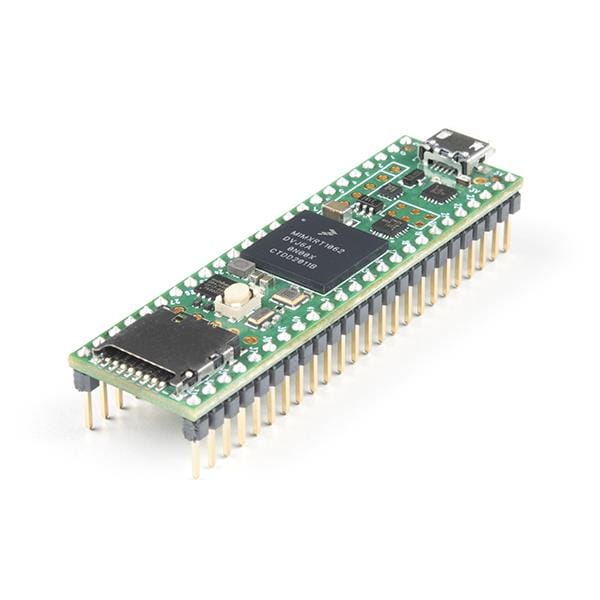

Teensy 4.1: A Powerhouse for Audio, Robotics, and IoT Projects

When it comes to pushing the boundaries of what microcontrollers can do, the Teensy 4.1 doesn’t just raise the bar, it launches it into orbit. This isn't just another development board; it's a miniature performance monster that redefines the limits of embedded design. Whether you're a seasoned engineer working on complex control systems or a curious maker dreaming up your next side project, the Teensy 4.1 delivers a remarkable combination of power, flexibility, and advanced features that fit neatly in the palm of your hand.

Armed with an ARM Cortex-M7 processor clocked at a blistering 600 MHz, this board stands out in a sea of microcontrollers. It brings raw processing muscle, high-speed connectivity, and a toolkit of I/O options that make it just as comfortable handling real-time audio as it is running robotics, networking systems, or high-security applications.

Whether you’re building, experimenting, or scaling a prototype, the Teensy 4.1 is engineered to keep up with your most ambitious ideas, and possibly outpace them. Got ideas for what you'd build with the Teensy 4.1? Drop a comment!

Shop Now

Processing Power That Breaks the Mold

The Teensy 4.1 isn’t just fast, it’s lightning fast. At the heart of this board lies an ARM Cortex-M7 processor clocked at a staggering 600 MHz. For context, that's faster than some entry-level desktop CPUs from a decade ago, in a board that could disappear into your pocket. It feels like this chip should be in a mission control room, not a breadboard.

This isn’t just about raw MHz, though. The Teensy 4.1 features the powerful NXP iMXRT1062 microcontroller, a true performance-class MCU that combines blistering speed with real-time responsiveness. It uses a dual-issue superscalar architecture, meaning it can execute two instructions per clock cycle. In real-world terms, this means more processing in less time, whether you're running complex control loops, digital audio processing, or edge-based machine learning models.

Thanks to its intelligent design and support for dynamic clock scaling, Teensy 4.1 isn't just fast, it's also smart about how and when it uses that power. And yes, for those who like to push their gear, it’s even overclockable. It's an almost absurd level of performance for something this small.

Packed With High-End Hardware Features

The Teensy 4.1 isn’t just well-equipped, it’s unapologetically overengineered (in the best way possible). It packs so much advanced hardware into such a small footprint, it almost feels like it’s showing off. It's so powerful, it's got features you won't even need—until you suddenly do.

Here’s a closer look at the premium hardware baked into the Teensy 4.1:

Tightly Coupled Memory (TCM)

Includes 512KB of tightly coupled RAM for ultra-fast instruction and data access. Perfect for real-time applications where timing is everything.

Generous Flash Storage

With 8MB of onboard flash memory, the Teensy 4.1 provides more than enough room for large programs, datasets, or complex firmware systems.

Floating Point Unit (FPU)

Hardware acceleration for both 32-bit and 64-bit floating point operations. Ideal for audio synthesis, real-time DSP, and mathematical modeling without bottlenecks.

Cryptographic Acceleration

Includes a hardware random number generator, support for secure RTC, and dedicated crypto acceleration. Ready for secure communication and encryption-heavy tasks.

MicroSD Card & USB Host Support

Features a microSD card slot for external data logging and a USB host port for direct connection to peripherals such as keyboards, mice, and drives.

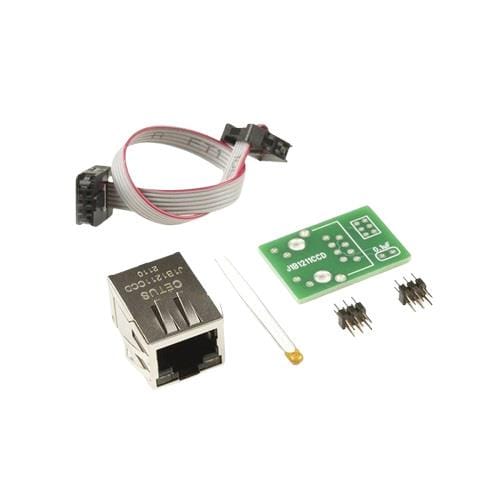

Ethernet PHY

Onboard Ethernet PHY brings network connectivity right to your fingertips, making the Teensy 4.1 perfect for IoT gateways, data servers, or connected devices.

Shop Now

Unmatched IO and Interface Versatility

If you’re looking for a development board that can juggle sensors, motors, displays, audio, and networking, all at once, the Teensy 4.1 is ready to impress. With an expansive set of I/O options, this board is tailored for makers and engineers working on everything from robotics to high-end audio processing.

Let’s start with the basics: the Teensy 4.1 features a massive 55 general-purpose I/O pins, giving you all the flexibility you need to wire up peripherals, sensors, and actuators. Of those, 35 support PWM for precise motor and LED control, while 18 pins support analog input for reading sensor data or audio signals with high resolution.

The I/O options don’t stop at the basics. This board packs in three CAN bus interfaces (including one with CAN FD support), making it a perfect fit for automotive and industrial applications. Add in three SPI buses, each equipped with a 16-word FIFO buffer, and you’ve got a platform that can handle high-throughput data transfers without breaking a sweat.

Audio developers will appreciate the dedicated support for digital sound, with two I2S interfaces for stereo audio, an SPDIF interface for digital audio output, and a 4-bit SDIO interface for fast SD card access. It’s a comprehensive suite of I/O features, all built into a compact, performance-class board.

IO Snapshot

With this level of interface versatility, the Teensy 4.1 is a go-to solution for robotics, advanced automation systems, or professional audio DSP projects. It’s the kind of board that adapts to your project, not the other way around.

Security, Storage, and Speed for Modern Projects

Performance isn't worth much without control, and the Teensy 4.1 delivers both with surprising finesse. This isn’t just a board that runs fast; it’s designed to run smart, secure, and stable. With features aimed squarely at modern, connected, and security-conscious applications, it’s engineered for developers who need more than just raw MHz.

Need your system to keep accurate time even when powered down? The Teensy 4.1 supports a real-time clock (RTC) with battery backup, ideal for data logging, IoT scheduling, or secure timestamping. For portable or embedded builds, there's a power shut-off pin, hook up a push button and the board can fully power down on demand, then reboot with a quick press. And for custom interface control, FlexIO enables advanced programmable logic, giving developers new ways to communicate with hardware peripherals.

Under the hood, it gets even better. The Teensy 4.1 uses a combination of tightly coupled memory (ITCM and DTCM) for fast, deterministic execution, while the AXI bus handles high-throughput peripheral access. The ARM Cortex-M7’s branch prediction drastically reduces execution stalls during loops and conditional logic, all of which helps you squeeze every last drop of performance from your code.

And because it's built to work seamlessly with the Teensyduino software environment, you get fine-grained control over performance tuning without sacrificing Arduino compatibility. It’s optimized, powerful, and frankly, smarter than some entry-level computers. If this board gets any smarter, it'll start filing your taxes.

Shop Now

Application Ideas That Push the Boundaries

The Teensy 4.1 isn’t just a board you build with, it’s a board you build around. With a combination of speed, IO versatility, and advanced hardware features, it's perfectly suited for high-demand, real-world applications across disciplines. If this board was any more capable, it would do my job.

Audio Processing

Thanks to its dual I2S interfaces, hardware floating point unit, and real-time processing power, the Teensy 4.1 is tailor-made for digital audio projects. Whether you're building a real-time effects processor, multi-channel mixer, or audio synthesizer, this board keeps latency low and performance high — ideal for audiophiles and DSP engineers alike.

Robotics and Automation

Controlling motors, servos, and sensors? The Teensy 4.1 delivers with 35 PWM-capable pins, 18 analog inputs, and three CAN bus ports. With one of those supporting CAN FD, it’s well-suited for everything from industrial automation to autonomous vehicles. It brings serious muscle to mechatronics projects.

IoT and Networking

With a built-in Ethernet PHY and USB host port, the Teensy 4.1 is ready for connected projects. Build a robust IoT gateway, develop high-speed data loggers, or create devices that communicate seamlessly across networks. It’s a natural fit for smart infrastructure and edge-computing environments.

Cryptography and Secure Applications

Need to keep things locked down? The board features hardware-accelerated cryptography, a random number generator, and secure RTC support. It’s a powerful platform for secure communication systems, encrypted data handling, and trusted device applications where safety is critical.

Creative Projects and Machine Learning

Art installations, advanced LED control, and AI-on-the-edge are all within reach. With its high-speed data access, programmable FlexIO, and ample processing headroom, the Teensy 4.1 opens the door to cutting-edge creative tech and experimentation with lightweight ML models, all on a palm-sized board.

Final Thoughts – A Board That Does It All (and More)

The Teensy 4.1 is more than just a development board, it’s a compact innovation platform. With unmatched processing power, an abundance of hardware features, and a carefully engineered I/O layout, it manages to be both beginner-friendly and professional-grade. Whether you need raw computational horsepower or a rich interface for your peripherals, this board rises to the challenge every time.

It’s this rare blend of performance and versatility that makes the Teensy 4.1 such a standout in its class. Whether you're building a synthesizer, a robot dog, or an encrypted sensor network, the Teensy 4.1 has your back, with plenty of headroom left over for whatever you dream up next.

Ready to get started? Shop the Teensy 4.1 now and unlock the next level of your project potential.
