Zoetrope

About the project

This is a 3d zoetrope with a ghost/pumpkin animation.

Project info

Difficulty: Moderate

Platforms: Arduino

Estimated time: 1 day

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

Grove - MOSFET Grove - MOSFET x 1
Diode Rectifier - 1A 400V (1N4004) Diode Rectifier - 1A 400V (1N4004) x 1
Grove - LED String Light Grove - LED String Light x 1
Raspberry Pi Power Supply, White, Micro USB Cable, 5.1V, 2.5A, 1.5m Raspberry Pi Power Supply, White, Micro USB Cable, 5.1V, 2.5A, 1.5m x 1
BIPOLAR STEPPER MOTOR DRIVER BOARD BIPOLAR STEPPER MOTOR DRIVER BOARD x 1
Stepper Motor Shield for Arduino Stepper Motor Shield for Arduino x 1
Arduino Uno - R3 Arduino Uno - R3 x 1

Story

This is a 3d zoetrope with a ghost/pumpkin animation.

Details

I saw a post on hackaday about 4-mation and I decided to try and create my own device.

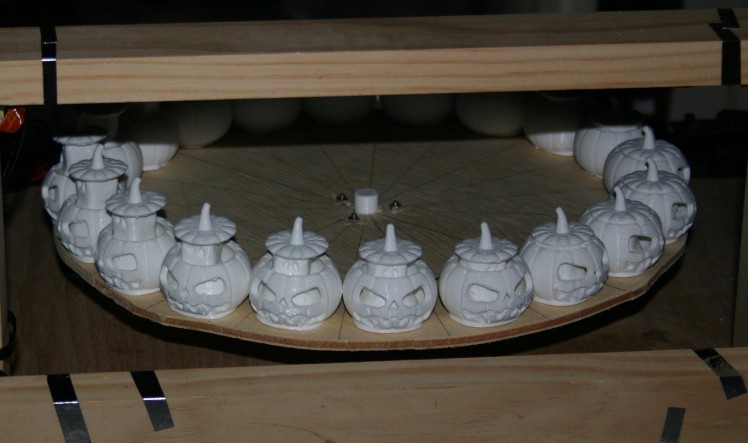

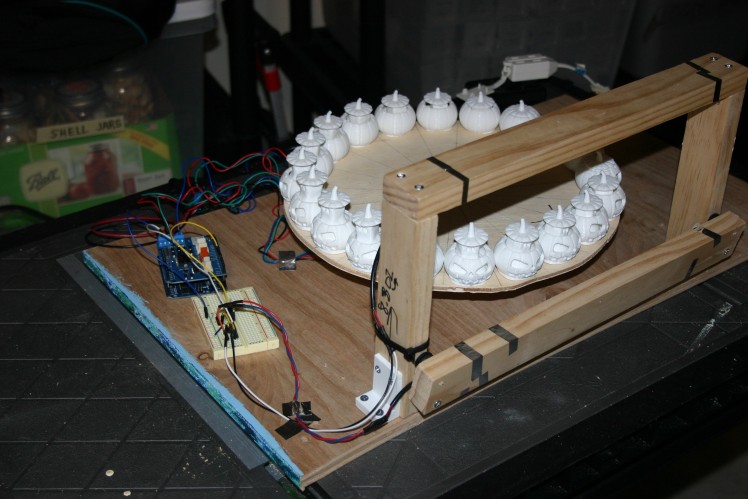

Of course the "flashing bars" don't appear in real life. An Arduino with a motor shield is used to control a bipolar stepper motor and led light strings. The twelve inch diameter turntable rotates at about 60 rpm (one revolution per second). The turntable is divided into 20 sections and a ghost/pumpkin is placed on each section. The led's are "flashed" every 1/20 of a second to provide the illusion of movement.

Project Logs

Log 1

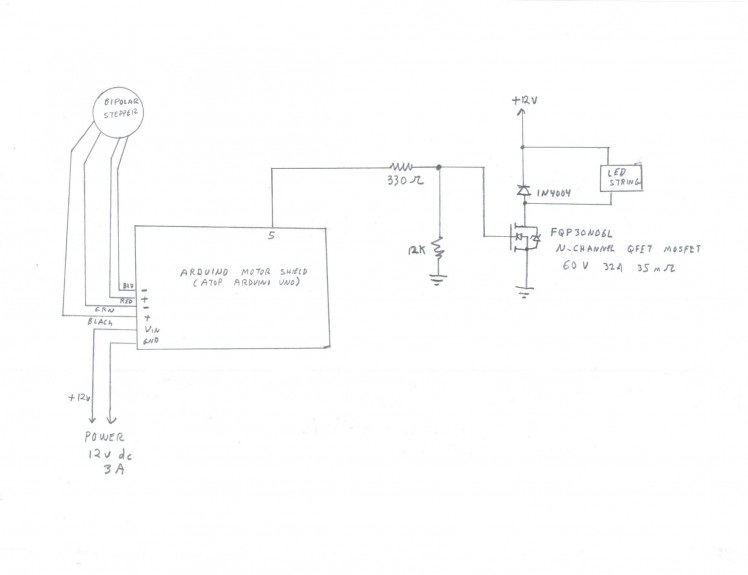

Wire according to this schematic.

Install the sketch (included in the files on hackaday.io).

Print two each of ghosts 3 through 9. Print three of ghosts 2 and 10. Arrange them in order on the wheel.

The pumpkin part of the ghost/pumpkin came from Makie's Jack-O-Lantern on thingiverse.

Plug it in (in a somewhat dark room) and watch the magic of animation.
