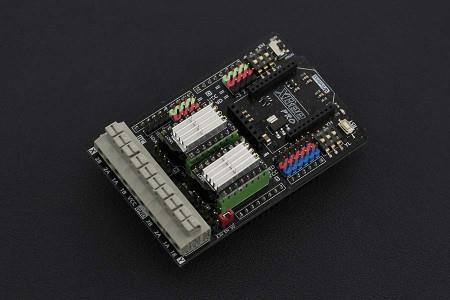

Stepper Motor Shield For Arduino

Stepper Motor Shield For Arduino


Mouser No:
426-DRI0023
Mfr. No:
DRI0023
Power Management IC Development Tools Stepper Motor Shield for Arduino

$19.50

Quantity
Spend another $40   to get free shipping
Do you want to do some projects with stepper motors such as a drafting instrument, a 3D printer, an auto curtain.

..

..

.? As we all know, regular stepper motors are hard to drive, but with this stepper motor shield, you can easily drive 2 stepper motors via just 6 digital I/O pins.

This board is compatible with the Arduino UNO R3. This shield directly supports Xbee and Xbee form factor Wi Fi, Bluetooth and RF modules and is easy to connect cables via screwless PC terminals.

Each stepper motor has a code switch for adjusting driving modes to obtain different rotational speeds. Interfaces of the board include extension 6 channel Analog I/O, 8 channel Digital I/O I2C.



Version Upgrade:

1.

V2 replaces DRV8825 as stepper motor driver, higher micro stepping 1/32

2.

Increase 3.3/5V input signal switch, compatible with 3.3V microcontroller

3.

Expand the driver Enable pins, support sleep mode

JavaScript display



function display

var div1 = document.

getElementById "div1" ;

if div1.

style. display=="none"

div1.

style. display = "block";

div2.

style. display = "none";

else

div1.

style. display = "none";

div2.

style. display = "block";











Motor Drive Expansion Board Selection Guide







































Product Name







2x1A DC Motor Shield for Arduino





Micro:bit Driver Expansion Board





Gravity: Dual Bipolar Stepper Motor Shield for Arduino DRV8825





Quad DC Motor Driver Shield for Arduino









SKU





DRI0001





DFR0548





DRI0023





DRI0039









Chip





L293B





HR8833





DRV8825





TB6612FNG









Operating voltage





5V DC





/





3.3V/5V





2.7 5.5V







Motor drive voltage



7 12V DC





3.5 5.5V DC



8.2 45VDC



2.5V 13.5V









Maximum drive current





1A each way





1.5A





1.6A





1.2A continuous current per channel

2A continuous pulse

3.2A single pulse











Motor drive using pins





PIN4/5/6/7 Arduino Controllor





/





D4 D5 D6

D7 D8 D12







D3,4,5,6,7,8,11,12









Dimension





56x57mm





63 x 58mm





83 55 25mm





52mm 53mm









Weight g





60





64





48





24









Frequently used With





FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series

FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series







FIT0278/FIT0503





FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series











Key Features







With motor indicator





8 way servo interface

DC motor x4/stepper motor x2 multiplexed with motor interface







Full step, 1/2, 1/4, 1/8, 1/16, 1/32 step mode





High speed drive capability, can drive ordinary 2 phase stepper motor to 5000RPM, and drive quad DC at the same time







































Product Name







Gravity: IO Expansion Motor Driver Shield





Gravity: 2x2A Motor Shield for Arduino Twin





TMC260 Stepper Motor Driver Shield





2x2A DC Motor Shield for Arduino









SKU





DFR0502





DRI0017





DRI0035





DRI0009









Chip





TB6612FNG





L298





TMC260





L298P









Operating voltage





2.7 5.5V





5V





5V





5V







Motor drive voltage



12V peak value





4.8 35V





40V max





6.5 12v VIN Power Supply ,4.8 35V External Power Source









Maximum drive current





1.2A continuous current per channel

2A continuous pulse

3.2A single pulse







up to 2A/channel





up to 2A per motor coil





2A









Motor drive using pins



D4 D5 D6 D7





D10,11,12,13





/





Pin 4,5,6,7 are used to drive two DC motor









Dimension





68.5mm 53.3mm





56x57mm







55x55mm









Weight g





36





35





35





60









Frequently used With





FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series

FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series







FIT0278/FIT0503





FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series











Key Features





Integrated XBee Slot, XBee, WiFi Bee, Bluetooth Bee, I2C.







Mirrored version of DRI0009.

Drive pins: 10, 11, 12, 13

Not compatible with IO expansion board V7.1.

The control port is four, which reduces the overhead of the Arduino digital ports, and easy to program. Suitable for driving bipolar stepper motors.

SPI serial bus control or STEP/DIR signal control. Controllers such as Mega with full port expansion.

256 times microstep subdivision.





Use mirror motor to drive DRI0017 to aviod the conflicts .

Support PWM speed control. Support PLL advance speed control













Specification

  • Input Voltage: 8.2 45 VDC
  • Output current: 1.6 A Limited
  • Working voltage: 3.3/5 V
  • Driving pin: D4, D5, D6, D7, D8, D12
  • Microstep resolutions: full, 1/2, 1/4, 1, 8, 1/16, 1/32
  • Support Dual Bipolar Stepper Motor
  • Support XBee interface
  • Compatible with the Arduino UNO R3, Leonardo, Mega microcontroller
  • Dimension: 83 55 25 mm/3.26 2.16 0.98 inches
  • Weight: 48 g
  • Stepper Motor Shield For Arduino
    • Dimensions - 83 mm x 55 mm x 25 mm
    • Input Voltage - 8.2 V to 45 V
    • Output Current - 2.5 A
    • Packaging - Bulk
    • Product - Motor Shields
    • Type - Motor / Motion Controllers & Drivers
    • Brand - DFRobot
    • Manufacturer - DFRobot
    • Product Type - Power Management IC Development Tools
    • Standard Pack Qty - 1
    • Subcategory - Development Tools
    • Tool Is For Evaluation Of - DRV8825
