Sprout: Modern Indoor Self Watering Planter

Made by jonathanrjpereira

About the project

Sprout is a Modern Indoor Planter which automatically waters your plants, herbs, vegetables, etc and will revolutionize your gardening game.

Project info

Difficulty:

Estimated time:

5 hours

Published:

24th January 2018

Items used in this project


Hardware components

A000005 AVR ARDUINO NANO V3 A000005 x 1
DC Water Pump x 1
SEN-13322 Multiple Function Sensor Development Tools Soil Moisture Sen... x 1
LM7805MPX/NOPB TERMINAL POSITIVE REGULATORS x 1
IRF540 MOSFET RAIL IR x 1
Resistor 220 Ohm x 1
IN4007 Diode x 1
Header Pin x 1
2-Pin Screw Terminal x 1
DC Power Jack (Male+Female) x 1
HC-05 x 1

Software app and online services

Arduino IDE

Hand tools and fabrication machines

Laser Cutter x 1
Fusion 360 x 1

Story


Sprout is a Modern Indoor Planter which automatically waters your plants, herbs, vegetables, etc and will revolutionize your gardening game.

It consists of an integrated water reservoir from which water is pumped & keeps the plant's soil hydrated.

A soil moisture sensor is calibrated such that it periodically measures the moisture of the soil thereby regulating the water flow. If the soil is too dry, the water pump automatically switches ON and goes OFF when the soil moisture has reached the desired level.

If you're the person who underwaters their plants, Sprout will ensure you will never have to worry about being a bad gardener again. And if you're the sort of person who overwaters their plants to compensate for absenteeism, it means your not in danger of drowning your plants or seeds.

Sprout's water reservoir capacity is around 500 ml / 17 fl oz, which allows you to neglect your plants for as long as a month before it needs a refill.

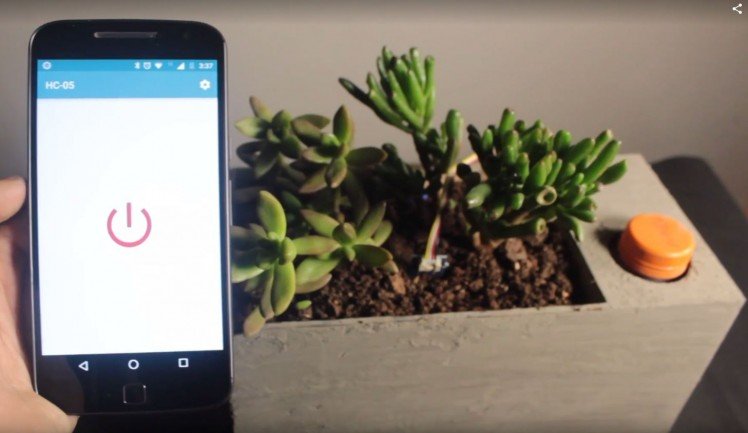

The optional Bluetooth feature can be used to manually toggle & control the water pump wirelessly from your smartphone.

Develop:Are you a programmer, engineer or designer who has a great idea for a new feature/design in Sprout? Maybe you're just a beginner or you've spotted a bug? Feel free to grab our code, schematics, 3D design files & laser cutting files from Github and tinker with it.

Sprout: GitHub

Step 1: Electronic Design

Electronic Components Required:

1x Arduino Nano/ Arduino Pro Mini

1x DC Water Pump 12V or 9V

1x Soil Moisture Sensor

1x LM7805 Voltage Regulator

1x IRF540 MOSFET

1x 220 Ohm Resistor

1x IN4001 Diode

1x Header Pins Strip

1x 2Pin Screw Terminal

1x DC Power Jack (Male + Female)

Optional: 1x HC-05 Bluetooth Module

Power Block

The 7805 regulates the supply voltage and reduces it to a constant 5V making it suitable to run the Arduino & Soil Moisture Sensor.

Pump Control

The MOSFET acts as a switch which is controlled by the Arduino. We use the MOSFET since the Arduino cannot directly power the DC Pump. The resistor connected to the gate of the MOSFET prevents the MOSFET from getting damaged. The flyback diode connected across the pump provides a path for dissipation of stored energy when the pump is switched off.

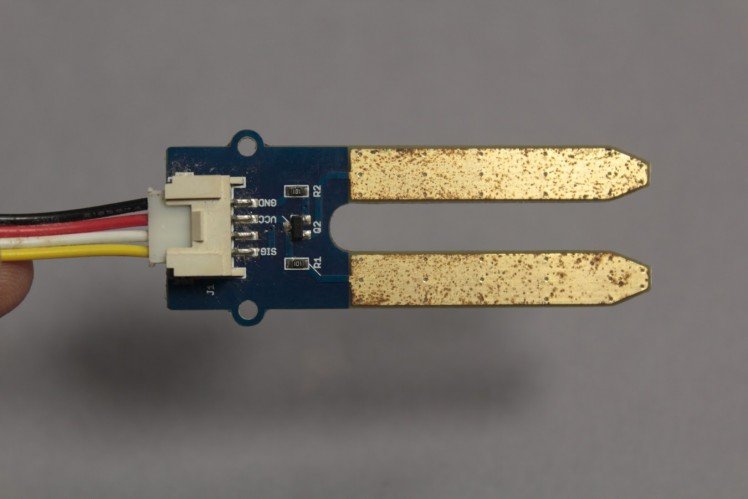

Moisture SensorThe sensor feeds an analog value to the Arduino. The threshold level of moisture is calibrated by the user depending on the type of plant used and the typical h

Bluetooth Module

Uses Serial Communication to transfer data between the Arduino and your Smartphone.

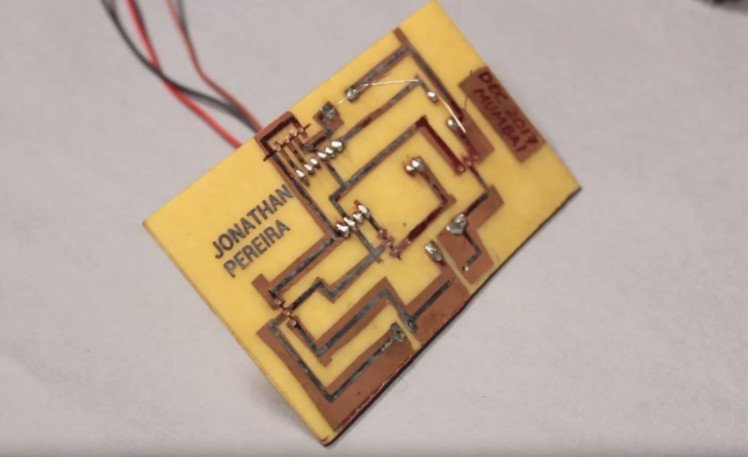

Step 2: Electronic Assembly

A 1x Scale printable PCB as well as the board view and schematic is available in the GitHub repository.

Sprout: GitHub/Electronics

The repository also contains an A4 size PDF which contains multiple PCB's on a single page. This can be used to make multiple PCB's at a time for mass production

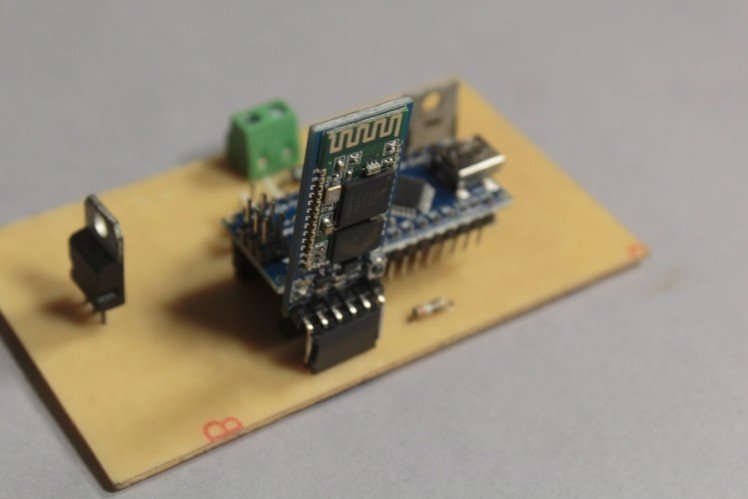

Solder all the components according to the given Schematics.

The editable Eagle files are available below.

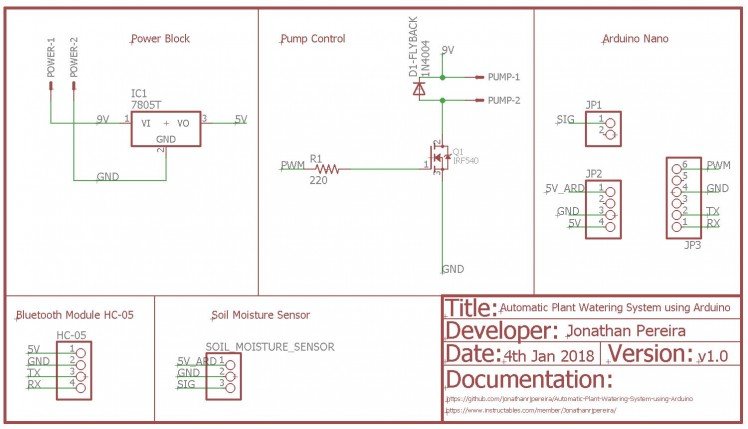

Schematics


Schematic

PCB Board

CAD


CAD Enclosure

Go to download

Code


Credits


jonathanrjpereira

I'm Jonathan Pereira, a novice Electronics Engineer. I like to make Doze Lamps, Lumen Powered Thingamajigs, Almighty Brainy Buttons, Tweeting Fart Detectors
