Bpi-p2 Zero Quad Core Open Source Single-board Computer

About the project

Banana Pi BPI-P2 Zero is an ultra compact single board computer measures only 65mm*52.5mm. It uses quad-core Cortex A7 allwinner H2+ processor(Option : H3 and H5), with 512MB RAM memory.8G eMMC flash,100M LAN,add PoE function

Project info

Story

Banana pi BPI-P2 Zero quad core single-board computer with PoE support, Allwinner H2+ SoC, it is also possible to equip it H3 or H5. with PoE function support

Details

Banana pi BPI-P2 Zero quad core single-board computer with PoE support, Allwinner H2+ SoC, it is also possible to equip it H3 or H5. add IEEE 802.3af PoE standard PoE module support

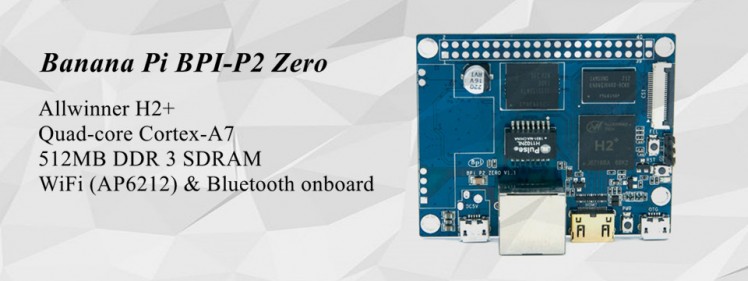

Banana Pi BPI-P2 Zero is an ultra compact single board computer measures only 65mm x 52,5mm. It runs a quad-core Cortex A7 Allwinner H2+ processor(Option : H3 or H5), with 512MB RAM. 8GB eMMC flash, 100M LAN, add PoE function support, it’s ideal for light-weight systems. Like other single-boards of Banana Pi, it supports both Linux and Android operating system.

==Key Features==

  • CPU: Allwinner H2+, Quad-core Cortex-A7.
  • 512MB DDR 3 SDRAM.
  • WiFi (AP6212) & Bluetooth onboard.
  • Mini HDMI.
  • 40 PIN GPIO, it includes UART, SPI, I2C, IO etc
  • 100MBit LAN
  • PoE function support
  • 8GB eMMC flash onboard.

Hardware interface:

  • IEEE 802.3af PoE standard PoE module support

PoE module wiki page:http://wiki.banana-pi.org/BPI-9600_IEEE_802.3af_PoE_module

Banana Pi BPI-P2 Zero wiki page:

http://wiki.banana-pi.org/Banana_Pi_BPI-P2_Zero

Code

Github code

github code
