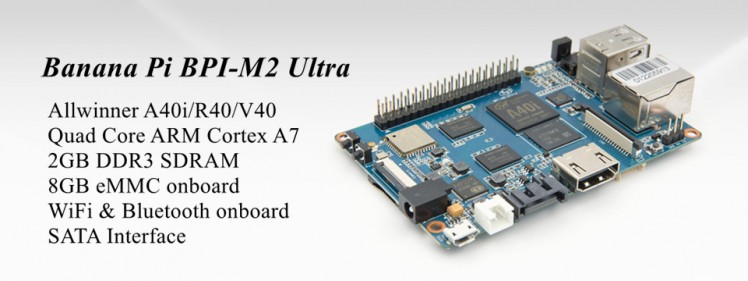

Banana Pi Bpi-m2 Ultra Single Board Computer

About the project

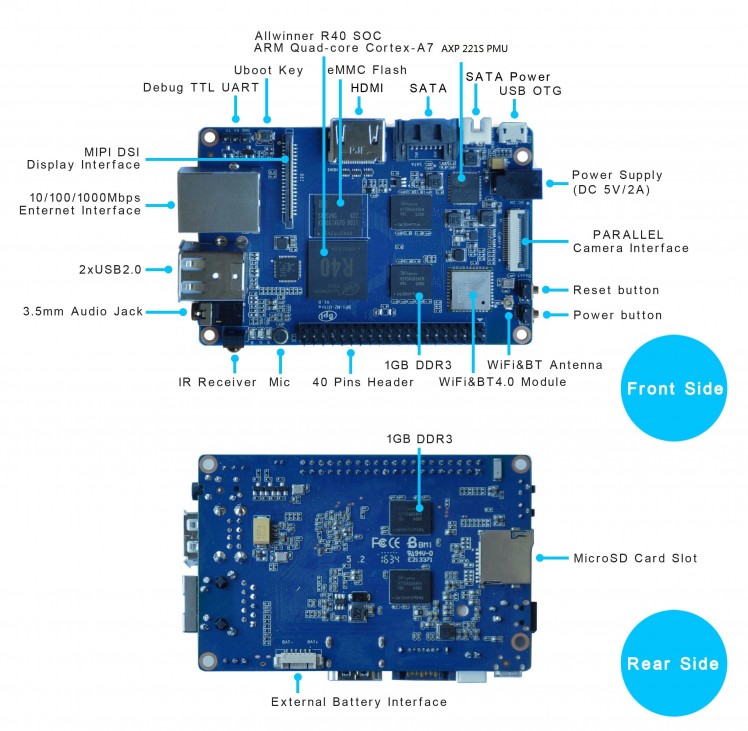

Banana Pi BPI-M2 Ultra is a quad-core mini single board computer built with Allwinner R40/V40 SoC. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, a DC power port, and last but not least, a SATA port

Project info

Story

Banana PI BPI-M2 Ultra is the open source hardware platform, Banana PI BPI-M2 Ultra is a quad-core cortex -A7 CPU ,use Allwinner R40 design, it support WIFI+BT on board.and support SATA interface on board. Banana Pi BPI-M2 Ultra series run Android, Debian linux, Ubuntu linux,Raspbian system and other OS. Banana PI PBI-M2 Ultra hardware: Quad Core ARM Cortex A7,ARMv7 CPU, 2GB DDR3 SDRAM, 8G eMMC flash on board Banana PI BPI-M2 Ultra with Gigabit Ethernet port, It can run Android smoothly. The size of Banana PI BPI-M2 Ultra same as Banana Pi BPI-M64, support 1080P video, the 40 pin GPIO header is pin-compatible with Raspberry Pi. http://www.banana-pi.org

Details

Banana PI BPI-M2 Ultra is the open source hardware platform, Banana PI BPI-M2 Ultra is a quad-core cortex -A7 CPU ,use Allwinner R40 design, it support WIFI+BT on board.and support SATA interface on board.

Banana Pi BPI-M2 Ultra series run Android, Debian linux, Ubuntu linux,Raspbian system and other OS.

Banana PI PBI-M2 Ultra hardware: Quad Core ARM Cortex A7,ARMv7 CPU, 2GB DDR3 SDRAM, 8G eMMC flash on board

Banana PI BPI-M2 Ultra with Gigabit Ethernet port, It can run Android smoothly. The size of Banana PI BPI-M2 Ultra same as Banana Pi BPI-M64, support 1080P video, the 40 pin GPIO header is pin-compatible with Raspberry Pi.

The new BPI-M2 Ultra is a tiny little computer with great big ambitions. The expandable single-board device runs either Linux or Android and features impressive specs that outshine comparable products by a substantial margin. Highlights include a quad-core ARMv7 processor, a Mali 400 MP2 GPU, 2G of DDR3 RAM, a microSDXC slot,8G eMMC flash,WIFI&BT onboard and support for 1080P ultra high-definition video.

More specs follow below.

  • Quad Core ARM Cortex A7 CPU
  • Dual core Mali 400 MP2 GPU
  • 2G DDR3 SDRAM
  • support SATA interface
  • MicroSD slot supports up to 256GB expansion
  • 8G eMMC flash (option 16/32/64G)
  • CSI camera intface and DSI display interface support
  • 10/100/1000 Mb Ethernet port
  • (3) USB 2.0 hosts and (1) USB otg port
  • 1080P high-definition video playback
  • HDMI port and multi-channel audio output
  • WIFI&Bluetooth 4.0 with 802.11BGN onboard
  • 3.5mm Stereo Output mini-jack with microphone support
  • Built-in 3.7V Lithium Battery Charging Circuit
  • Hardware security enables trustzone security system, Digital Rights Management (DRM), information encryption/decryption, secure boot, secure JTAG and secure efuse

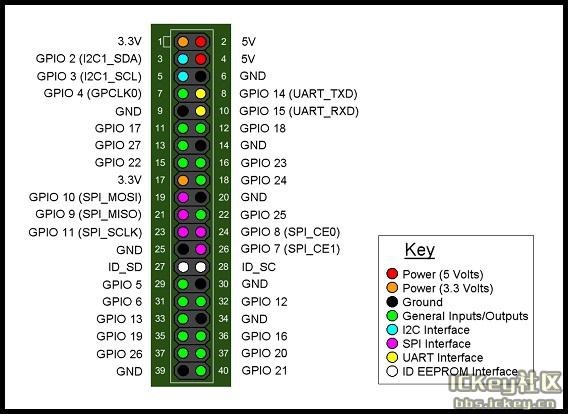

40 PIN GPIO define

Banana Pi BPI-M2 Ultra wiki page:

http://wiki.banana-pi.org/Banana_Pi_BPI-M2U
