Arduino Display Text On Max7219 8-digit Led Display

About the project

In this tutorial we will learn how to display a Simple text on the MAX7219 8-digit Digital LED Display using Visuino. Watch the video.

Project info

Difficulty: Easy

Platforms: AdafruitArduinoVisuino

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

Breadboard (generic) Breadboard (generic) x 1
Jumper wires (generic) Jumper wires (generic) x 1
Arduino UNO Arduino UNO x 1
MAX7219 8-digit LED Display MAX7219 8-digit LED Display x 1

Software apps and online services

Visuino Visuino
Arduino IDE Arduino IDE

Story

In this tutorial we will learn how to display a Simple text on the MAX7219 8-digit Digital LED Display using Visuino.

Watch the video.

Step 1: What You Will Need

1 / 3

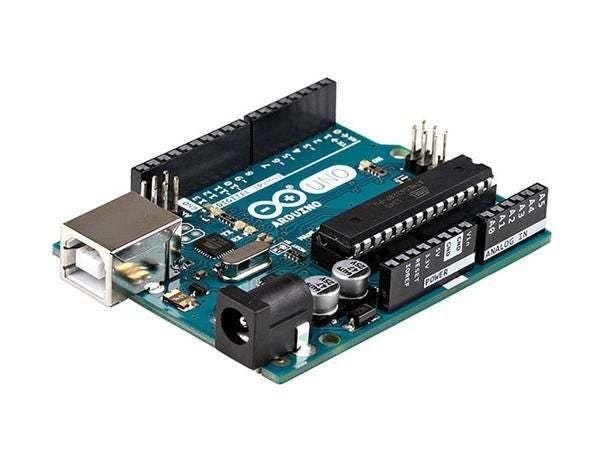

  • Arduino UNO (or any other Arduino)
  • Jumper wires
  • Max7219 Led Dot Matrix 8-digit Digital Display Control Module
  • Visuino program: Download Visuino

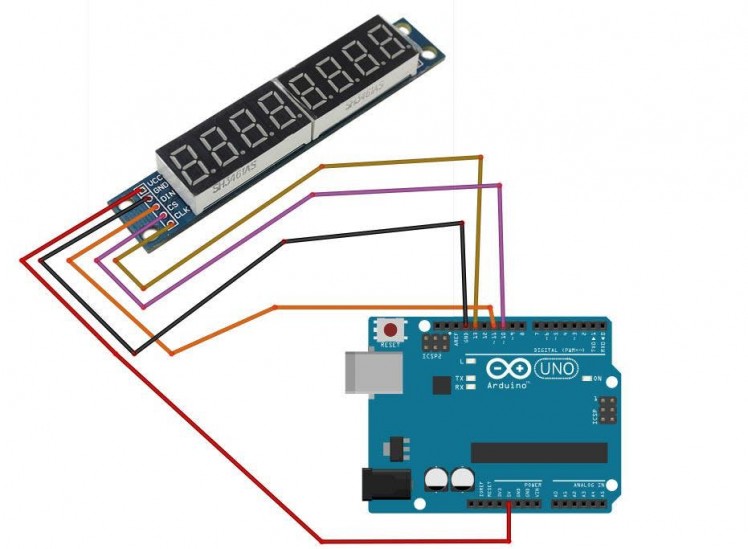

Step 2: The Circuit

  • Connect LED module pin[VCC] to Arduino pin[5V]
  • Connect LED module pin[GND] to Arduino pin[GND]
  • Connect LED module pin[DIN] to Arduino digital pin[11]
  • Connect LED module pin[CS] to Arduino digital pin[10]
  • Connect LED module pin[CLK] to Arduino digital pin[13]

Step 3: Start Visuino, and Select the Arduino UNO Board Type

1 / 2

The Visuino: https://www.visuino.eu also needs to be installed. Download Free version or register for a Free Trial.

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

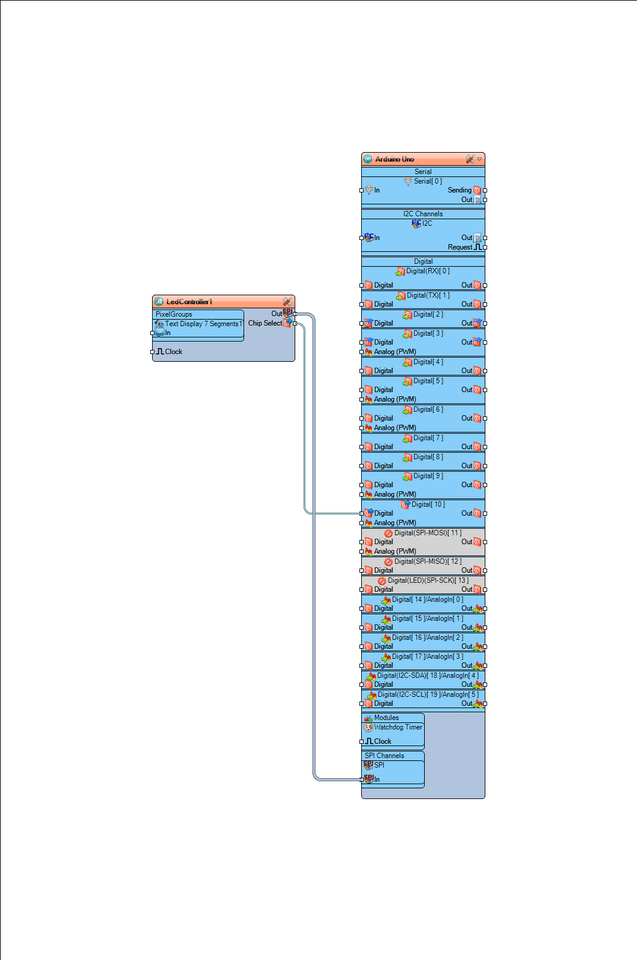

Step 4: In Visuino Add,Set & Connect Components

1 / 4

  • Add "Maxim LED Display Controller SPI MAX7219/MAX7221" component
  • Doble click on the "LedController1" and in the "PixelGroups window" drag "Text Display 7 Segments" to the left sideAnd in the properties window set Initial Value to: Arduino!Note: Text on this Display is limited to a certain characters, so play with it to see what kind of words you can display.
  • Close the "PixelGroups window"

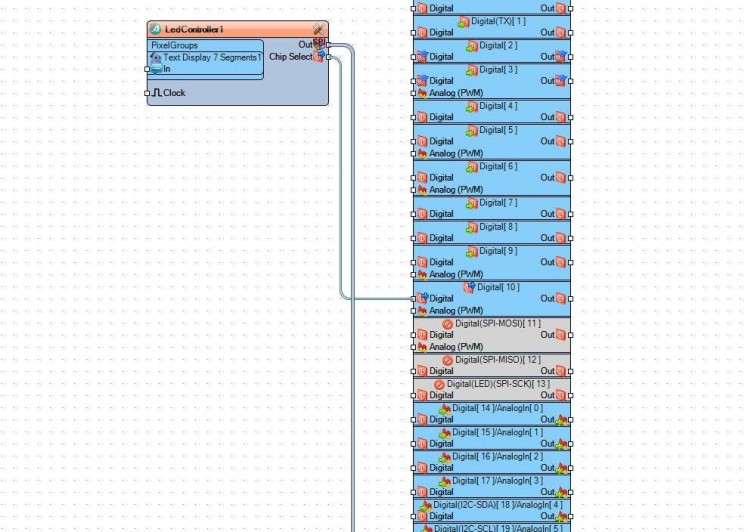

  • Connect "LedController1" pin Out SPI to Arduino Pin SPI [In]
  • Connect "LedController1" pin Chip Select to Arduino Digital Pin [10]

Step 5: Generate, Compile, and Upload the Arduino Code

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Step 6: Play

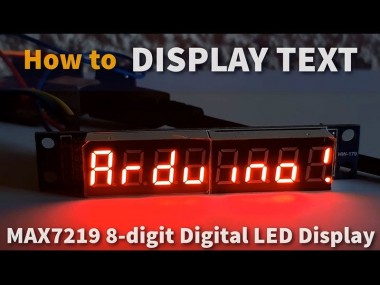

If you power the Arduino module, the LED Display will start to display a Text.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.eu

Schematics, diagrams and documents

Visuino File

Code

Visuino File
