Smart Garbage Monitoring System Using Arduino 101

About the project

A method in which waste management is automated. An innovative system that will help keep the city clean and healthy

Project info

Difficulty: Moderate

Platforms: ArduinoBlynkBoschIntel

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

Tiny Breadboard Tiny Breadboard x 3
Mountable Slide Switch Mountable Slide Switch x 1
Jumper Wire Kit - 140pcs Jumper Wire Kit - 140pcs x 1
Hardware 9V Battery Clip Hardware 9V Battery Clip x 1
Hardware 9V Battery Clip Hardware 9V Battery Clip Our power source x 1
Ultrasonic Sensor Hc-sr04 Ultrasonic Sensor Hc-sr04 We used the one from the Grover Arduino 101 kit, any ultrasonic sensor will work, although to connect the starter kit one is easier. x 1
Arduino MKR1000 Arduino MKR1000 As we had the MKR1000 micro controller we used it instead of buying the Arduino WiFi shield 101. We use both the same way so you can choose any one of the two. x 1
WiFi Shield V2.2 for Arduino WiFi Shield V2.2 for Arduino This will be connected to the Arduino 101 to then transmit its data through the help of WiFi. x 1
Base Shield V2 Base Shield V2 This shield will all the connections a whole lot simpler. x 1
ARDUINO/GENUINO 101 ENCL 3.00x2.91x1.06" ARDUINO/GENUINO 101 ENCL 3.00x2.91x1.06" The star of the show, this powerful micro-controller will be used to send the Data via BLE. x 1

View all

Software apps and online services

Bosch Hand drill Bosch Hand drill
Blynk Blynk This is one of the best apps for hobbyist and makers as it let's you visually see your project on any of your devices.
Arduino IDE Arduino IDE

Hand tools and fabrication machines

Hot glue gun (generic) Hot glue gun (generic) x 1

Story

Introduction

Smart Garbage Monitoring System Using Internet of Things (IOT)

Do watch the video to better appreciate the project

Smart Garbage Monitoring System Using Internet of Things (IOT)

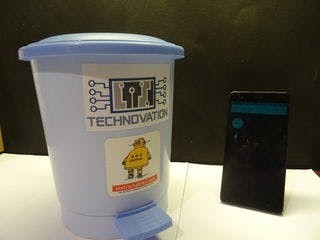

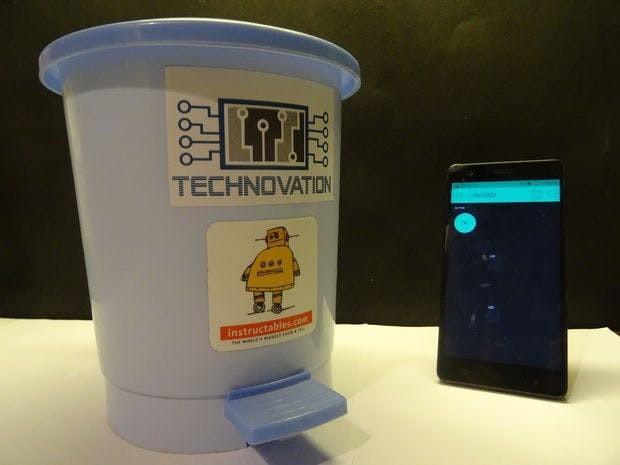

Smartphone showing the real time trash amount

We are living in an age where tasks and systems are fusing together with the power of IOT to have a more efficient system of working and to execute jobs quickly! With all the power at our finger tips this is what we have come up with.

The Internet of Things (IoT) shall be able to incorporate transparently and seamlessly a large number of different systems, while providing data for millions of people to use and capitalize. Building a general architecture for the IoT is hence a very complex task, mainly because of the extremely large variety of devices, link layer technologies, and services that may be involved in such a system.

One of the main concerns with our environment has been solid waste management which impacts the health and environment of our society. The detection, monitoring and management of wastes is one of the primary problems of the present era. The traditional way of manually monitoring the wastes in waste bins is a cumbersome process and utilizes more human effort, time and cost which can easily be avoided with our present technologies.

This is our solution, a method in which waste management is automated. This is our IoT Garbage Monitoring system, an innovative way that will help to keep the cities clean and healthy.

Follow on to see how you could make an impact to help clean your community, home or even surroundings, taking us a step closer to a better way of living : )

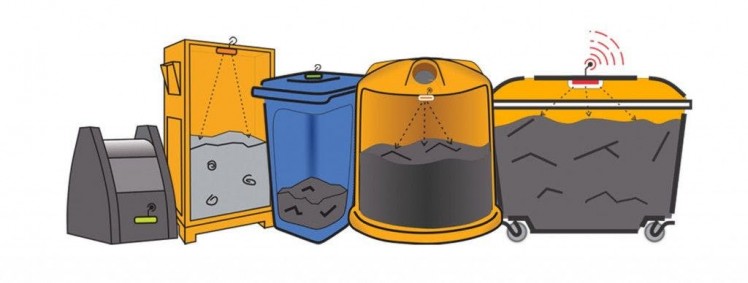

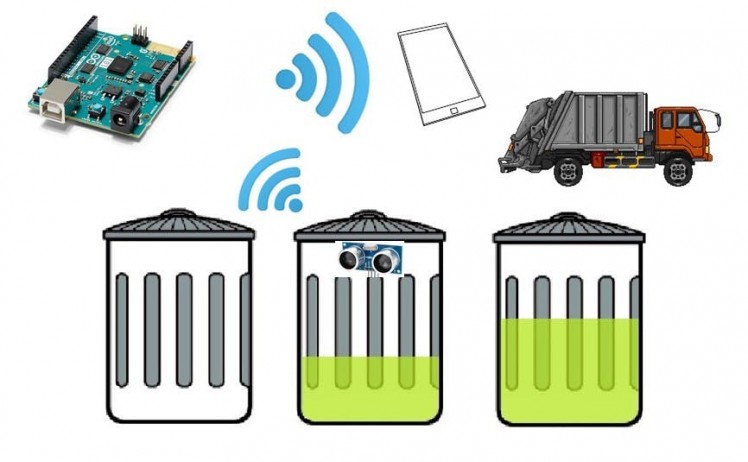

Overview of the Monitoring System

The idea struck us when we observed that the garbage truck use to go around the town to collect solid waste twice a day. Although this system was thorough it was very inefficient. For example let's say street A is a busy street and we see that the garbage fills up really fast whereas maybe street B even after two days the bin isn't even half full. This example is something that actually happens thus it lead us to the ''Eureka'' moment!

What our system does is it gives a real time indicator of the garbage level in a trashcan at any given time. Using that data we can then optimize waste collection routes and ultimately reduce fuel consumption. It allows trash collectors to plan their daily/weekly pick up schedule.

Criteria

The basic Model works like this:

To start with you will first have to enter the height of the dustbin. This will help us generate the percentage of trash in the trashcan. We then have two criterias which needs to be satisfied to show that the particular bin needs to be emptied :

  • The amount of trash, in other words let's say if your bin is half full you don't really need to empty it. Our thresh, or maximum amount that we permit of trash, is 75% of the bin. (You could alter the thresh according to your preference.)

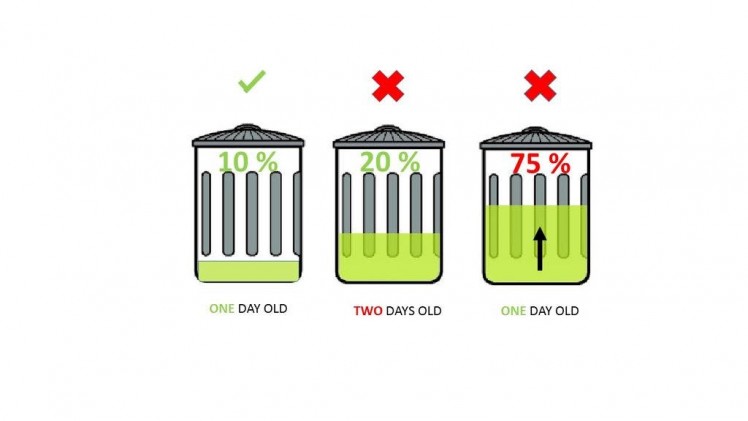

  • If supposing a particular trashcan fills up 20% and then for a week doesn't change, it comes into our second criteria, time. With time even the little amount will start rotting leading to a smelly surrounding. To avoid that our tolerance level is 2 days, so if a trashcan is less than 75% but it is two days old it then will also need to be emptied.

Showing the two criteria

The Electronics

With these criterias in mind let's understand the technical part:

  • An ultrasonic sensor (A.K.A a distance sensor) will be placed on the interior side of the lid, the one facing the solid waste. As trash increases, the distance between the ultrasonic and the trash decreases. This live data will be sent to our micro-controller.
  • Our micro- controller, the Arduino 101 then processes the data and through the help of WiFi sends it to an app.
  • What the app does it visually represents the amount of trash in the bin with a small animation.

This process will indicate all the bins which require attention, leading the user to take the most effective route.

About Us

We post all of our projects on Instructables, a place that lets you explore, document, and share your DIY creations. You can also subscribe to our YouTube Channel Here. We post lots of in progress photos and have conversation on our Instagram.

If you like what we make and wish to support us, do it on Patreon here.

For work related inquiries contact us on : technovationrobot@gmail.com

Materials

;

;

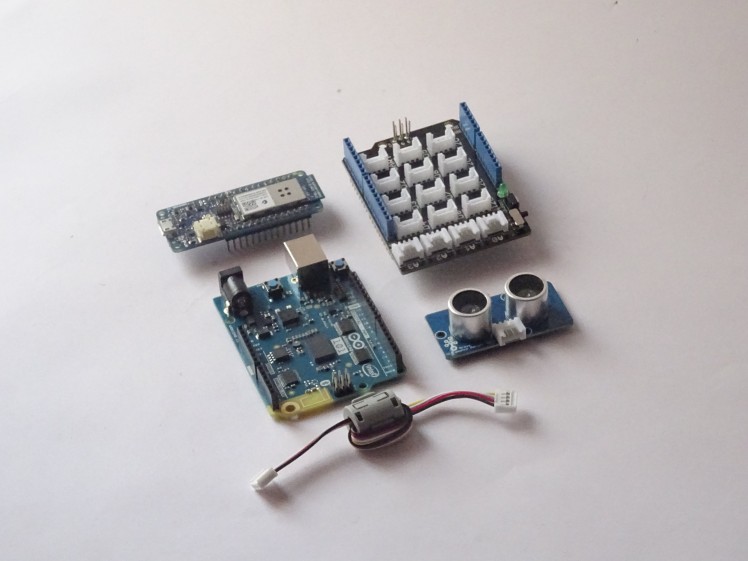

1 / 2Star of the show

Hardware:

  • Grover Base Shield v2

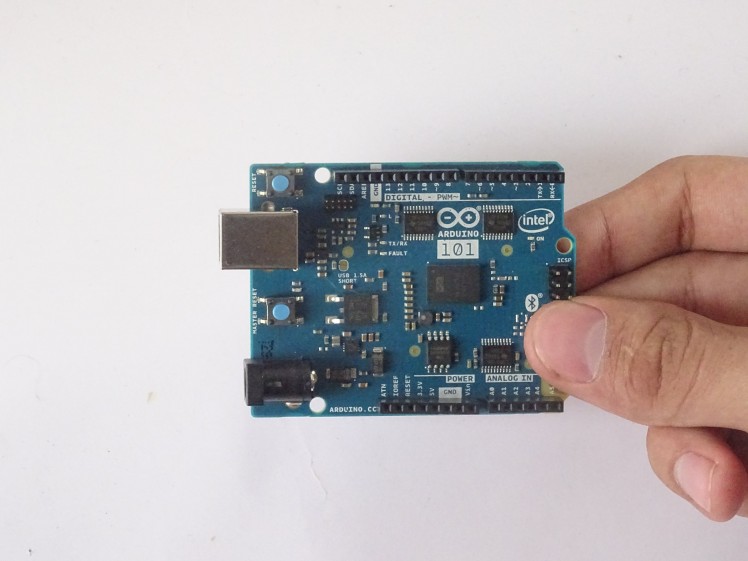

  • Arduino 101
  • Plastic Container (Gearbest) I found an old plastic container in which all the components could fit. The box is important as you can easily access the components and it's waterproof.
  • Ultrasonic Sensor (Gearbest) An ultrasonic sensor measures distance. It will be attached to the lid indicating the quantity of trash. Our system's key component.
  • Arduino MKR1000 (Amazon) one of Arduino's latest micro-controller, which simplifies the task of connecting to the Internet using prebuilt libraries that can be downloaded.

Tools:

Software:

  • Blynk An android app that allows communication with WiFi compatible micro-controllers.

Quick word about Gearbest, you can find all products especially for hobbyists.Cheap and good quality highly recommended, do check them out!

Construct the Model

It's time to make our very own system to test our concept at home on a small scale! Look for an old small plastic container and make sure your components fit.

Mark

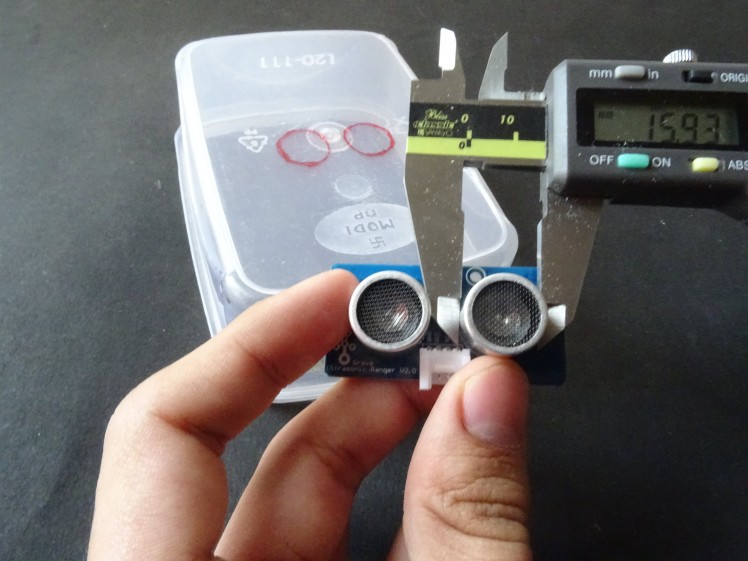

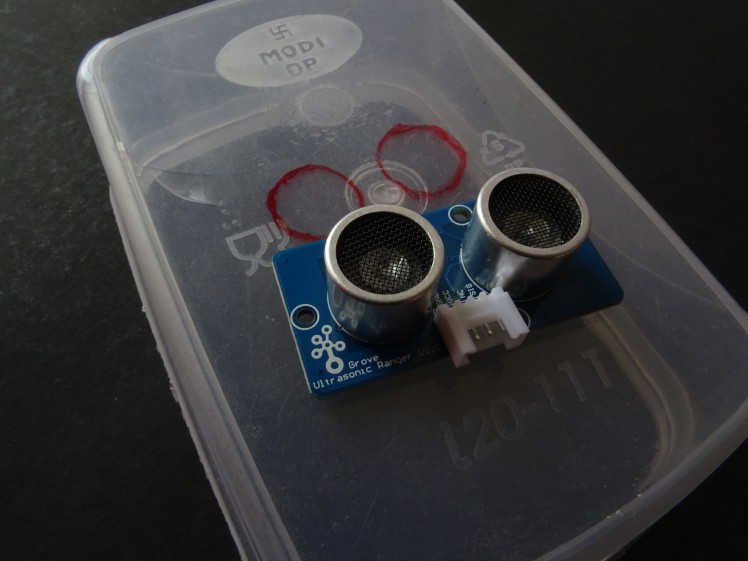

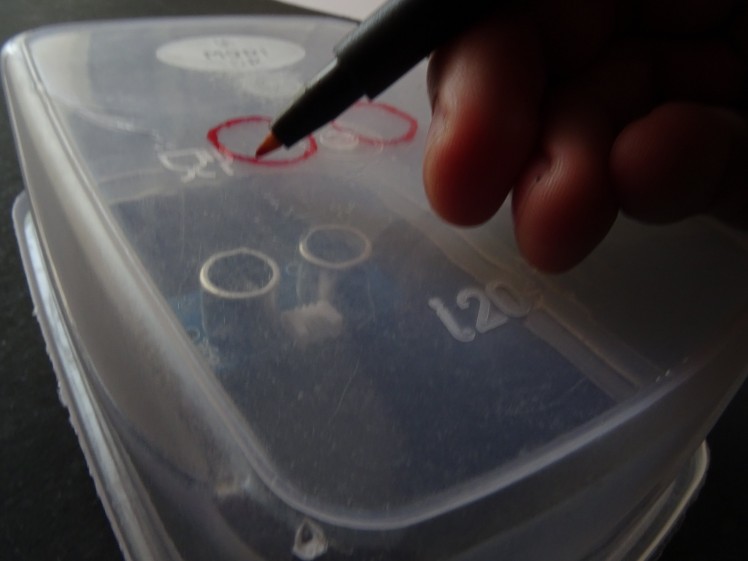

Now remove the lid and trace the two ''eyes'' of the ultrasonic sensor. this will be the side facing the bottom of the bin.

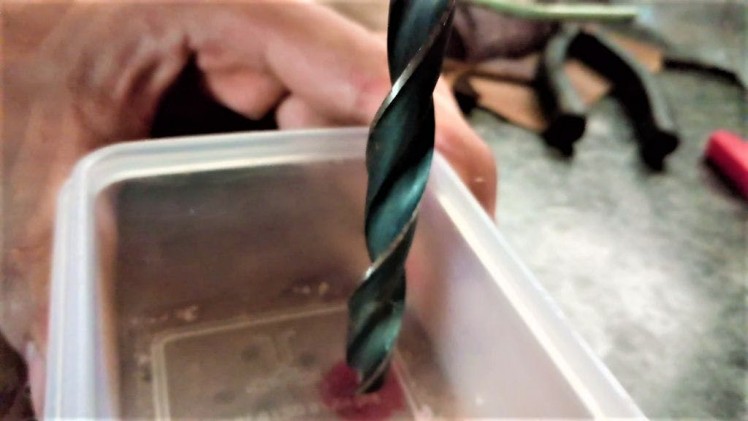

Take your biggest drill bit, mine was 10mm and drill out the holes. If they still are a bit small lightly file them till the ultrasonic sensor snugly fits in, completely flush to the surface.

Drill the holes

Spray Painting

Spray painting

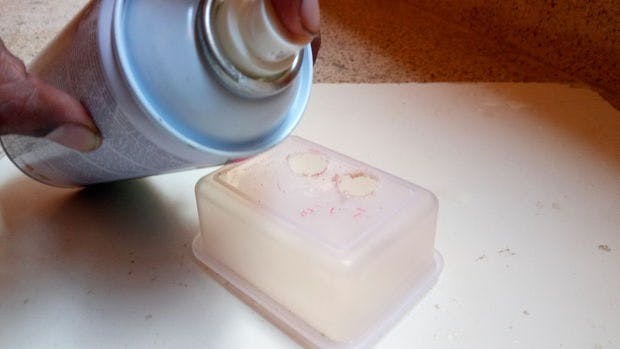

We chose white but you could choose whatever colour you prefere apply two coats of paint both inside and out, don't forget the cover. Note: The fumes are toxic do it outside.

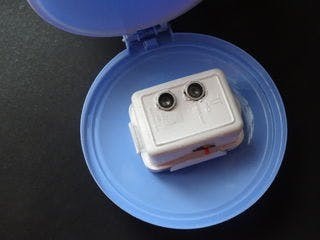

Attach the Ultrasonic sensor

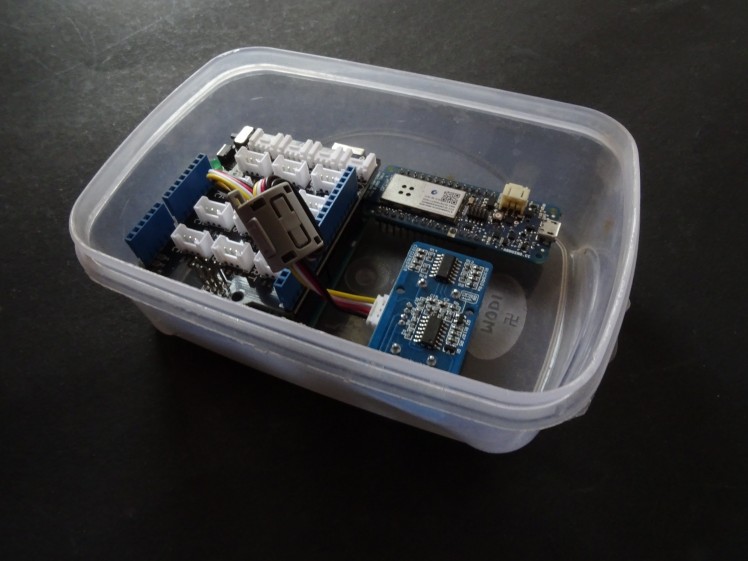

The components in the box

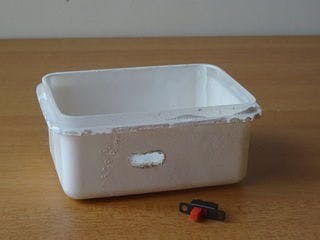

Small slot for switch

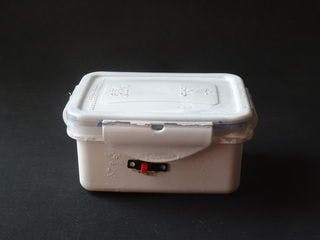

Push in the sensor and apply dabs of hot glue to secure it in place. Then make a slot for your switch and fit everything into place.

The Circuit

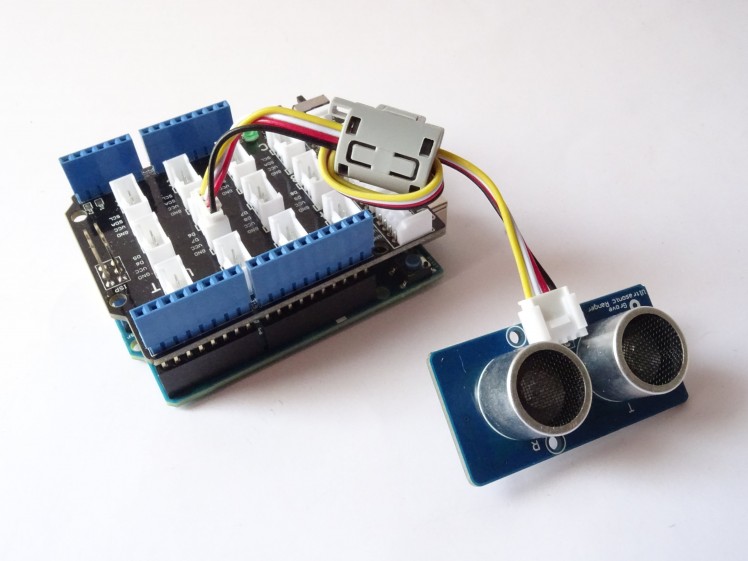

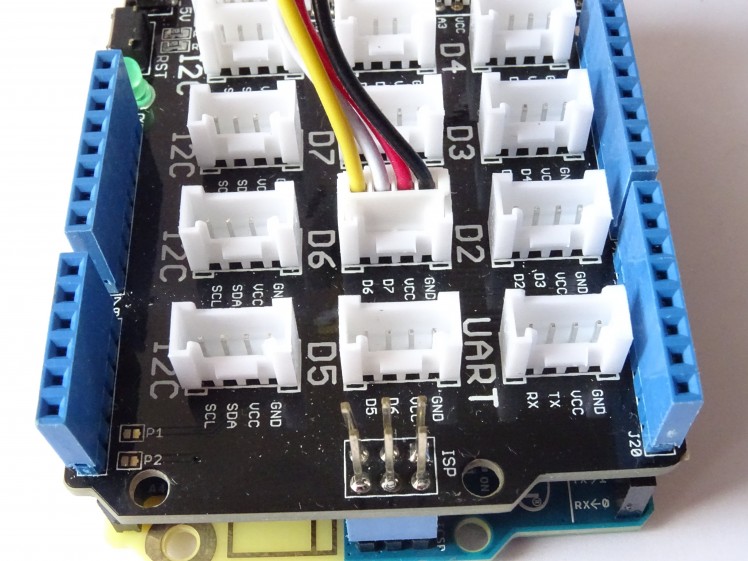

Simply mount the Base shield onto the Arduino 101 and attach the Ultrasonic sensor to pin D6

;

;

1 / 2

Enclosure

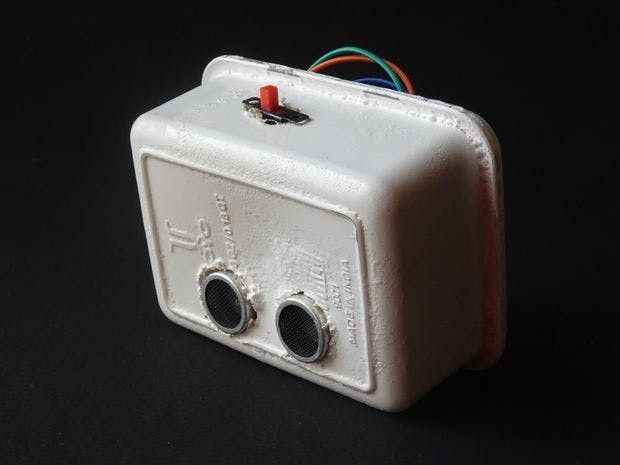

Carefully fit all the components in and close the box

House Bin for prototyping

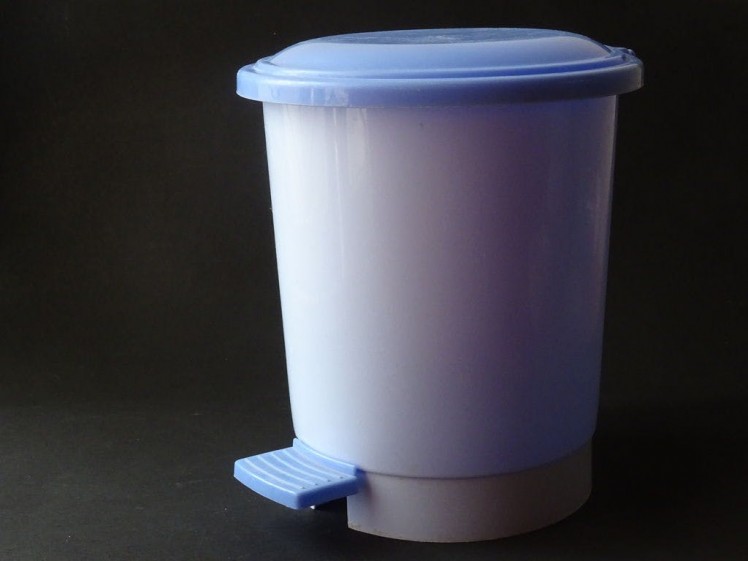

I took the house dustbin to test my model.

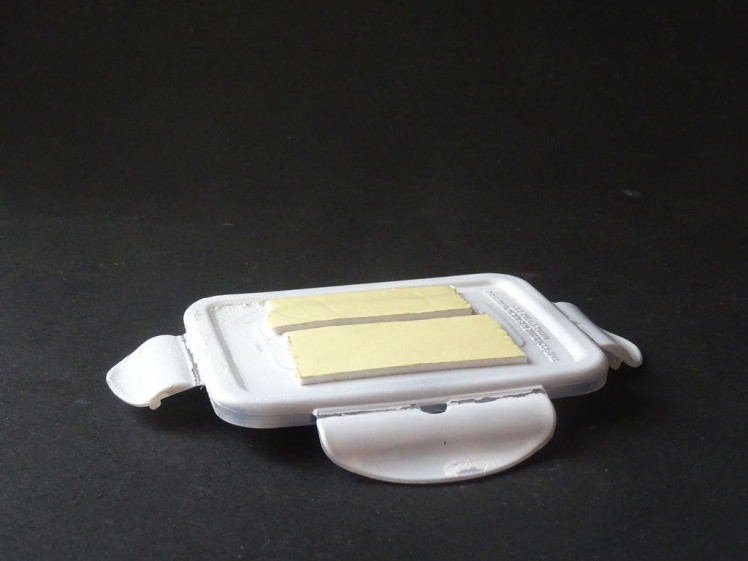

double side tape to help stick onto the lid

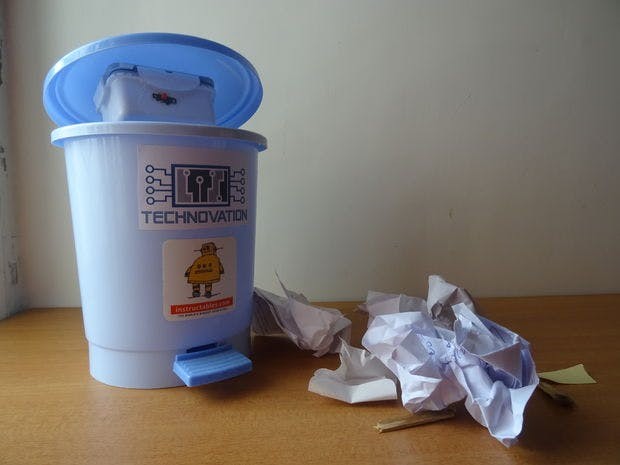

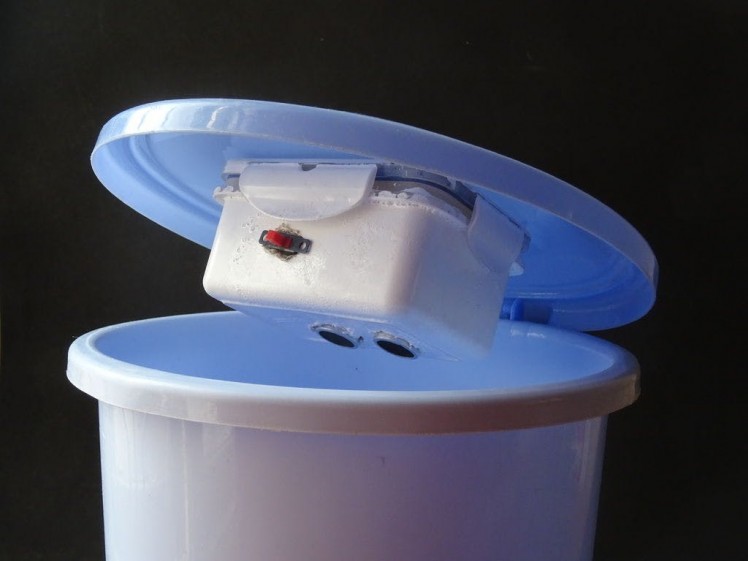

Cut and stick to pieces of double-sided tape and attach the system to the lid of the dustbin, making sure the sensor is facing downwards.

Finally mount and attach the box

Intro to Blynk App

To connect to the internet we use a prebuilt platform called Blynk, which can be downloaded from the android play store, link below. There are countless examples on how to use the app with the Arduino which are all available by heading to files in the Arduino IDE, then examples and under the Blynk list.

Link to blynk app: https://play.google.com/store/apps/details?id=cc.

Setting Up the App and Code

To be able to program the Arduino 101, you need to first install the drivers needed. To check if you already have them installed open the Arduino IDE, click on tools, then boards and look if either Arduino or Genuino 101 are in the list. If they are there, skip to next step, if not follow along.

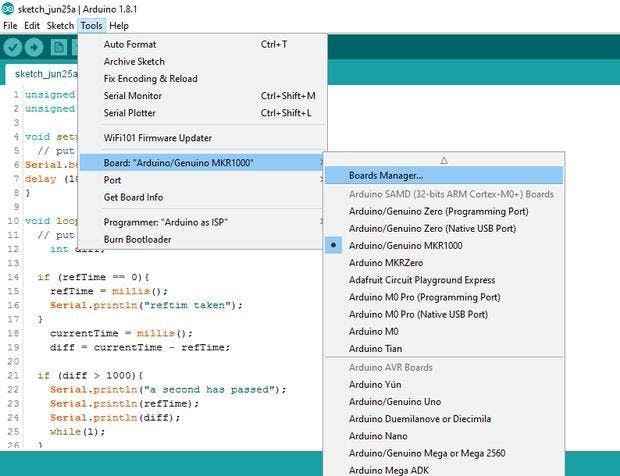

To download the necessary drivers to be able to use Arduino mkr1000, open the Arduino IDE again, click on tools, boards, then boards manager.

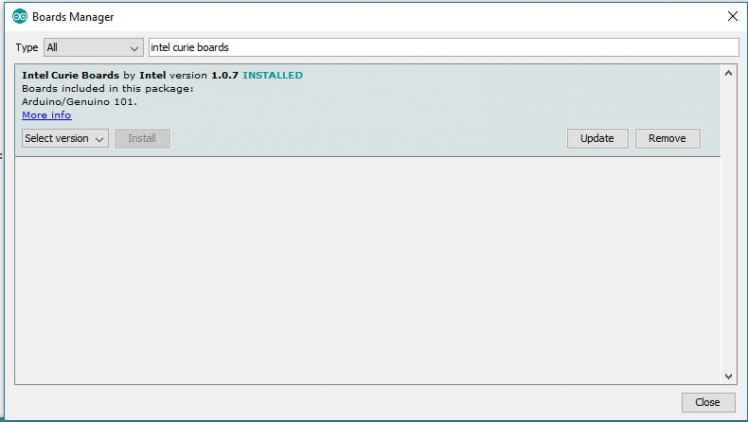

Now in the search bar, search for "intel curie boards", select your Arduino IDE version and download the one that comes (double check with the picture below)

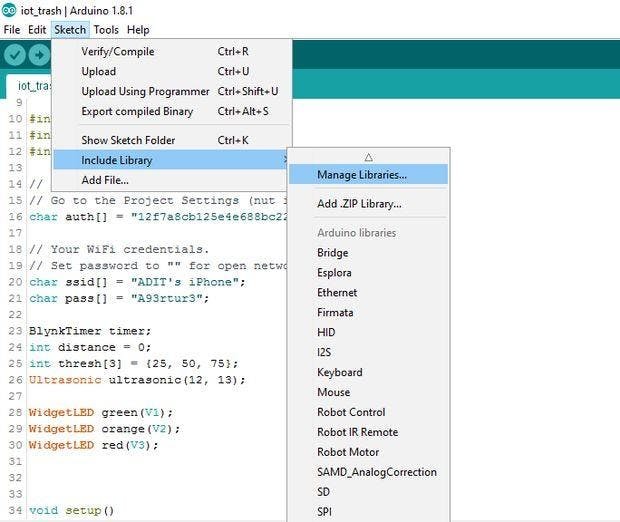

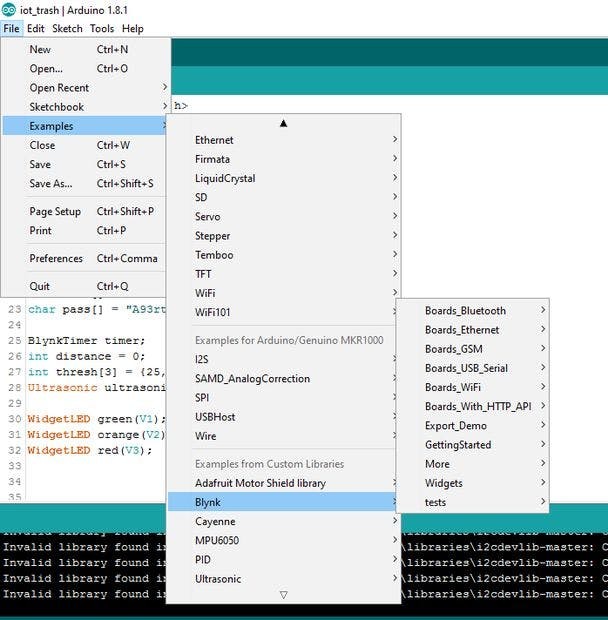

Once your drivers are installed, go ahead and download the libraries needed. For our program to run we need the WiFi101 library, the blynk library and the ultrasonic library, all three can be found in Arduino's in built library manager. Open to sketch then include library. then library manager.

Now in the search bar, search for WiFi101, Blynk and Ultrasonic, choose your IDE version and install. (double check with the pictures below)

Testing

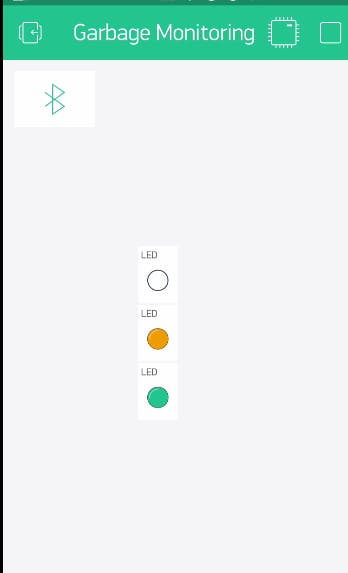

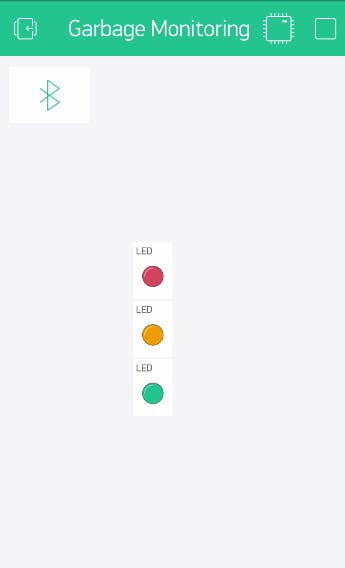

Then using the Blynk app we made a small representation with 3 Leds of the trash level. Select Arduino 101 as your micro controller and as ''connection type'' BLE, NOT bluetooth!

You will then receive a mail of the "auth token" which you need to input in the code, (mentioned in the code).

Results!

Here you have the results of the whole concept finally working! hurray!

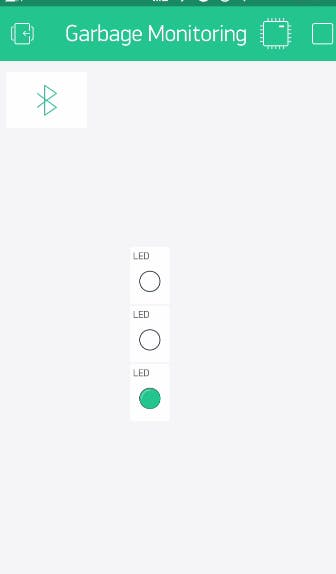

These are screenshots of my phone as I filled the dustbin. On the blynk application we aligned three LEDs one on top of the other. Green which ranges from 0 to 25% full, Orange from 25 to 65% and Red from 65 to 100%

;

;

1 / 2

After having put 10% of trash and closing the bin we have the green LED that comes on the other two stay off.

50% full...

...and finally we put all the trash possible, and all three LEDs and a smile lit up! Congratulations the model works : )

Step 14: GPS

IMPORTANT

We haven't actually implemented this step as we would have had to make at least 20 models to install them around the town's dustbins. This would have become too expensive, so we are putting the idea forward, which when randomly simulated gave us the shortest route, the correct results!

Synchronized with Google Maps we can find the shortest distance

Now is the time consuming part. We plan to fuse our project with Google Maps. This is how:

You need to manually go about the town taking GPS locations of each trashcan. Then save it on your Google Maps. Once you have done that, in the same way we made the system in our model intead of one LED you will need to do the same for the number of dustbins there are. Let's say there are 20.

;

;

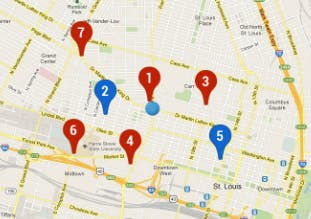

1 / 2Numbering each bin to their location

When the truck driver starts his day, he opens Blynk and sees all the dustbins that require attention then he selects each dustbin (each when having their specific number) and then generates the shortest and most efficient route!

Widespread Opportunities

Device looking promising

After having made one ourselves we realized how widely this system could be used to turn this rather horrible cumbersome chore into a really efficient one!

The way it can impact the city or even a country on a big scale is understandable, and hopefully in the future it is implemented. But other than that each individual can benefit with this concept. A community, an apartment complex or even a house can all use this powerful tool fueled by the internet of things to make their life a whole lot simpler!

Step 16: Complications

Challenges

That said there are a few complications that we thought would occur if we took this product on a big scale.

Challenges :

• Ensuring the Ultrasonic distance sensor are correctly placed. If the pile of dump increased in the middle the sensor could be giving misleading data.

• There could be liquid/water thrown in to the bin. The design needs to have water proof electronics and embedded software.

• The BIGGEST issue availability of 3G/4G Cellular networks. The fact that we made a model at home bypassed this issue as we used WiFi. This in fact is this only main issue, although personally I feel in a couple of years every corner of the world will have Internet Connection

Conclusion

This project on the whole looks promising, but definitely needs small adjustments as mentioned above. Would love to see your versions, or even suggestions or ideas, do drop them in the comment section.

Hope you guys enjoyed this project, let's continue working on ideas to impact our lives and environment. As usual like share, and subscribe so that you don't miss our next projects.

HAPPY MAKING : )

If you like what we make check out some of our popular uploads!

You must see the video the fully appreciate it WATCH the video HERE.

Cubex the Sensor safe. Watch it HERE

And many more Here on Technovation do follow us!

Schematics, diagrams and documents

Circuit of the system

Connect the Base shield v2 to the Arduino 101, then the Ultrasonic sensor to slot or pin D6. We made a diagram on Fritzing , for those who aren't using the Shield.

Circuit diagram ( without shield)

This one is made on Fritzing an shows the same circuit although this time witout the Base shield.

Code

Iot Garbage Monitoring App

This app will display the real time level of the trash with three Leds placed vertically on the Blynk application. Green represents the range from 0 to 25%, Orange from 25 to 60% and Red from 60 to 100%.
