Pistol Slide Acceleration Measurements

About the project

Accelerometer used to research the dynamics of firearm slide movement

Project info

Difficulty: Moderate

Platforms: Arduino

Estimated time: 3 days

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

accelerometer ADXL193 accelerometer ADXL193 x 1
processor board: Arduino Mega 2560 processor board: Arduino Mega 2560 x 1
primary data storage: 512 KB QuadRam board attached to Arduino primary data storage: 512 KB QuadRam board attached to Arduino x 1
final data storage: data file on microSD card (AdaFruit Time board) final data storage: data file on microSD card (AdaFruit Time board) x 1
User interface: SparkFun Serial LCD shield User interface: SparkFun Serial LCD shield x 1

Software apps and online services

Arduino IDE Arduino IDE


Simple accelerometer and Arduino board were used to measure the dynamics of slide movement of several handguns during the shot.

Measurements were implemented with accelerometer attached to the slide; acceleration data was acquisitioned by Arduino-based controller;this controller was made capable of collecting 26000 data points per second.

The acquired data allowed to measure timing and average speed of slide cycling events including: initial acceleration, backward movement, forward movement, hitting slide stop and breech, final bouncing. Features of slide dynamics depending on handgun caliber and system (blowback or short-recoil) are clearly visible.


Measurement device:

● accelerometerADXL193 (SparkFun breakout board), single axis, 200g max.acceleration

● processor board: Arduino Mega 2560

● primary data storage: 512 KB QuadRam board attached to Arduino; allows to store ~ 20 stime interval of data flow.

● final data storage: data file on microSD card (AdaFruit Time board); after measurement cycle is completed data is transferred from fast RAM memory into text file.

● User interface: SparkFun Serial LCD shield

This project was implemented a while ago so some components might become unavailable; except but QuadRam Arduino memory expansion board, all of them are easily substituted with modern hardware.

The main interesting feature of this project - rapid data acquisition. Data is collected at high speed and stored immediately in RAM memory provided by RAM Extension board; this board allows storing of ~20 seconds of data flow at a speed of ~26000 samples/sec; data acquisitions stops either when button is pressed or when memory is full, whatever happens first; after that a new text file is created in SD card and data is copied from RAM into this file; each new file name is created dynamically reading current file counter stored in static 'FILELIST.TXT' file on SD.

Measurement device with open lid:

Accelerometer was attached to the slide with small piece of double-sided foam scotch tape:

Handguns and calibers used:

S&W Model 41 caliber.22 (see below)

S&W M&P 9mm

S&W Walther PPK/S.32 (See above)

ADXL 193 accelerometer is a low-frequency device, so collected data shows some sort of integration of real acceleration; sensor was not calibrated and besides, the amplitude of initial acceleration is way above upper limit of sensor; because of these limitations the most useful and reliable part of collected data is just events timing and relative amplitudes of registered peaks; I did not estimate or rely upon the absolute values of acceleration;

Below are some diagrams built by data logging software I created (DELPHI 7); X axes shows current point(measurement) number; distance between 50points (1 outer tick) is 1.9 ms (38, 1 microseconds per point).

Typical data diagram for single shot of S&W Model 41 .22 pistol:

The picture above clearly shows events of single shot in blowback system:

event A - initial slide acceleration (A2-A1= 2.1ms), event B -slide hits a rear stop (11 ms after event A), event C - slide moves forward and hits the breech (20 ms after event B); after hitting the breech first time slide bounces 2 times (events D and E) and finally comes to a stop. Event F might be attributed to feeding a shell from magazine into the chamber.

The full cycle takes 57.8 ms (A1-E), average slide speed on backward motion is 3.1 m/s. I estimated the speed just by measuring slide travel distance (34 mm) and dividing by time interval (11 ms). Assuming this speed was acquired in 2.1 ms this gives an estimate of initial acceleration(averaged) of 1470 m/s2 ~ 150g

M&P 9mm with short-recoil action shows a different dynamics:

Events A & B are still initial acceleration and hitting the rear stop; at the end there are 2 peaks C and D with 5.4 ms interval; we can also see very small single bouncing (E). I could guess these two decelerations(C&D) are related to 2 events: first, when the slide, after feeding the cartridge, meets the breech face and starts pushing the barrel up and forward;second event is when barrel comes to final forward position. There are also some events (f) between forward slide motion and final stop;that might be a deceleration when the cartridge is chambered.

Walther PPK/S shows dynamics similar to Model 41, although everything occurs way faster (because of more powerful cartridge):

Slide moves back during6.1 ms (estimated acceleration is about 280g) which is 2.8 times faster than M&P; slide cycling in total takes only 31 ms and we see only one small bouncing. All shots I measured with PPK/S shows surprisingly low acceleration when the slide hits rear stop; I am not sure what this means; I might suggest that because of strong recoil spring the slide loses most of it’s speed when it comes to the rearward position; this could explain why I experience rare FTFs when shooting some ‘bad’ ammo.

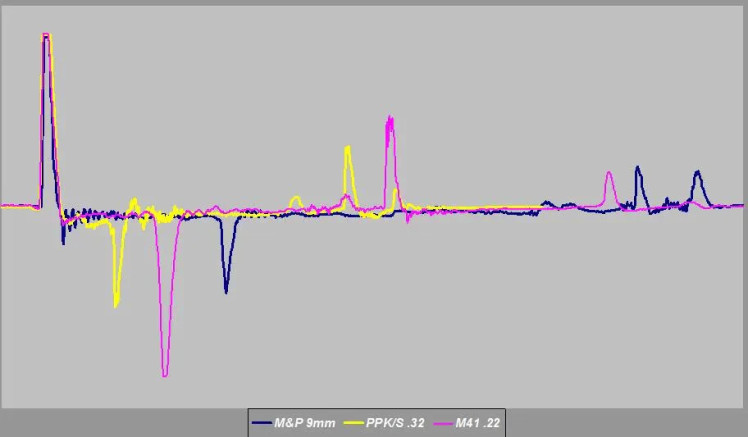

Below there is a picture of all 3 handguns data superimposed, just for demonstrating differences and similarity. It is funny to see how the first stage of shot is identical for all 3 pistols regardless of caliber and system.

Summary table of collected data: time of slide backward movement, total time of slide cycle(bouncing included), estimated initial averaged acceleration of slide. Just a rough estimate:


Photo of StanChicago


Database Developer. Arduino as pet projects. Background in biophysics.
