Mqtt Publish-subscribe Using Rpi, Esp And Photon

Photo of anas

Made by anas / Communication / IoT

About the project

How to implement MQTT protocol in Rapberry Pi 3, ESP8266 and Particle Photon.

Project info

Difficulty: Moderate

Platforms: ParticleRaspberry PiEspressif

Estimated time: 7 hours

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

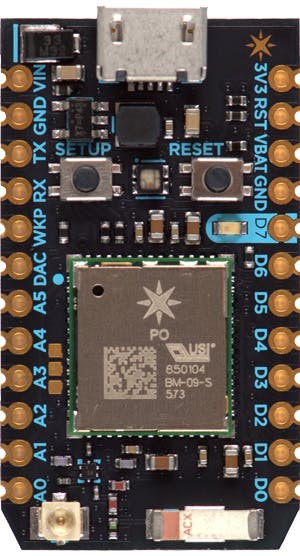

Particle Photon Particle Photon x 1
Espressif ESP8266 ESP-12E Espressif ESP8266 ESP-12E x 1

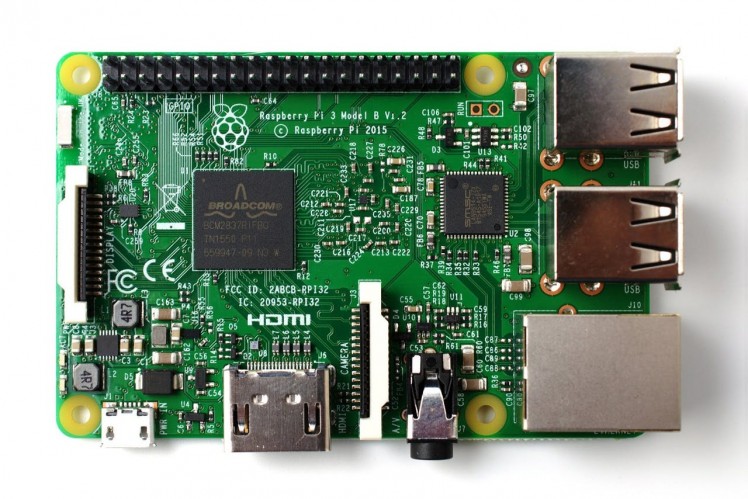

Raspberry Pi 3 Model B Raspberry Pi 3 Model B x 1

Software apps and online services

particle ide particle ide
Arduino IDE Arduino IDE

Story

Current trend in DIY is IoT based projects. The present professional electronics engineering industry is also now focusing to IoT. There are many existing protocols are there for making connection with your device with Web. If we need real time data in every second or less than that. We will need a fast internet connectivity protocol. And it should use very little bandwidth. Here we have MQTT.

MQTT is an extremely light weight connectivity protocol which is mainly used for machine to machine/IoT applications. It was formerly known as MQ Telemetry Transport. It is a publish/subscribe based messaging protocol for use on the top of TCP/IP protocol. MQTT is very helpful where network bandwidth is limited. Many IoT companies uses MQTT for their applications.

There are several MQTT brokers are available In this example we are using mosquitto broker. In MQTT there is several methods are defined like:

  • Connect
  • Disconnect
  • Subscribe
  • Unsubscribe
  • Publish

As DIY hackers we also make use of MQTT in our projects. Many of the boards supporting WiFi is also supports MQTT. Here I am going to describe MQTT broker in Raspberry Pi. And MOTT Client in Raspberry Pi, Particle Photon, ESP8266.

I have no plan to explain the MQTT protocol, but I would like to explain how it can be implemented  in our DIY project. In MQTT protocol we will have broker and clients. Clients are those which can publish and subscribe to some topics created in broker. Broker is responsible for all filtering and all. ie broker will receive all messages and it will send those messages to corresponding subscribed clients. MQTT client libraries are easily available for many devices and in many coding languages.

It is very easy to set up a MQTT broker in Linux system. As this blog is mainly explaining DIY projects I would like to explain how to install MQTT broker in Raspberry Pi, which is one of the best toy of an electronics hobbyists. And I will be sharing how to set up MQTT clients (publish/subscribe) in Raspberry pi, Particle photon, ESP8266, which are main tools in IoT hardware prototyping. All these are inspired from community. So I would like to thank all bloggers in community.

First we can Setup a MQTT broker in our Raspberry pi. For installing Mosquitto broker follow the steps below.

How to install MQTT broker in Raspberry pi

First we have to import repository package for mosquitto into our Raspberry Pi. For that, open the Raspberry Pi terminal and run the commands below. I used a Raspberry Pi 3 in Jessie with 16GB microSD card:

wget
sudo apt-key add mosquitto-repo.gpg.key

Now we have to make available this repository to apt by using the command below:

cd /etc/apt/sources.list.d/

Now follow the commands below:

sudo wget http://repo.mosquitto.org/debian/mosquitto-wheezy.list
sudo -i

For updating Pi:

sudo apt-get update
apt-get update

After updating we can install mosquitto MQTT broker running the command below:

apt-get install mosquitto

How to install MQTT Client in Raspberry pi

So  now we successfully installed MQTT broker in our Raspberry Pi. Now we can install MQTT client by the command below:

apt-get install mosquitto-clients

Now the client library for MQTT is installed. So we successfully installed MQTT. Now we can start publishing and subscribing to some topics.

How to use MQTT client as Publisher

To publish a data “wiring_it _my _way ” to  a topic named “color”we can use the below commands. If the broker is installed in the same Raspberry Pi:

mosquitto_pub -h localhost -t color -m wiring_it_my_way

If the broker is installed in different Raspberry Pi:

mosquitto_pub -h 192.168.0.114 -t value -m wiring_it_my_way

How to use MQTT client as Subscriber

If the broker is installed in a different system then for subscribing a topic named “color” just run the below command:

mosquitto_sub -h 192.168.0.114 -t color

Here the IP in the command is lP of broker Raspberry pi/system. If the client is running in the same Raspberry Pi where broker is installed then use the below command for subscribing a topic named “color”:

mosquitto_sub -h localhost -t color

ESP8266 as MQTT client

As we know  ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any micro controller access to our WiFi network. Also we can program the ESP8266 directly from our Arduino IDE. There many libraries available for ESP8266 in the community. I am sharing two code snippets. One is for publishing using ESP8266 and the other is for publishing and subscription.

Here our broker is set upped in Raspberry Pi so we have to note the IP of the Raspberry Pi and include in our ESP8266 Arduino code.

Here given code is only basic code please make your own variety with sensors and actuators have fun. And please share in comments I used an ESP8266-12:

1 / 2

Particle Photon as MQTT client

In one of my previous post we have discussed about the particle module, which is one of the best choice for IoT based prototyping. Particle web IDE contains MQTT libraries in it. By including those libraries we can easily subscribe or publish to a MQTT topic. Here also we have to give IP address of our Pi in Particle code.

.

 // This #include statement was automatically added by the Particle IDE. #include "MQTT/MQTT.h"
// This #include statement was automatically added by the Particle IDE.
 #include "MQTT/MQTT.h"
#include "MQTT/MQTT.h"
 String sensor;
 byte server[] = { 192,168,0,115 };//the IP of broker
 void callback(char* topic, byte* payload, unsigned int length);
 MQTT client(server, 1883, callback);
void callback(char* topic, byte* payload, unsigned int length) {
     char p[length + 1];
     memcpy(p, payload, length);
     p[length] = NULL;
     String message(p);
    if (message.equals("RED"))
         RGB.color(255, 0, 0);
     else if (message.equals("GREEN"))
         RGB.color(0, 255, 0);
     else if (message.equals("BLUE"))
         RGB.color(0, 0, 255);
     else if (message.equals("wiring_it_my_way"))
         {RGB.color(255, 0, 0);
         delay(1000);
         RGB.color(0, 255, 0);
         delay(1000);
         RGB.color(0, 0, 255);
         delay(1000);}
     else
         RGB.color(255, 255, 255);
     delay(1000);
 }
void setup() {
     pinMode(A0,INPUT);
     RGB.control(true);
     client.connect(System.deviceID());
     if (client.isConnected()) {
         client.subscribe("color");//color is the topic that photon is subscribed
         client.publish("fun", "hello");//publishing a data "hello" to the topic "fun"
     }
 }
void loop() {
     int sensor_value =analogRead(A0);
     sensor =String (sensor_value);
     if (client.isConnected())
         client.loop();
          client.publish("value", sensor);//publishing a sensor data  to the topic "value"
 }

When I heard the name MQTT for the first time I thought it will be very difficult for a hardware geek like me. But the broker set up was very easy and straight forward. It makes MQTT very easy. Regarding quality there are methods in MQTT to retain messages, confirmation etc. I don't have a plan to explain those in this post. Now make your own project in MQTT in whichever platform you like and please let me know your ideas in comments.

You can find my blog on this: http://anasdalintakam.blogspot.com/2016/08/mqtt-publish-and-subscribe-using.html

Code

Arduino

https://create.arduino.cc/editor/dalintakam/f2a45fca-3fc9-444c-aa5e-d174ae6eaa4e/preview?embed

Download

Arduino

https://create.arduino.cc/editor/dalintakam/2b4d98e6-dc17-45db-9c2e-866e5d9c39e0/preview?embed

Download
