Microbit Powered Halo-ween Ironman Arc Reactor

Made by Kitronik

About the project

Iron Man cosplay! Create your own pulsing reactor to complete your Iron Man costume or wear underneath a t-shirt as Tony Stark

Project info

Difficulty:

Categories:

3D Printing
Lights

Estimated time:

2 hours

Published:

27th March 2018

Items used in this project


Hardware components

ZIP Halo. x 1
BBC microbit. x 1
ZIP Circle. x 1
Power Source. x 1

Software app and online services

https://makecode.microbit.org/

Hand tools and fabrication machines

3D Printer. x 1

Story


Use the Zip Halo and Zip Circle together, along with the cad files provided to build this fun prop inspired by Iron Man’s Arc Reactor. You provide the sunglasses, chin stubble, and clothing and we'll help you with the rest!


Choose between two different versions ready to 3D print and build – the Mk I, based on the original reactor in the first movie, or the Mk II, based on the new element reactor in the second movie.


You will need:

microbit Powered Halo-ween Ironman Arc Reactor:


Step 1

To begin building the Zip Halo Reactor you will need to connect your Zip Circle to the Zip Halo, and attach your microbit if you haven’t done already.

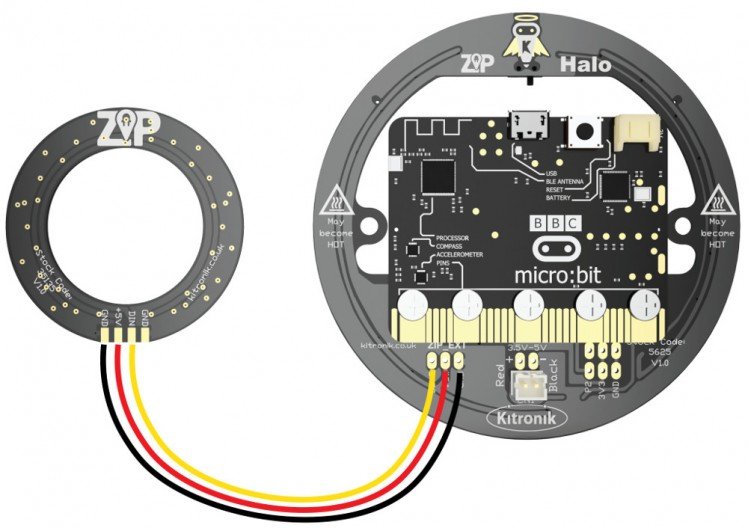

Joining a Zip Circle to the Zip Halo is very simple. Use three wires (approximately 100mm in length) and solder in the order shown.

ZIP Circle :ZIP Halo.

GND (Ground) : GND

Vsw (Power) : +5V.

DIN : DOUT.

 Pass the Zip Circle through the gap above the microbit so it sits in front of the Halo (you may need to remove the microbit to do this).

Step 2

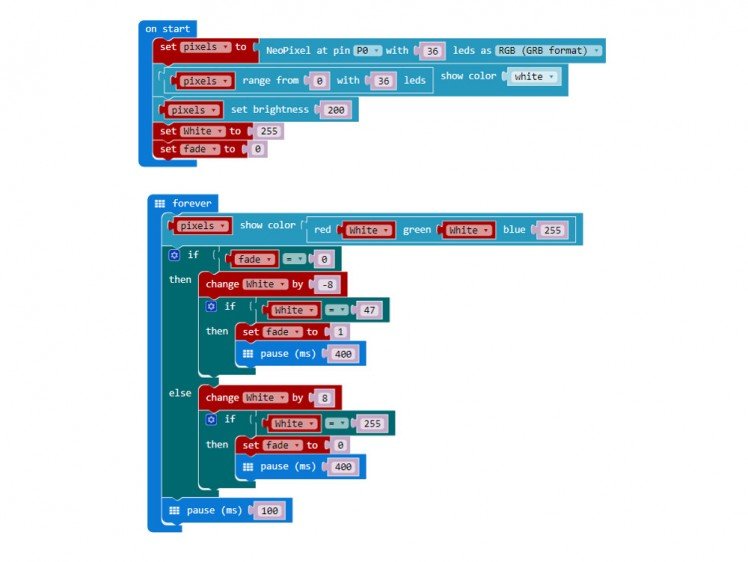

Before building the reactor, it is a good idea to test your Zip Circle and Halo. Try creating this code to give a pulsing effect.

Swap the variables around in the “pixels show colour” bar to swap between red green and blue. Adjust the “change White by” value to increase or decrease the speed of colour change. You may need to change the value of 47, which in this case is 255-(8x26).


Step 3

To begin creating the Mk I reactor, print part 1 using clear filament (I used Robox’s Crystal Clear ABS at 5% infill). This will have a frosted look which will diffuse the light nicely from the Zip Halo. You will need 10 copies of part 2, which can be printed in either black or grey/silver (I used Robox’s Black as Night ABS at 10% infill). These pieces should fit very tightly onto part 1 as shown.

Alternatively, if you would prefer not to use copper wire, print part 2.5 instead – this has the wires built into the part which could be painted after printing.

Note: Parts could alternatively be spray painted if you are limited on colours.

If you would prefer to build the Mk II reactor, skip to step 8.


Step 4

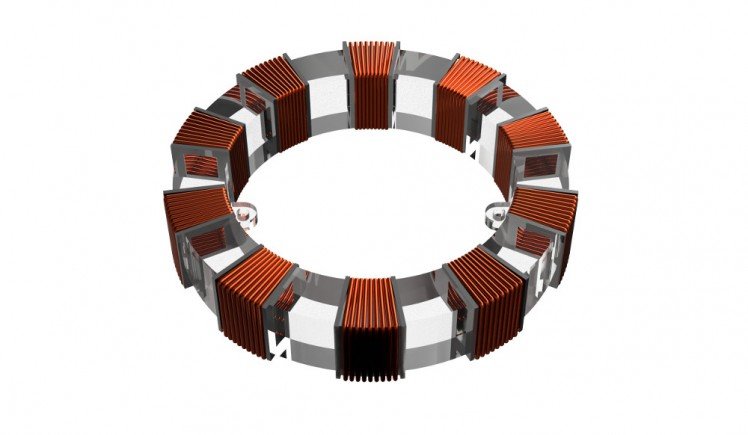

Continue by wrapping coils of copper wire around all 10 components. The wire can be glued in place at the base. I used superglue, however hot glue or contact adhesives would also do the job.

Note: For an additional detail you can solder on strips of wire in-between each coil as seen in the movie.


Step 5

Print parts 3 and 4 - if you have access to a laser cutter, part 4 can be cut using the .dxf file provided (I used Robox’s Black as Night ABS for part 3 at 10% infill and black Perspex for part 4). Fix the Zip Circle to part 4 using double-sided tape or a small amount of glue and continue to assemble the components in the order shown, using two M3x16mm screws.

Note: If using a strap to mount the reactor to your chest, thread the material through the slots in part 3 before screwing together.


Step 6

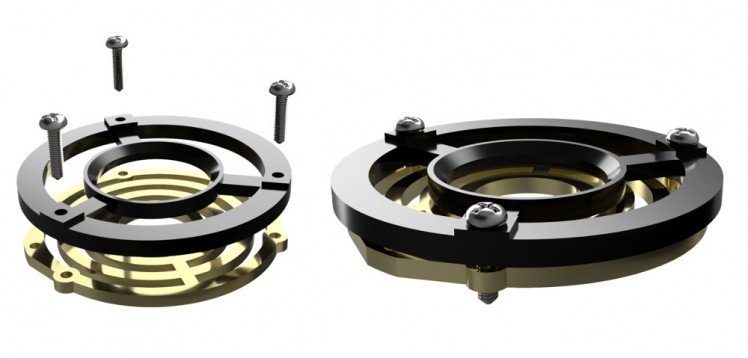

Print parts 5 and 6 - if you have access to a laser cutter, part 5 can be cut using the .dxf file provided (I used gold Mirrored Acrylic Sheet for part 5 and Robox’s Black as Night ABS at 10% infill for part 6). Join these using three M3x10mm screws, leaving a small gap in-between.

Note: alternatively part 5 could be spray painted gold if you are limited on colours.


Step 7

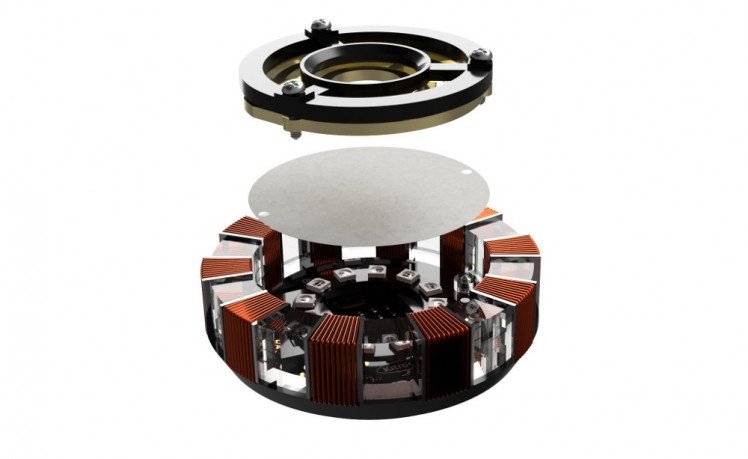

Slot the assembled parts together - line up the holes in the gold piece of the inner ring with the two screws in the reactor. This should press together and stay in place.

Note: A piece of white paper or tracing paper can be used in between to help diffuse the light from the Zip Circle.

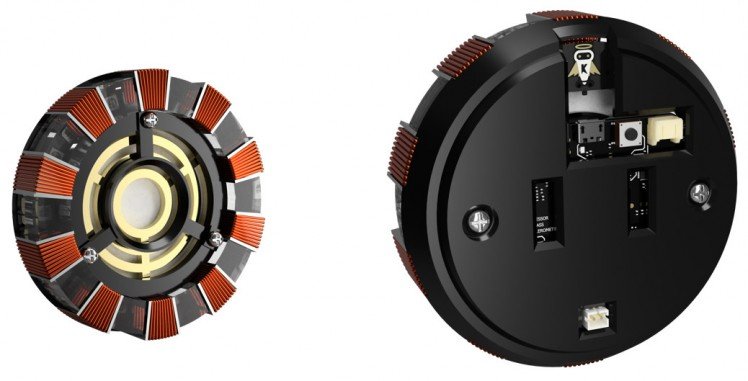

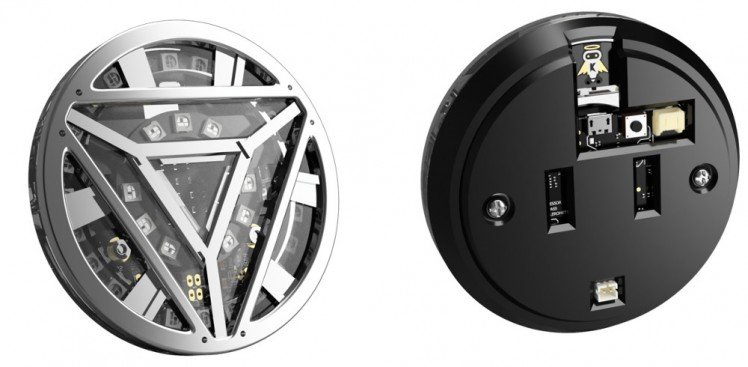

Your Mk I Reactor is now complete. Attach the LiPo battery to the strap, plug in and you’re ready to go.

Step 8

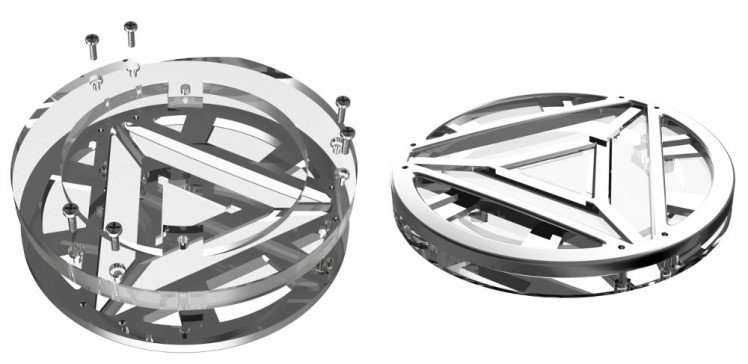

To create Mk II reactor, print part A using clear filament (I used Robox’s Crystal Clear ABS at 5% infill) and part B in grey/silver (I used Robox’s Designer Grey ABS at 10% infill). Alternatively, part B can be laser cut using the .dxf file provided. Join the parts using six M2x6mm screws as shown.


Step 9

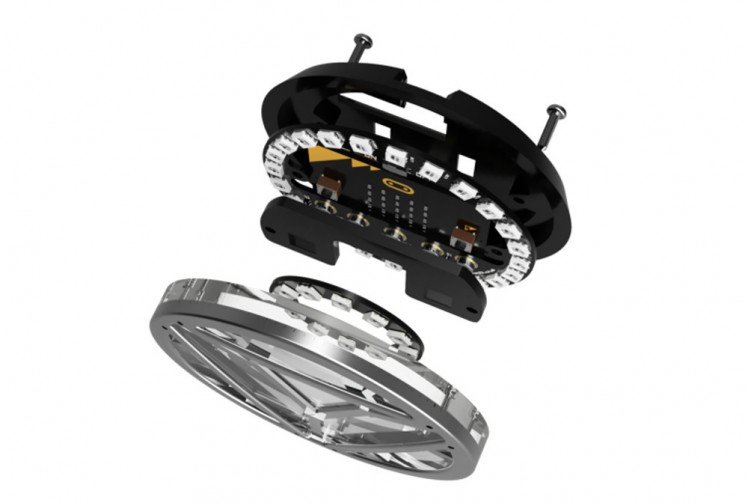

Print parts C and D - if you have access to a laser cutter, part D can be cut using the .dxf file provided (I used Robox’s Black as Night ABS for part C at 10% infill and black Perspex for part D). Fix the Zip Circle to part D using double sided tape or a small amount of glue and continue to assemble the components in the order shown, using two M3x12mm screws.

Note: If using a strap to mount the reactor to your chest, thread the material through the slots in part C before screwing together.

Your Mk II Reactor is now complete. Attach the LiPo battery to the strap, plug in and you’re ready to go.
