Iot - Ambient Temperature Oled Display

Made by santronix / Displays / Home Automation / IoT

About the project

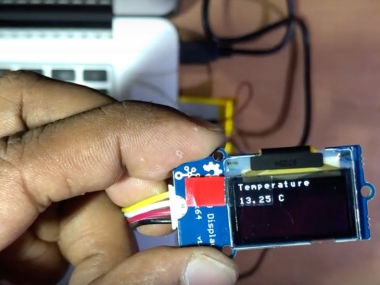

Build OLED Display to indicate ambient temperature in real-time.

Project info

Difficulty: Moderate

Platforms: Arduino, MediaTek Labs

Estimated time: 1 hour

License: Apache License 2.0 (Apache-2.0)

Items used in this project

Hardware components

	Monochrome 0.96" OLED Graphic Display	x 1
	Ultrasonic Sensor Hc-sr04	x 1
	The Tactigon ONE Hardware Prototype board for develoment	x 1

Software apps and online services

Arduino IDE

Story

In this small DIY project, we show you how to Interface OLED display as an output device to LinkIt board, as well as explain you how to use third party libraries and import them in Arduino IDE.

We show you 5 easy steps to interface the hardware and simple steps to code. We are also explaining the code to you to understand each every line, what it means so that even the newbie programmers can also understand the logic.If you would like to see any improvements in the video series, please do let us know in comments section.

Follow the video guide to build an OLED display for real-time ambient temperature display using MediaTek LinkIt.

Internet of Things Series - Part 4 - OLED Display to show temperature

Disclaimer : We are no way related or affiliated with MediaTek or it's affiliates for any commercial or non-commercial purpose. This video series is developed and produced for the benefit of hobbyist, students and newbies to IoT development.#mediatek #linkitone #linkit #santronix #tutorials #internetofthings #iot #development #newbie #geek #free #sensor #datasheet #oled #display

Schematics, diagrams and documents

OLED Display for Ambient Temperature

Code

Arduino code for OLED Display for Temperature sensor

/*******************************************************
 * SANTRONIX <info@santronix.in>
 *
 * This file is part of SANTRONIX Mediatek LinkIt Tutorials Project.
 *
 * SANTRONIX Mediatek LinkIt Tutorials Project can not be copied and/or distributed without the express
 * permission of SANTRONIX
 *******************************************************/

#include <math.h>
#include <Wire.h>
#include <SeeedOLED.h>
#include <avr/dtostrf.h>

const int B = 4250;               // B value of the thermistor
const int R0 = 100000;            // R0 = 100k
const int pinTempSensor = A0;

void setup() {
  // put your setup code here, to run once:
  Serial.begin(9600);

  Wire.begin();
  SeeedOled.init();  //initialze SEEED OLED display

  SeeedOled.clearDisplay();          //clear the screen and set start position to top left corner
  SeeedOled.setNormalDisplay();      //Set display to normal mode (i.e non-inverse mode)
  SeeedOled.setPageMode();           //Set addressing mode to Page Mode

}

void loop() {

    int a = analogRead(pinTempSensor);

    float R = 1023.0/a-1.0;
    R = R0*R;

    float temperature = 1.0/((log(R/R0)/B)+(1/298.15))-273.15; // convert to temperature via datasheet

    //Serial.print("temperature = ");
    //Serial.println(temperature);


    SeeedOled.setTextXY(0,0);          //Set the cursor to Xth Page, Yth Column
    SeeedOled.putString("Temperature"); //Print the String
    SeeedOled.setTextXY(2,0);          //Set the cursor to Xth Page, Yth Column
    SeeedOled.putFloat(temperature,2);
    SeeedOled.putString(" C");
    delay(1000);
}
