In this tutorial we will learn how to get the stock data from the internet using the TTGO ESP32 and Visuino. Watch the Video!

Project info

Difficulty: Moderate

Platforms: ArduinoVisuino

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

LILYGO® TTGO T-Display LILYGO® TTGO T-Display x 1

Software apps and online services

Visuino Visuino
Arduino IDE Arduino IDE

Story

In this tutorial we will learn how to get the stock data from the internet using the TTGO ESP32 and Visuino.

Watch the Video!

Step 1: What You Will Need

1 / 2

Step 2: Alphavantage API

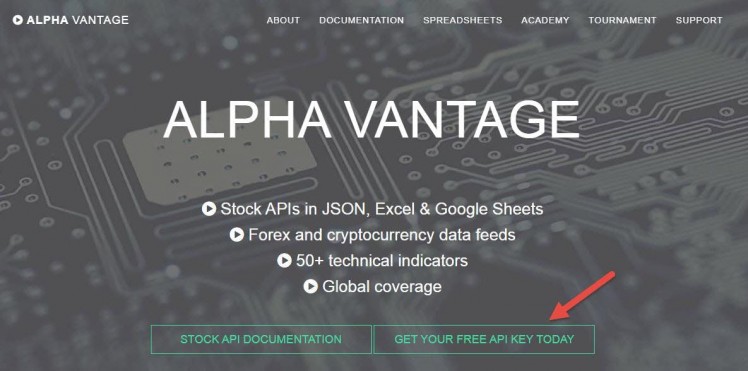

Go to https://www.alphavantage.co/ and create an account then navigate to API page to copy the API Key

You can find more documentation about the API on this link

https://rapidapi.com/alphavantage/api/alpha-vantage

Step 3: Start Visuino, and Select the Arduino TTGO T-Display ESP32 Board Type

1 / 2

The Visuino: https://www.visuino.eu also needs to be installed. Download Free version or register for a Free Trial.

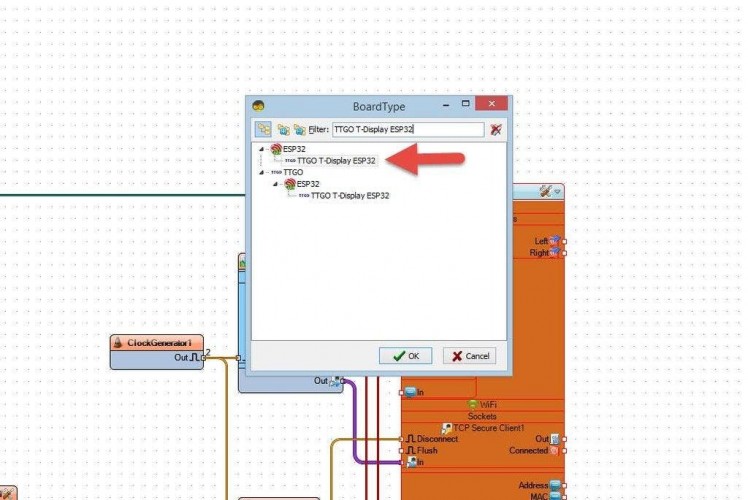

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "TTGO T-Display ESP32" as shown on Picture 2

Step 4: Get Server SSL Certificate for Your ESP

1 / 3

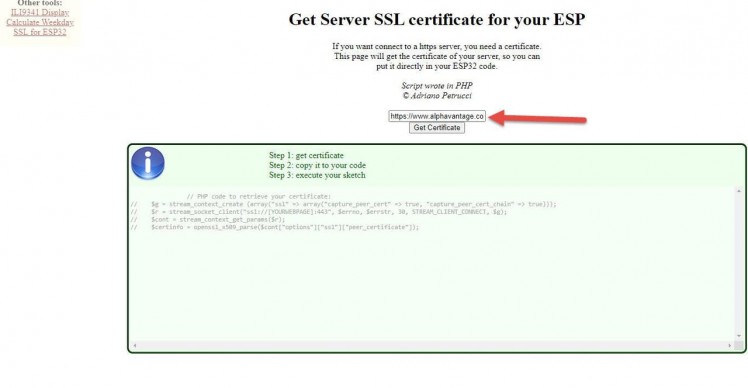

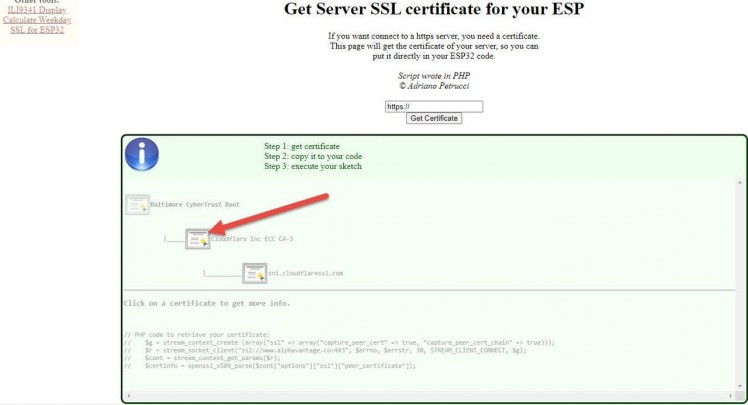

  • Go to https://projects.petrucci.ch/esp32/?page=ssl and paste the https://www.alphavantage.co in the Edit box and click "Get Certificate" button (Picture1)

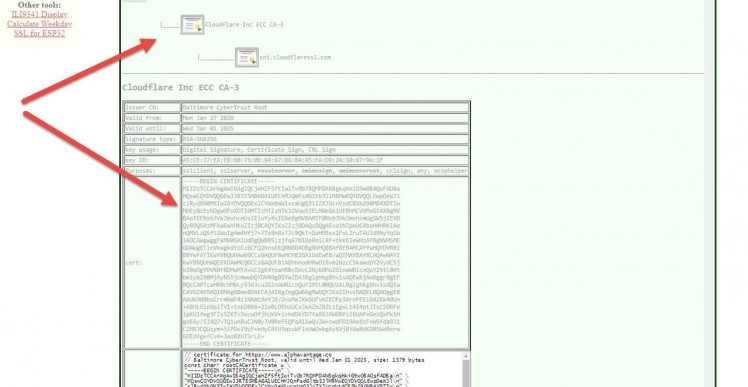

  • Click on the "Cloudflare Inc ECC CA-3" Image (Picture2)
  • (Picture 3) In the Table below "cert:" select the certificate field and copy it to the Clipboard (you will need it in the next step)

Step 5: In Visuino Set WiFi

1 / 6

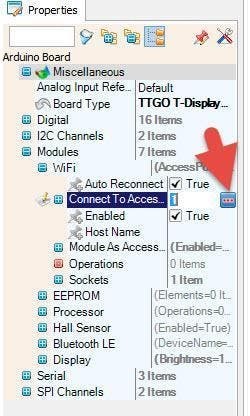

  • Select TTGO T-Display ESP32 board and in the properties window expand "Modules>WiFi>Connect To Access Points
  • Click on the Connect To Access Points 3 Dots

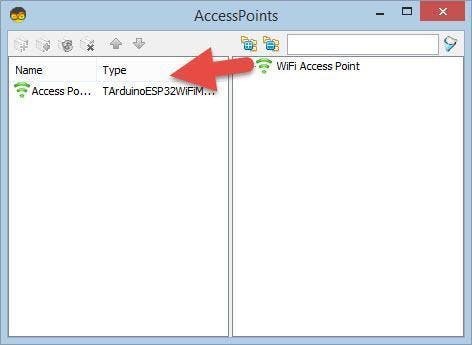

  • In the AccessPoints window drag "WiFi Access Point" to the left side
  • In the properties window set SSID (name of your WiFi hotspot or router)
  • In the properties window set Password (password of your WiFi hotspot or router)
  • Close AccessPoints window

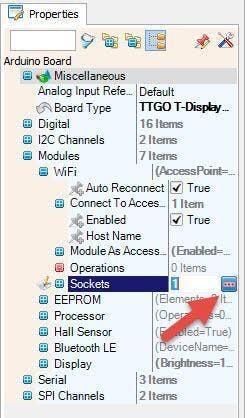

  • Select TTGO T-Display ESP32 board and in the properties window expand "Modules>WiFi>Sockets
  • Click on the Sockets 3 Dots

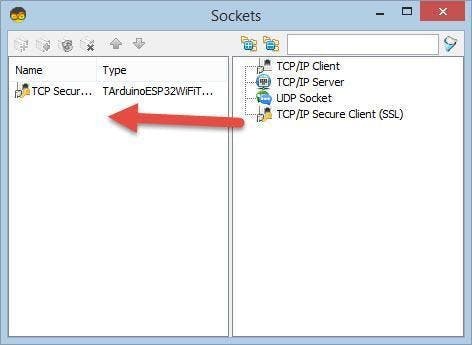

  • In the "Sockets window" drag TCP/IP Secure Client (SSL) to the left

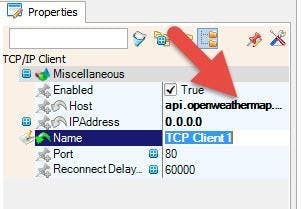

  • In the properties window set Host to: alphavantage.co
  • select "CACert" and click on the 3 dots button and in the "CACert window" paste the Certificate that you got in the previous step
  • Close the "Sockets window"

Step 6: In Visuino Set Display

1 / 18

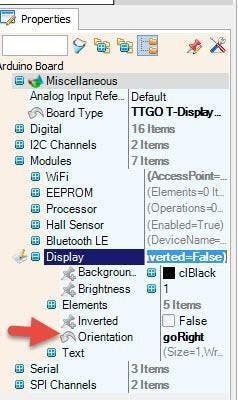

Select TTGO T-Display ESP32 board and in the properties window expand "Modules>Display>Orientation

Set Orientation to:goRight

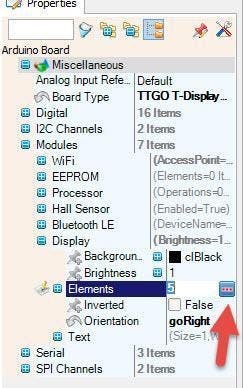

Select TTGO T-Display ESP32 board and in the properties window expand "Modules>Display>Elements

Click on the Elements 3 Dots

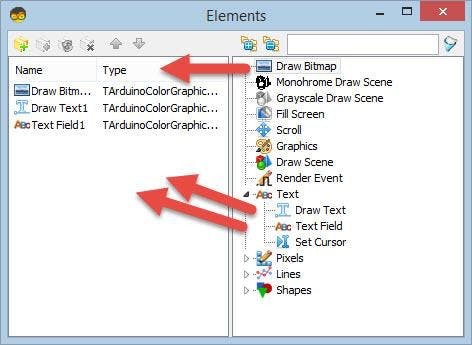

  • In the Elements window drag Draw Bitmap to the left In the properties window:

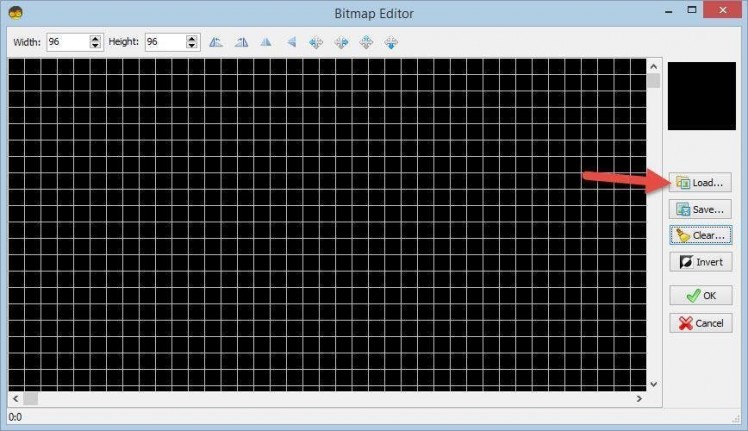

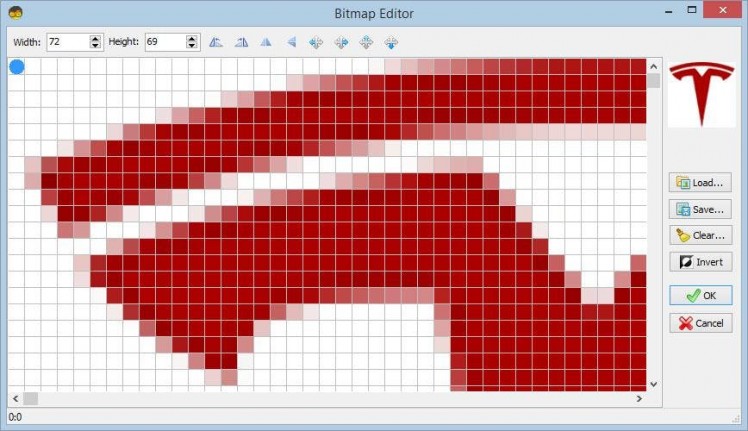

  • Click on the Bitmap 3 Dots In the Bitmap Editor Load the Stock bitmap (picture 6) and close the Bitmap editor

You can find other bitmaps at https://iconarchive.com/search?q=stock

  • In the Properties window set Set Y to 20

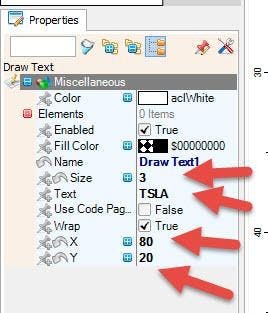

  • In the Elements window drag Draw Text to the left, In the properties window set Text to TSLA, Size to 3, X to 80, Y to 20

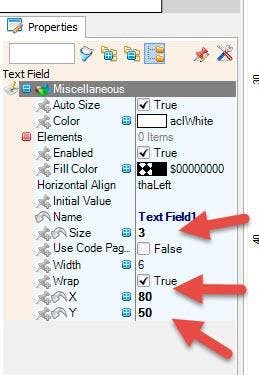

  • In the Elements window drag Text Field to the left In the properties window, In the properties window set Size to 3, X to 80, Y to 50

Close the Elements window

Step 7: In Visuino Add Components

1 / 9

  • Add "HTTP Client" component
  • Select "HTTPClient1" and in the properties window set Host to www.alphavantage.co
  • Click on the Requests 3 Dots

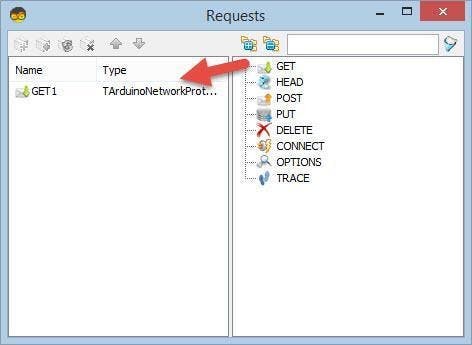

  • In the "Requests window" drag "GET" to the left side

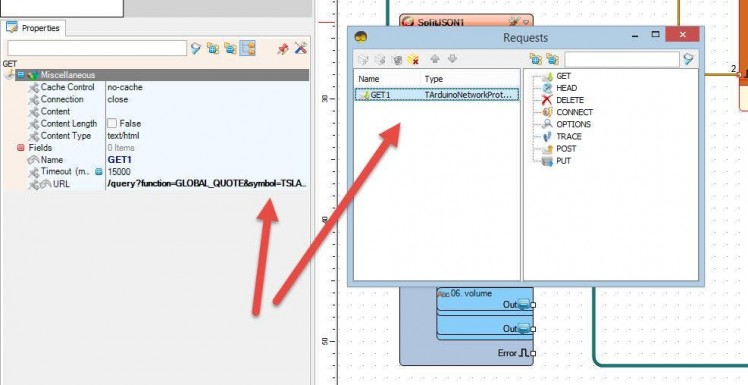

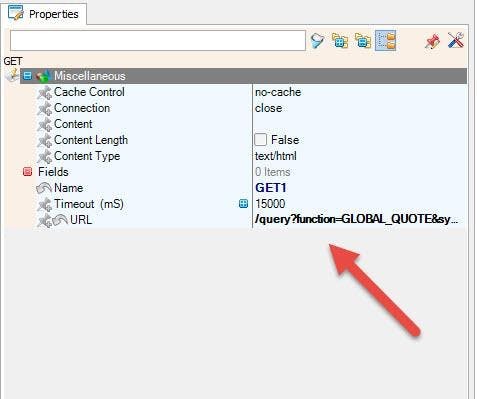

  • In the properties window set URL to: /query?function=GLOBAL_QUOTE&symbol=TSLA&apikey=123456
  • Important!: above in the URL replace 123456 at the end with your API key
  • Also replace "Berlin" with the name of your city
  • Close the requests window
  • Add "Char To Text" component
  • Select "CharToText1" and in the properties window se Max Length to 2000
  • Add "Start" component
  • Add "Clock Generator" component
  • Select "ClockGenerator1" and in the properties window set frequency to 0.0016
  • This is around 10min, so the data will be refreshed every 10min, you can change the frequency if you want
  • Add "Delay" components and in the properties window set "Interval (uS)" to 2000000
  • Add "Split JSON Object" component

Step 8: In Visuino Parsing JSON

1 / 2

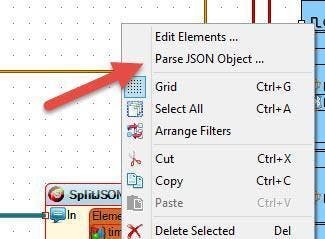

With the mouse right click on the "SplitJSON1" and in the menu click on the "Parse JSON Object.."

In the "JSON Object" window paste this sample code(avalible on https://www.alphavantage.co/query?function=GLOBAL_QUOTE&symbol=TSLA&apikey=YOURAPIKEY

Replace YOURAPIKEY with your API key that you got in your account

Or copy paste the following:

{
    "Global Quote": {
        "01. symbol": "TSLA",
        "02. open": "745.8900",
        "03. high": "774.8000",
        "04. low": "744.5600",
        "05. price": "774.3900",
        "06. volume": "21373022",
        "07. latest trading day": "2021-09-24",
        "08. previous close": "753.6400",
        "09. change": "20.7500",
        "10. change percent": "2.7533%"
    }
}

Close the "JSON Object" window

"SplitJSON1" component will now create new pins

Step 9: In Visuino Connecting Components

1 / 4

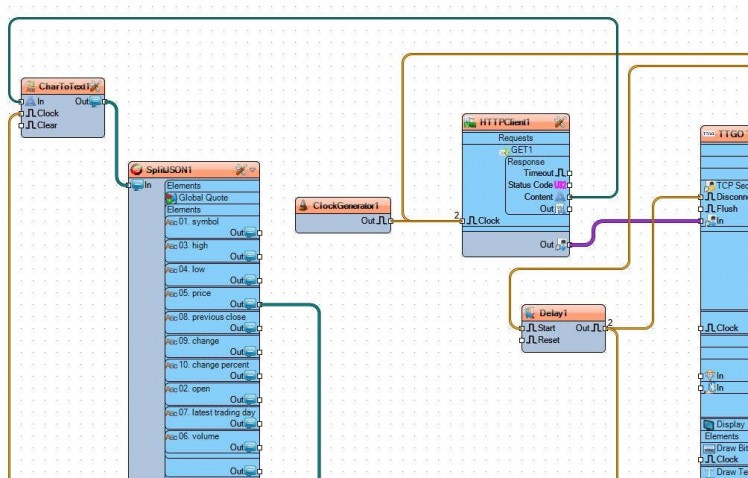

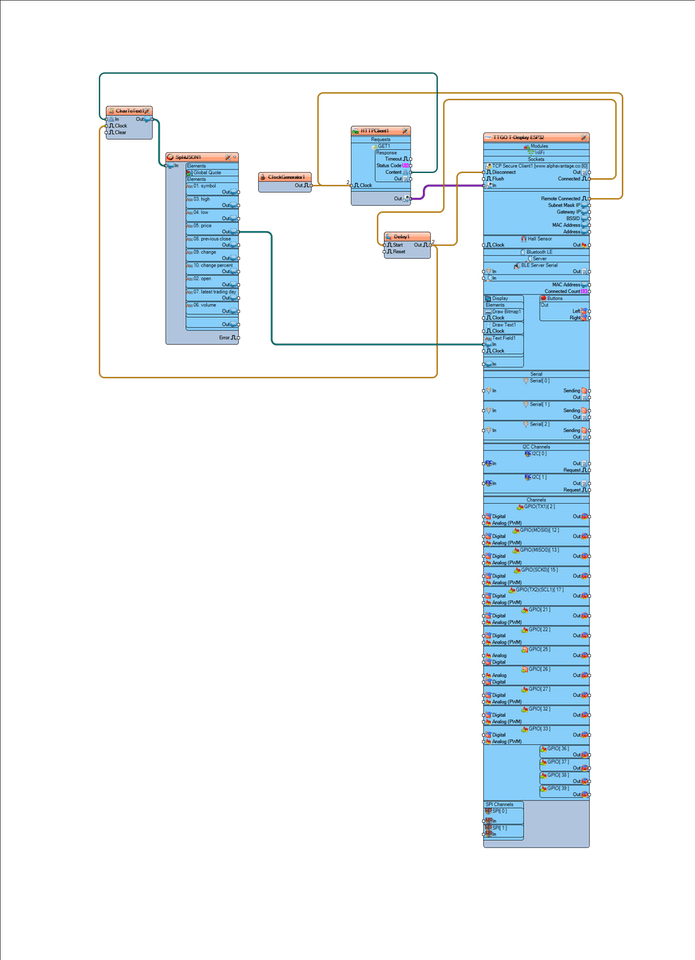

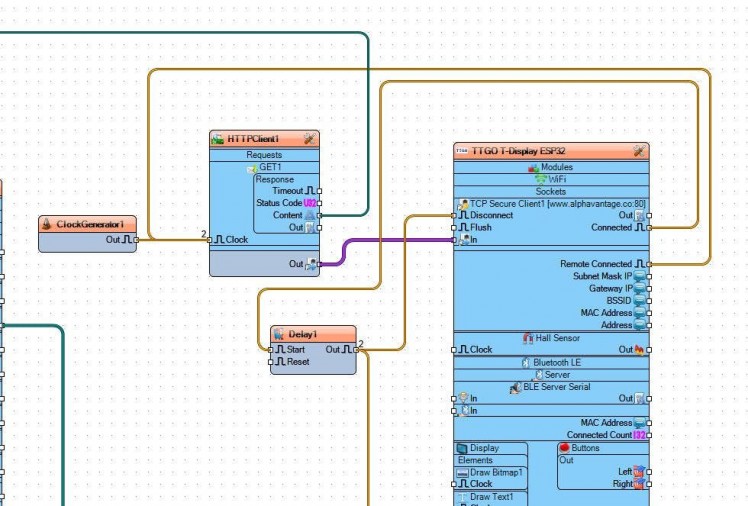

  • Connect "ClockGenerator1" pin Out to "HTTPClient1" pin Clock
  • Connect "TTGO T-Display ESP32" pin [Connected] to "Delay1" pin Start
  • Connect "TTGO T-Display ESP32" pin [Remote Connected] to "HTTPClient1" pin Clock
  • Connect "HTTPClient1" pin Content to "CharToText1" pin In
  • Connect "HTTPClient1" pin to TTGO T-Display ESP32 > WiFi>TCP Secure Client1 pin In
  • Connect "Delay1" pin Out to "CharToText1" pin Clock and TTGO T-Display ESP32 > WiFi>TCP Secure Client1 pin Disconnect
  • Connect "CharToText1" pin Out to "SplitJSON1" pin In

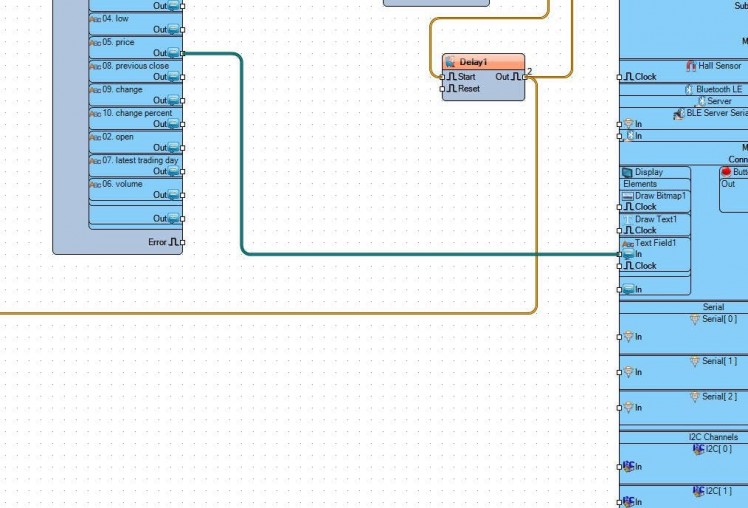

  • Connect "SplitJSON1price to TTGO T-Display ESP32>Text Field1 pin In

Note: you can also play with the other pins from "SplitJSON1" component

Step 10: Generate, Compile, and Upload the Code

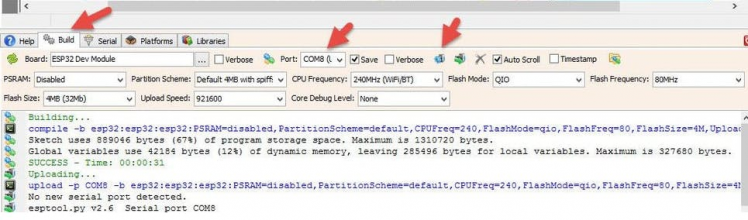

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Step 11: Play

If you power the TTGO ESP32 module it will connect to the network and display the current stock data.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.eu

Note: In the File Project when you open it in Visuino, change the WiFi settings (Access point and password) to your settings AND Add the API KEY at the end of the URL
