From Yolo To Edge-ai Vision

YOLO is popular and widely adopted for real-time object detection. But how to make it run on the edge devices? Today we’ll demonstrate how to develop and deploy your own YOLO-based model on an Intel Movidius VPU based edge-ai camera module OpenNCC.

Part 1. Train Your YOLO Model

1.1 Install environment dependencies

Refer to (https://github.com/AlexeyAB/darknet#requirements-for-windows-linux-and-macos) for details.

1.2 Build training tools

git clone https://github.com/AlexeyAB/darknetcd darknet

mkdir build_releasecd build_release

cmake ..

cmake --build . --target install --parallel 8

1.3 Prepare training datasets.

Place the training set pictures in the train folder and the verification set in the Val folder.

1.4 Mark the datasets

git clone https://hub.fastgit.org/AlexeyAB/Yolo_mark.git

cmake .

make

./linux_mark.sh

Please refer to README.md in the Yolo_mark directory for details.

1.5 Configure parameter files

In addition to the two datasets, several parameter files need to be configured before starting the training.

• obj.data

It states the total number of paths and categories of all the above files. If you use your own dataset, please modify the corresponding parameters before labeling.

• obj.name

It contains all target class names.

• train.txt

It contains all training image paths; val.txt file is not required. You can manually split 30% of the images from the training file for certification.

The above three files will be automatically generated in the directory of Yolo_mark/x64/Release/data.

• yolo.cfg: topology
• Yolo.conv: Pre-training weight

There is a certain correspondence between the cfg and conv files. Considering that the model trained here needs to be finally deployed on OpenNCC, we recommend using the combination of（yolov4-tiny.cfg+yolov4-tiny.conv.29）or (yolov3-tiny.cfg+yolov3-tiny.conv.11）. The cfg file can be found directly in the darknet/cfg directory.

Confirgure Cfg file. Search the location of all YOLO layers in the cfg file. If there are three types of targets in total, define the [Yolo] layer classes parameter as 3, and then define the filters of the [convolutional] layer on the [Yolo] layer as 24. The calculation formula is filters = (classes + 5) * 3.

yolov4-tiny.cfg has two Yolo layers, so a total of 4 parameters need to be modified.

1.6 Train

If step 1.2 is compiled successfully, the ./darknet tool will be generated in the darknet directory.

Type in the below command：

./darknet detector train ./obj.data ./yolov4-tiny.cfg ./yolov4-tiny.conv.29  -map

If the GPU is lower than 1080Ti, there may be an error due to insufficient memory. At this time, it is necessary to change the batch parameter to no more than 8 (8, 4, 2, 1) in the first layer [net] of cfg.

If the training goes well, you can see the training log chart as shown in the figure below:

After training, you can see a series of .weights files. Here, it is still recommended to set a validation set when making a dataset, so that the highest weight of the map in the validation set yolov4-tiny_best.weights can be directly locked for subsequent use.

Part 2. Transfer Model Format

IR is the reference format for the OpenVINO tool kit. In this part, we will transfer the ‘Darknet’ model to ‘blob’ with Intermediate ‘TensorFlow’ and ‘IR’.

2.1 Darknet to TensorFlow

Here we need to use obj.names and yolov4-tiny_best.weights created in Step 1.5.

git clone https://github.com/RenLuXi/tensorflow-yolov4-tiny.git

cd tensorflow-yolov4-tiny

python convert_weights_pb.py --class_names obj.names --weights_file yolov4-tiny_best.weights --tiny

2.2 Tensorflow to IR(IR is the OpenVINO inference format)

• Modify json configuration file

Open yolo_v4_tiny.json in the tensorflow-yolov4-tiny directory, change the classes value to your own number of categories. This file is needed for OpenVINO to do TensorFlow transformation.

• Replace json configuration file

cp ./yolo_v4_tiny.json /opt/intel/openvino/deployment_tools/model_optimizer/extensions/front/tf

• Enter OpenVINO model transformation tool directory

cd /opt/intel/openvino/deployment_tools/model_optimizer

• Transfer command

python mo.py --input_model yolov4-tiny.pb --transformations_config ./extensions/front/tf/yolo_v4_tiny.json --batch 1 --data_type FP32 --reverse_input_channels

2.3 IR to blob

Initialize OpenVINO environment, then convert XML and bin files that are previously created.

source /opt/intel/openvino_2020.3.194/bin/setupvars.sh

cd /opt/intel/openvino_2020.3.194/deployment_tools/inference_engine/lib/intel64

cp /opt/intel/openvino/deployment_tools/model_optimizer/yolov4-tiny.xml ./

cp /opt/intel/openvino/deployment_tools/model_optimizer/yolov4-tiny.bin ./

/opt/intel/openvino_2020.3.194/deployment_tools/inference_engine/lib/intel64/myriad_compile -m yolov4-tiny.xml -o yolov4-tiny.blob -VPU_MYRIAD_PLATFORM VPU_MYRIAD_2480 -VPU_NUMBER_OF_SHAVES 6 -VPU_NUMBER_OF_CMX_SLICES 6

Part 3. Deploy Model to OpenNCC Edge-AI Camera Module

In this part, you need to plug the OpenNCC camera module into your PC for deployment.

Place XML, bin, blob to OpenNCC-yolo. Refer to Github repository OpenNCC yolo for open source and instruction details.

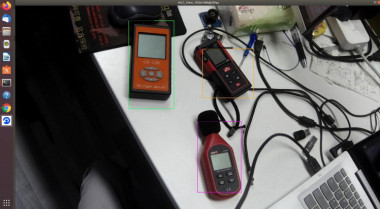

The final output below:

Recommended SKU to try out YOLO on edge: ONNCUB230-630
