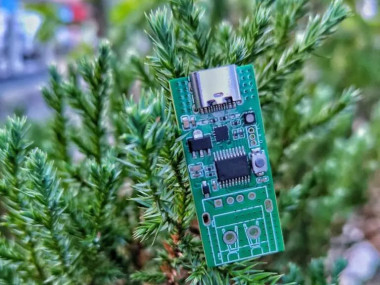

Diy Power Delivery Trigger

About the project

let's build a PD trigger

Project info

Items used in this project

Hardware components

USB Cable, USB Type C Plug USB Cable, USB Type C Plug x 1
Capacitor 100 nF Capacitor 100 nF x 1
Seeed Studio 8-Channel 12-Bit ADC for Raspberry Pi (STM32F030) Seeed Studio 8-Channel 12-Bit ADC for Raspberry Pi (STM32F030) x 1

Software apps and online services

Arduino IDE Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic) Soldering iron (generic) x 1


USB has evolved from a data interface capable of supplying limited power to a primary provider of power with a data interface. Today many devices charge or get their power from USB ports contained in laptops, workstations, docking stations, displays, cars, aeroplanes or even wall sockets. USB has become a ubiquitous power socket for many small devices such as cell phones, tablets, portable speakers, and other hand-held devices. Users need aUSB to fulfil their requirements not only in terms of data but also to provide power to, or charge, their devices simply, often without the need to load a driver, in order to carry out “traditional” USB functions. The USB Power Delivery (USB PD) Specification enables the maximum functionality of USB by providing more flexible power delivery along with data over a single cable. Its aim is to operate with and build on the existing USB ecosystem. The main blocks in power delivery systems are the source and the sink. The source supplies power over VBUS when the negotiation from the sink controller is successful. The PD systems use the CC1 and CC2 lines in the USB C cable for negotiation.

PD Trigger Modules

Power Delivery (PD) trigger modules are used to get a desired voltage ranging from 5v to 20V from a PD-compatible power supply. PD trigger modules are typically composed of aPD sink controllers with various supporting components. One such PD sink controller that is commonly used in PD trigger modules is the FUSB302. In this project, we have used the very same FUSB302 PD controller in our PD trigger module.

Components Required
  • STM32F030 Microcontroller
  • FUSB30 Programmable USB Type‐C Controller with PD
  • 3.3V Voltage regulator
  • Tactile Switch
  • Resistors
  • Capacitors
  • USB Type-C connector
  • PCB
  • Other tools and miscellaneous

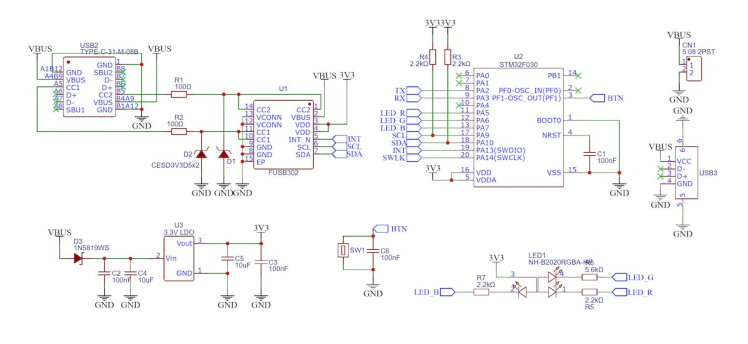

PD Trigger Complete Circuit Diagram

The complete circuit diagram for the PD Trigger is shown below.

PCB Design

Here is the PCB design for the PD Trigger

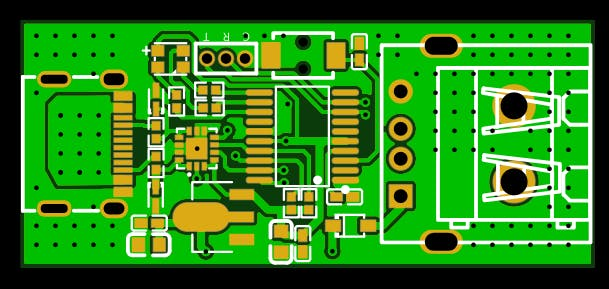

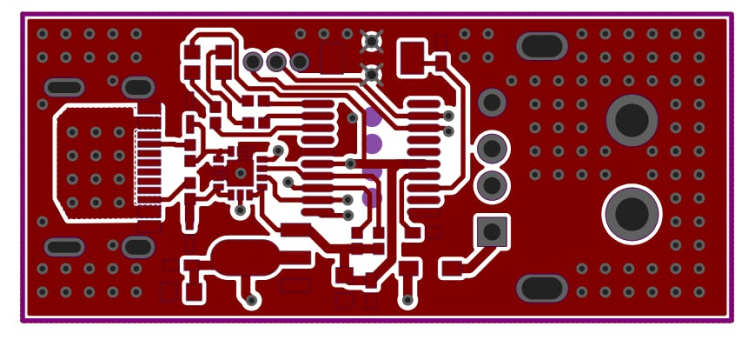

1 / 2top layer

top layer

top layer

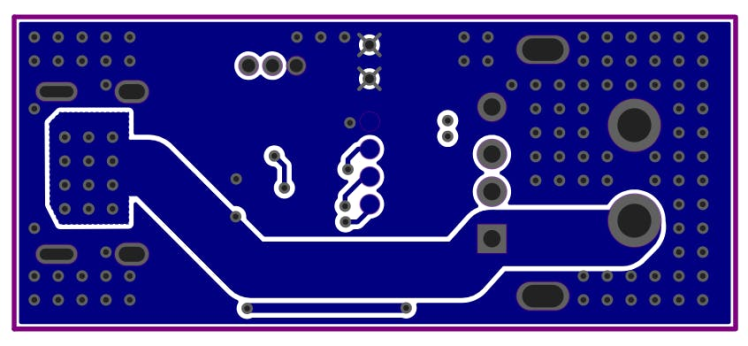

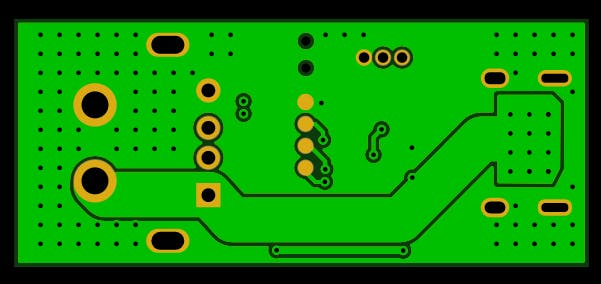

bottom layer

bottom layer

2D View

1 / 2top layer

top layer

top layer

Bottom layer

Bottom layer

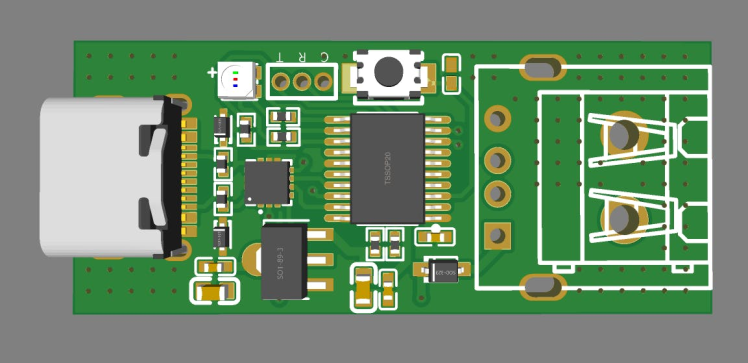

3D View

PCB Fabrication and Assembly

1 / 2

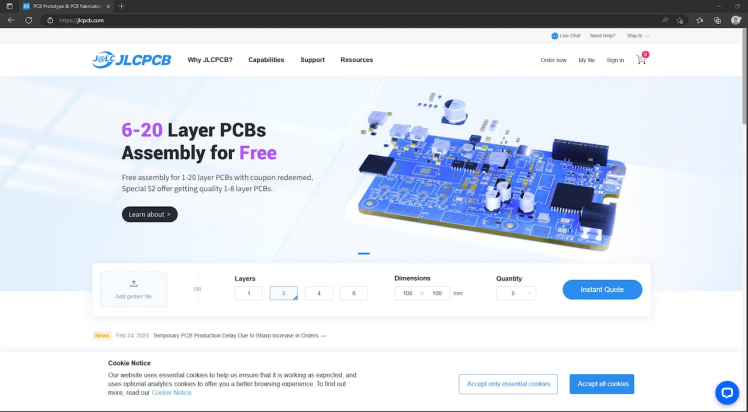

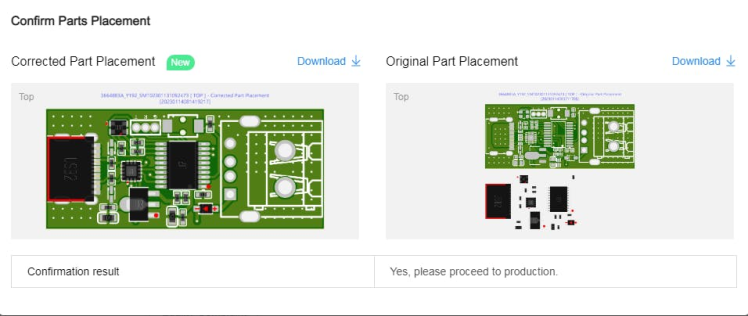

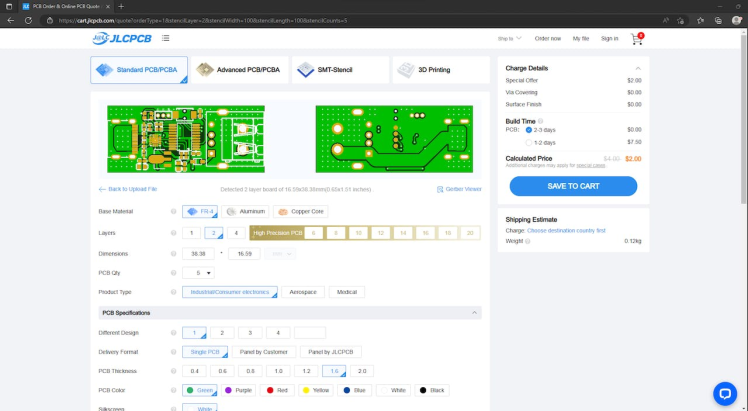

To fabricate the PCBs, I went to offers only $2 for 5 PCBs and their PCB assembly starts from zero dollars. Ordering PCB in JLCPCBis very easy. To order, just click on “Order Now” and select your Gerber file. After that, you can select the colour, thickness, quantity, etc. Here, I choose the black colour. You can choose your favourite PCB colour from plenty of options. Finally, I selected the shipping method and placed the order.

JLCPCB also offers fast and reliable PCB assembly services for your electronic projects. With their state-of-the-art facilities and skilled technicians, they can handle any PCB assembly project, big or small. Whether you need a prototype or a large production run, JLCPCB can provide you with high-quality PCB assembly services at competitive prices. JLCPCB uses only the highest quality components in their PCB assemblies, ensuring that your projects are built to last. They also offer a range of PCB assembly options, including surface mount technology (SMT) and through-hole technology (THT), so you can choose the best option for your project. Their online ordering system makes it easy to get started, and their experienced customer support team is always available to answer any questions you may have. Plus, with their fast turnaround times, you can get your PCB assemblies delivered quickly and on time.

So why wait? Get started with JLCPCBs PCB assembly services today and take your electronic projects to the next level!

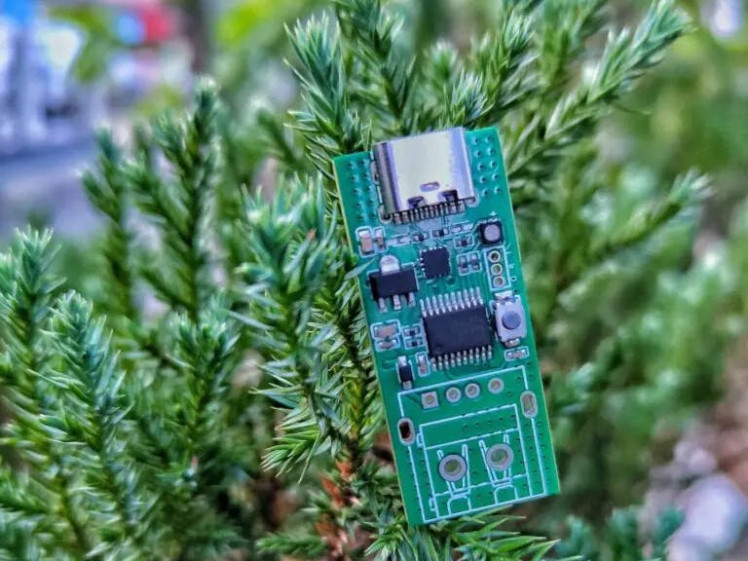

Final Product

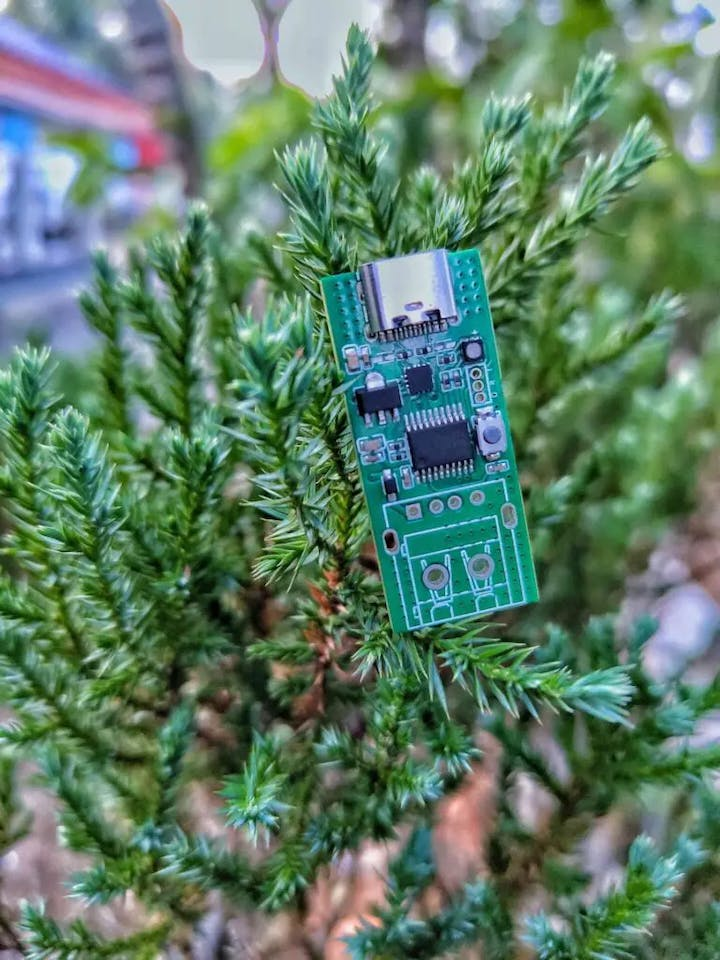

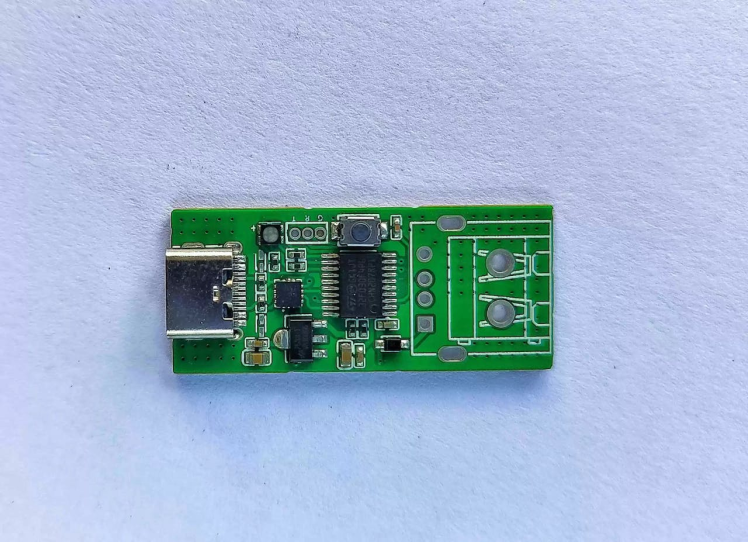

Here is the final product. Fully manufactured using JLCPCB. You can see that the PSB is in pristine condition and the assembly quality is Top notch.

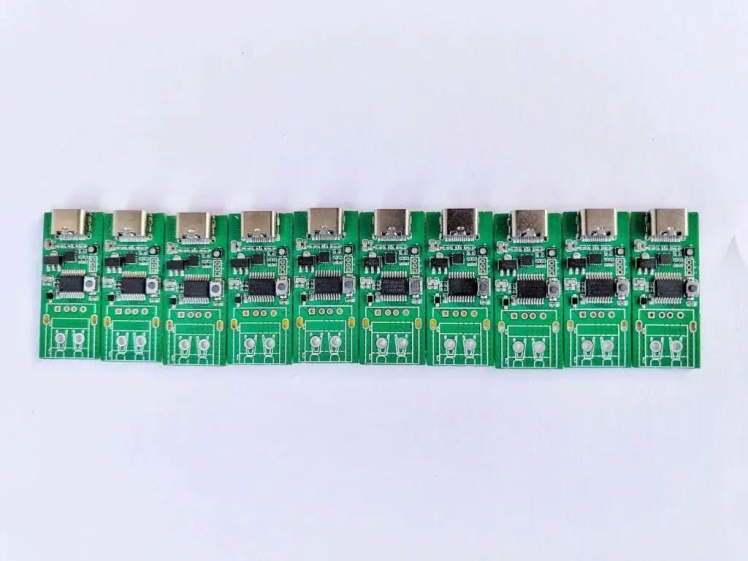

Here are a few more boards from the same production batch. The production quality is consistent across the batch.


The configuration mode can be activated by plugging in the board while pressing the button. The LED will initially flash fast in cyan colour until the button is released. Then, it keeps flashing to indicate that it is in configuration mode.

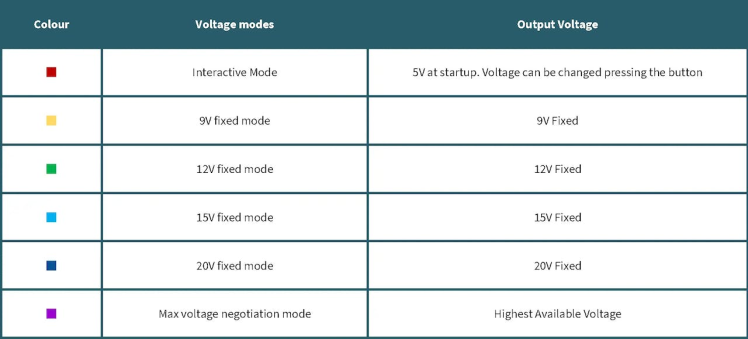

The mode can be selected by pressing the button until the desired voltage or mode (see table above) has been selected. The button must be held down for a longer amount of time until the Light turns off in order to save the setup. The output voltage stays at 5V while in configuration mode. Now just disconnect and reconnect to enter the selected mode.

Notes on Fixed Voltages

Even if a fixed voltage above 5V has been selected and the selected voltage can be provided by the power supply, the supply will initially provide 5V until the target voltage has been successfully negotiated.

If a fixed voltage has been configured and the power supply does not offer it as a fixed voltage but can supply it as part of a PPS (programmable power supply) capability, the PPS capability will be used. This feature enables 12V on a number of power supply not offer 12V as a fixed voltage.

Working Video
