Arduino Bicycle Speedometer Using Gps
About the project
A cool project for bike fans!
Estimated time: 1 hour
Items used in this project
Software apps and online services
1 / 4
In this tutorial we will use Arduino and Visuino to display a current Bicycle Speed from GPS on ST7735 display.
Watch a demonstration video.
1 / 8
- Arduino UNO (Or any other Arduino)
- LCD Display TFT 7735

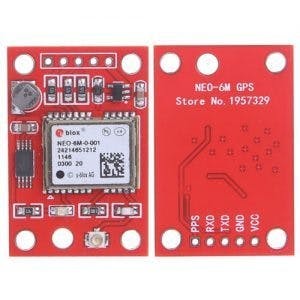

- GPS Neo M6 V2 module

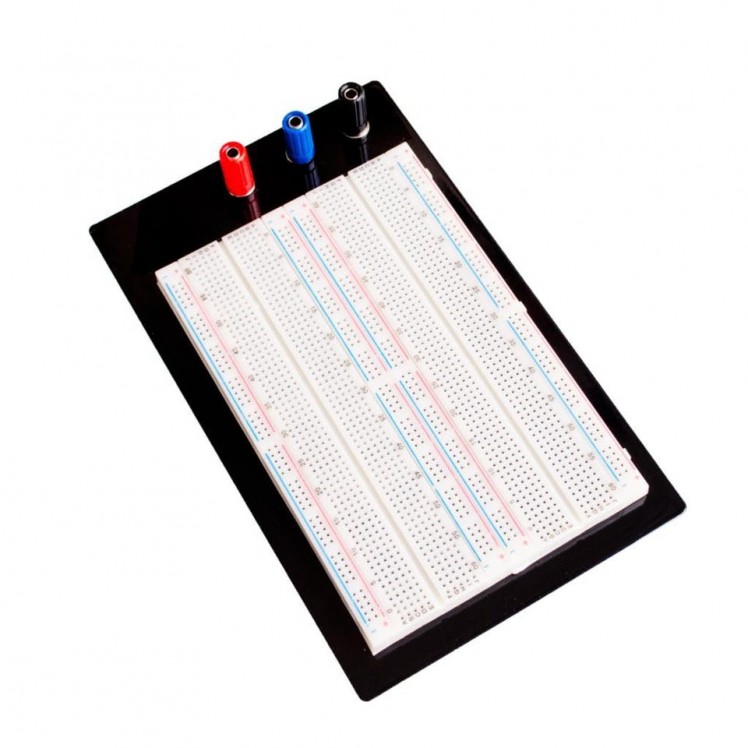

- Jumper wires
- Visuino program: Download Visuino
- Battery to power Arduino (In my case I was just using a powerbank)

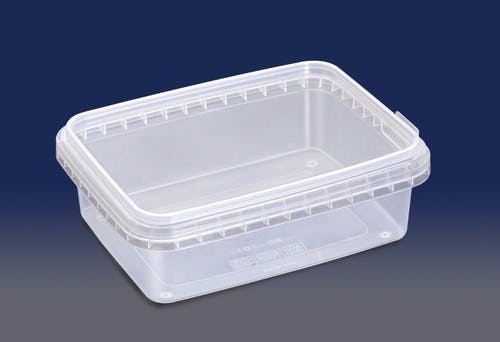

- Some box to put it all in.
- A Bike to test it out
1 / 4

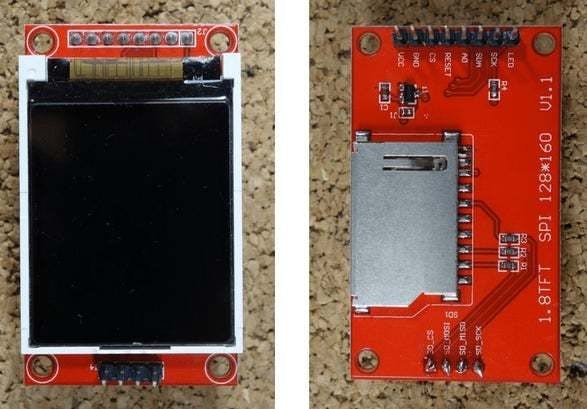

LCD TFT ST7735
1.8 TFT Display PIN [LED] to Arduino PIN [3.3 V]
1.8 TFT Display PIN [SCK] to Arduino PIN
1.8 TFT Display PIN [SDA] to Arduino PIN
1.8 TFT Display PIN [A0 or DC] to Arduino PIN
1.8 TFT Display PIN [RESET] to Arduino PIN
1.8 TFT Display PIN [CS] to Arduino PIN
1.8 TFT Display PIN [GND] to Arduino PIN [GND]
1.8 TFT Display PIN [VCC] to Arduino PIN [5V]
NOTE: Some Arduino boards have different SPI pins so make sure you check your board documentation.
GPS neo 6m:
CONNECT gps neo 6m PIN [TXD] to Arduino PIN [RX]
1 / 2
o start programming the Arduino, you will need to have the Arduino IDE installed from here: https://www.arduino.cc/.
Please be aware that there are some critical bugs in Arduino IDE 1.6.6. Make sure that you install 1.6.7 or higher, otherwise this tutorial will not work! If you have not done follow the steps in this tutorial to setup the Arduino IDE to program Arduino UNO! The Visuino: https://www.visuino.eu also needs to be installed. Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2
1 / 3
- Add "Serial GPS" component

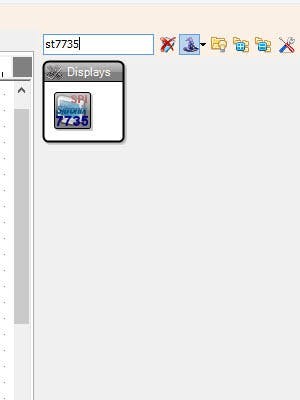

- Add "TFT Color Display ST7735" component
1 / 3
- Select "Display1" component and set "Type" to "dtST7735R_BlackTab"NOTE: Some Displays have diferent properties so experiment by selecting diferent types to find the one that works best, in my case I choose "dtST7735R_BlackTab"

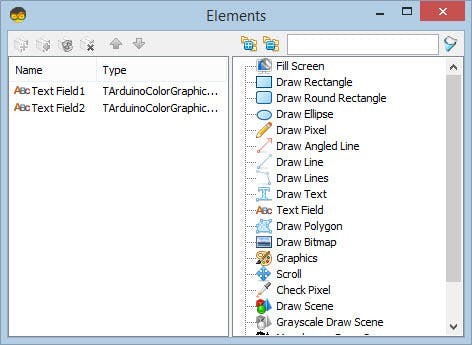

- Double click on "Display1" component and in "Elements" dialog drag 2x "Text Field" to the left side

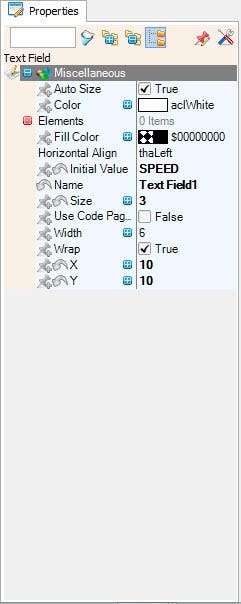

Select "Text Field1" (on the left side) and under "Properties" window set:
- Initial Value:SPEED

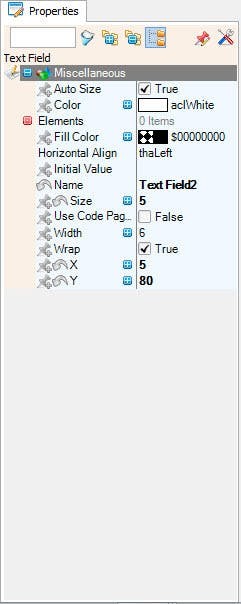

Select "Text Field2" (on the left side) and under "Properties" window set:

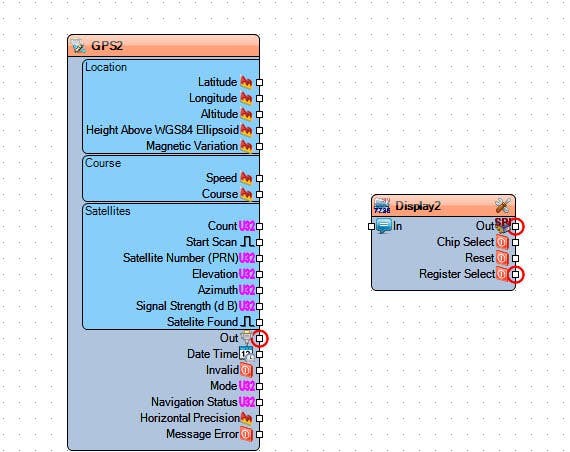

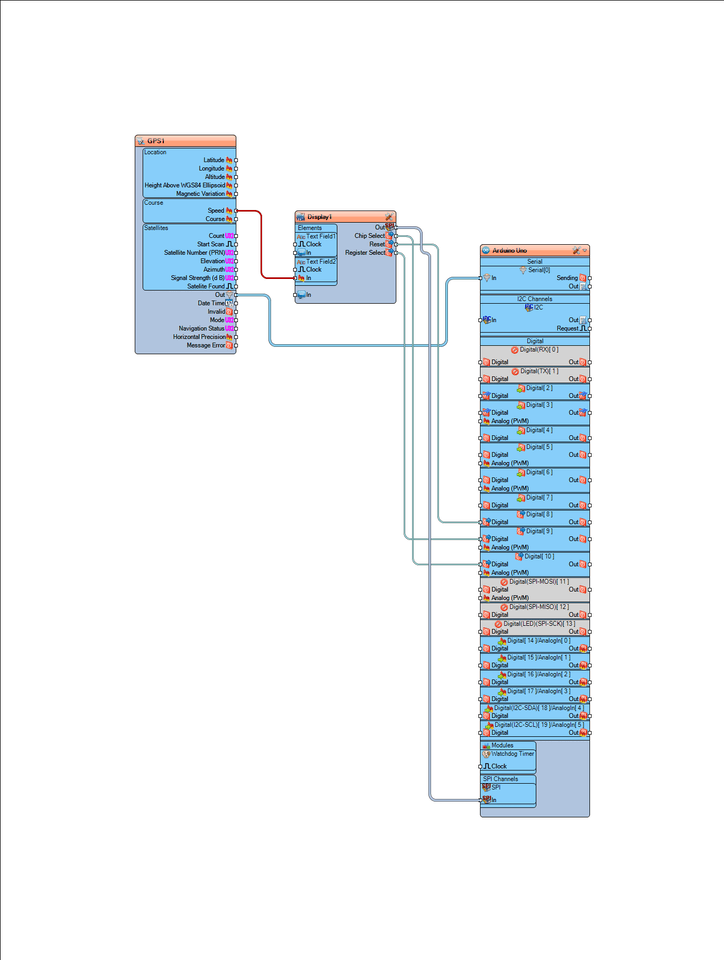

- Connect "GPS1" component pin[Out] to Arduino pin In [Serial 0]
- Connect "GPS1" component pin[Speed] to "Display1" component Text Field2 pin [In]
- Connect "Display1" component pin [Out] to Arduino pin SPI [In]
- Connect "Display1" component pin [Chip Select] to Arduino Digital pin
- Connect "Display1" component pin [Reset] to Arduino Digital pin
- Connect "Display1" component pin [Register Select] to Arduino Digital pin
1 / 2
- In Visuino, Press F9 or click on the button shown on Picture 1 to generate the Arduino code, and open the Arduino IDE
- In the Arduino IDE, click on the Upload button, to compile and upload the code (Picture 2)
Note: Make sure when you are uploading the code to Arduino to Disconnect Arduino pin[RX]

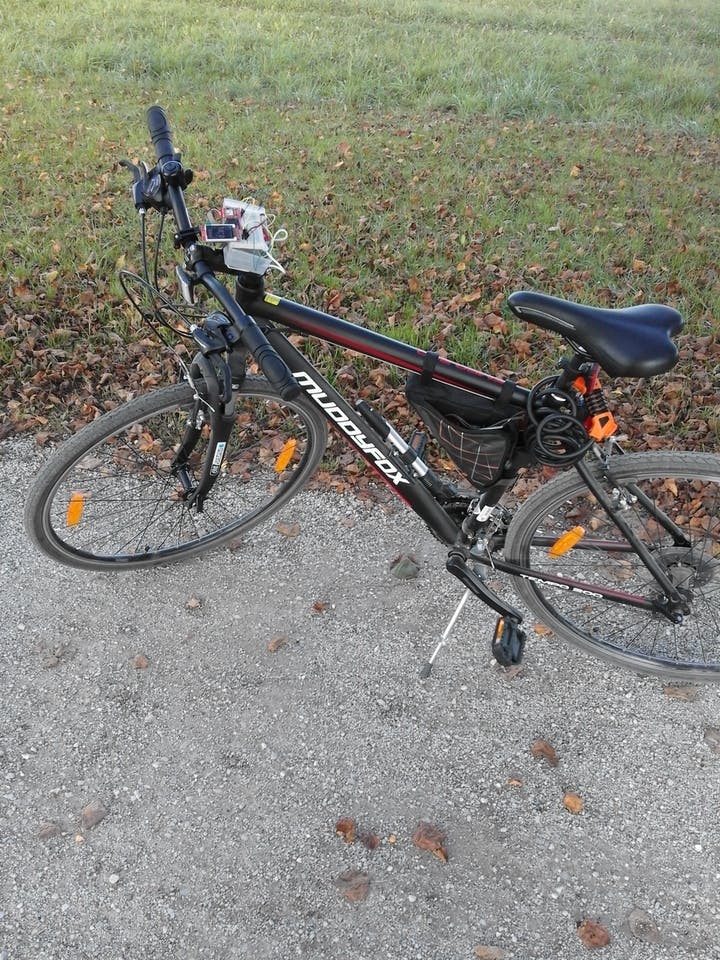

Put the Arduino and the GPS module to some plastic box, power it with a battery, mount it on the bicycle, make sure that the GPS antena is visible and turned to the sky.
If you power the Arduino UNO module, the Display will start to show a current speed of the bicycle.
Congratulations! You have completed your Speedometer project with Visuino. Also attached is the Visuino project, that I created for this tutorial. You can download and open it in Visuino: https://www.visuino.eu
There is a lot of possible updates for this project like adding distance, average speed,etc Use your imagination and creativity!
