Ai Smart Draw With Brainium Iot Cloud

About the project

It's a simple demonstration of AI (motion detection) with Brainium cloud module and Rapid IoT Prototyping Kit.

Project info

Difficulty: Moderate

Platforms: AvnetNXPRaspberry Pi

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

ESP8266 Serial WIFI Module ESP8266 Serial WIFI Module x 1
NXP Rapid IoT Prototyping Kit NXP Rapid IoT Prototyping Kit x 1
Avnet SmartEdge Agile Brainium Avnet SmartEdge Agile Brainium x 1


It's my debut work on AI. I just submitted idea for Bring Intelligence to the Real World and was selected. I received my SmartEdge Agile kit few weeks back. It was easy and user friendly for beginners to get into AI.

In this project, my idea is to detect motions types and display it on Rapid IoT Prototyping Kit OLED screen.

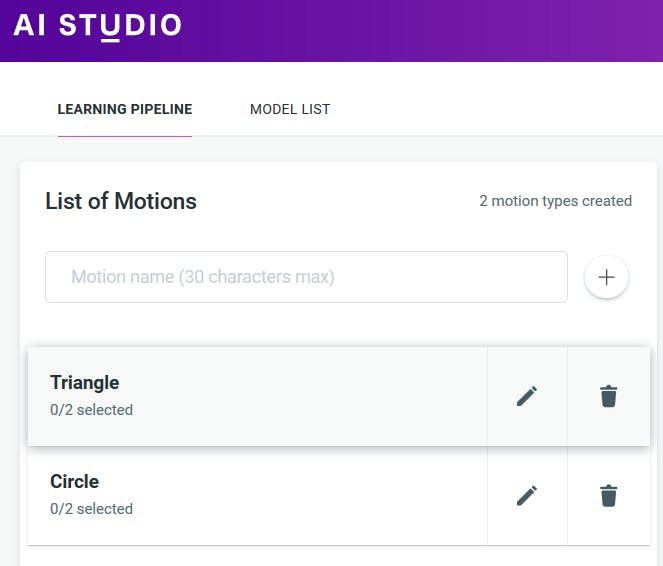

To start with basic I have created Motion modules in Brainium cloud tool. The modules will have multiple recorded data for "Circle" and "Triangle" motions.

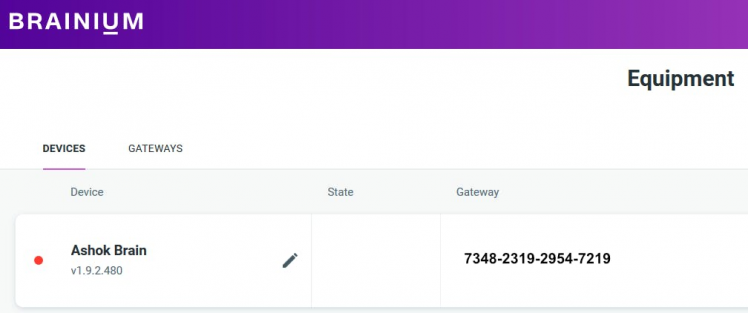

Then created new project for and included this modules in it. Before that the gateway needs to added by adding device ID.

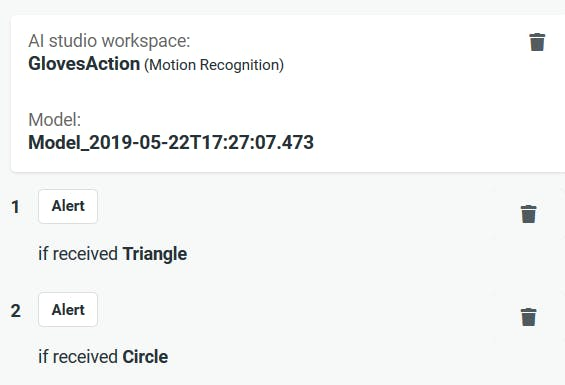

Next step you need to create AI rules for getting alerts based on motions type.

After setting up, you can follow this document to read the alerts from the cloud using MQTT or HTTP Refer -

I used my own cloud to read the alert status via ESP8266.

The working demo is here. For more status updates on my work, please follow and join.
