About the project

Improved Kicad PCB schematics for a DIY Solder Reflow Plate from the original pcb schematic by AfterEarthLTD.

Story

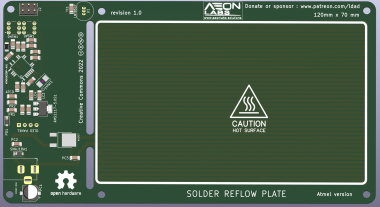

Solder Reflow Plate PCB

Improved Kicad PCB schematics for a DIY Solder Reflow Plate from the original pcb schematic by AfterEarthLTD


Versions
  • revision 2.0

    • ESP32 MCU with BLE and WiFi
    • Android App to view and control the hot plate temperature
  • revision 1.0

    • 120mm x 70mm (Bigger hot plate dimensions)
    • 12VDC (5A Minimum)
    • 5.5mm x 2.5mm Barrel Jack
    • 0.91" OLED Display
    • Atmel Mega 328P MCU (this version includes crystal for programming)
    • With corner M2.5 holes for placement of an aluminium plate on top of the PCB for extended lifetime and durability.
As Seen On GreatScott!

This is the Gerber & KiCad files for the Youtuber GreatScott! video "The Best way to reflow solder? Hot Plate to the rescue! DIY or Buy"
Check it out here - The Best way to reflow solder? Hot Plate to the rescue! DIY or Buy

You have 2 options:

Download this repository for the KiCad Files

Or,

Download the Gerber files in the release section of this repository

alternatively if you do not want to build a PCB by yourself, you can buy here:

Tidie.com

The price will be around 30eur plus postage fees.
(I will also deliver the assembled PCB with all the components in place at an aditonal cost).

Join the WhatsApp Group

If you like this kind of projects and want to stay updated with the latest research ideas and prototypes during the day and week, join the WhatsApp Group
LDAD Lab & Prototyping

PCB Parts list:
