Wireless Charging Shelf

Made by Danivbel / 3D Printing

About the project

A small shelf which can store your wallet keys, etc. and wirelessly charge your devices!

Project info

Difficulty: Easy

Estimated time: 1 day

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

	single 16850 Battery holder	x 1
	16850 Lithium battery	x 1
	Toggle switch	x 1
	5V 500mA 4MHz Step- Up DC/DC Cnvrtr	x 1

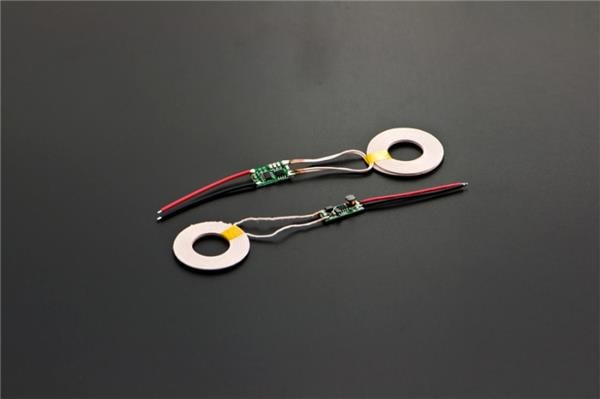

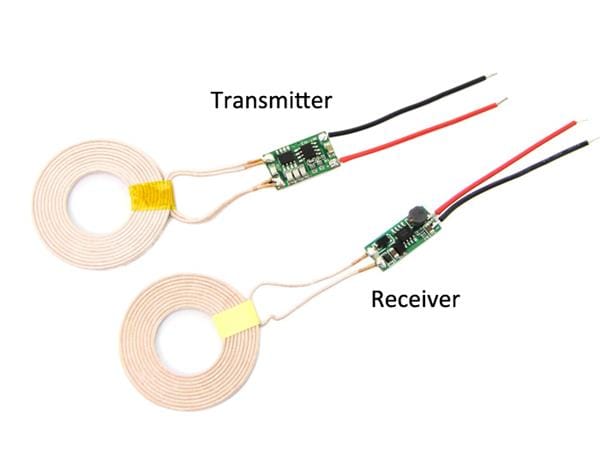

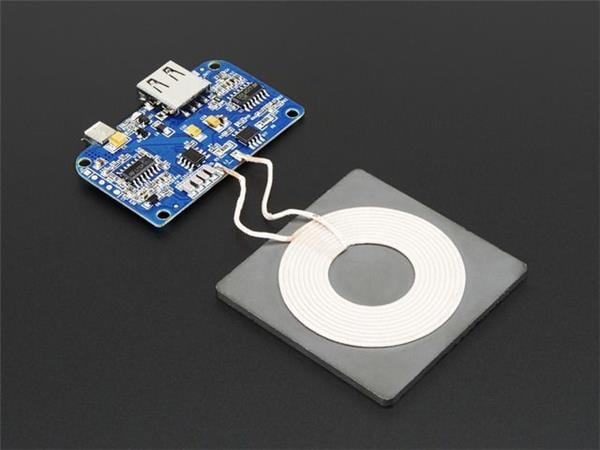

	Wireless charger module	x 1

Software apps and online services

Fusion 360

Hand tools and fabrication machines

3D-printer

x 1

Story

Overview

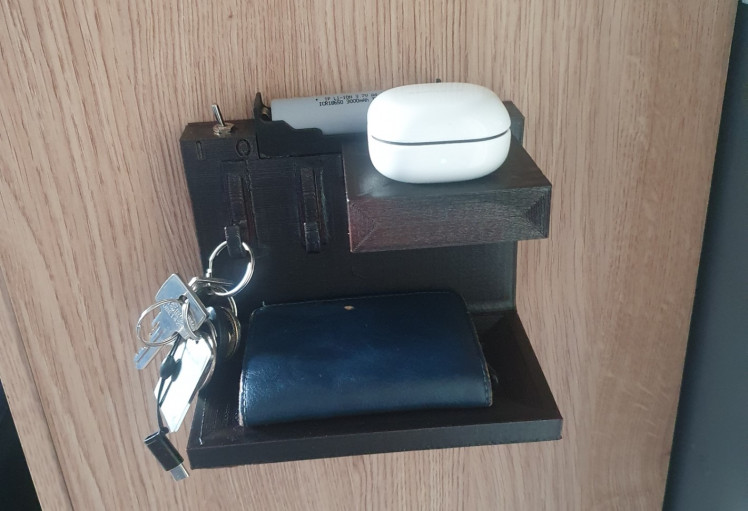

The goal is to create a shelf which hangs next to my bedroom door to hold my belongings. I was inspired by similar shelves on Thingiverse but was missing a feature to charge my earbuds, so I designed my own.

How does it work

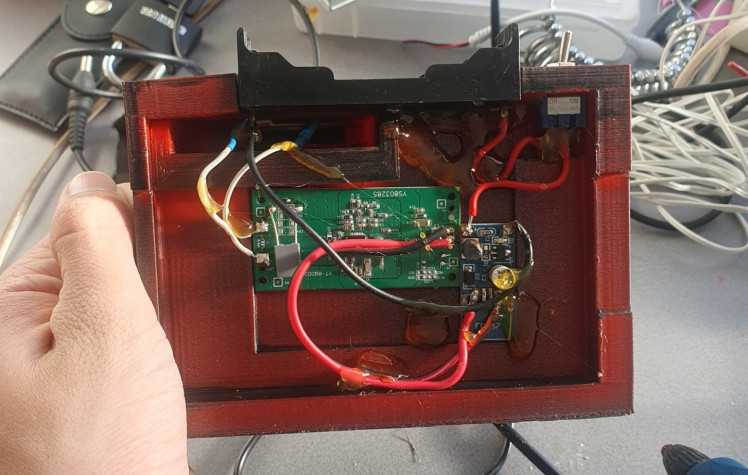

The electronics used in this project are relatively straightforward. I used a 18650 Lithium battery, which was connected to a step-up converter in order to convert the voltage to 5v. This converter was then connected to a wireless charger, which allows me to charge my earbuds. Overall, the process is pretty simple, but it works.

Design

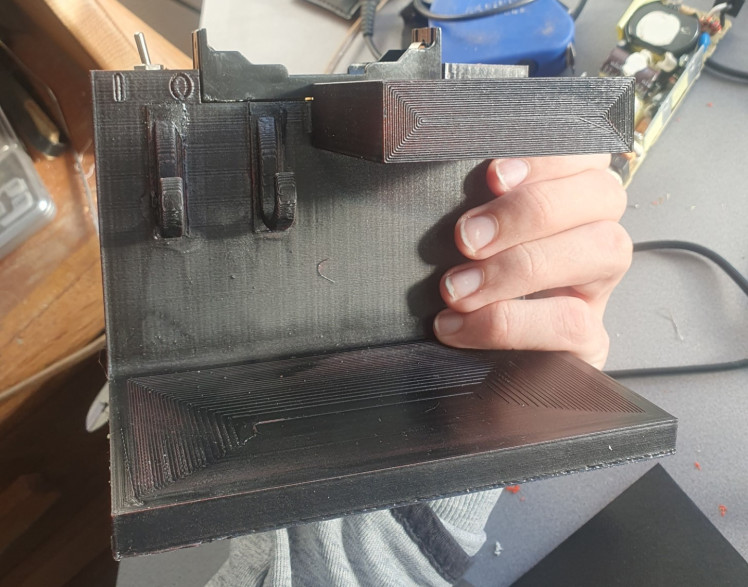

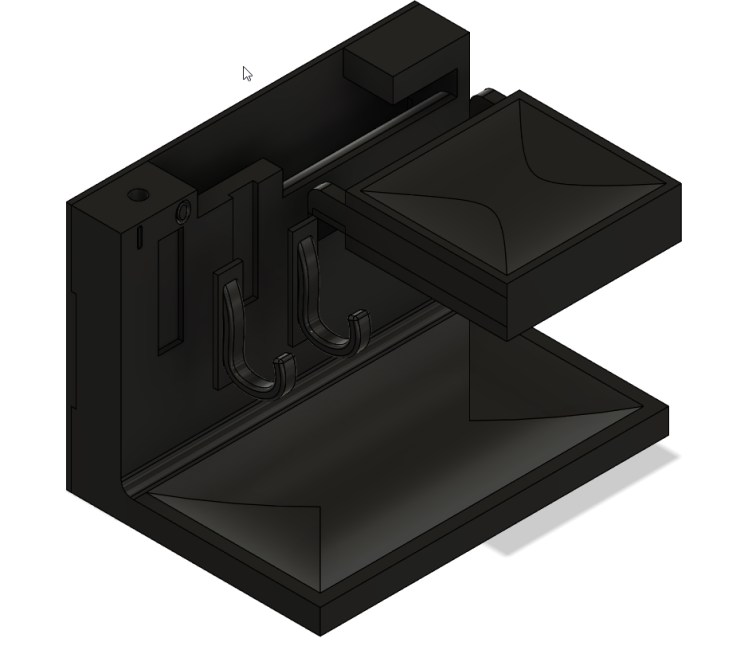

I used Fusion 360 to design the shelf, drawing inspiration from similar shelves on Thingiverse. In order to minimize the amount of filament and time required for the project, I aimed to design the shelf with as little support as possible, I did this by splitting it up in multiple parts.
