Water Physics With Servo Motors

About the project

This is just a very simple Finite Element simulation.

Project info

Difficulty: Easy

Platforms: Espruino

Estimated time: 2 hours

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

Servo Motors, arranged next to each other Servo Motors, arranged next to each other http://www.espruino.com/Servo+Motors x 6
114990308  ARM Espruino Pico unpinned 114990308 ARM Espruino Pico unpinned x 1

Software apps and online services

Espruino Web IDE Espruino Web IDE



This is just a very simple Finite Element simulation. Finite element analysis is done all over the place - to work out the airflow over a Formula 1 car, or to calculate if a bridge can support itself.

The basic principle is very simple - take something and divide it up into many finite pieces, then work out how each of those pieces will interact.

In this case, we're going to (very badly) simulate water running down a thin channel, so we'll divide it into little vertical columns. We assume that each column of water has some mass, and that it wants to try and get to the level of the columns of water to the left and right. That's it. It's a bad simulation, but it does provide a water-like effect, and it is what is used in many computer games to give realistic ripples.

Wiring Up

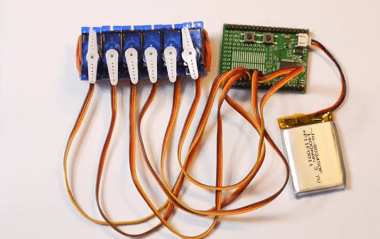

Just wire up the 6 Servo motors to B13,B14,B15,C4, C5 and C6. More details of how to wire the board up are available on the Servo Motors page.


Just copy and paste this into the right-hand window, then click the Send to Espruino button.

  1. // we leave space at the beginning and end for stationary points, which don't need servos
  2. var servos = [undefined,B13,B14,B15,C4,C5,C6,undefined];
  3. // String position at each point
  4. var pos = new Float32Array(servos.length);
  5. // Velocity at each point
  6. var velocity = new Float32Array(servos.length);
  8. // This is called quite often to do each step
  9. // of the simulation
  10. function step() {
  11. var i;
  12. // Change the end point's position depending on the push button
  13. pos[0] = digitalRead(BTN) ? 0.5 : 0;
  14. // For each point...
  15. for (i=1;i

Now, press and hold the pushbutton, and generally play around with it. The servo motors will move as if they were on the surface of a pond...
