Soil Moisture Sensor And Led Bar Graph Using Meadow

Photo of jorgedevs

Made by jorgedevs

About the project

Use Meadow. Foundation to quickly and easily wire up a Capacitive soil moisture sensor, and graph it using an LED bar graph.

Project info

Difficulty: Easy

Platforms: MicrosoftMeadowWilderness Labs

Estimated time: 1 hour

License: Apache License 2.0 (Apache-2.0)

Items used in this project

Hardware components

Ultrasonic Sensor Hc-sr04 Ultrasonic Sensor Hc-sr04 x 1
Pimoroni Micro Dot Phat W/red Leds Pimoroni Micro Dot Phat W/red Leds x 1
Tiny Breadboard Tiny Breadboard x 1
Tiny Breadboard Tiny Breadboard x 1
Jumper Wire Kit - 140pcs Jumper Wire Kit - 140pcs x 1
Raspberry Pi 4 Model B 1gb, 2gb, 4gb Or 8gb Ram Raspberry Pi 4 Model B 1gb, 2gb, 4gb Or 8gb Ram x 1

Software apps and online services

Microsoft Visual Studio 2019 Microsoft Visual Studio 2019

Story

In this project we're going to learn how to use a Capacitive soil moisture sensor to show the moisture values on a LED bar graph, based on the sensor's readings. Everything you need to build this project is included in the Wilderness Labs Meadow F7 w/Hack Kit Pro. We'll see how easy is to program these peripherals using Meadow.Foundation.

Meadow.Foundation is a platform for quickly and easily building connected things using.NET on Meadow. Created by Wilderness Labs, it's completely open source and maintained by the Wilderness Labs community.

If you're new working with Meadow, I suggest you go to the Getting Started w/ Meadow by Controlling the Onboard RGB LED project to properly set up your development environment.

Step 1 - Assemble the circuit

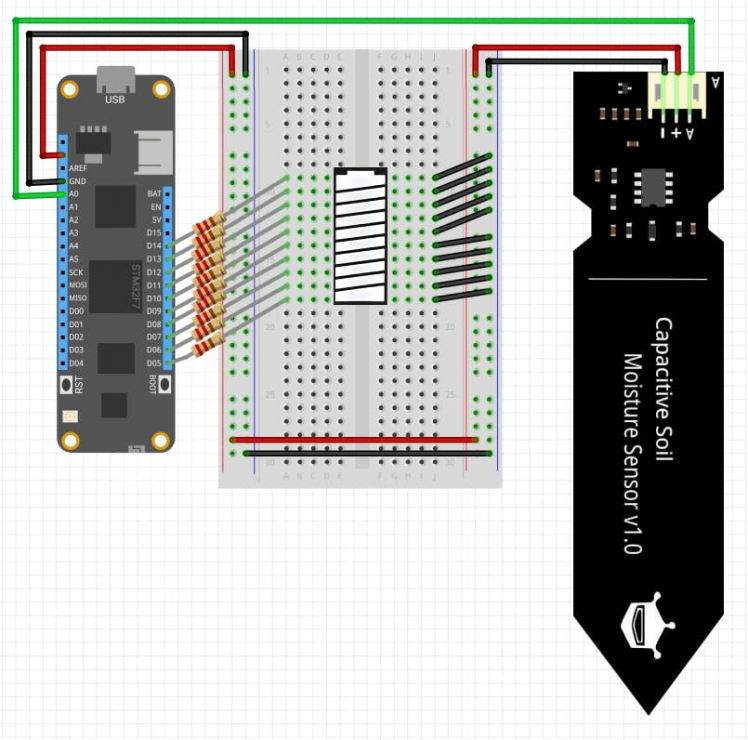

Connect the LED Bar Graph to Meadow with 220 ohm resistors from pins D05 to D14 and the Capacitive moisture sensor to Analog Pin A0:

Connect a Capacitive soil moisture sensor and a LED bar graph to Meadow

Connect a Capacitive soil moisture sensor and a LED bar graph to Meadow

Connect a Capacitive soil moisture sensor and a LED bar graph to Meadow

Step 2 - Create a Meadow Application Project

Create a new Meadow Application project in Visual Studio 2019 for Windows or macOS and name it MoistureMeter.

Step 3 - Add the required NuGet packages

Windows

Right-click on your MoistureMeter project and click Manage NuGet Packages. In the Browse tab, search for Meadow.Foundation.Sensors.Moisture.Capacitive and click Install to add it to your project.

Adding Meadow.Foundation.Sensors.Moisture.Capacitive NuGet Package

Adding Meadow.Foundation.Sensors.Moisture.Capacitive NuGet Package

Adding Meadow.Foundation.Sensors.Moisture.Capacitive NuGet Package

macOS

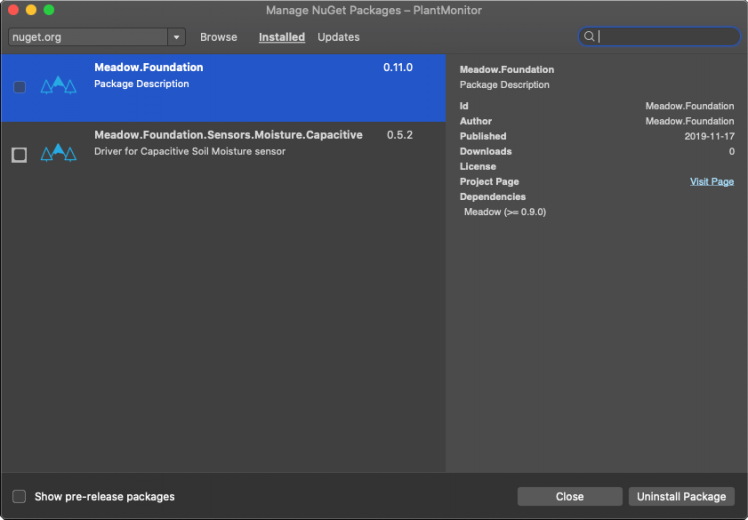

Alt-click on your MoistureMeter project in the Solution Explorer, and click Add => Add Nuget Package to open the NuGet Package window. Search for Meadow.Foundation.Sensors.Moisture.Capacitive and click Install to add it to your project.

Adding Meadow.Foundation.Sensors.Moisture.Capacitive NuGet Package

Adding Meadow.Foundation.Sensors.Moisture.Capacitive NuGet Package

Adding Meadow.Foundation.Sensors.Moisture.Capacitive NuGet Package

Step 4 - Calibrate soil moisture sensor

Before we use the soil moisture sensor, is important to first calibrate it by finding the edge values where the sensor is most dry (like at open air) and most wet (like dipped in water). To do that, we simply need to initialize an IAnalogInputPort and read raw values in short time intervals. Paste the following code in your main class.

using System;using Meadow;using Meadow.Hardware;using Meadow.Devices;using System.Threading;using System.Threading.Tasks;namespace MoistureMeter{    public class AnalogReadApp : App<F7Micro, AnalogReadApp>    {        IAnalogInputPort analogIn;        public AnalogReadApp()        {            analogIn = Device.CreateAnalogInputPort(Device.Pins.A00);            StartReading();        }        protected async Task StartReading()        {            float voltage;            while (true)            {                voltage = await analogIn.Read();                Console.WriteLine("Voltage: " + voltage.ToString());                Thread.Sleep(1000);            }        }    }}

In the code above, see how we initialize analogIn by calling the CreateAnalogInputPort() method passing the analog pin the sensor is connected to. In the StartReading() method, the app goes inside an infinite loop and it will call the Read() method every second and print it on the debug console.

When the sensor is in open air, the output console printed the following values:

Voltage: 2.842Voltage: 2.839Voltage: 2.841Voltage: 2.843Voltage: 2.835

For the minimal most dry value, lets set the value to 2.84

While dipping the sensor in a cup of water the voltage, the output console printed:

Voltage: 1.373Voltage: 1.365Voltage: 1.367Voltage: 1.372Voltage: 1.361

For the most wet value, lets set the value to 1.37

Step 5 - Write code for MoistureMeter project

Now that we have found out edge values for our moisture sensor, we can finally write the logic to our project. Copy the following code below and paste it to your MeadowApp class:

using System;using System.Threading;using System.Threading.Tasks;using Meadow;using Meadow.Devices;using Meadow.Foundation.Leds;using Meadow.Foundation.Sensors.Moisture;using Meadow.Hardware;namespace MoistureMeter{    public class MeadowApp : App<F7Micro, MeadowApp>    {        LedBarGraph ledBarGraph;        Capacitive capacitive;        public MeadowApp()        {            IDigitalOutputPort[] ports =            {                Device.CreateDigitalOutputPort(Device.Pins.D05),                Device.CreateDigitalOutputPort(Device.Pins.D06),                Device.CreateDigitalOutputPort(Device.Pins.D07),                Device.CreateDigitalOutputPort(Device.Pins.D08),                Device.CreateDigitalOutputPort(Device.Pins.D09),                Device.CreateDigitalOutputPort(Device.Pins.D10),                Device.CreateDigitalOutputPort(Device.Pins.D11),                Device.CreateDigitalOutputPort(Device.Pins.D12),                Device.CreateDigitalOutputPort(Device.Pins.D13),                Device.CreateDigitalOutputPort(Device.Pins.D14)            };            ledBarGraph = new LedBarGraph(ports);            capacitive = new Capacitive            (                analogPort: Device.CreateAnalogInputPort(Device.Pins.A00),                 minimumVoltageCalibration: 2.84f,                maximumVoltageCalibration: 1.37f            );            StartReading();        }        async Task StartReading()        {            while (true)            {                float moisture = await capacitive.Read();                if (moisture > 1)                    moisture = 1f;                else                if (moisture < 0)                    moisture = 0f;                ledBarGraph.Percentage = moisture;                Console.WriteLine($"Moisture {moisture * 100}%");                Thread.Sleep(1000);            }        }    }}

In MeadowApp's constructor, we first initialize both the LedBarGraph passing an array of DigitalOutputPorts from D05 to D14 and the soil moisture sensor passing the analog pin which is connected to and the minimum and maximum calibration values we found previous step.

In the StartReading() method, the app goes inside an infinite while loop and it will activate the Capacitive moisture sensor and it will assign the Percentage property of the LedBarGraph and it will light up accordingly every second.

Step 6 - Run the project

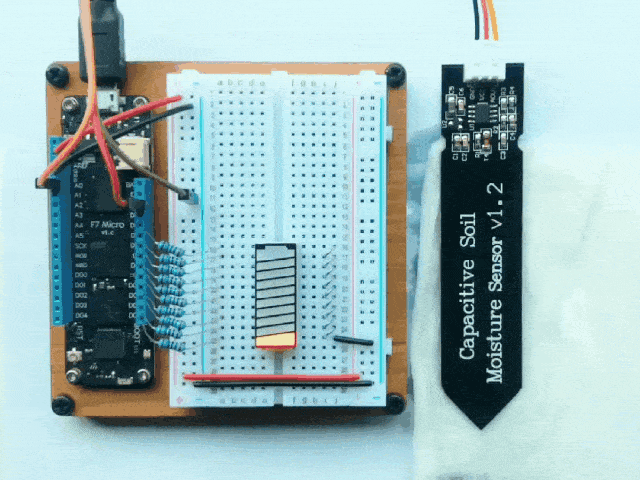

Click the Run button in Visual Studio. It should look like to the following GIF:

Running MoistureMeter project

Running MoistureMeter project

Running MoistureMeter project

Check out Meadow.Foundation!

This project is only the tip of the iceberg in terms of the extensive exciting things you can do with Meadow.Foundation.

  • It comes with a huge peripheral driver library with drivers for the most common sensors and peripherals.
  • The peripheral drivers encapsulate the core logic and expose a simple, clean, modern API.
  • This project is backed by a growing community that is constantly working on building cool connected things and are always excited to help new-comers and discuss new projects.

References

Schematics, diagrams and documents

MoistureMeter circuit diagram

Code

MoistureMeter complete project

You can check the complete project in our Meadow_Project_Samples repo
