Smart Hypothermia Sensor And Body Warmer

Smart Hypothermia Sensor And Body Warmer

Photo of Nilz

Made by Nilz / Health / Sensors / Wearables

About the project

Each year there are many casualties in high altitude rescue caused due to hypothermia. To solve this problem, I want to develop a wearable device for hypothermia detection and body warmer.

Project info

Difficulty: Moderate

Platforms: NXP

Estimated time: 4 weeks

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

NXP MIMXRT1020 Evaluation Kit NXP MIMXRT1020 Evaluation Kit x 1
We All Like To Know The Temperature Right? Well With The Sparkfun Tmp102 Digital Temperature Sensor We've Made It Just About As Easy As It Gets. Based On The Original Digital Temperature Sensor Breakout - Tmp102 We've Added Qwiic Connectors To Br We All Like To Know The Temperature Right? Well With The Sparkfun Tmp102 Digital Temperature Sensor We've Made It Just About As Easy As It Gets. Based On The Original Digital Temperature Sensor Breakout - Tmp102 We've Added Qwiic Connectors To Br x 1
10k Ohm Resistor 1/4 Watt 10k Ohm Resistor 1/4 Watt x 1
If You've Ever Wondered How To Control The Headlight Of A Car From A Microcontroller A Mosfet Is What You Need. This Is A Very Common Mosfet With Very Low On-resistance And A Control Voltage (aka Gate Voltage) That Is Compatible With Any 3-5v Microc If You've Ever Wondered How To Control The Headlight Of A Car From A Microcontroller A Mosfet Is What You Need. This Is A Very Common Mosfet With Very Low On-resistance And A Control Voltage (aka Gate Voltage) That Is Compatible With Any 3-5v Microc x 1
Heating Pad - 5x10cm Heating Pad - 5x10cm x 1

Software apps and online services

NXP MCUXpresso SDK NXP MCUXpresso SDK

Hand tools and fabrication machines

Wire Wire x 1
Wire Stripper Wire Stripper x 1
Soldering Iron Soldering Iron x 1

Story

Each year there are many casualties in high altitude rescue caused due to hypothermia. To solve this problem, I want to develop a wearable device for hypothermia detection and body warmer.

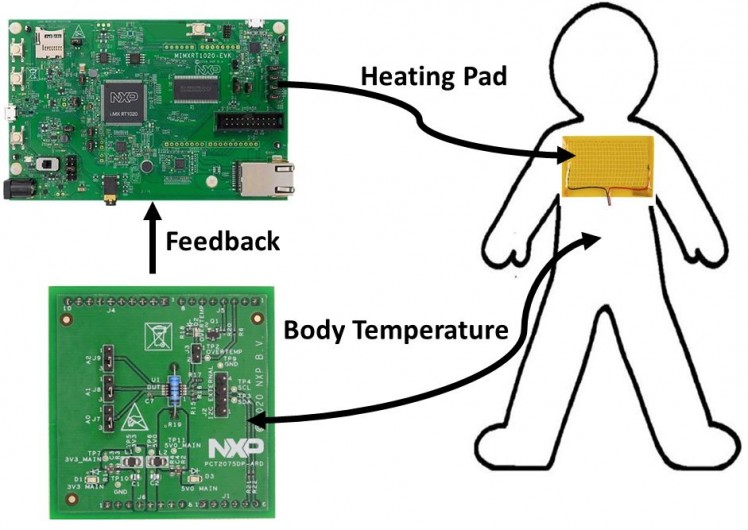

The proposed working:

1. Using the temperature sensor (PCT2075DP-ARD), we will monitor the body surface temperature.

2. When the body temperature is below the threshold temperature, then NXP i. MX RT MCU development board will activate heating pads attached to the body restoring the body temperature to normal.

There was a problem related to the usage of the  PCT2075DP-ARD with the MIMXRT1020 development board; the details are in the following link: https://community.nxp.com/t5/i-MX-Processors/Using-PCT2075DP-ARD-with-MIMXRT1020-EVK-Board/m-p/1277790#M174152

So, I have used a different temperature sensor in my project.

The pin reference for the  MIMXRT1020 development board is in the schematics files of the development board.

Schematics, diagrams and documents

Circuit Diagram

Credits

Photo of Nilz

Nilz
