Rfid-based Smart Jukebox: Tap-to-play Interactive Music Syst

About This Project

While you watch a wild west movie you see a person comes to the bar and goes to jukebox, feeling Nostalgic? We have created an smart Jukebox which is IoT based means its connected to the internet and user taps the RFID card to select the songs and it will play digitally accoridngly.

The aim of project is to give retro feel and make it modern to it works smooth and simple to use. It plays music quickly.

Story

In today’s world of smart technology, interaction with devices is becoming more seamless and intuitive. The idea behind this Smart Jukebox project was to create a simple yet engaging music system that removes the need for traditional buttons and replaces them with a contactless experience.

The inspiration came from observing how difficult it can be for children and elderly users to navigate complex music systems or mobile apps. This project aims to simplify that experience by using RFID technology, where each card represents a specific song. With just a tap, users can instantly play their favorite music without any confusion.

The development process involved integrating an RFID reader with a microcontroller like Arduino or ESP32, along with an audio playback module. One of the key challenges was mapping RFID tags efficiently to specific audio tracks and ensuring smooth playback without delays. After testing multiple configurations, a stable and responsive system was achieved.

This project not only demonstrates the power of IoT and embedded systems but also highlights how technology can be made more user-friendly and accessible. It can be used in homes, learning environments, or even public spaces to create an interactive and enjoyable experience.

Overall, the Smart Jukebox is a perfect blend of simplicity, innovation, and practicality, making it an ideal project for anyone interested in IoT and automation.

Project Info

RFID-based smart jukebox that plays music using tap-to-play cards, built with Arduino/ESP32 for interactive automation.

Components Required

• Arduino / ESP32 Microcontroller

• RFID Reader Module (RC522)

• RFID Cards / Tags

• DFPlayer Mini (MP3 Module)

• Micro SD Card

• Speaker + Amplifier

• Jumper Wires

• Power Supply

• LEDs (optional)

How It Works

The system works on a simple but powerful concept:

• Each RFID card has a unique ID

• The RFID reader scans the card when tapped

• The microcontroller processes the ID

• A predefined song is mapped to that ID

• The audio module plays the selected song instantly

This tap-to-play mechanism makes the system fast, interactive, and user-friendly.

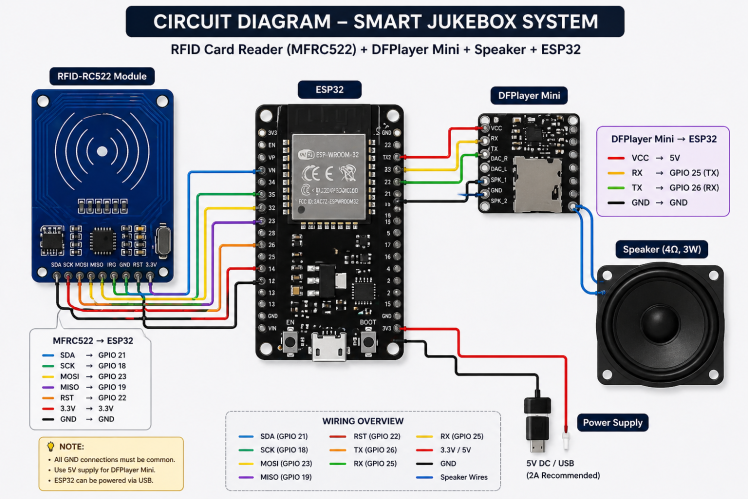

Circuit & Connections

• Connect RFID module to Arduino (SPI pins)

• Connect DFPlayer Mini to Arduino (TX/RX)

• Attach speaker to DFPlayer

• Insert SD card with audio files

• Power the system properly

Make sure wiring is correct to avoid detection or playback issues.

Code (Basic Logic)

#include <SPI.h>

#include <MFRC522.h>

#define SS_PIN 10

#define RST_PIN 9

MFRC522 rfid(SS_PIN, RST_PIN);

void setup() {

  Serial.begin(9600);

  SPI.begin();

  rfid.PCD_Init();

}

void loop() {

  if (!rfid.PICC_IsNewCardPresent()) return;

  if (!rfid.PICC_ReadCardSerial()) return;

  String id = "";

  for (byte i = 0; i < rfid.uid.size; i++) {

    id += String(rfid.uid.uidByte[i]);

  }

  if (id == "123456") {

    // Play Song 1

  } else if (id == "654321") {

    // Play Song 2

  }

}

For complete code, setup instructions, and updates, visit the GitHub repository:
https://github.com/ChanchalKumari1/Smart-Jukebox-System

Features

• Tap-to-play music system

• Contactless interaction (RFID based)

• Instant response and playback

• Multiple card support (each card = different song)

• Easy to use for all age groups

• Expandable for IoT / cloud integration

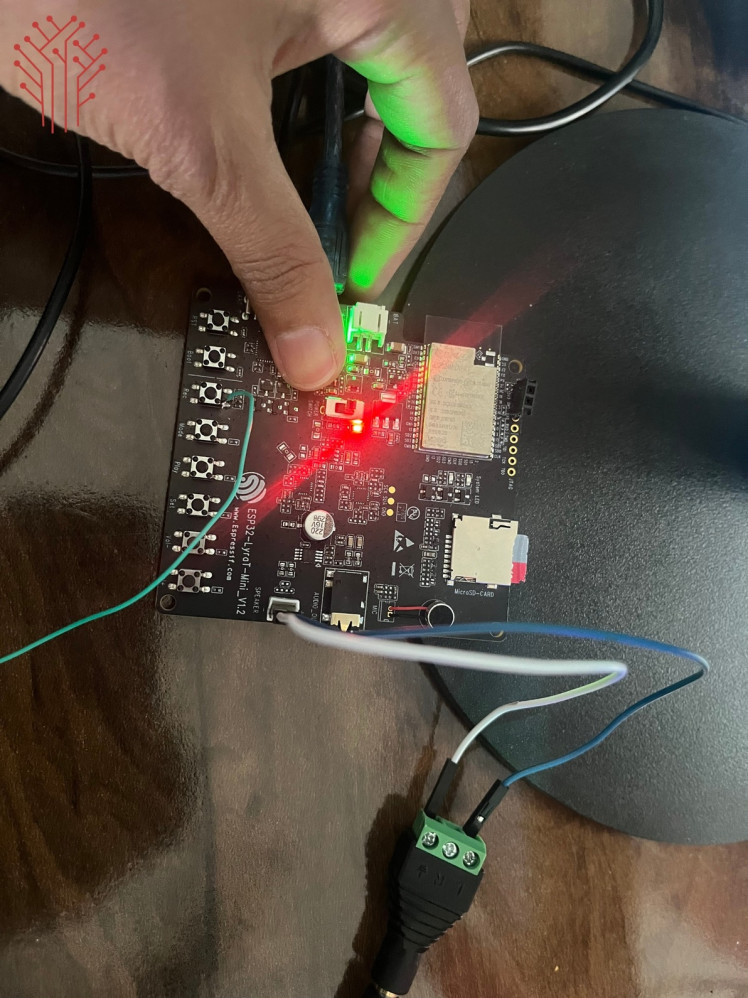

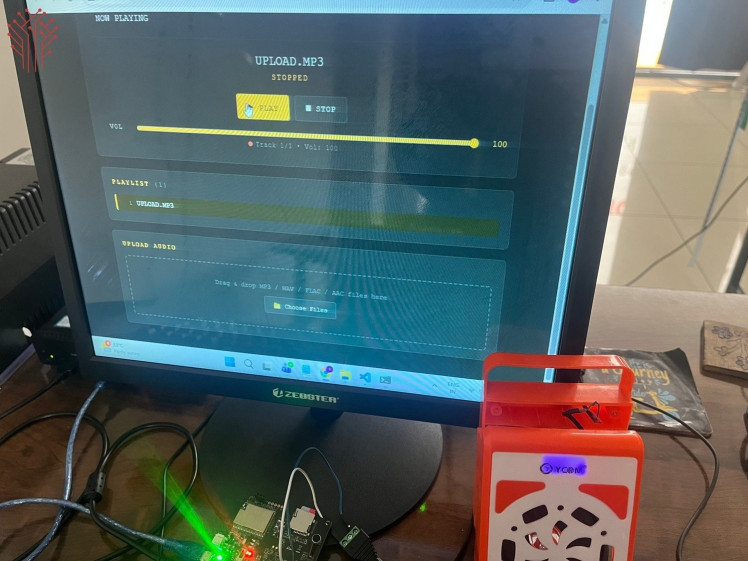

Project Output

## Project Output

• Tap RFID card → Song starts instantly

• LED indication (optional)

• Smooth and lag-free music playback

Projects like this typically use RFID tags only as identifiers, while audio is stored separately and triggered based on tag detection.

Applications

• Cafes & Restaurants

• Smart Homes

• Kids Learning Systems

• Interactive Kiosks

• Entertainment Zones

Future Improvements

• Mobile app integration

• Cloud-based playlist control

• Touchscreen interface

• Voice control (AI integration)

• Bluetooth / WiFi streaming

Conclusion

This RFID-based Smart Jukebox demonstrates how simple hardware combined with smart logic can create a powerful interactive system. It replaces traditional buttons with contactless interaction, making music playback faster, smarter, and more engaging. This project demonstrates how interactive systems can be built using embedded technology. For more advanced and customized solutions, you can explore professional IoT development services.
