Randomrex - The Tweeting Picture Frame

About the project

A tweeting picture frame made by Rex, the floofiest member of 8 Bits and a Byte

Items used in this project

Hardware components

HDMI 7 800x480 Display Backpack - With Touchscreen HDMI 7 800x480 Display Backpack - With Touchscreen x 1
Raspberry Pi 3 Model B Raspberry Pi 3 Model B x 1

Software apps and online services

Dremel 4300 Dremel 4300
Twitter Twitter

Hand tools and fabrication machines

3D printer 3D printer x 1
Glue gun Glue gun x 1

Story

Overview

Below a quick overview of the content.

  • Introduction and showcase video
  • Picture frame
  • Sticks
  • Twitter account
  • Photos
  • Logic
  • End result

Introduction & showcase video

To spread some love and happiness, Rex decided to build a tweeting picture frame to brighten up Twitter with his best pictures.

Picture frame

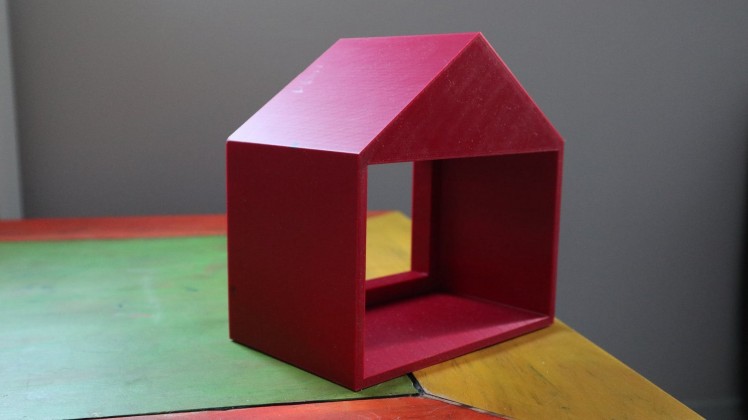

At first he printed one big house, but left no space for a Pi or any wiring. Instead of one big print, plan "Waggling Tail" was to use six frames and glue them together. The files with all the panels are attached.

Sticks

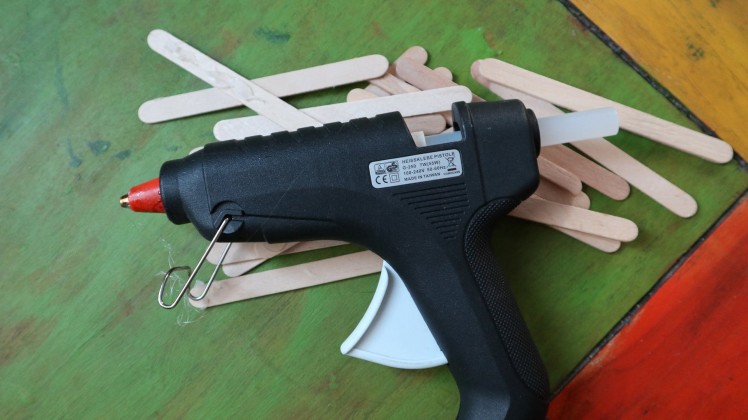

With the basic frame in place, the next step was to hot glue some Popsicle sticks on the outside. Makes it look nice and professional.

Twitter

In order to Tweet you need two things, a Twitter account and developer access. Information about both here. Extra thanks to Raspberry Pi for this great tutorial!

Pictures

To avoid too much repetition, collecting a lot of pictures is important. Luckily we took a lot, and will keep adding new ones as we go. Just make sure they are under 5MB each, otherwise Twitter gets grumpy.

Logic

The code has to do two things:

  • Every hour randomly select a picture from the set, and display it on the screen
  • Once a day, at 10:00 AM, pick a random picture and Tweet it

For the full code, check the attachment "Code"

End Result

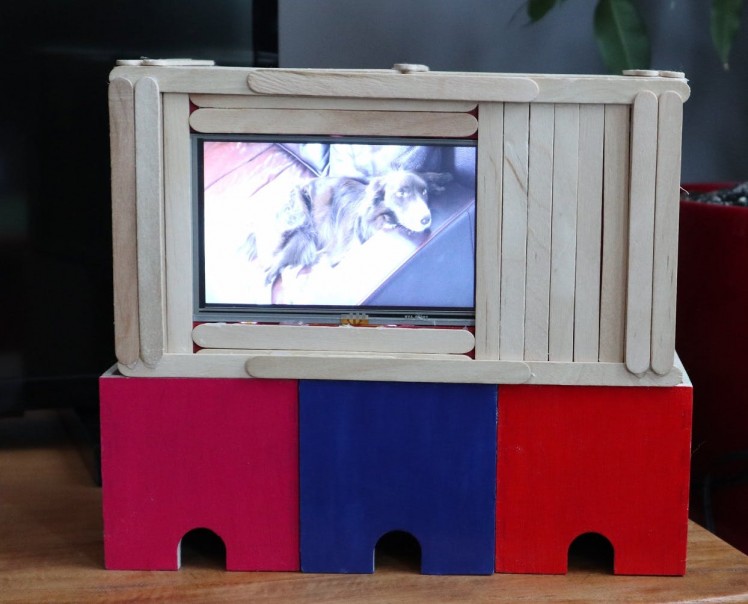

The picture frame standing on makeshift stands

You can find his Twitter account here

CAD

Side Panels

Go to download

Back Panel

Go to download

Front Panel

Go to download

Roof/Floor Panels

Go to download

Code

code

Credits

Photo of 8BitsAndAByte

8BitsAndAByte

We’re Dane & Nicole, two makers that create tremendously terrible tech, which we happily share with you on our channel! https://www.youtube.com/c/8bitsandabyte
