Rainfall Measured Using Arduino

Photo of karimmufte

Made by karimmufte / Environmental Sensing / Wearables

About the project

Here we measure rainfall.

Project info

Difficulty: Easy

Platforms: Arduino

Estimated time: 1 hour

License: Creative Commons Public Domain Dedication version 1.0 or later (CC0 1+)

Items used in this project

Hardware components

	Genuino Uno Rev3	x 1
	Grove - Water Sensor	x 1

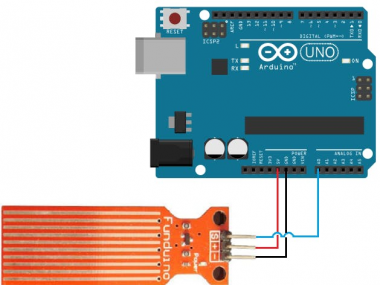

Schematics, diagrams and documents


Code

Arduino Code

https://plus.google.com/u/0/+MahamudulKarimKhondaker/posts/ibnrPXt8ePR

#include <LiquidCrystal.h>
const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);
void setup () {
  // initialize serial communication at 9600 bits per second:
  Serial.begin (9600);}
void loop() {
  // read the input on analog pin 0:
  int value = analogRead(A0);
  lcd.setCursor(0, 7);
  if (value > 500) {
    Serial.println("Very heavy Rain");
    lcd.print("Very heavy rain");}
  else if ((value > 300) && (value <= 500)) {
    Serial.println("AVERAGE Rain");
lcd.print("Average Rain");
lcd.print("       "); }
  else{
    Serial.println("Dry Weather");
    lcd.print("Dry Wather");
    lcd.print("          ");}
  delay(100);}
