About the project

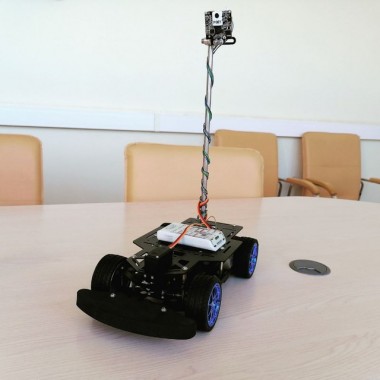

NXP Cup project

Project info

Difficulty: Easy

Platforms: NXP

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

	RDDRONE-FMUK66	x 1
	Pixy 2 CMUcam5 Smart Vision Sensor	x 1

Software apps and online services

PX4 Autopilot Used as base of autopilot

Hand tools and fabrication machines

Generic Screwdriver Set

x 1

Story

Project was made to participate in NXP Cup 2021.

Code

helper.py

Code to debug autopilot

import os
import tkinter
import datetime
from dronekit import connect, Command, LocationGlobal
#from pymavlink import mavutil5
from pymavlink import mavutil
import time
import sys
import argparse
import math


print("Connecting")
#connection_string = '/dev/cu.usbmodem01'
connection_string = '0.0.0.0:14550'
vehicle = connect(connection_string, wait_ready=False, baud=921600)


print("Connected")
print(" Type: %s" % vehicle._vehicle_type)
print(" Armed: %s" % vehicle.armed)
print(" System status: %s" % vehicle.system_status.state)
print(" GPS: %s" % vehicle.gps_0)
print(" Alt: %s" % vehicle.location.global_relative_frame.alt)
print(" Mode: %s" % vehicle.mode.name)

coeff = 10

last_update = 0
min_delta_time = 1

def msg(vehicle, b):
    '''write some bytes'''
    while len(b) > 0:
        n = len(b)
        if n > 70:
            n = 70
        buf = [ord(x) for x in b[:n]]
        buf.extend([0]*(70-len(buf)))
        vehicle.get_handler().master.mav.serial_control_send(10,
                                            mavutil.mavlink.SERIAL_CONTROL_FLAG_EXCLUSIVE |
                                            mavutil.mavlink.SERIAL_CONTROL_FLAG_RESPOND,
                                            0,
                                            0,
                                            n,
                                            buf)
        b = b[n:]

root = tkinter.Tk()
canvas = tkinter.Canvas(root)
canvas.config(width=77*coeff, height=51*coeff)
canvas.pack()

msg_text = tkinter.StringVar()
msg_text.set("nxpcup ")
msg_history = list()
msg_history_ind = -1
def motion(event):
    global msg_history_ind, msg_history
    #print(event.keysym)
    if event.keysym == 'Escape':
        msg_history_ind = 0
        msg_text.set("nxpcup ")
    elif event.keysym == 'BackSpace':
        msg_text.set(msg_text.get()[:-1])
    elif event.keysym == 'Return':
        msg(vehicle, msg_text.get() + "\n")
        msg_history.append(msg_text.get())
        msg_history_ind = 0
        msg_text.set("nxpcup ")
    elif event.keysym == 'Up':
        if msg_history_ind < len(msg_history):
            msg_history_ind += 1
        msg_text.set(msg_history[-msg_history_ind])
    elif event.keysym == 'Down':
        if msg_history_ind > 1:
            msg_history_ind -= 1
        msg_text.set(msg_history[-msg_history_ind])
    else:
        msg_text.set(msg_text.get() + event.char)


msg_box = tkinter.Message(root, textvariable = msg_text, width=77*coeff)
msg_box.config(bg='lightgreen', font=('times', 24, 'italic'))
msg_box.bind('<KeyPress>',motion)
msg_box.focus_set()
msg_box.pack(expand=1, fill=tkinter.X)


@vehicle.on_message('DEBUG_FLOAT_ARRAY')
def listener(self, name, payload):
    global last_update, min_delta_time, canvas
#    print(name, payload)
    curr_time = datetime.datetime.now().microsecond
    if last_update + min_delta_time < last_update:
        return
    canvas.delete("all")
    data = payload.data
    vectors_count = int(data[0])
    for i in range(vectors_count + 3):
        # if (i < vectors_count):
        #     continue§
        line_width = 5
        color = None
        if i == vectors_count:
            color = 'blue'
        elif i == vectors_count + 1:
            color = 'red'
        elif i == vectors_count + 2:
            color = 'green'
            line_width = 3
        else:
            color = 'black'

        canvas.create_line(data[1 + i * 4] * coeff, data[2 + i * 4] * coeff,
                           data[3 + i * 4] * coeff, data[4 + i * 4] * coeff, arrow=tkinter.LAST, fill=color, width=line_width)

    canvas.create_text(77*coeff / 2, 51*coeff / 2, fill="green", font="Times 20 italic bold",
                       text=data[5 + i * 4])
    canvas.create_text(77*coeff / 2, 51*coeff / 2 + 25, fill="yellow", font="Times 20 italic bold",
                       text=data[6 + i * 4])
    last_update = curr_time


#os.system('xset r off')
root.mainloop()

nxpcup_start.cpp

Main logic of autopilot

/****************************************************************************
 *
 *   Copyright 2019 NXP.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 *
 * 1. Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 * 2. Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in
 *    the documentation and/or other materials provided with the
 *    distribution.
 * 3. Neither the name of the copyright holder nor the names of its
 *    contributors may be used to endorse or promote products derived
 *    from this software without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 * "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
 * LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
 * FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
 * COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
 * INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,
 * BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS
 * OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED
 * AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
 * LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
 * ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
 * POSSIBILITY OF SUCH DAMAGE.
 *
 ****************************************************************************/

/**
 * @file nxpcup_main.cpp
 * Race code for NXP Cup
 *
 * @author Katrin Moritz
 */

#include "nxpcup_start.h"

#include "nxpcup_race.h"

using namespace matrix;

static int daemon_task;             /* Handle of deamon task / thread */

bool threadShouldExit = false;
bool threadIsRunning = false;

float speed = 0.f;
float steer = 0;
bool start = true;			// create your own start condition
bool debug = false;


//AUTOPILOT PARAMS
float FAST_SPEED = 0.4f;
float SLOW_SPEED = 0.2f;
float STEER_MULT = 1.3f;
float BIAS = 0.06f; // 0.05 ok 0.06 mb better
int BIAS_PARTS = 2;
int MAX_PARTS = 5;
int MAX_LIMIT = 4; // 4 ok
float MAX_STEER_PER_SECOND = 300.f; // 275-300
float LINE_MEMORY = 300.f;
int VERTICAL_PARTS = 2;
float THRESHOLD = 0.3f;
float STEER_FIX = 0.23f;
bool LIGHT = true;

/*
 Dimas changes
 bias 0.05 ml 4 - 6 rings in both sides
 old values ml 3 b 0.3
 ms 250 b 0.05 ml 4
*/
void roverSteerSpeed(roverControl control, vehicle_attitude_setpoint_s &_att_sp)
{

	control.steer += STEER_FIX;
	// Converting steering value from percent to euler angle
	control.steer *= 0.7f;//60.0f; //max turn angle 60 degree

	// Converting steering value from percent to euler angle
	control.steer *= 60.0f; //max turn angle 60 degree
	control.steer *= (float)3.14159 / 180; // change to radians


	// Converting the euler angle into a quaternion for vehicle_attitude_setpoint
	Eulerf euler{0.0, 0.0, control.steer};
	Quatf qe{euler};

	// Throttle control of the rover
	_att_sp.thrust_body[0] = control.speed;

	// Steering control of the Rover
	_att_sp.q_d[0] = qe(0);
	_att_sp.q_d[1] = qe(1);
	_att_sp.q_d[2] = qe(2);
	_att_sp.q_d[3] = qe(3);

}

float my_abs(float x)
{
	if (x > 0) {
		return x;

	} else {
		return -x;
	}
}

float my_max(float a, float b)
{
	if (a > b) {
		return a;
	}

	return b;
}

float vector_len(const PixyVector &vector)
{
	return (vector.m_x0 - vector.m_x1) * (vector.m_x0 - vector.m_x1) + (vector.m_y0 - vector.m_y1) *
	       (vector.m_y0 - vector.m_y1);
}

void swap(PixyVector *xp, PixyVector *yp)
{
	PixyVector temp = *xp;
	*xp = *yp;
	*yp = temp;
}

double deg2rad(double degrees)
{
	return degrees * 4.0 * std::atan(1.0) / 180.0;
}

int PIXY_WIDTH = 72;
int PIXY_HEIGHT = 52;
void find_track_lines(PixyVector *lines, int line_count, PixyVector *result, int &lines_found,
		      float curr_steer, PixyVector *last_track_lines, hrt_abstime *last_track_lines_seen)
{
	result[0] = result[1] = {};
	PixyVector sorted_lines[line_count];
	memcpy(sorted_lines, lines, sizeof(sorted_lines));
	int i, j;

	for (i = 0; i < line_count - 1; i++)
		for (j = 0; j < line_count - i - 1; j++)
			if (vector_len(sorted_lines[j]) < vector_len(sorted_lines[j + 1])) {
				swap(&sorted_lines[j], &sorted_lines[j + 1]);
			}

	for (i = 0; i < line_count; i++) {
		PixyVector &line = lines[i];

		if (line.m_y1 > line.m_y0) {
			int t1 = line.m_x0;
			int t2 = line.m_y0;
			line.m_x0 = line.m_x1;
			line.m_y0 = line.m_y1;
			line.m_x1 = t1;
			line.m_y1 = t2;
		}
	}

	bool found_left = false;
	bool found_right = false;
	float right_max = PIXY_WIDTH / MAX_PARTS * MAX_LIMIT;
	float left_max = PIXY_WIDTH - PIXY_WIDTH / MAX_PARTS * MAX_LIMIT;
	lines_found = 0;
	float theta = deg2rad(curr_steer * 30);

	float cs = cos(theta);
	float sn = sin(theta);

	hrt_abstime curr_time = hrt_absolute_time();

	for (int vertical_part = VERTICAL_PARTS - 1; vertical_part >= 0 && lines_found == 0; vertical_part--) {
		for (i = 0; i < line_count; i++) {
			PixyVector &line = sorted_lines[i];
			int dx = line.m_x1 - line.m_x0;
			int dy = line.m_y1 - line.m_y0;

			float x1_rot_diff = dx * cs - dy * sn;
			float left_rot_x1, right_rot_x1;

			if (x1_rot_diff < 0) {
				right_rot_x1 = my_abs(x1_rot_diff);
				left_rot_x1 = 0;

			} else {
				right_rot_x1 = 0;
				left_rot_x1 = my_abs(x1_rot_diff);
			}

			//float rotated_y1 = line.m_x1 * sn + line.m_y1 * cs;

			if (!found_left && line.m_x0 < right_max
			    && line.m_x0 < (int)line.m_x1 + left_rot_x1
			    && (line.m_y0 > PIXY_HEIGHT * vertical_part / VERTICAL_PARTS)
			    && my_abs((int)line.m_x0 - last_track_lines[0].m_x0) < LINE_MEMORY * (curr_time - last_track_lines_seen[0]) / 1e6f) {
				memcpy(&result[0], &line, sizeof(line));
				//result[0].m_x1 = rotated_x1;
				found_left = true;
				lines_found++;

			} else if (!found_right && line.m_x0 > left_max
				   && line.m_x0 > (int)line.m_x1 - right_rot_x1
				   && (line.m_y0 > PIXY_HEIGHT * vertical_part / VERTICAL_PARTS)
				   &&  my_abs((int)line.m_x0 - last_track_lines[1].m_x0) < LINE_MEMORY * (curr_time - last_track_lines_seen[1]) / 1e6f) {
				memcpy(&result[1], &line, sizeof(line));
				//result[1].m_x1 = rotated_x1;
				found_right = true;
				lines_found++;
			}
		}
	}

	if (lines_found >= 2) {
		// if (my_abs((int)result[0].m_x0 - result[1].m_x1) + my_abs((int)result[0].m_x0 - result[1].m_x1) < 10) {
		// 	result[0].m_x0 = result[0].m_y0 = result[0].m_x1 = result[0].m_y1 = 0;
		// 	lines_found--;

		// } else if (my_abs((int)result[1].m_x0 - result[0].m_x1) + my_abs((int)result[1].m_x0 - result[0].m_x1) < 10) {
		// 	result[1].m_x0 = result[1].m_y0 = result[1].m_x1 = result[1].m_y1 = 0;
		// 	lines_found--;
		// }
		if (result[0].m_y0 < result[1].m_y1) {
			result[0].m_x0 = result[0].m_y0 = result[0].m_x1 = result[0].m_y1 = 0;
			lines_found--;

		} else if (result[1].m_y0 < result[0].m_y1) {
			result[1].m_x0 = result[1].m_y0 = result[1].m_x1 = result[1].m_y1 = 0;
			lines_found--;
		}
	}

	if (lines_found == 2 && result[0].m_x0 > result[1].m_x0) {
		swap(&result[0], &result[1]);
	}

}

PixyVector find_target_vector(PixyVector left_vector, PixyVector right_vector)
{
	PixyVector result;

	uint8_t offset = 0;
	float bias_coeff = BIAS;
	uint8_t bias_part = BIAS_PARTS;
	result.m_y0 = PIXY_HEIGHT - 1;

	if (left_vector.m_x0 == 0 && left_vector.m_x1 == 0 && right_vector.m_x0 == 0 && right_vector.m_x1 == 0) {

		result.m_x0 = right_vector.m_x0;
		result.m_x1 = right_vector.m_x1;
		result.m_y1 = right_vector.m_y1;

	} else if (left_vector.m_x0 == 0 && left_vector.m_x1 == 0) {
		//result.m_y0 = right_vector.m_y0;
		result.m_x0 = right_vector.m_x0;
		result.m_x1 = right_vector.m_x1 - offset;
		result.m_y1 = right_vector.m_y1;

	} else if (right_vector.m_x0 == 0 && right_vector.m_x1 == 0) {
		//result.m_y0 = left_vector.m_y0;
		result.m_x0 = left_vector.m_x0;
		result.m_x1 = left_vector.m_x1 + offset;
		result.m_y1 = left_vector.m_y1;

	} else {
		//result.m_y0 = PIXY_HEIGHT;
		result.m_y1 = right_vector.m_y1 / 2 + left_vector.m_y1 / 2;
		result.m_x0 = PIXY_WIDTH / 2;
		result.m_x1 = (left_vector.m_x1 + right_vector.m_x1) / 2;
	}

	//if (right_vector.m_x0 != 0 && right_vector.m_x0 < PIXY_WIDTH * (bias_part - 1) / bias_part) {
	//result.m_x1 += bias_coeff * (right_vector.m_x0 - PIXY_WIDTH * (bias_part - 1) / bias_part) / (PIXY_WIDTH / bias_part);
	//result.m_x1 -= bias_coeff * (PIXY_WIDTH - right_vector.m_x0) / PIXY_WIDTH;
	//result.m_x1 -= PIXY_WIDTH / 4;
	//result.m_x0 = PIXY_WIDTH / 2;
	//result.m_x1 = PIXY_WIDTH / 2;
	int part = PIXY_WIDTH / bias_part;


	if (right_vector.m_x0 != 0) {
		int diff = (PIXY_WIDTH - right_vector.m_x0 + part);
		result.m_x1 += bias_coeff * diff * diff / (1.0f - part);
	}

	//}

	//if (left_vector.m_x0 != 0 && left_vector.m_x0 > PIXY_WIDTH * 1 / bias_part) {
	//result.m_x1 += bias_coeff * (left_vector.m_x0 - PIXY_WIDTH * 1 / bias_part) / (PIXY_WIDTH / bias_part);
	//result.m_x1 += bias_coeff * (right_vector.m_x0) / PIXY_WIDTH;
	//result.m_x1 += PIXY_WIDTH / 4;
	//result
	if (left_vector.m_x0 != 0) {
		int diff = (left_vector.m_x0 + part);
		result.m_x1 -= bias_coeff * diff * diff / (1.0f - part);
	}

	//}

	return result;
}



int race_thread_main(int argc, char **argv)
{
	threadIsRunning = true;

#ifndef ROVER_INIT_VALUES
#define ROVER_INIT_Values

	/* Publication of uORB messages */
	uORB::Publication<vehicle_control_mode_s>		_control_mode_pub{ORB_ID(vehicle_control_mode)};
	struct vehicle_control_mode_s				_control_mode {};

	uORB::Publication<vehicle_attitude_setpoint_s>		_att_sp_pub{ORB_ID(vehicle_attitude_setpoint)};
	struct vehicle_attitude_setpoint_s			_att_sp {};

	/* Publication of uORB messages */
	struct safety_s safety;
	uORB::Subscription safety_sub{ORB_ID(safety)};		// Safety switch request for starting and stopping the racing
	safety_sub.copy(&safety);

	/* Return motor control variables */
	roverControl motorControl;

	/* Start condition of the race */

	/* Pixy2 Instance */
	Pixy2 pixy;
	bool wait = 1;		// needed for waiting for valid data
	usleep(5000);		// give pixy time to init
#endif

	struct debug_array_s dbg_array = {};
	dbg_array.id = 1;
	strncpy(dbg_array.name, "dbg_array", 10);
	orb_advert_t pub_dbg_array = orb_advertise(ORB_ID(debug_array), &dbg_array);

	if (pixy.init() == 0) {

		pixy.getVersion();
		pixy.version->print();
		usleep(1000);
		//int TOTAL_VECTORS_TO_REPORT = 8;
		//int curr_vector_to_report = 0;
		//bool report_vector_start = true;
		float curr_steer = 0;
		hrt_abstime last_update = hrt_absolute_time();
		PixyVector last_track_lines[2];
		last_track_lines[0] = last_track_lines[1] = {};
		hrt_abstime last_track_lines_seen[2];

		while (1) {
			float max_steer_per_second = MAX_STEER_PER_SECOND;//1e-6;//0.1;

			safety_sub.copy(&safety);				// request Safety swutch state
			safety.safety_off = 1;
			pixy.line.getAllFeatures(LINE_VECTOR, wait);		// get line vectors from pixy
			PixyVector trackLines[2];

			int vectorsLimited = pixy.line.numVectors;

			if (vectorsLimited > 6) {
				vectorsLimited = 6;
			}

			dbg_array.data[0] = vectorsLimited;



			for (int i = 0; i < vectorsLimited; i++) {
				dbg_array.data[1 + i * 4] = pixy.line.vectors[i].m_x0;
				dbg_array.data[2 + i * 4] = pixy.line.vectors[i].m_y0;
				dbg_array.data[3 + i * 4] = pixy.line.vectors[i].m_x1;
				dbg_array.data[4 + i * 4] = pixy.line.vectors[i].m_y1;
			}

			int lines_found;
			find_track_lines(pixy.line.vectors, pixy.line.numVectors, trackLines, lines_found, curr_steer,
					 last_track_lines, last_track_lines_seen);

			if (false && lines_found == 1) {
				int offset = 5;
				int len = 5;
				uint8_t r[len * 2];
				uint8_t g[len * 2];
				uint8_t b[len * 2];
				PixyVector foundLine;

				if (trackLines[0].m_x0 == trackLines[0].m_x1) {
					foundLine = trackLines[1];

				} else {
					foundLine = trackLines[0];
				}

				int left_sum = 0;
				int right_sum = 0;

				for (int i = 0; i < len; i++) {
					int left_pos = foundLine.m_x0 - offset - i;

					if (left_pos < 0) {
						left_pos = 0;
					}

					int right_pos = foundLine.m_x0 + offset + i;

					if (right_pos >= PIXY_WIDTH) {
						right_pos = PIXY_WIDTH - 1;
					}

					pixy.video.getRGB(left_pos, foundLine.m_y0, &r[i], &g[i], &b[i], false);
					pixy.video.getRGB(right_pos, foundLine.m_y0, &r[len + i], &g[len + i], &b[len + i], false);
					left_sum += r[i] + g[i] + b[i];
					right_sum += r[len + i] + g[len + i] + b[len + i];
				}

				if (left_sum > right_sum && trackLines[1].m_x0 == trackLines[1].m_x1) {
					swap(&trackLines[0], &trackLines[1]);
				}

				if (right_sum > left_sum && trackLines[0].m_x0 == trackLines[0].m_x1) {
					swap(&trackLines[0], &trackLines[1]);
				}
			}

			for (int i = 0; i < 2; i++) {
				dbg_array.data[1 + (i + vectorsLimited) * 4] = trackLines[i].m_x0;
				dbg_array.data[2 + (i + vectorsLimited) * 4] = trackLines[i].m_y0;
				dbg_array.data[3 + (i + vectorsLimited) * 4] = trackLines[i].m_x1;
				dbg_array.data[4 + (i + vectorsLimited) * 4] = trackLines[i].m_y1;
			}

			PixyVector target_vector = find_target_vector(trackLines[0], trackLines[1]);


			dbg_array.data[1 + (2 + vectorsLimited) * 4] = target_vector.m_x0;
			dbg_array.data[2 + (2 + vectorsLimited) * 4] = target_vector.m_y0;
			dbg_array.data[3 + (2 + vectorsLimited) * 4] = target_vector.m_x1;
			dbg_array.data[4 + (2 + vectorsLimited) * 4] = target_vector.m_y1;

			float target_steer = std::atan(1.f * (target_vector.m_x1 - target_vector.m_x0) / (target_vector.m_y1 -
						       target_vector.m_y0)) / 1.4;

			target_steer *= STEER_MULT;

			if (target_vector.m_x0 == target_vector.m_x1 && target_vector.m_y0 == target_vector.m_y1) {
				target_steer = 0;
			}

			dbg_array.data[5 + (2 + vectorsLimited) * 4] = target_steer;
			float steer_diff = target_steer - curr_steer;
			hrt_abstime curr_time = hrt_absolute_time();
			float max_steer = (double)max_steer_per_second * (curr_time - last_update) * 1e-6;

			if (lines_found == 1) {
				//max_steer /= 2;

			} else if (lines_found == 0) {
				max_steer = 1;
			}

			if (trackLines[0].m_x0 != trackLines[0].m_x1) {
				last_track_lines[0] = trackLines[0];
				last_track_lines_seen[0] = hrt_absolute_time();
			}

			if (trackLines[1].m_x0 != trackLines[1].m_x1) {
				last_track_lines[1] = trackLines[1];
				last_track_lines_seen[1] = hrt_absolute_time();
			}

			last_update = curr_time;

			if (my_abs(steer_diff) < max_steer) {
				curr_steer += steer_diff;

			} else {
				if (steer_diff > 0) {
					curr_steer += max_steer;

				} else {
					curr_steer -= max_steer;
				}
			}

			dbg_array.data[6 + (2 + vectorsLimited) * 4] = curr_steer;

			switch (safety.safety_off) {
			case 0:
				// Setting vehicle into the default state
				_control_mode.flag_control_manual_enabled	= true;
				_control_mode.flag_control_attitude_enabled	= true;
				_control_mode.flag_control_velocity_enabled	= true;
				_control_mode.flag_control_position_enabled	= true;

				pixy.setLED(0, 0, 0);		// Pixy: reset RGB led
				pixy.setLamp(false, false);	// Pixy: reset upper leds
				// reset PWM outputs
				motorControl.speed = 0.0f;
				motorControl.steer = 0.0f;
				break;

			case 1:
				// Setting vehicle to attitude control mode
				_control_mode.flag_control_manual_enabled 	= false;
				_control_mode.flag_control_attitude_enabled 	= true;
				_control_mode.flag_control_velocity_enabled 	= false;
				_control_mode.flag_control_position_enabled	= false;

				pixy.setLED(0, 0, 255);		// Pixy: set RGB led to blue

				if (LIGHT) {
					pixy.setLamp(true, true);

				} else {
					pixy.setLamp(false, false);
				}

				if (lines_found == 0) {
					//pixy.setLamp(false, false);	// Pixy: sets upper led

				} else if (lines_found == 1) {
					//pixy.setLamp(true, false);	// Pixy: sets upper led

				} else {
					//pixy.setLamp(false, true);	// Pixy: sets upper led
				}

				if (debug) {
					motorControl.speed = speed;
					motorControl.steer = steer;

				} else if (start) {
					//motorControl = raceTrack(pixy);
					//float speedup = (THRESHOLD - my_max(my_abs(curr_steer), my_abs(target_steer)) * (FAST_SPEED - SLOW_SPEED));
					float speedup_curr = (THRESHOLD - my_abs(curr_steer)) * (FAST_SPEED - SLOW_SPEED);
					float speedup_target = (THRESHOLD - my_abs(target_steer)) * (FAST_SPEED - SLOW_SPEED);
					float speedup;

					if (speedup_curr > speedup_target) {
						speedup = speedup_target;

					} else {
						speedup = speedup_curr;
					}

					if (speedup < 0) {
						speedup = 0;
					}

					motorControl.speed = SLOW_SPEED + speedup;
					motorControl.steer = curr_steer;

				} else {
					motorControl.speed = speed;
					motorControl.steer = curr_steer;
				}

				break;
			}

			roverSteerSpeed(motorControl, _att_sp);		// setting values for speed and steering to attitude setpoints

			// Publishing all
			_control_mode.timestamp = hrt_absolute_time();
			_control_mode_pub.publish(_control_mode);
			_att_sp.timestamp = hrt_absolute_time();
			_att_sp_pub.publish(_att_sp);

			// dbg_vect.timestamp = hrt_absolute_time();
			// orb_publish(ORB_ID(debug_vect), pub_dbg_vect, &dbg_vect);

			dbg_array.timestamp = hrt_absolute_time();
			orb_publish(ORB_ID(debug_array), pub_dbg_array, &dbg_array);

			if (threadShouldExit) {
				threadIsRunning = false;
				// reset speed and steering
				roverSteerSpeed(motorControl, _att_sp);
				// puplishing attitude setpoints
				_att_sp.timestamp = hrt_absolute_time();
				_att_sp_pub.publish(_att_sp);

				// Setting vehicle into the default state
				_control_mode.flag_control_manual_enabled 	= true;
				_control_mode.flag_control_attitude_enabled 	= true;
				_control_mode.flag_control_velocity_enabled 	= true;
				_control_mode.flag_control_position_enabled	= true;
				_control_mode.timestamp = hrt_absolute_time();
				_control_mode_pub.publish(_control_mode);

				PX4_INFO("Exit Rover Thread!\n");
				return 1;
			}
		}
	}

	return 0;
}


extern "C" __EXPORT int nxpcup_main(int argc, char *argv[]);
int nxpcup_main(int argc, char *argv[])
{

	if (argc < 2) {
		PX4_WARN("usage: nxpcup {start|stop|status}\n");
		return 1;
	}

	if (!strcmp(argv[1], "start")) {

		if (threadIsRunning) {
			PX4_INFO("already running\n");
			/* this is not an error */
			return 0;
		}

		threadShouldExit = false;
		daemon_task = px4_task_spawn_cmd("nxpcup",
						 SCHED_DEFAULT,
						 SCHED_PRIORITY_MAX - 5,
						 2000,
						 race_thread_main,
						 (argv) ? (char *const *)&argv[2] : (char *const *)nullptr);

		return 0;
	}

	if (!strcmp(argv[1], "stop")) {
		threadShouldExit = true;
		return 0;
	}

	if (!strcmp(argv[1], "status")) {
		if (threadIsRunning) {
			PX4_INFO("is running\n");

		} else {
			PX4_INFO("not started\n");
		}

		return 0;
	}

	if (!strcmp(argv[1], "speed")) {
		speed = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "steer")) {
		steer = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "k")) {
		start = !start;
		return 0;
	}

	if (!strcmp(argv[1], "d")) {
		debug = !debug;
		return 0;
	}

	if (!strcmp(argv[1], "fs")) {
		FAST_SPEED = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "ss")) {
		SLOW_SPEED = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "sm")) {
		STEER_MULT = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "b")) {
		BIAS = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "bp")) {
		BIAS_PARTS = atoi(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "mp")) {
		MAX_PARTS = atoi(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "ml")) {
		MAX_LIMIT = atoi(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "ms")) {
		MAX_STEER_PER_SECOND = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "lm")) {
		LINE_MEMORY = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "t")) {
		THRESHOLD = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "vp")) {
		VERTICAL_PARTS = atoi(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "sf")) {
		STEER_FIX = atof(argv[2]);
		return 0;
	}

	if (!strcmp(argv[1], "l")) {
		LIGHT = !LIGHT;
		return 0;
	}

	PX4_WARN("usage: race {start|stop|status}\n");
	return 1;
}

Shop

Project Hub

Video

Blog

Shop home

3D printing

Single Board Computers

Development kits

Sensors

Internet of things

Robotics

Accessories

Product of the Week

Electromaker Educator

The Electromaker Show

The Electromaker Podcast

Novsuteam6

About the project

Project info

Items used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Code

helper.py

nxpcup_start.cpp

Credits

NovSUTeam6

Leave your feedback...

Shop

Project Hub

Video

Blog

Shop home

3D printing

Single Board Computers

Development kits

Sensors

Internet of things

Robotics

Accessories

Product of the Week

Electromaker Educator

The Electromaker Show

The Electromaker Podcast

Novsuteam6

About the project

Project info

Items used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Code

helper.py

nxpcup_start.cpp

Credits

NovSUTeam6

Leave your feedback...

Related products
