About the project

The IMX_MULTIPROTOCOL is an embedded software solutions that allows you to transfer data from USB to all the main digital interfaces - UART, I2C and SPI.This project will help you to analyze and debug all the main digital and analog IC’s as well as lot of IOT and RF demoboard.

Project info

Difficulty: Easy

Platforms: NXP

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

NIMXRT1020-EVK NIMXRT1020-EVK IMX_RT1020 microcontroller evaluation kit x 1
Tiny Breadboard Tiny Breadboard Optional x 1
Wire Jumpers Male To Male Wire Jumpers Male To Male Optional x 1
Your hardware! Your hardware! x 1
Wire Jumpers Female To Female Wire Jumpers Female To Female Optional x 1

Software apps and online services

Hterm Hterm Serial terminal

Hand tools and fabrication machines

Optional PCB Optional PCB Optional PCB for arduino connector is designed in the project. Not necessary. x 1

Story

Hi makers!

My name is Enrico and i am an In circuit board tester developer  for an electronic company.

The idea for this project born with my problem to test digital ICS such ADC,DAC and memories.  I always found myself wasting a lot of time writing software to test every component and every program was different. So i decided to develop this project that helps anyone who has to do with many digital components.

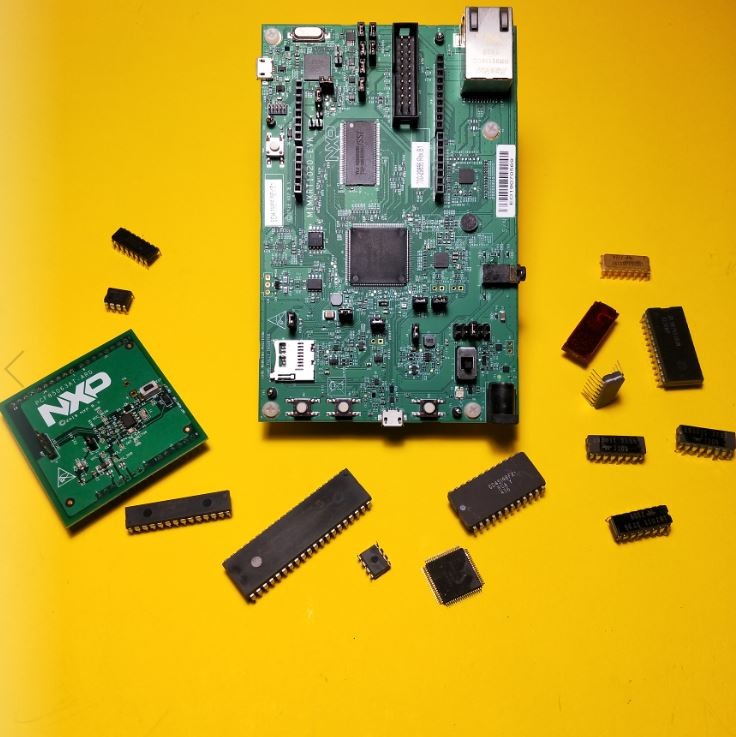

The IMX Multiprotocol for NIMXRT1020-EVK is an embedded software solutions that allows you to transfer data from USB to all the main digital interfaces - UART, I2C and SPI.This project will help you to analyze and debug all the main digital and analog IC’s as well as lot of IOT and RF demoboard, saving you the time to develop a custom firmware, or buying expensive data converters.

It works with only the evaluation kit, some jumpers and your hardware!



Code

www.github.com

Schematics, BOM, Documents and Gerbers are located in the git repository. https://github.com/Stulinaz/IMX_MULTIPROTOCOL
