Image Captioning For The Visually Impaired And Blind People

About the project

This project aims to improve accessibility for visually impaired and blind people by developing a novel image captioning system.

Project info

Difficulty: Difficult

Platforms: IntelNVIDIA JetsonSeeed StudioNVIDIA

Estimated time: 7 hours

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

Intel RealSense Camera Intel RealSense Camera x 1
Seeed Studio reComputer Jetson-20-1-H2 with Jetson Xavier NX 16 GB module, Aluminium case, pre-installed JetPack System Seeed Studio reComputer Jetson-20-1-H2 with Jetson Xavier NX 16 GB module, Aluminium case, pre-installed JetPack System x 1

Software apps and online services

Arduino IDE Arduino IDE
Edge Impulse Edge Impulse

Story

Blind and visually impaired individuals often encounter a variety of socioeconomic challenges that can hinder their ability to live independently and participate fully in society. However, the advent of machine learning has opened up new possibilities for the development of assistive technologies. In this study, we utilized image captioning and text-to-speech technologies to create a device that assists those who are visually impaired or blind. Image captioning combined with text-to-speech technology can serve as an aid for the visually impaired and blind.

Furthermore, I would like to share my experience on optimizing a deep learning model with TensorRT to improve its inference time. For more information, please refer to the preprint available on TechRxiv titled: Image Captioning for the Visually Impaired and Blind: A Recipe for Low-Resource Languages.

For simplicity we will assume everything is installed.

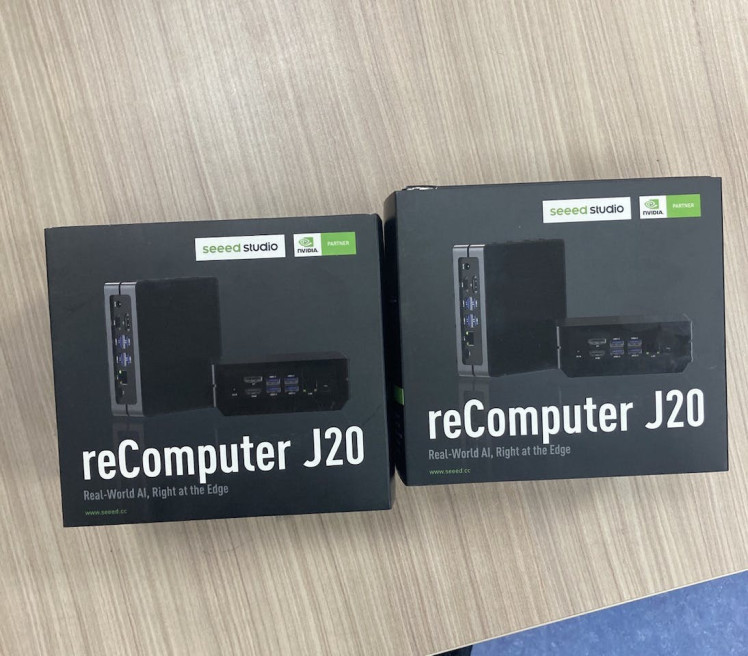

As Single Board Computers (SBC) are becoming increasingly popular to run AI and Deep learning projects, some have even been specially designed just to run AI and Deep learning stuff. We utilized a reComputer NVIDIA Jetson Xavier NX from SeeedStudio (@seeedstudio), as the brain of our system. reComputer J20 comes with Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance compute and AI in embedded and edge systems.

NVIDIA Jetson devices are compact and energy-efficient are capable of executing machine learning algorithms in real-time. Nevertheless, it can be difficult to deploy intricate deep learning models on these devices, which have limited memory. To overcome this, we utilized inference optimization tools like TensorRT, which enable us to execute deep learning models on edge devices by reducing the memory footprints.

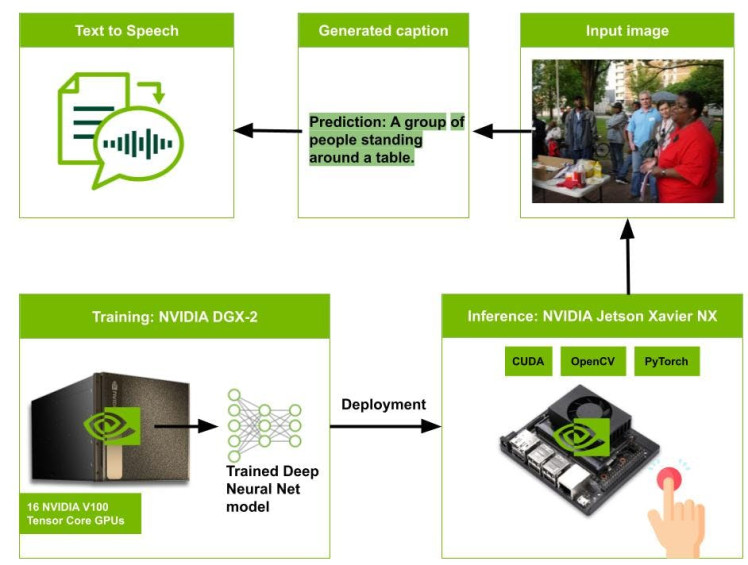

Image Captioning Model deployment pipeline

We used the popular Microsoft COCO 2014 (COCO) benchmark dataset to train the ExpansionNet v2 image captioning model. The dataset consisted of 123, 287 images, with each image having five human-annotated captions, resulting in a total of over 600, 000 image-text pairs. We split the dataset into training (113, 287 images), validation (5, 000 images), and test (5, 000 images) sets, using the Karpathy splitting strategy for offline evaluation. To generate captions in Kazakh, we translated the original English captions using the freely available Google Translate service.

To train the model for Kazakh captions, we followed the model architecture defined in the original work of the ExpansioNet v2. The pre-trained Swin Transformer was used as a backbone network to generate visual features from the input images. The model was trained on four V100 graphics processing units (GPUs) in Nvidia DGX-2 server.

Finally, the image captioning model, ExpansionNet v2, was deployed on the Nvidia Jetson Xavier NX board. The camera was triggered by pressing the push button to capture an RGB image with a resolution of 640 × 480 pixels. Then, the captured image was resized to 384 × 384 and passed to the ExpansionNet v2 model to generate a caption. Next, the generated caption text was converted into audio, using a text-to-speech model. In our research study, we utilized the KazakhTTS model to convert Kazakh text to speech. Finally, the generated audio was played through the user’s headphones, making it possible for individuals who are blind or visually impaired to comprehend what is in front of them.

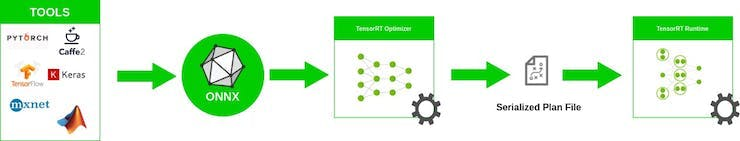

ONNX overview

Source: https://developer-blogs.nvidia.com/wp-content/uploads/2021/07/onnx-workflow.png

Source: https://developer-blogs.nvidia.com/wp-content/uploads/2021/07/onnx-workflow.png

ONNX is an open format for machine learning and deep learning models. It allows you to convert deep learning and machine learning models from different frameworks such as TensorFlow, PyTorch, MATLAB, Caffe, and Keras to a single format.

The workflow consists of the following steps:

  • Convert the regular PyTorch model file to the ONNX format. The ONNX conversion script is available here.
  • Create a TensorRT engine using trtexec utility
trtexec --onnx=./model.onnx --saveEngine=./model_fp32.engine --workspace=200
  • Run inference from the TensorRT engine.

Inference Optimization using TensorRT

TensorRT is a high-performance deep learning inference engine developed by NVIDIA. It optimizes neural network models and generates highly optimized inference engines that can run on NVIDIA GPUs. TensorRT uses a combination of static and dynamic optimizations to achieve high performance, including layer fusion, kernel auto-tuning, and precision calibration.

PyTorch, on the other hand, is a popular deep learning framework that is widely used for research and development. PyTorch provides a dynamic computational graph that allows users to define and modify their models on the fly, which makes it easy to experiment with different architectures and training methods.

It appears that the TensorRT model is providing faster inference results compared to the PyTorch model. The TensorRT model is taking around 50% less time to process the images compared to the PyTorch model, even though it has a smaller file size.

In a nutshell, if speed and efficiency are your primary concerns, then TensorRT may be a better choice. This is fast enough for most real-time object detection applications.

During the inference process, you can check the current performance of the Nvidia Jetson boards using jetson-stats utility. You can monitor the resources that your models are using in real time and get maximum utilization out of your hardware.

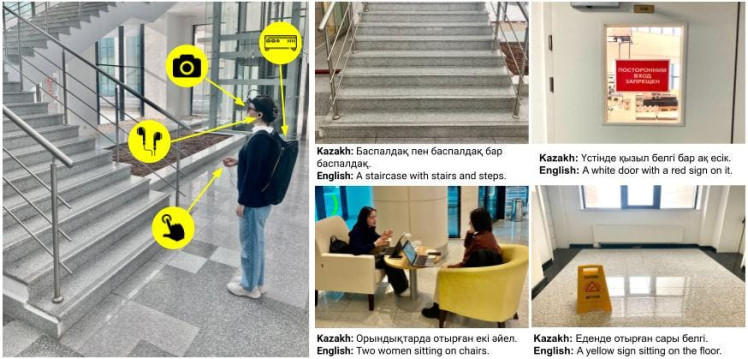

A real-world experiment with a human subject wearing the image captioning assistive device

This figure illustrates the real-world experiment of our image captioning assistive system, which comprised a camera, a single-board deep learning computer (Nvidia Jetson Xavier NX), a push button, and headphones.

A real-world experiment with a human subject wearing the image captioning assistive device

A real-world experiment with a human subject wearing the image captioning assistive device

A real-world experiment with a human subject wearing the image captioning assistive device

The camera was connected to the single-board computer through a universal serial bus (USB), while the push button and headphones were connected to the general-purpose input/output (GPIO) pins and audio port of the single-board computer, respectively. The camera was secured to the user's forehead using adjustable straps, while the user carried the single-board computer (and a power bank) in a backpack and wore the headphones during operation.

Conclusion and further improvements

Visually impaired and blind individuals face unique challenges in their daily lives, including the inability to independently access visual information. Image captioning technology has shown promise in providing assistance to this community.

In addition to the existing image captioning and text-to-speech technologies, we aim to incorporate Visual Question Answering (VQA) functionality into our assistive device for the visually impaired and blind. This will enable users to ask questions about the images and receive spoken answers.

To further optimize our deep learning model and improve its performance, we will perform quantization from FP32 to FP16 or INT8. This will reduce the memory footprint and computation time required for inference, making our assistive device more efficient.

If you are interested in our project, please consider adding a star to our repository on github. Thanks a lot!

I hope you found this research study useful and thanks for reading it. If you have any questions or feedback, leave a comment below. Stay tuned!

Acknowledgements

Code

ExpansionNet v2 model trained on the COCO dataset with captions

ExpansionNet v2 model trained on the COCO dataset with captions translated into Kazakh

Credits

Photo of shakhizat

shakhizat

I am a hardcore robotics and IoT enthusiast. You can reach me through email: shahizat005@gmail.com
