Digital Road Studs Based On Mesh Tecnology

Photo of akshaymhaske

Made by akshaymhaske / IoT

About the project

Digital road studs will used at zebra crossing line. it consist of three to four pair of stud which connected to each other through ble mesh technology.They change LED colour according to command given by central BLE board. Further central BLE board is connected to ---->main control board having internet functionality.

Project info

Difficulty: Moderate

Platforms: Cypress

Estimated time: 5 hours

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

CYW20819 BLE Mesh 5.0 Kit CYW20819 BLE Mesh 5.0 Kit x 1
LED - Basic Red 3mm LED - Basic Red 3mm RED,GREEN colour required x 4

Software apps and online services

cypress BLE Beacon cypress BLE Beacon

Story

 Many times i observed in India is that after Red traffic signal on road  still people cross zebra crossing line  and violence the traffic rules. i get an idea why we can not make digital two color traffic stud which operated  wireless based on BLE mesh technology which having Red and Green color and placed this road studs on zebra crossing line so people get alertness of red and green signal and they will not cross this line

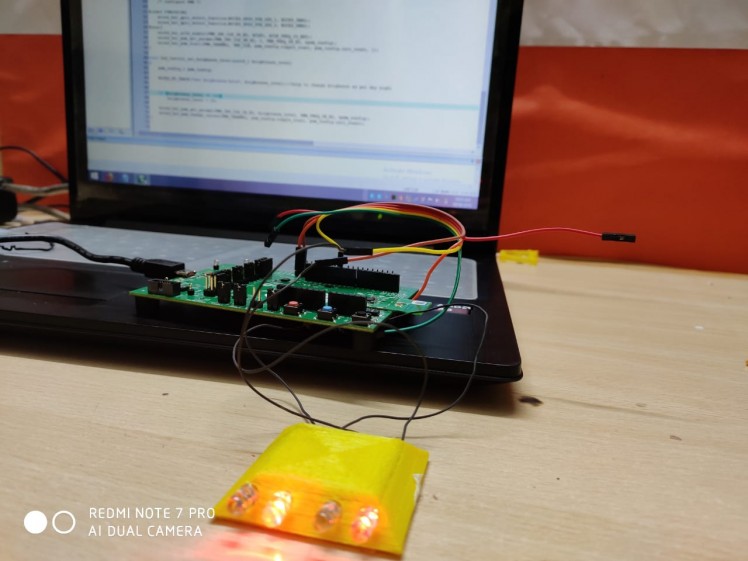

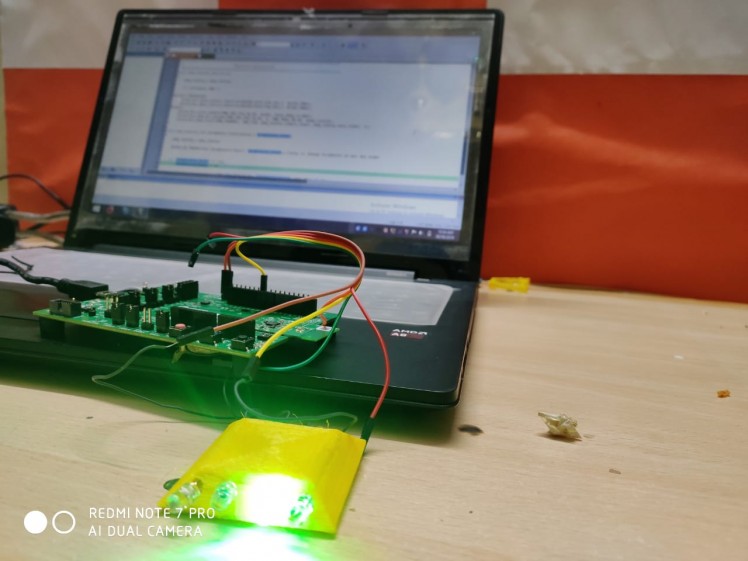

Digital road studs will used at  zebra crossing line. it consist of three to four pair of stud which connected to each other through ble mesh technology.They change LED color according to command given by central BLE board. Further central BLE board(CYW20819) is connected to ---->main traffic signal  control board . in real time application it is powered by Solar Energy .

         This advanced improved road studs will help to avoid any traffic rule violation like crossing of zebra crossing line during red signal etc.This can be used in many traffic,road,safety applications.
