World's Easiest Gpt-like Voice Assistant

About the project

The World's Easiest GPT-like Voice Assistant uses an open-source LLM to respond to verbal requests, and it runs 100% locally on a RasPi 4.

Project info

Difficulty: Easy

Platforms: Raspberry Pi

Estimated time: 2 hours

License: MIT license (MIT)

Items used in this project

Hardware components

Raspberry Pi 4 Model B Raspberry Pi 4 Model B x 1

Story

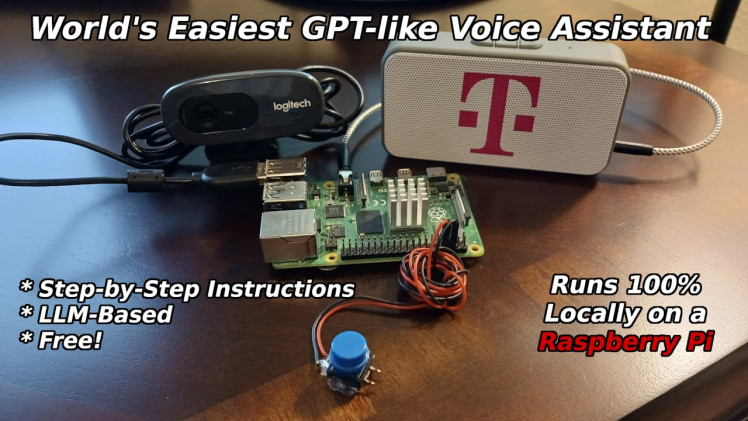

The World's Easiest GPT-like Voice Assistant uses an open-source Large Language Model (LLM) to respond to verbal requests, and it runs 100% locally on a Raspberry Pi.

My ChatGPT-powered voice assistant has received a lot of interest, with many requests being made for a step-by-step installation guide. I never got around to writing up the guide, and now the methods used are a bit dated and technology has advanced. As such, I have decided to build an updated LLM-based voice assistant, and this time, also provide full instructions.

This time around, the voice assistant runs fully locally on a Raspberry Pi 4 — no Internet connectivity or cloud-based services are needed. It is also very easy to set up, so I named it the World's Easiest GPT-like Voice Assistant, which is almost certainly not true. But it is at least close to the truth, and it gets the point across in few words, so please go easy on me. :)

How It Works

On pressing a pushbutton, audio will be recorded through a USB microphone. That audio will be forwarded into the Whisper automatic speech recognition software, which generates a transcript of the audio. The transcript is used to prompt a TinyLlama-1.1B (1.1 billion parameter) LLM that has been packaged up as a llamafile. If you are not familiar with llamafile yet, it is well worth checking out. They are entirely self-contained LLM-based chatbot executables that run on multiple hardware architectures and operating systems.

The response from the LLM is then forwarded into the free and open-source eSpeak speech synthesizer to produce audio that is played on a speaker connected to the Raspberry Pi.

After setup is complete, the Raspberry Pi can be completely disconnected from the Internet. Everything runs 100% locally, keeping your conversations private. There is a price to pay for this, however. A brief request can easily take 15 seconds of processing (on a Pi 4) before the response is ready. And, of course, if you make a complicated request, or ask for a lengthy story to be generated, it will take longer yet.

Instructions
  • Write Ubuntu Server 22.04.3 LTS (64-bit) to an SD card with the Raspberry Pi Imager software.Raspberry Pi OS is incompatible with llamafile, unless you are using a Raspberry Pi 5 or build a custom kernel.

On the Raspberry Pi:

sudo apt update
sudo apt install ffmpeg
sudo apt install espeak
sudo apt install python3-pip
sudo apt install python3-pyaudio
pip3 install openai openai-whisper RPi.GPIO pyaudio

git clone https://github.com/nickbild/local_llm_assistant
cd local_llm_assistant
wget https://huggingface.co/jartine/TinyLlama-1.1B-Chat-v1.0-GGUF/resolve/main/TinyLlama-1.1B-Chat-v1.0.Q5_K_M.llamafile?download=true
mv TinyLlama-1.1B-Chat-v1.0.Q5_K_M.llamafile?download=true TinyLlama-1.1B-Chat-v1.0.Q5_K_M.llamafile
chmod 755 TinyLlama-1.1B-Chat-v1.0.Q5_K_M.llamafile
  • Plug a speaker into the headphone jack
  • Plug in a USB microphone
  • Wire a pushbutton to pins 6 and 8 (BOARD numbering scheme)

Start up the LLM with:

./TinyLlama-1.1B-Chat-v1.0.Q5_K_M.llamafile

Then, in a different window, start the voice assistant software:

python3 chatbot.py

Wait a few seconds until you see the "Ready..." message, then press the button when you want to talk. When you see the "recording" message, speak your request. After the LLM completes its work, the response will be spoken through the speaker.

NOTE: The first time that you run this script, the speech-to-text model will need to be downloaded, so have patience. It will be cached locally for future runs.

Media

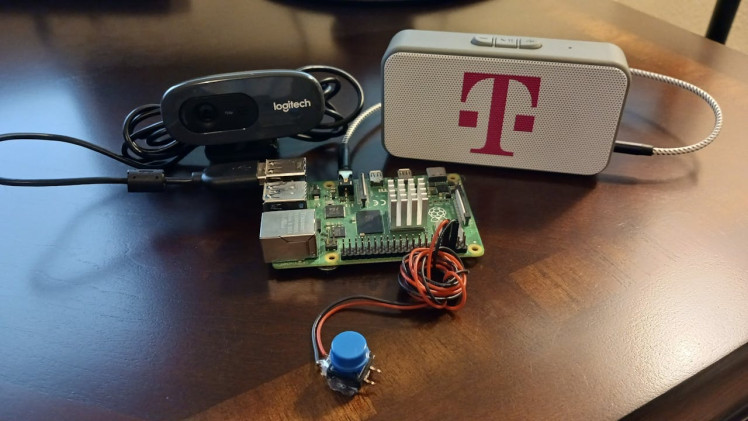

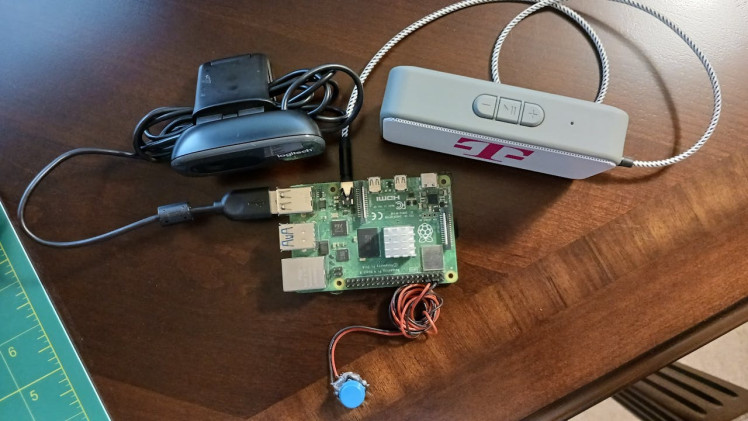

Bill of Materials
  • 1 x Raspberry Pi 4 (a Pi 5 should also work great, but has not been tested)
  • 1 x USB microphone (I'm using a webcam's microphone)
  • 1 x Speaker with TRS plug input
  • 1 x Pushbutton
