Crowpanel Game Interface For Ai Learning

This project demonstrates how you can extend the functionality of existing devices or seemingly finished products using CrowPanel. It’s built around the CrowPanel Advance (available in 3.5", 5" or 7" versions), and integrates with a partner product from Elecrow — the Teacher 3+ English learning game, included in the GRC-AI Robot Control Kit.

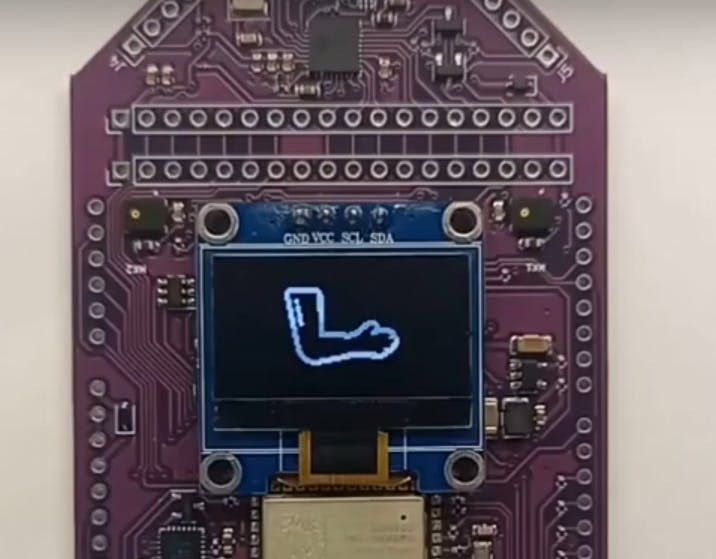

Teacher 3+ is an educational voice-interactive app for young children, powered by the GRC AI DevBoard. It uses pictures, sounds, and simple math exercises (addition and subtraction up to 20) to build vocabulary and pronunciation skills in a natural and engaging way.

Children answer aloud, and the AI determines if the response is correct. If unsure, they can skip or ask for a hint — the word appears on screen with correct pronunciation.

Numbers (0–10)AnimalsNaturePeopleEveryday Objects

Builds vocabulary and speaking confidenceEncourages active verbal learningSupports multisensory learning (visual, audio, speech)Includes simple math logic

By itself, Teacher 3+ lacks a true game loop — there's no scoring system or time-based challenge.

To address this, we enhanced the setup with CrowPanel. It connects to the GRC AI DevBoard via Bluetooth and starts communicating with the C3 microcontroller inside. Here’s what CrowPanel adds:

• Live feedback on correct and incorrect answers
• Score counters and visual indicators on screen
• Automatic app launching: CrowPanel switches the DevBoard into Teacher 3+ mode upon connection
• Game control UI: Choose between all words or specific categories, and pause the game when needed

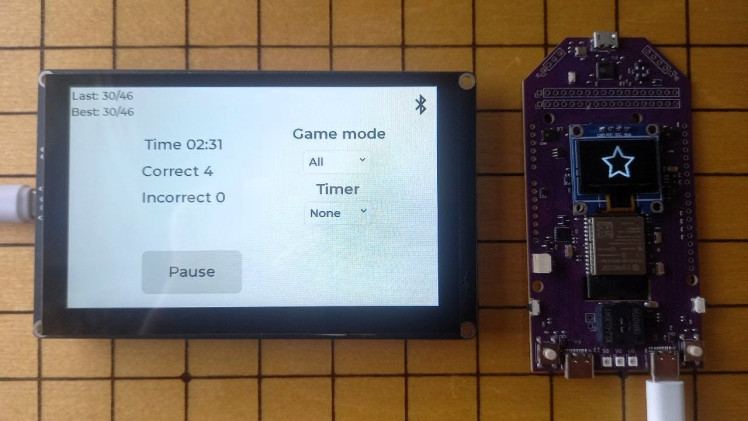

A screenshot shows how the user interface looks during gameplay.

We’ve published the full source code and precompiled firmware for CrowPanel on GitHub. You can use it as-is or adapt it to your own project needs.The interaction process is described in detail in the README file on GitHub.

You can either install a prebuilt firmware or build it manually from source.

1. Download the firmware archive from the Releases section

2. Unzip the contents3. Run FlashTool.exe

4. Follow on-screen instructions

Compatible with CrowPanel Advance 5", and 7" versions

Visual Studio Code

ESP-IDF extension

ESP-IDF v5.4

Open project folder in VS Code

Press F1 → Run ESP-IDF: Build your project


After successful build → Run ESP-IDF: Flash your project via UART

Optional: Use the monitor tool to view runtime logs

With this project, we turn a basic language-learning toy into a smart, voice-interactive game system with real-time feedback, scoring, and full touch-panel control — all thanks to CrowPanel.
